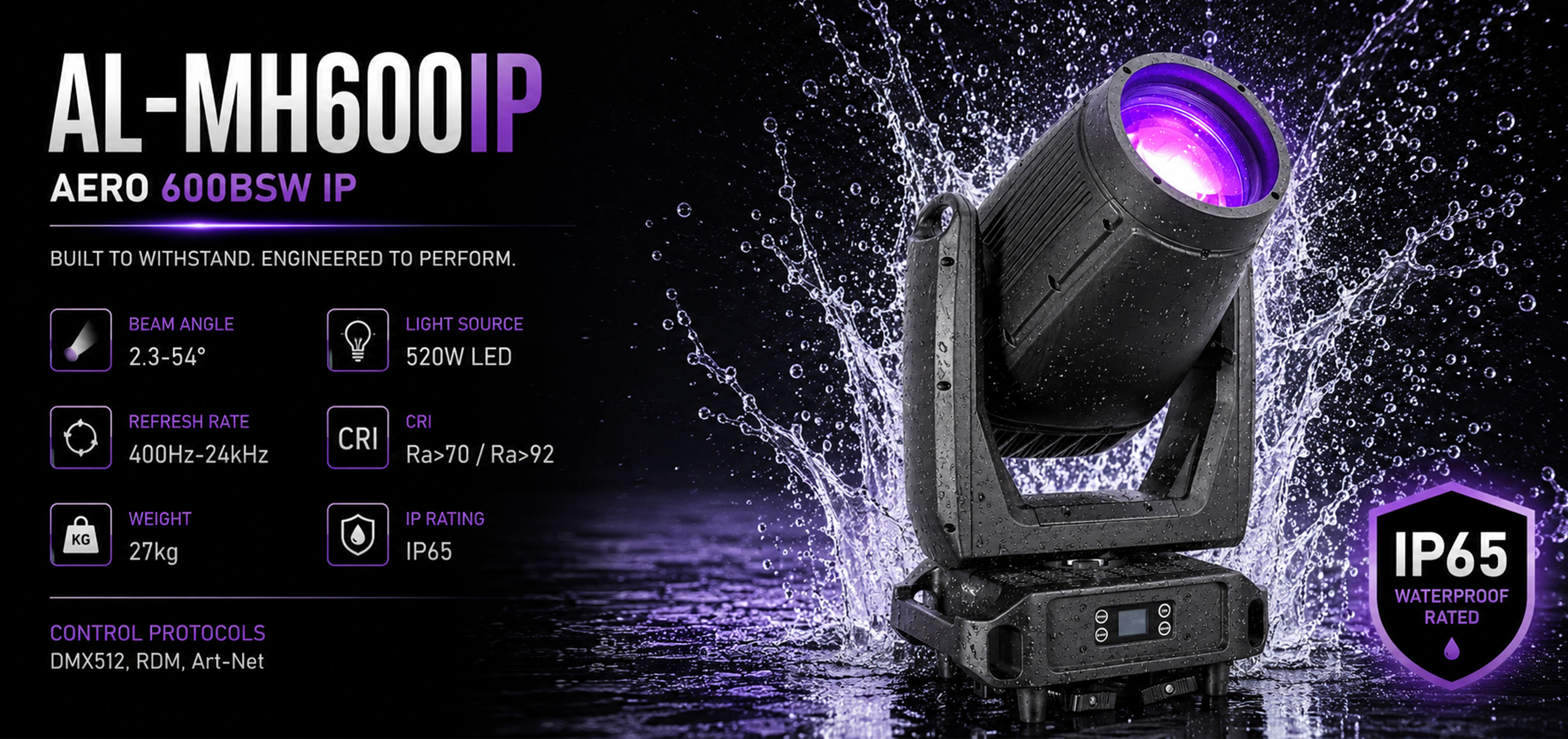

- Beam angle2.3-54°
- Light source520W LED
- Refresh rate400Hz-24kHz
- CRIRa> 70/Ra> 92
- Weight27kg
- IP RatingIP65
Technical Specifications
Light Source & Optical System
Light Source: 600W High-Brightness LED
LED Rated Power: 600W
Luminous Flux: 26,800 lm (Typical output)

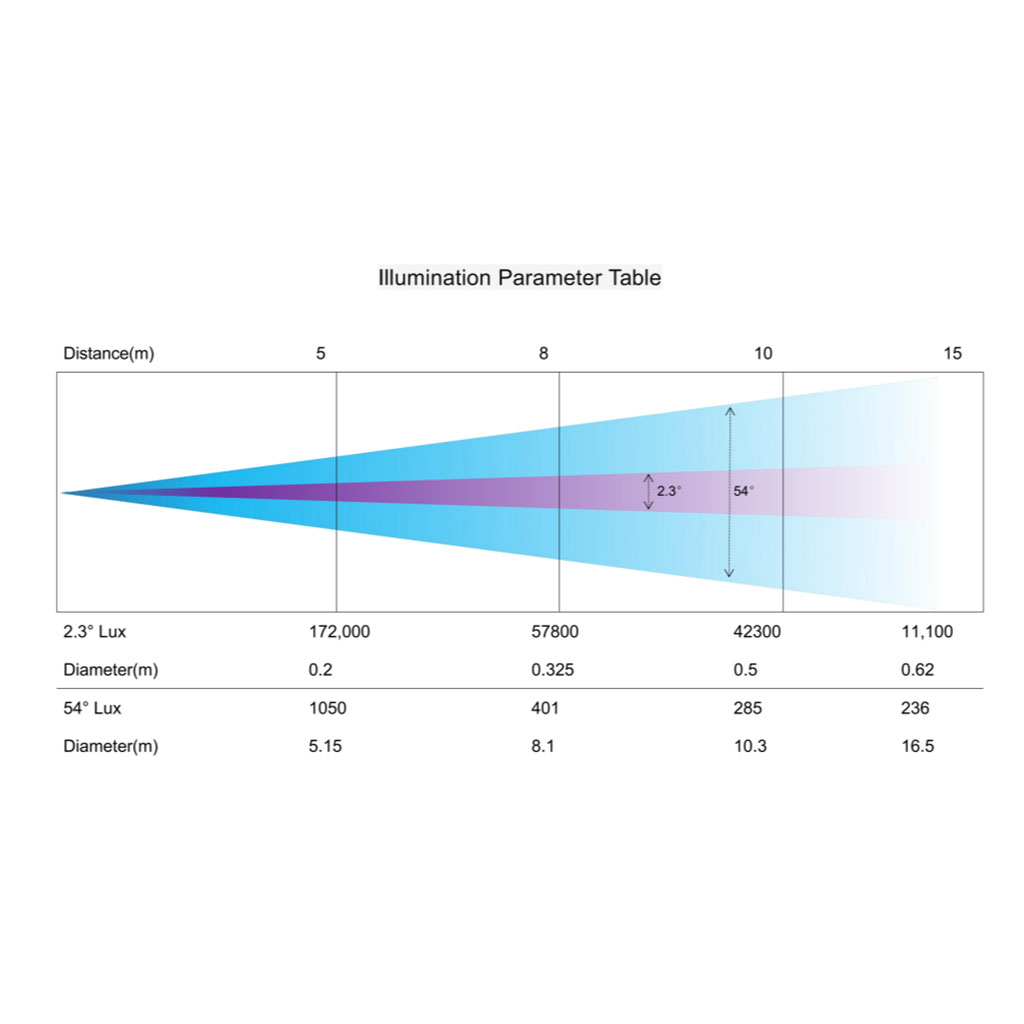

Beam Angle: 2.3° - 54°
Colors & Gobos
Color Mixing: Smooth linear CMY color mixing system
Variable CTO: Linear color temperature correction (3,000K – 6,500K)
Color Wheel: 9 dichroic colors + High CRI filter + Open (half-color and rainbow effects supported)
CRI: Ra70 (High-Brightness Mode) / Ra92 (High-CRI Mode)
Rotating Gobo Wheel: 10 interchangeable, bi-directional rotating gobos + Open (Slot-and-lock design for easy replacement)
Static Gobo Wheel: 14 static gobos + open
Effects & Movement
Animation Wheel: Continuous bi-directional rotating animation wheel
Prisms: Dual bi-directional rotating prisms, fully stackable for multi-beam effects
Frost: Advanced linear frost system with high-transmittance material for even wash coverage
Movement (Pan/Tilt): Pan: 540°, Tilt: 260°, 8/16-bit precision
Control & Programming

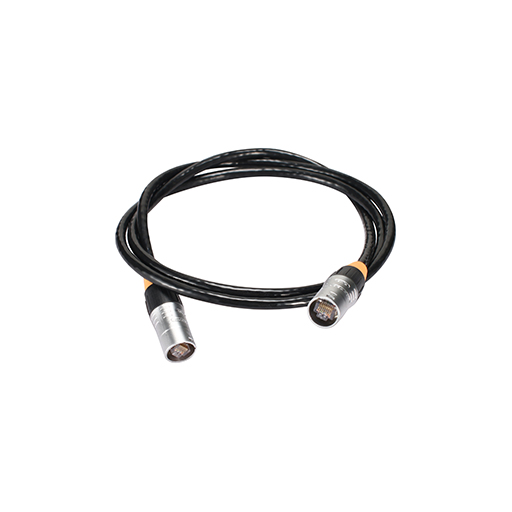

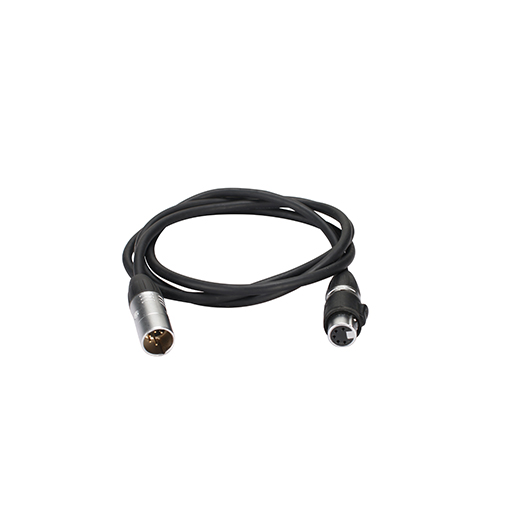

Control Protocols: DMX512, RDM, Art-Net, sACN (SCAN)
Control Channels: 25 CH / 35 CH
Display & Interface: 4 touch button control panel with LCD display
Refresh Rate: 400Hz – 24kHz
Frequency: 1kHz – 25kHz
Electrical & Physical
Input Voltage: AC 100V–240V, 50Hz/60Hz
Max. Power: 750W @230V / 780W @110V
Rated Power: 700W @230V / 720W @110V
Standby Power: 85W @230V / 90W @110V
Input Current: 3.3A @230V / 7A @110V

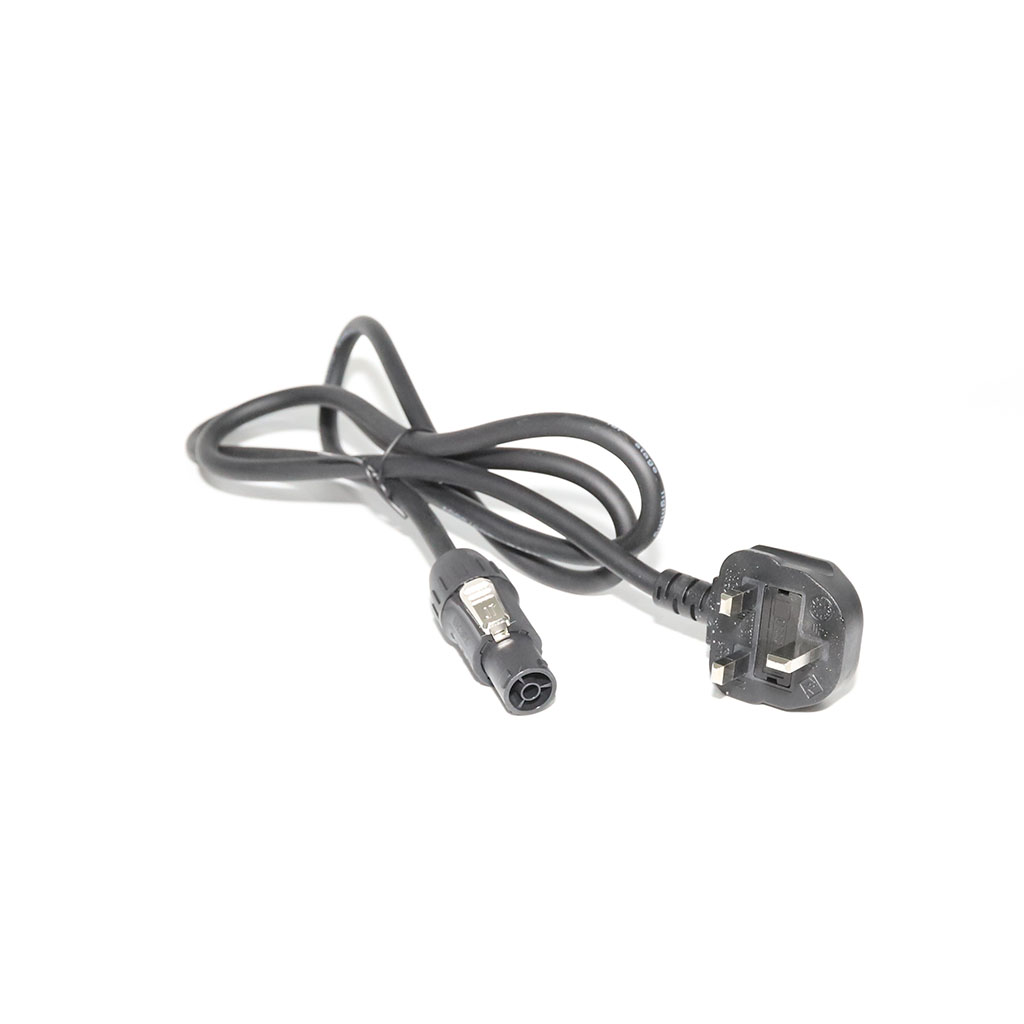

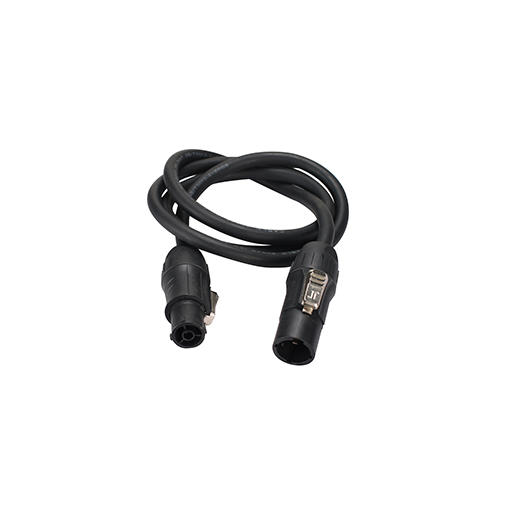

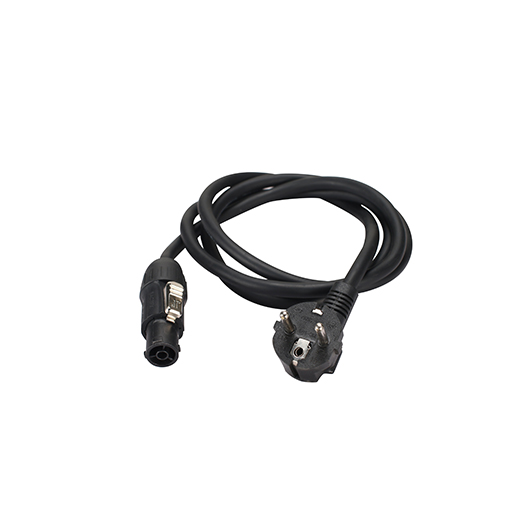

Power Output Connection: 12A @220V–240V / 8A @100V–120V
Power Factor (PF): ≥97%

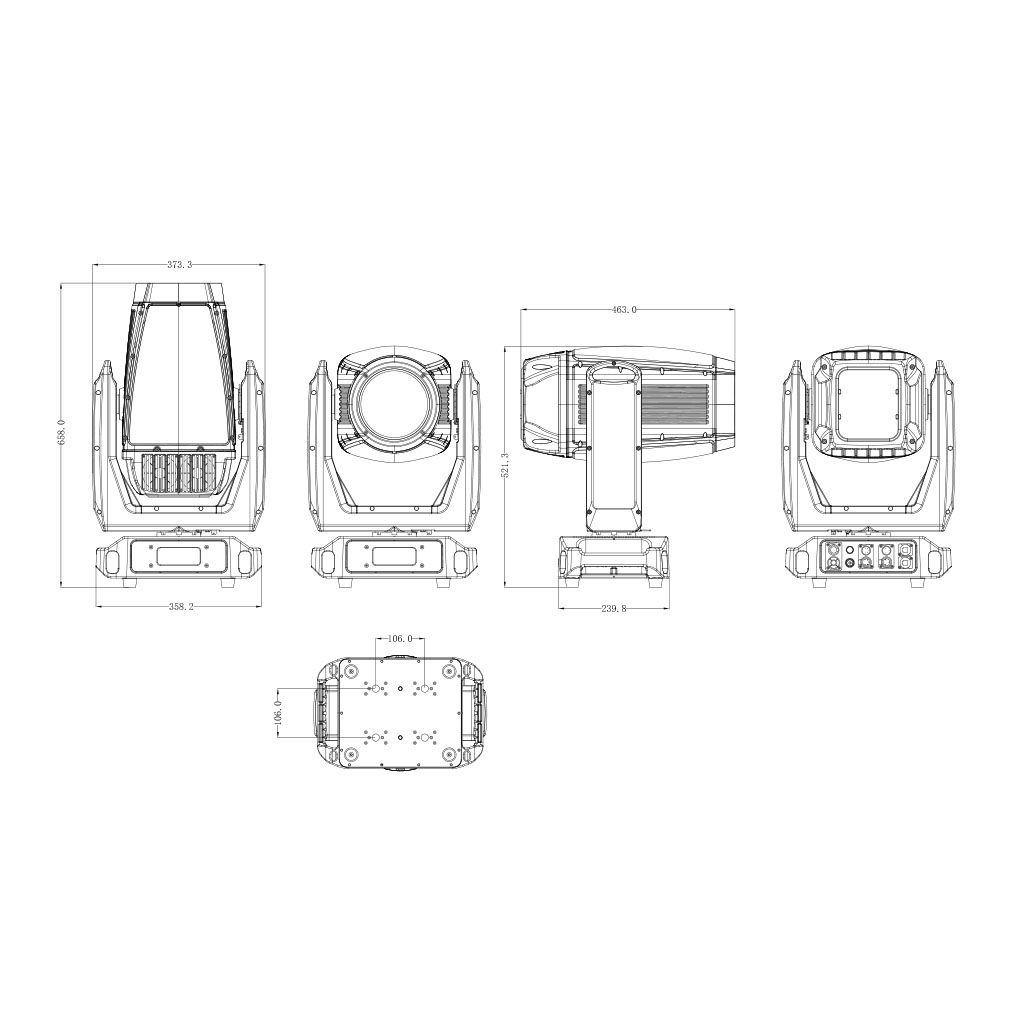

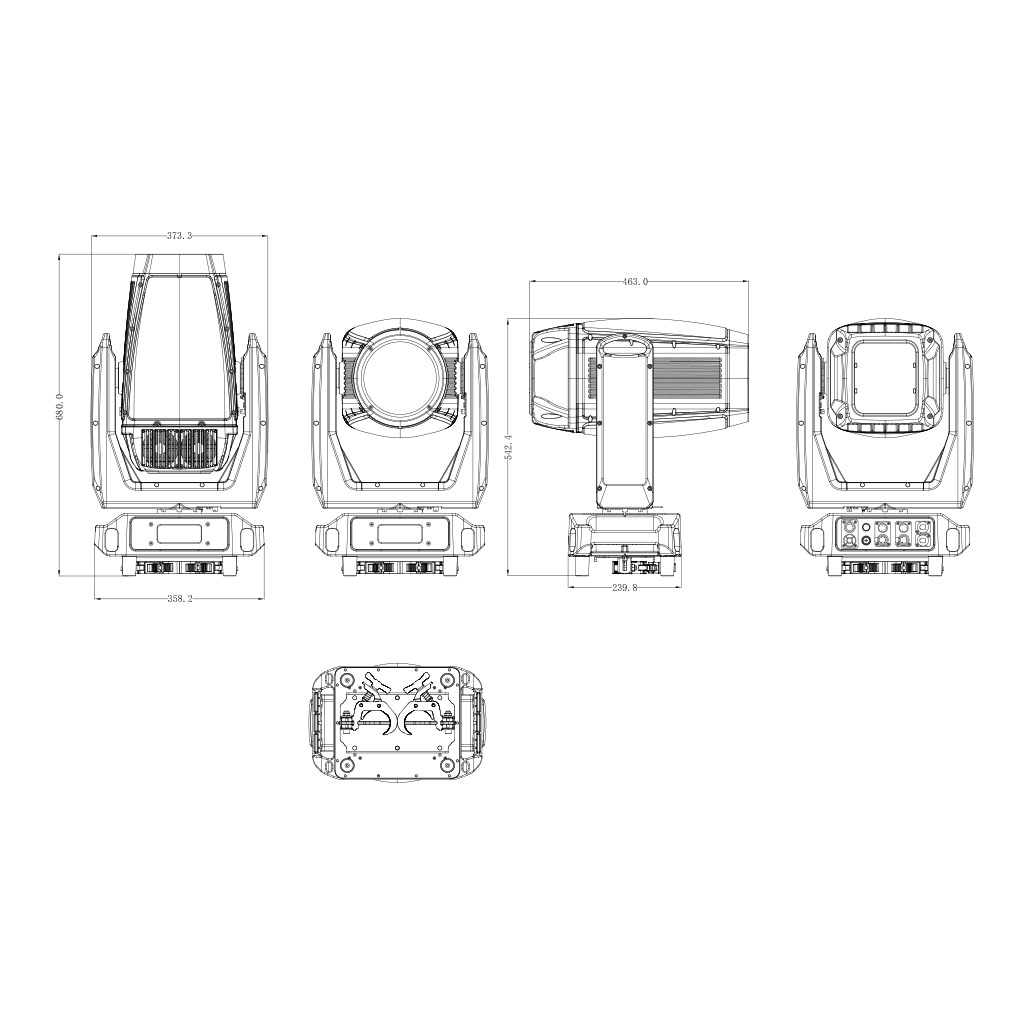

Dimensions: 358 x 240 x 690 mm
Weight: N.W: 27 kg / G.W: 29 kg
Operating Temp: -20°C to 45°C
IP Rating: IP65
ADVANCED PRODUCT FEATURES

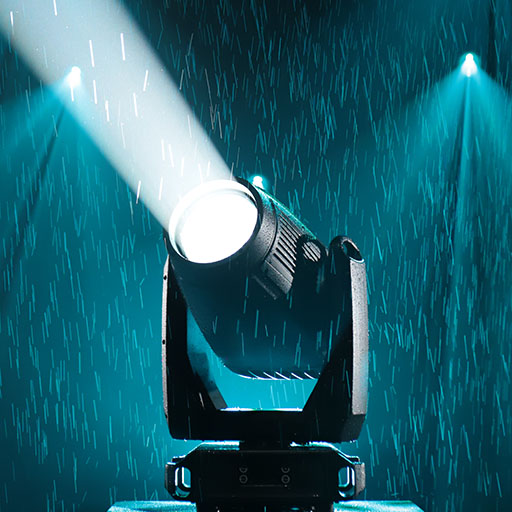

IP65 WEATHERPROOF PROTECTION

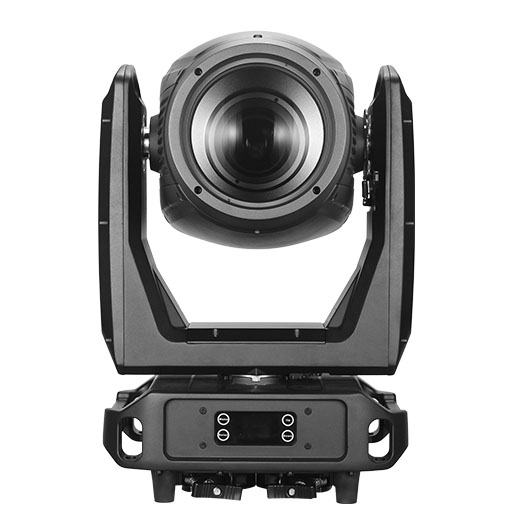

Constructed with a heavy-duty, meticulously sealed IP65-rated structural enclosure, the AL-MH600IP hybrid moving head offers absolute defense against heavy rain, dust storms, and heavy humidity. It guarantees uncompromised operational stability and electrical safety for high-profile outdoor festivals, sports arena touring, and stadium event designs.
ROTATING GLASS GOBO WHEEL
The precision-engineered static gobo wheel offers an extensive array of sharp geometric patterns and break-up textures. Optimized for high-intensity aerial beam styling, it allows lighting designers to craft solid mid-air structures and high-speed rhythmic pattern shifts that perfectly synchronize with massive concert stage energy.
ROTATING FIXED GOBO WHEEL
Featuring interchangeable, high-definition glass gobos with ultra-smooth bi-directional rotation and precise index positioning. This dynamic optical component generates crisp texture overlays and volumetric graphic morphing effects, expanding the scenic design possibilities for premium theatrical stages and large rental event productions.
PRECISION BSW HYBRID ZOOM

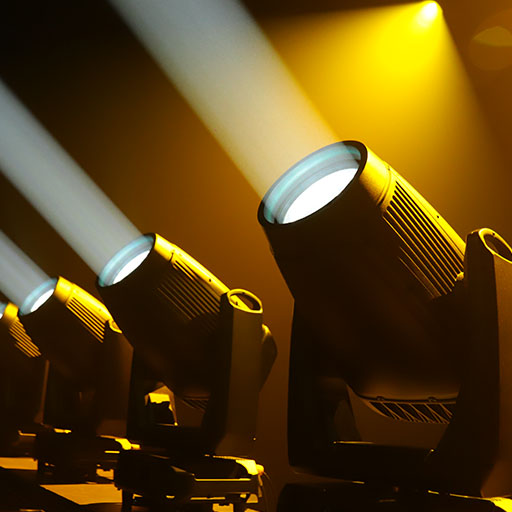

Driven by an advanced multi-group optical lens system, the fixture delivers a broad, highly linear motorized zoom and focus curve. It transitions seamlessly between a sharp, condensed long-throw beam effect and a wide, uniform spot projection, providing absolute optical clarity and maximum candlepower at any throw distance.
LINEAR CMY COLOR MIXING
The professional-grade Cyan, Magenta, and Yellow (CMY) color blending engine enables an infinite spectrum of smooth color transitions. From subtle, delicate pastels required in corporate event lighting to deep, hyper-saturated solid colors tailored for festival mainstages, it ensures immaculate color field rendering.
LINEAR CTO TEMPERATURE CONTROL
Equipped with a dedicated independent linear CTO filter, the fixture delivers seamless, stepless color temperature adaptation. It effortlessly calibrates the output from an intense daylight white down to a warm tungsten glow, optimizing skin-tone balance for professional HD broadcasting, outdoor television studios, and theaters.
LINEAR HEAVY FROST EFFECT
An advanced motorized linear frost system provides smooth, proportional diffusion control. It converts the hard-edged spot profile into a beautifully soft, wide-expanding wash field, making the AL-MH600IP a true BSW hybrid that can effortlessly fulfill wash lighting duties on complex stage designs.
