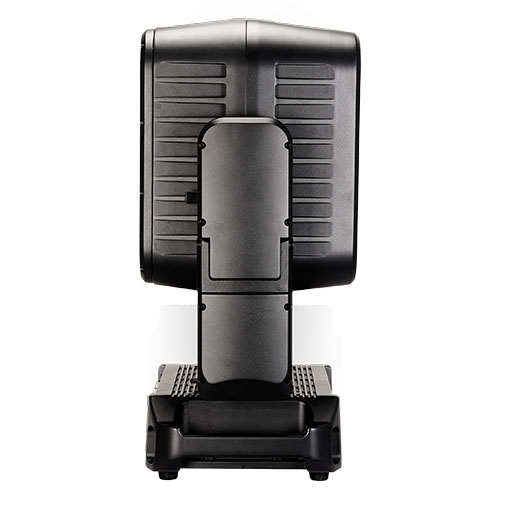

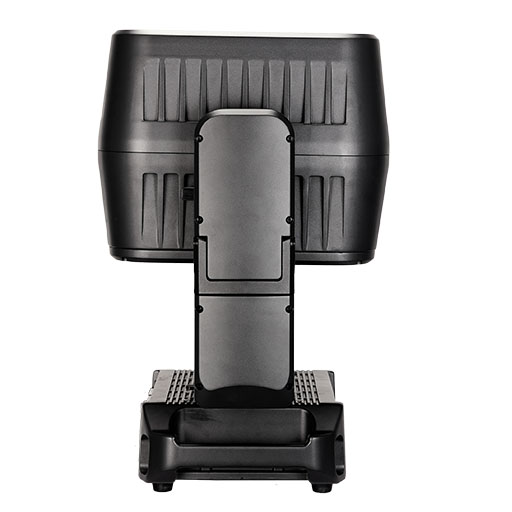

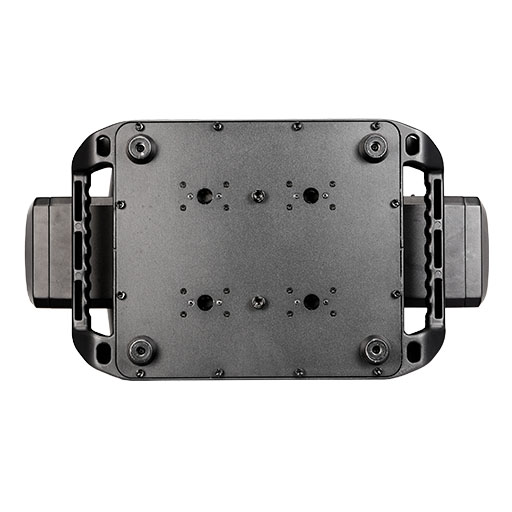

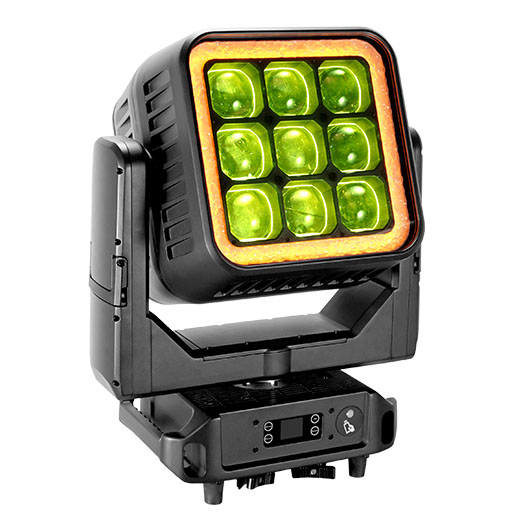

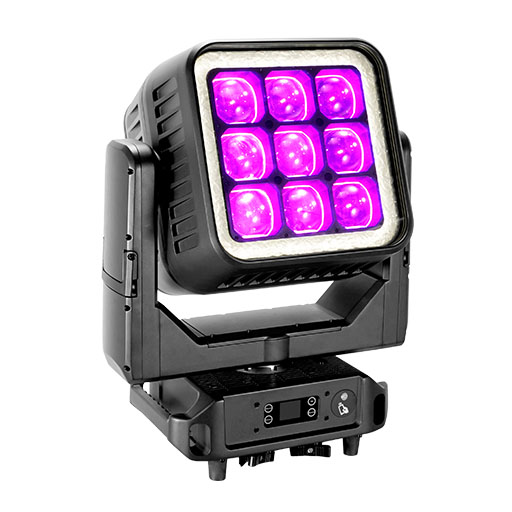

Product Images

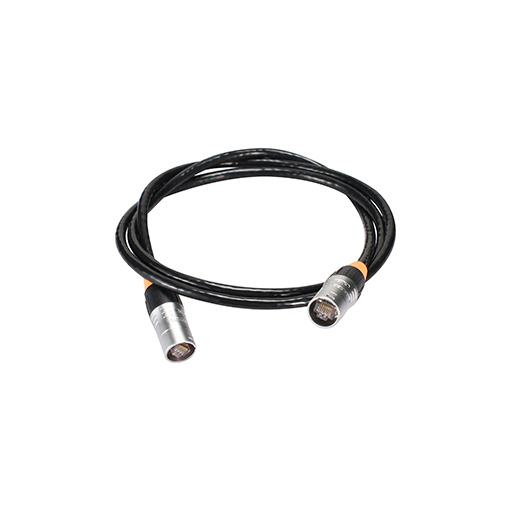

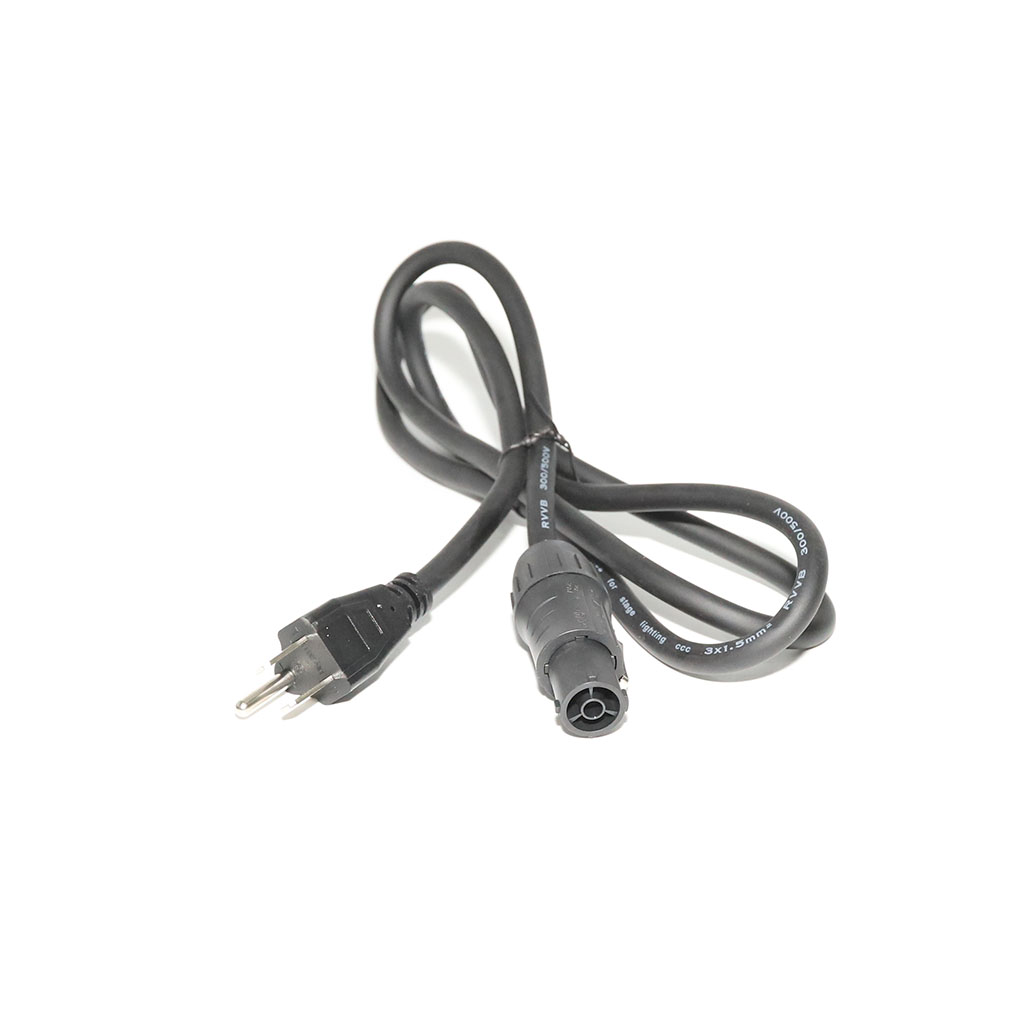

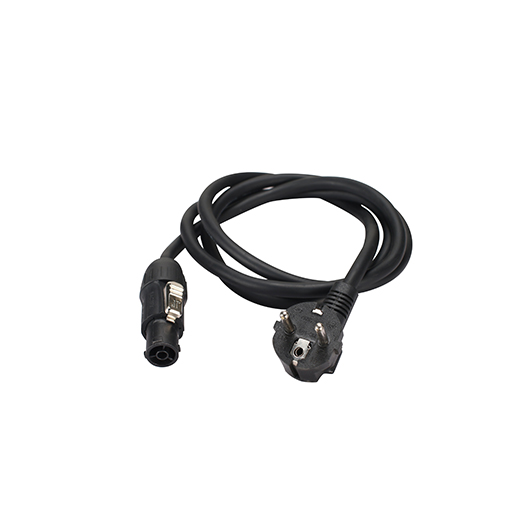

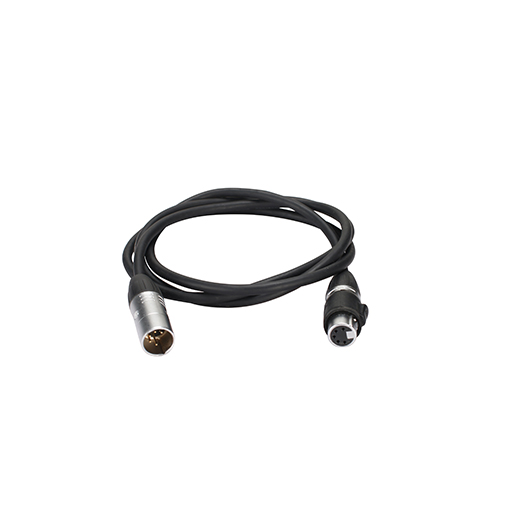

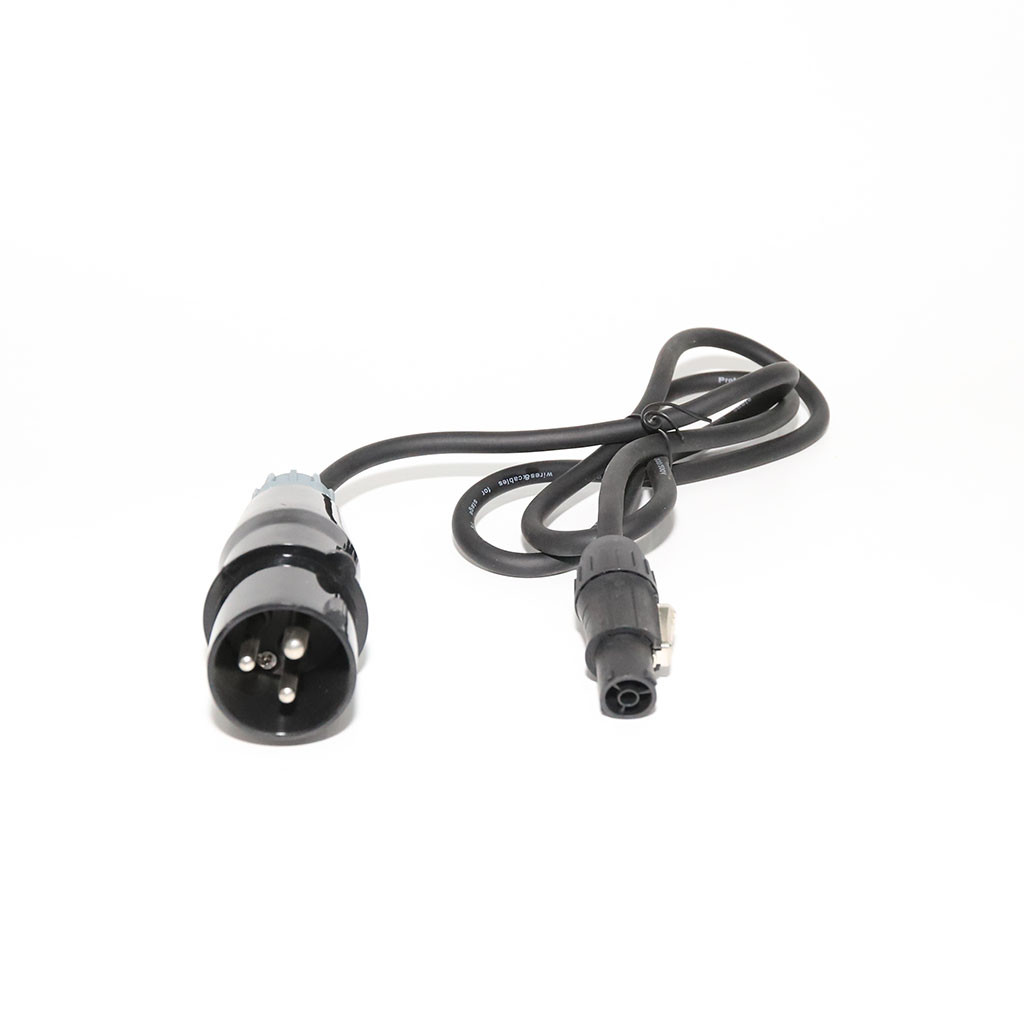

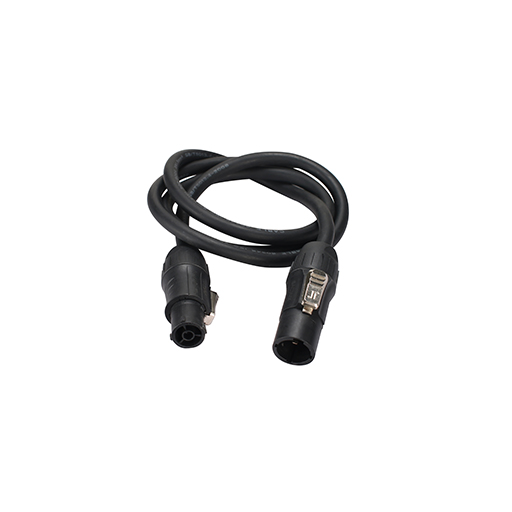

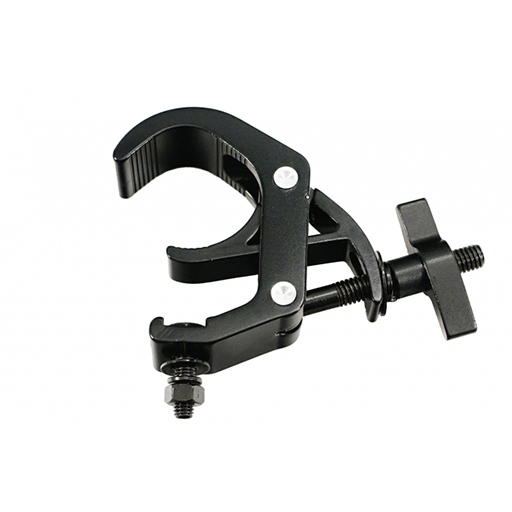

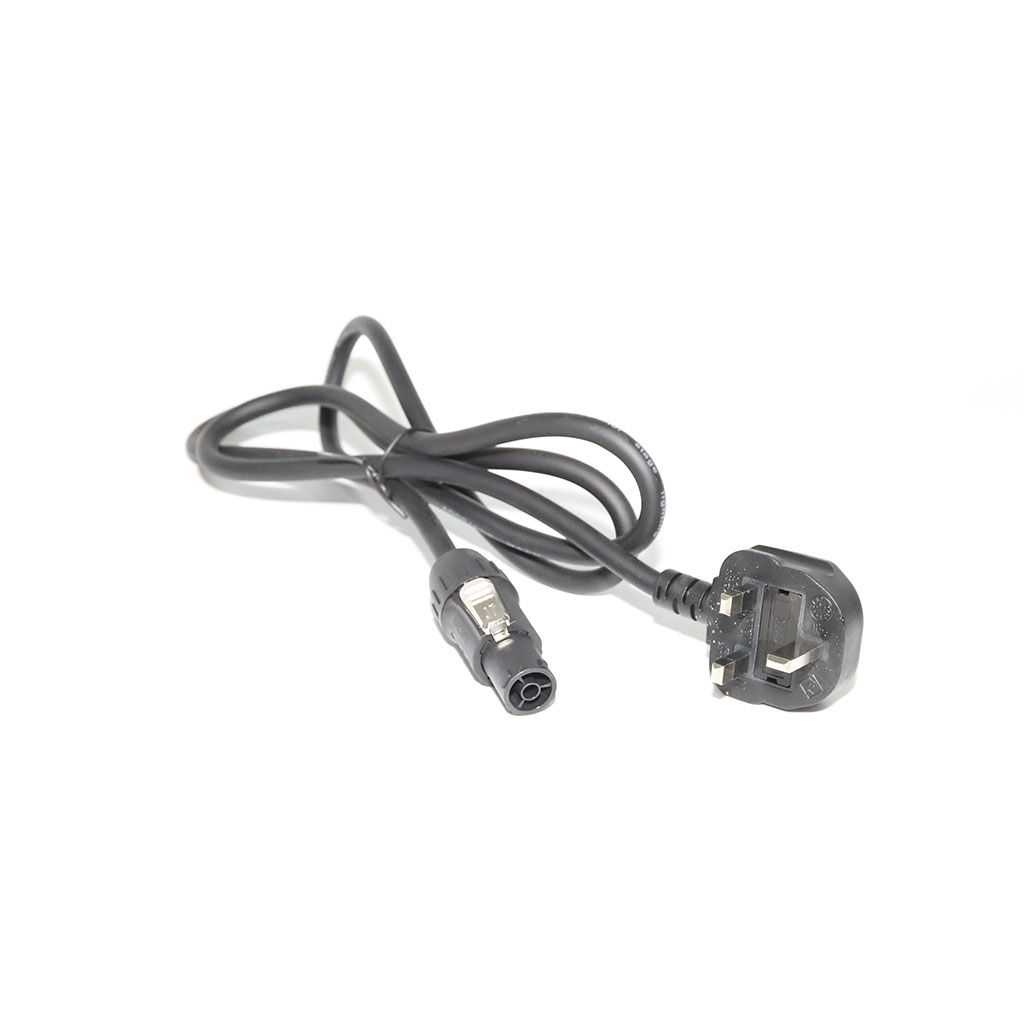

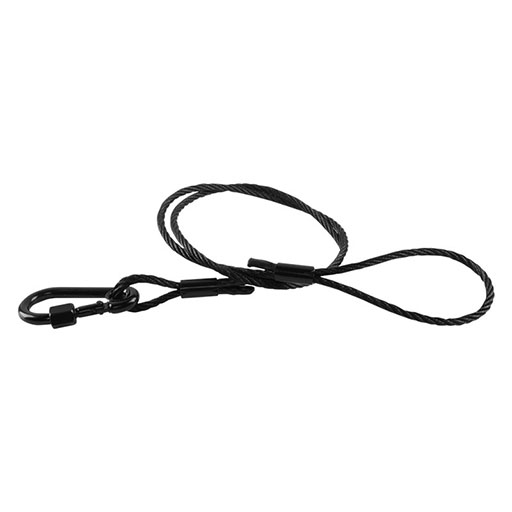

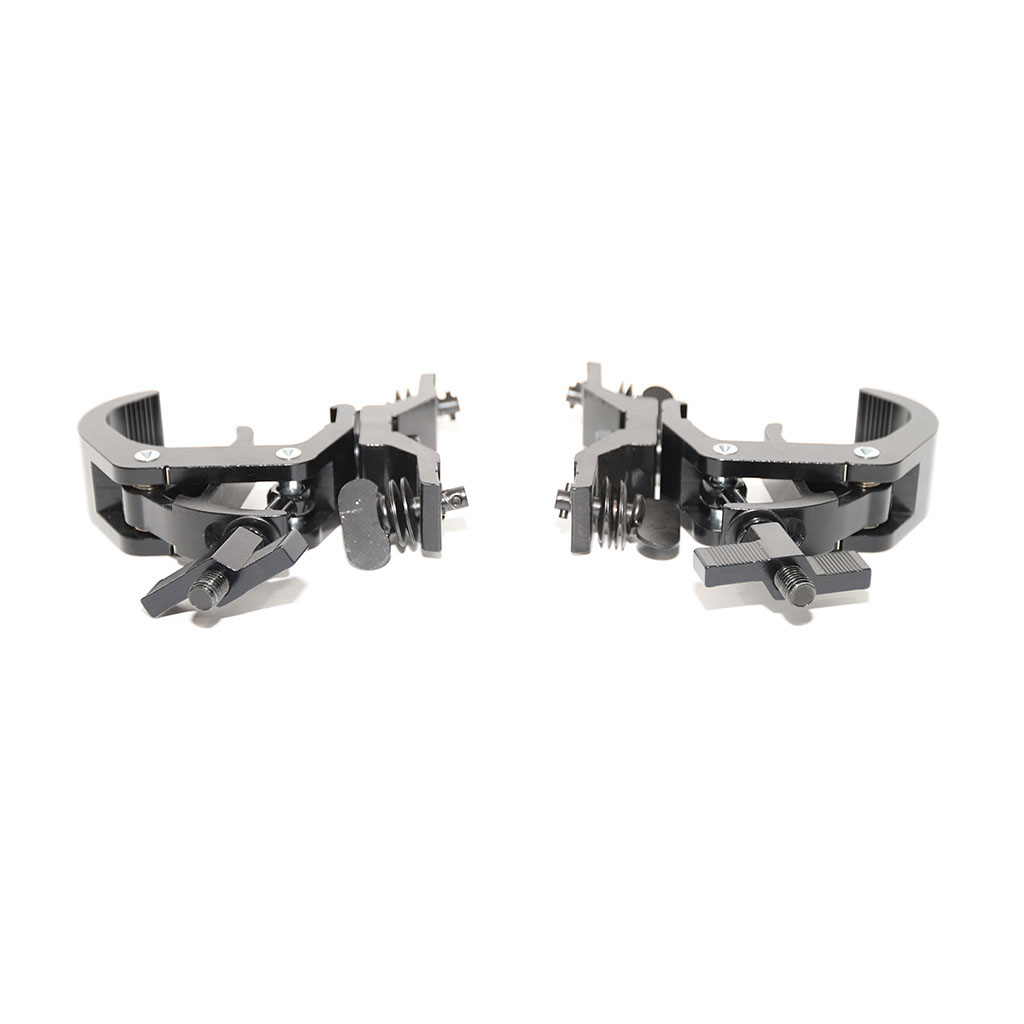

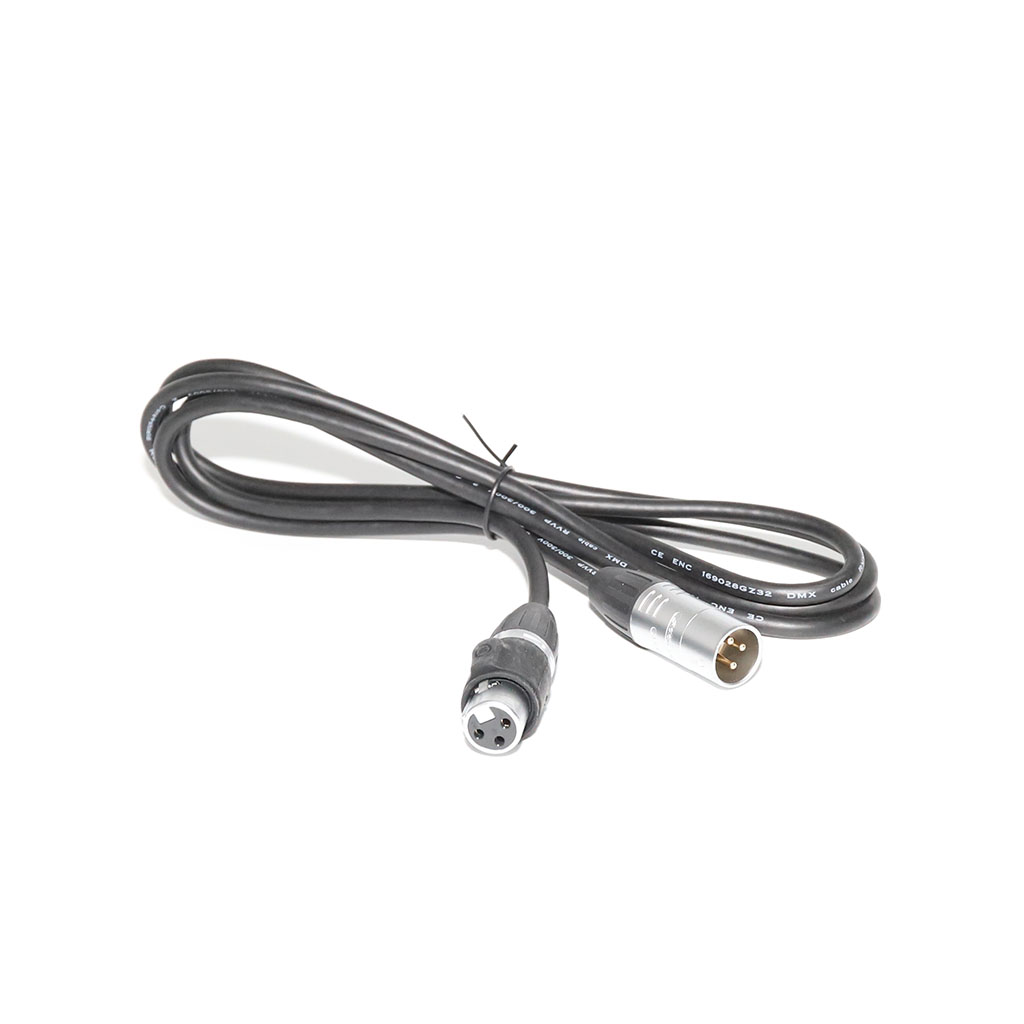

Accessories

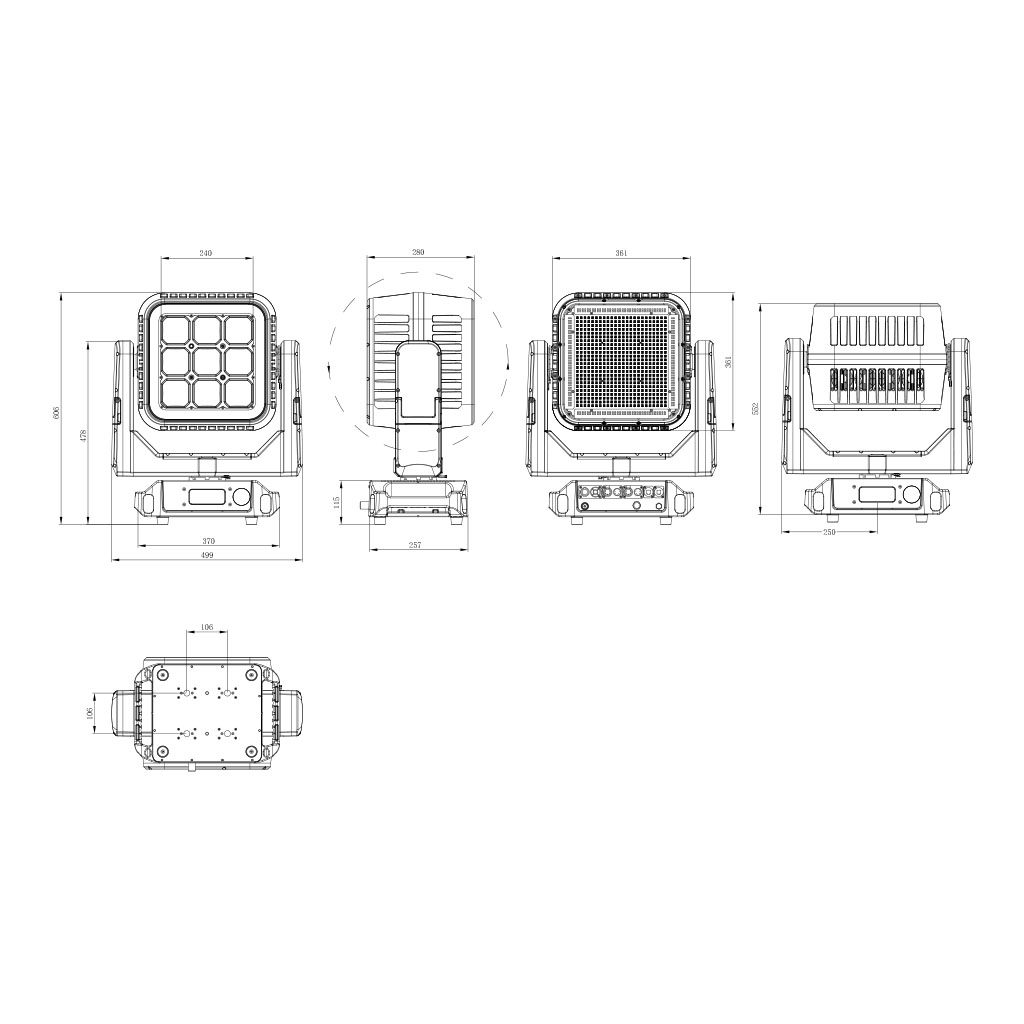

Technical Drawing

Light source(Side A)

RGBL+CW&WW

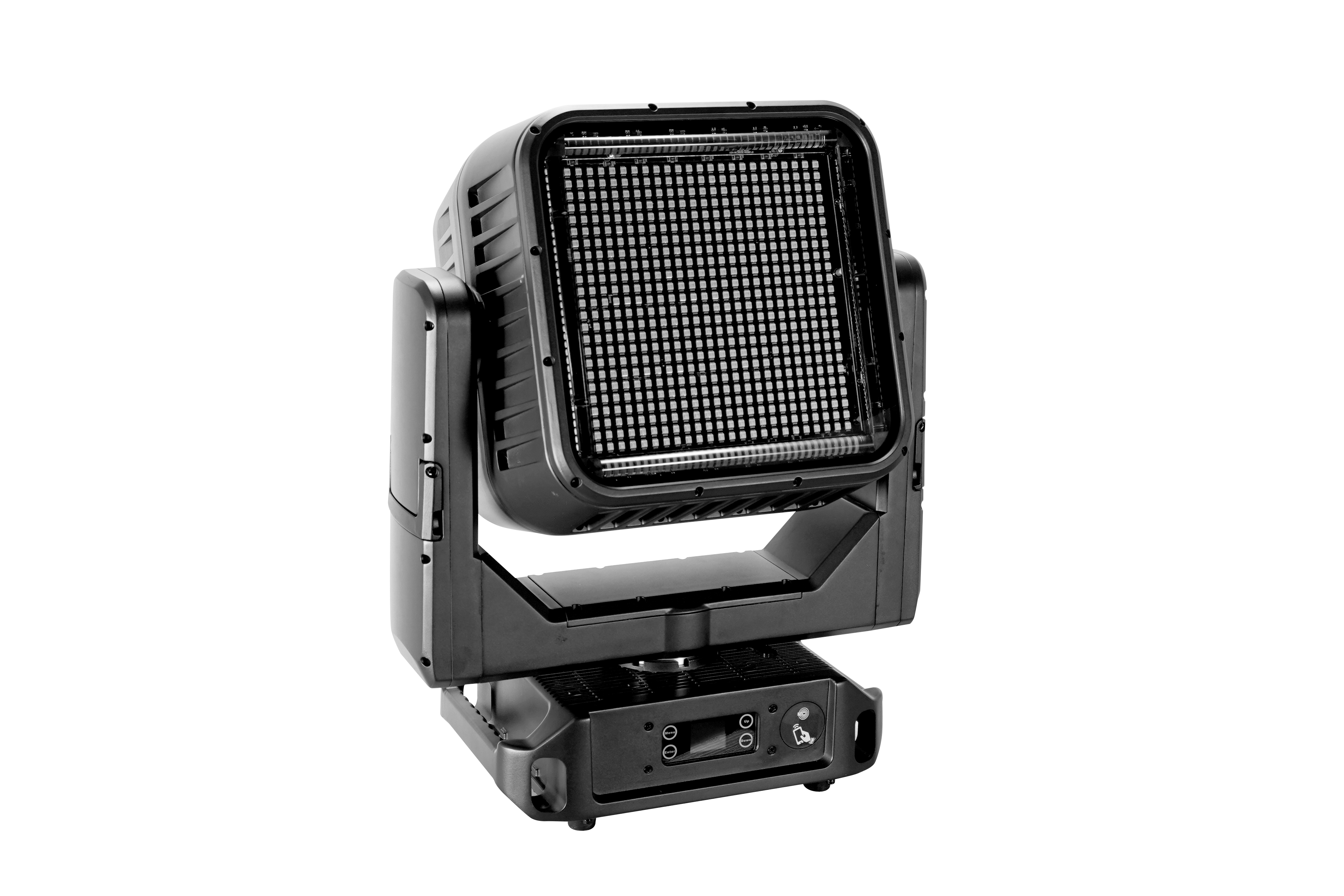

Light source(Side B)

RGBWW+CW
Max. Power

1634W
PWM Frequency

1kHz – 25kHz
Weight

33kg
IP Rating

IP65

AML LIGHTING - AL-980B Technical Specifications

Optical & Light Source

Side A Main LED: 9 x 90W RGBL (Wash Effect)[cite: 34]
Side A Aura LED: 84 x CW&WW (3 LEDs per group, 28 independent segments)[cite: 34]
Side B Main LED: 576 x 2W RGBWW (Strobe Effect, 36 LEDs per group, 16 independent segments)[cite: 34]
Side B Aura LED: 288 x CW (6 LEDs per group, 28 independent segments)[cite: 34]

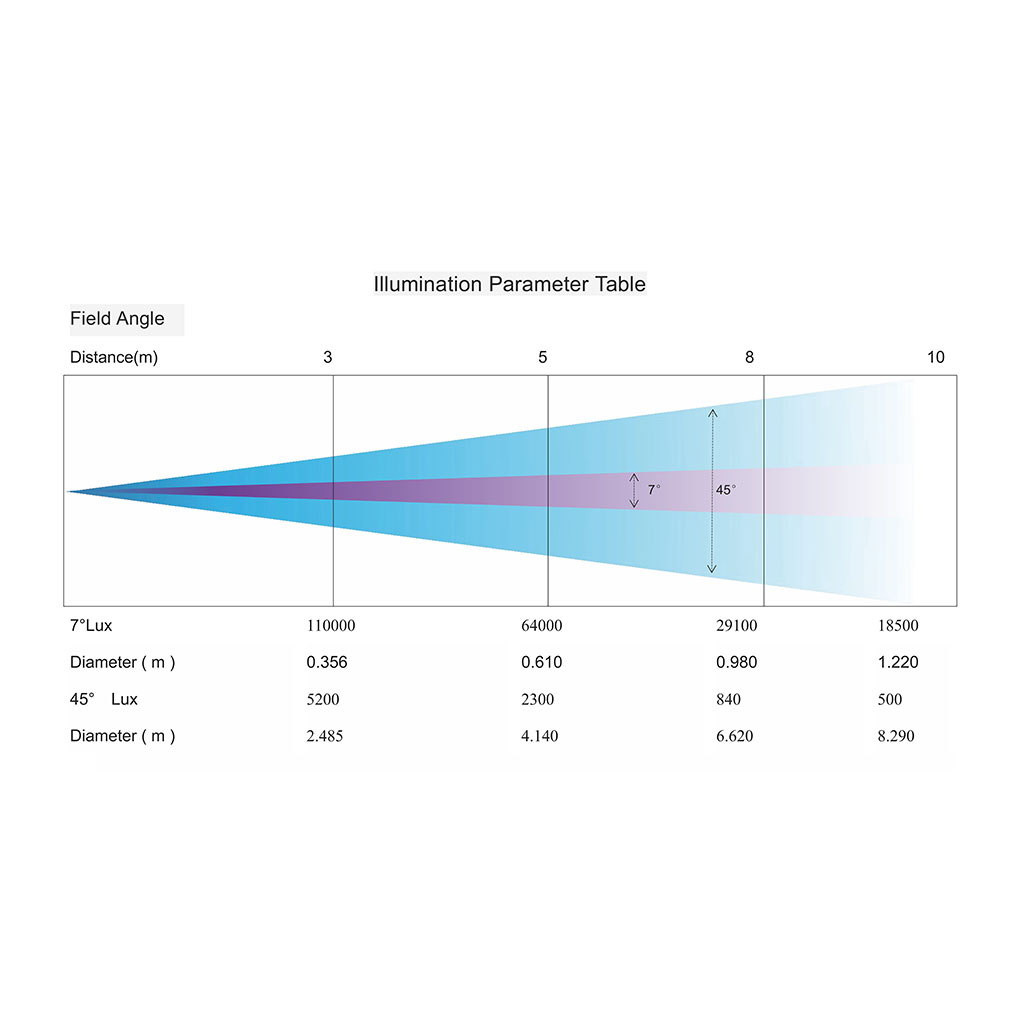

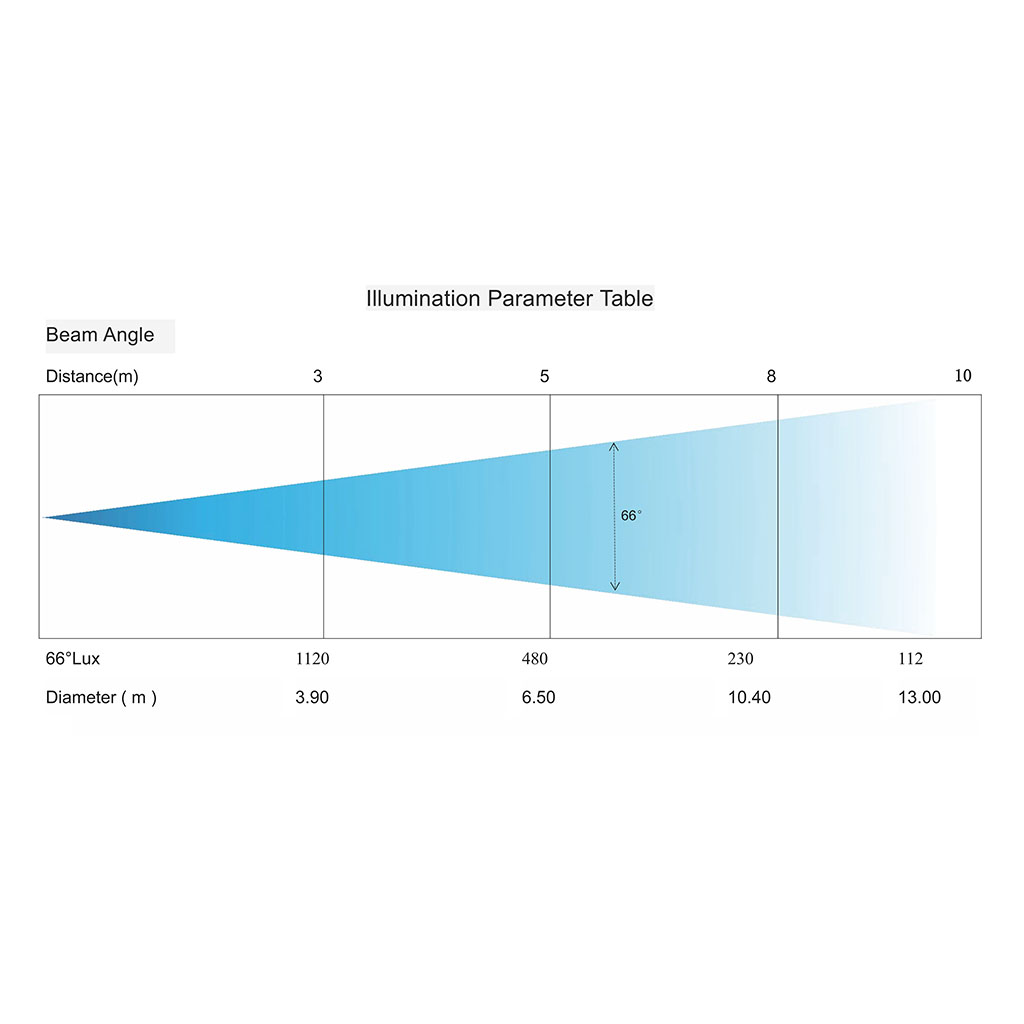

Beam Angle (Side A): 4° – 7° (Narrow) / 30° – 45° (Wide)[cite: 34]
Beam Angle (Side B): 66° – 110° (RGBWW) / 58° – 87° (CW Strobe)[cite: 34]
Flicker-Free: 1kHz – 25kHz adjustable PWM (Ideal for high-speed cameras)[cite: 34]

Electrical Data

Input Voltage: AC 100V–240V, 50/60Hz (Auto-ranging)[cite: 34]
Max. Power Consumption: 1586W @ 230V / 1634W @ 110V[cite: 35]
Input Current: 7.14A @ 230V / 15.0A @ 110V[cite: 35]
Power Factor (PF): 0.98[cite: 35]
Protection: F20AL250V Fuse[cite: 35]

Control & Programming

Control Protocols: DMX512, RDM, Art-Net, sACN, NFC[cite: 35]
DMX Channels: 28CH / 46CH / 228CH (Multi-mode)[cite: 35]
NFC Technology: Built-in NFC for offline configuration via mobile app[cite: 35]

Physical & Construction

IP Rating: IP65[cite: 35]
Dimensions: 499 x 280 x 606 mm[cite: 35]
Net Weight: 32.75 kg[cite: 35]
Gross Weight: 34.00 kg[cite: 35]
Operating Temp: -20°C to 45°C[cite: 35]

ADVANCED PRODUCT FEATURES

IP65 WATERPROOF

As a premium addition to the AL-980A series, the AL-980B shares the same elite industrial architecture, featuring a heavy-duty, precision-sealed IP65 weather-resistant housing. Designed to endure severe downpours, sandstorms, and shifting ambient humidity, this comprehensive structural integrity ensures total protection for its advanced double-sided internal components during high-tier touring productions and outdoor festivals.

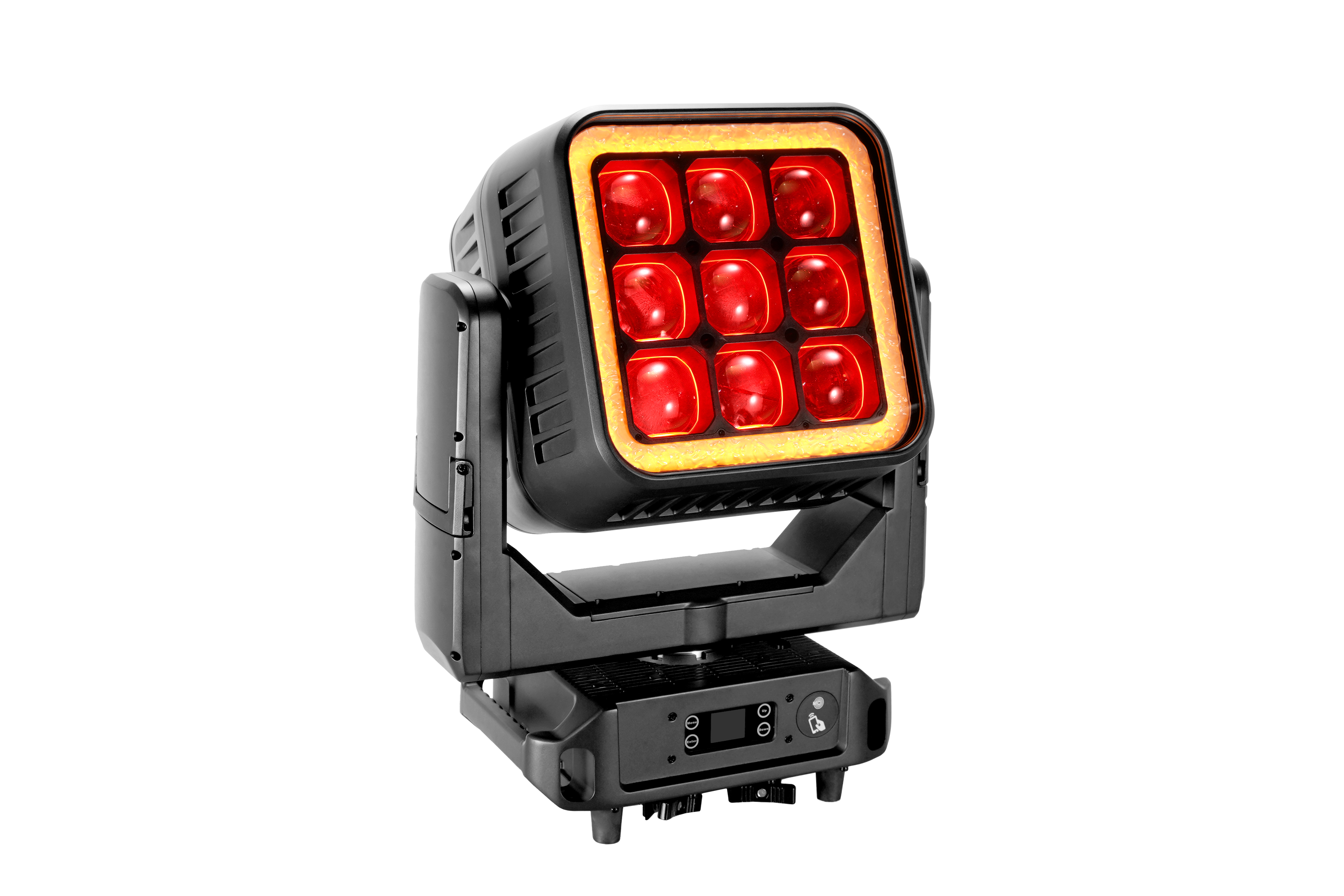

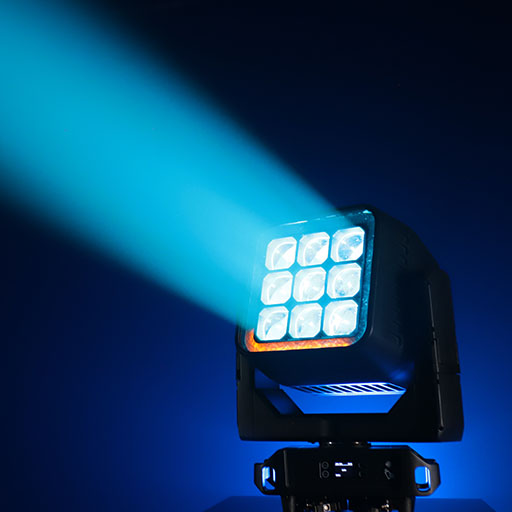

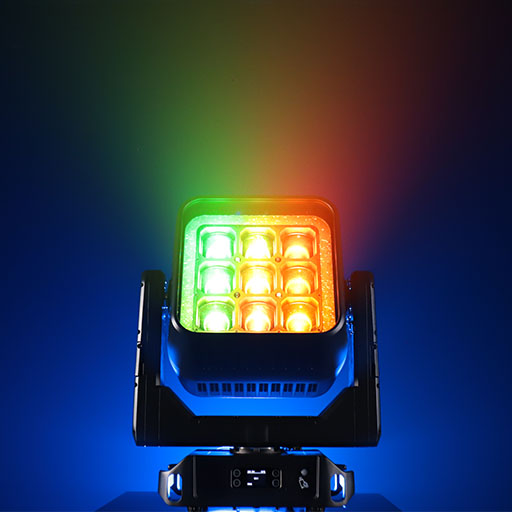

A-SIDE: BEAM & WASH ZOOM

Identical to the acclaimed 980A sibling model, the A-side optical core is driven by 9 high-output 90W LED arrays matched with an ultra-smooth motorized linear zoom framework. This high-efficiency lens configuration allows professional lighting designers to seamlessly shape the output, morphing from a sharp, razor-thin mid-air tracking effect beam into a wide, perfectly balanced wash light field.

A-SIDE: CW+WW PIXEL AURA

The A-side backlight layout incorporates a high-density secondary illumination layer featuring professional CW+WW (Cold White + Warm White) LEDs with individual pixel mapping. Tailored for studio broadcasts, commercial video captures, and high-end static installations, this module guarantees flicker-free operation, delicate color temperature transitions, and breathtaking geometric eye-candy visuals.

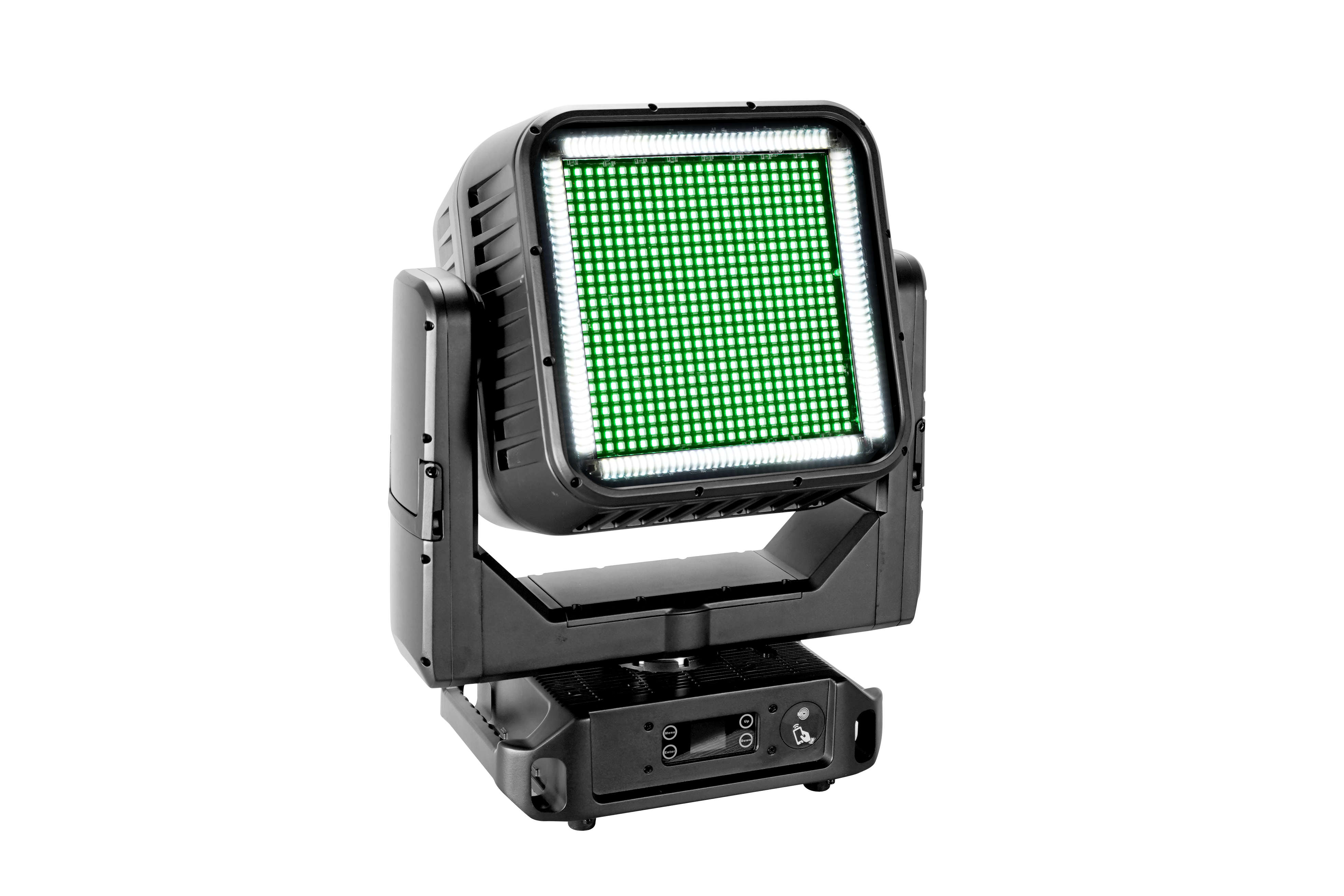

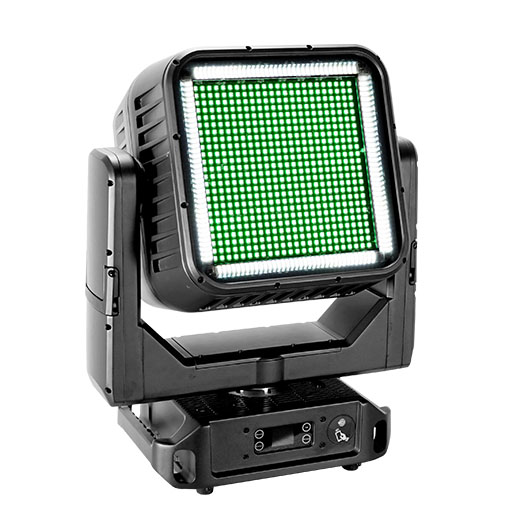

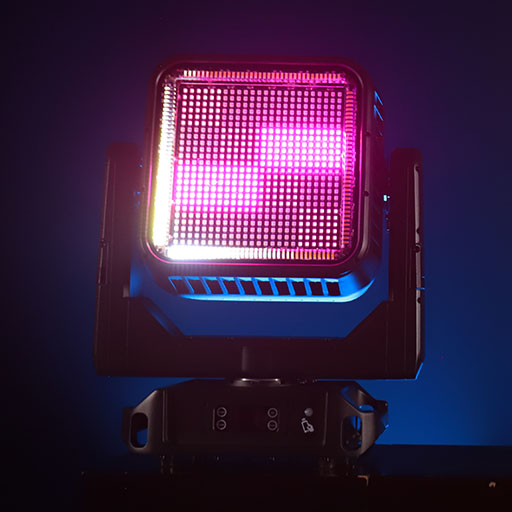

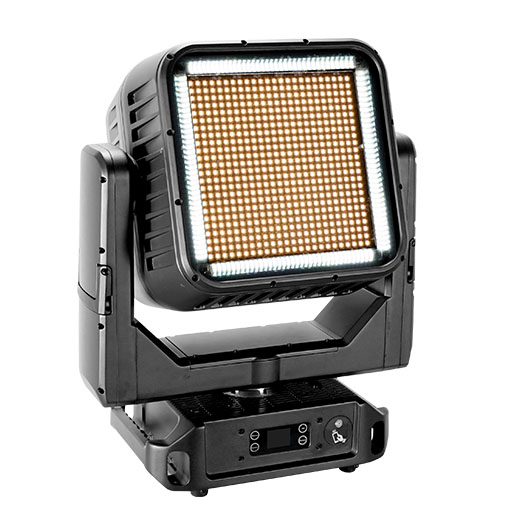

B-SIDE: RGBWW PIXEL STROBE

Setting the AL-980B apart from the 980A, its engineered B-side utilizes high-power RGBWW LEDs as the primary strobe source. With individual pixel-mapping control, this central dynamic layer enables programmers to break away from traditional white strobe cues, overlaying deep, highly saturated multi-color bursts, running pixel waves, and explosive, high-impact rhythmic visual elements.

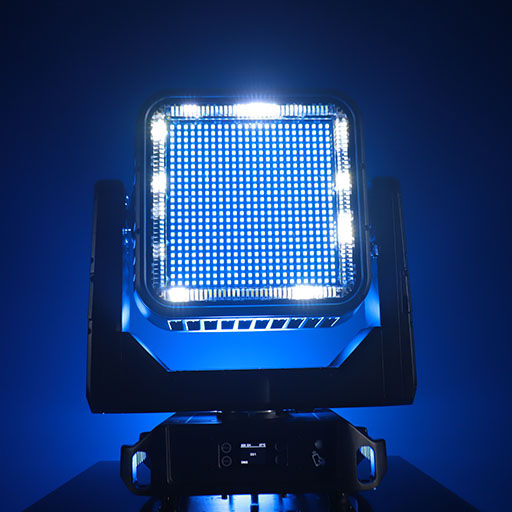

B-SIDE: CW BLINDER GLOW

Complementing the central color arrays, the B-side is framed by a secondary CW (Cold White) auxiliary strobe blinder array. This peripheral white light matrix works in absolute unison with the core RGBWW engine, allowing operators to trigger blinding high-frequency classic white flashes on top of rich colored washes, adding magnificent multi-tier visual dimensions to stadium rock concerts.

Technology Support

Depence² R4（Syncronorm）

Lighting Fixture Drawing
