- Light source(Side A)RGBL+CW&WW
- Light source(Side B)COB+RBGW
- Max. Power1400W
- PWM Frequency1kHz – 25kHz
- Weight36kg
- IP RatingIP65
Technical Specifications
Optical & Light Source
Side A Main LED: 9 x 90W RGBL
Side A Aura LED: 84 x CW&WW (3 LEDs per group, 28 independent segments)
Side B Main LED: 4 x 100W Amber&WW COB
Side B Aura LED: 64 x RBGW (4 LEDs per group, 16 independent segments)

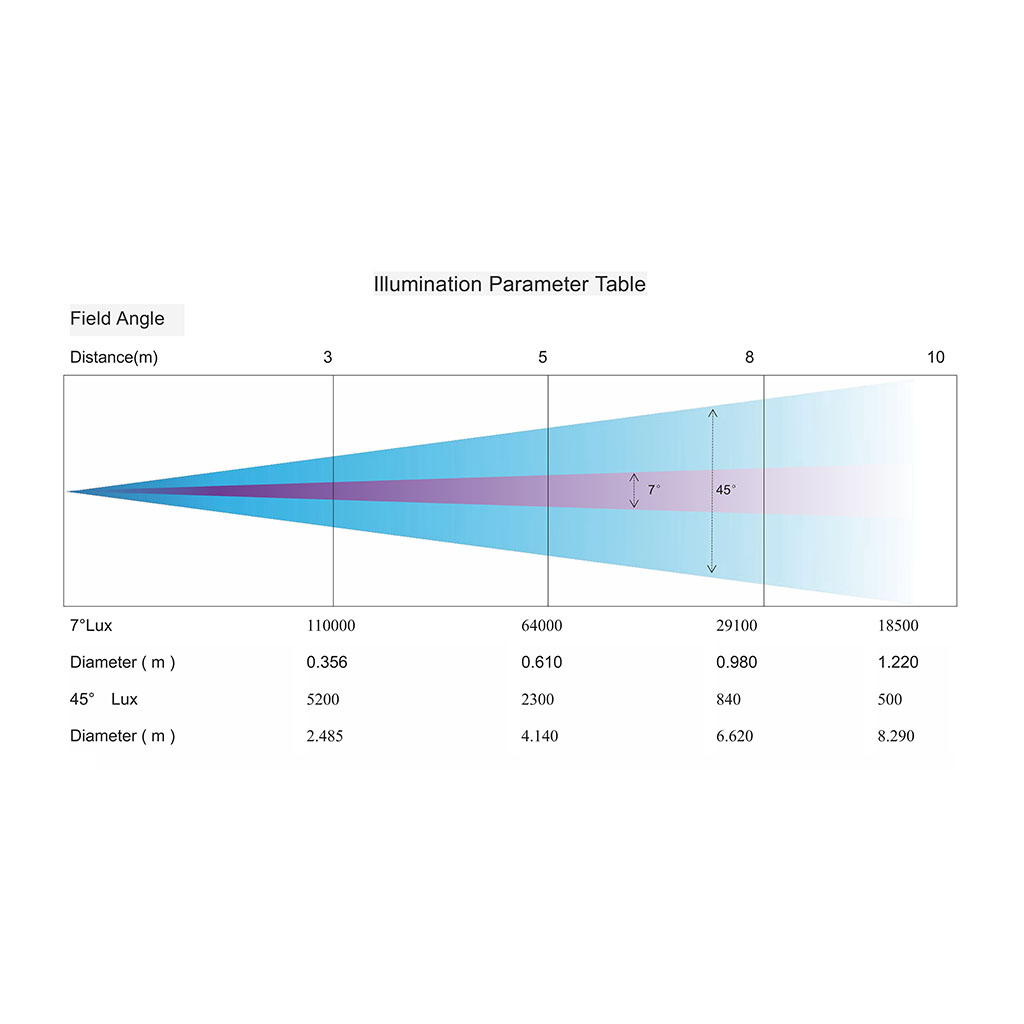

Beam Angle (Side A): 4° – 7° (Narrow) / 30° – 45° (Wide)

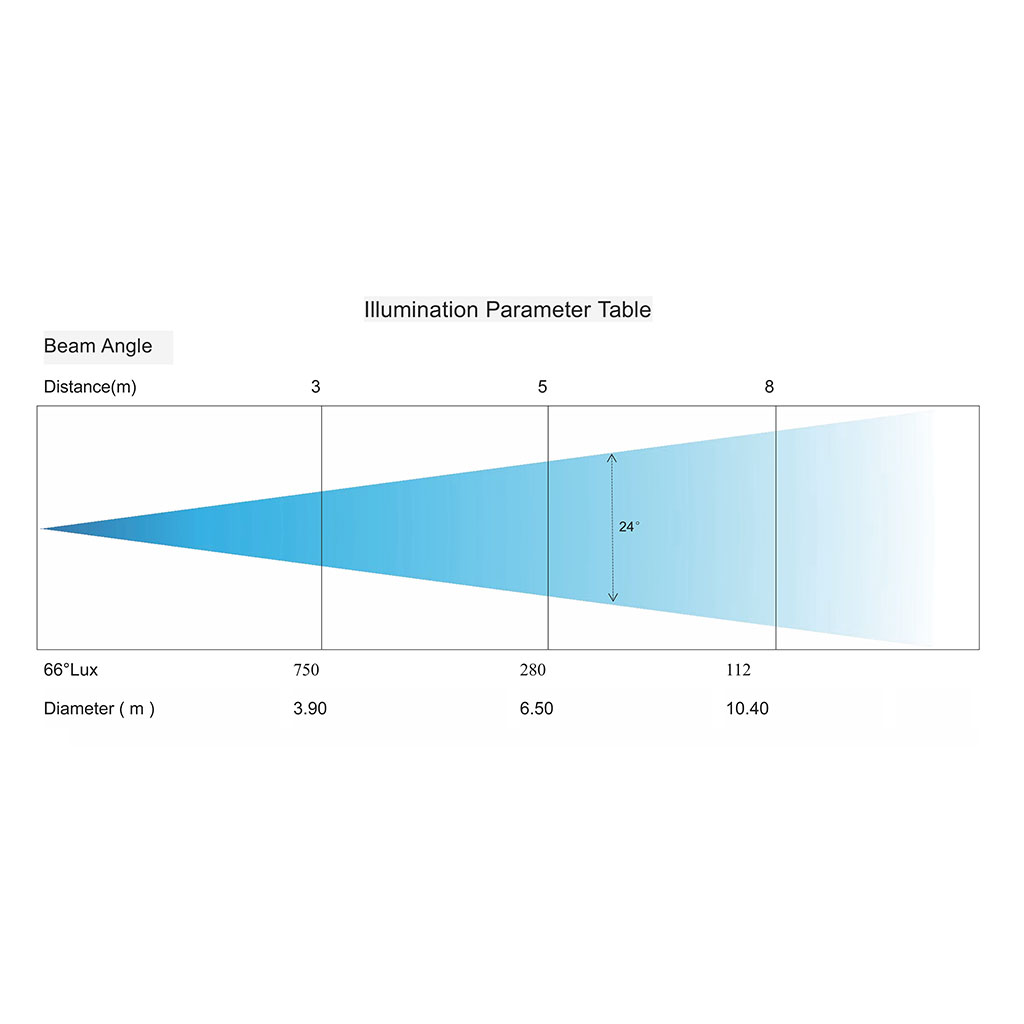

Beam Angle (Side B): 66° – 99°
PWM Frequency: 1kHz – 25kHz (Flicker-free for Film/TV)
Electrical Data
Input Voltage: AC 100V–240V, 50/60Hz (Auto-ranging)
Max Power Consumption: 1308W @ 230V / 1400W @ 110V
Input Current: 5.83A @ 230V / 12.32A @ 110V
Power Factor (PF): 0.98
Protection: F20AL250V Fuse
Control & Programming
Control Protocols: DMX512, RDM, Art-Net, sACN, NFC
DMX Channels: 29CH / 46CH / 188CH (Multi-mode)
Advanced Features: NFC configuration for mobile setup, Pixel-mapping for Aura effects
Physical & Construction
IP Rating: IP65
Cooling: High-efficiency thermal management system
Operating Temperature: -20°C to 45°C

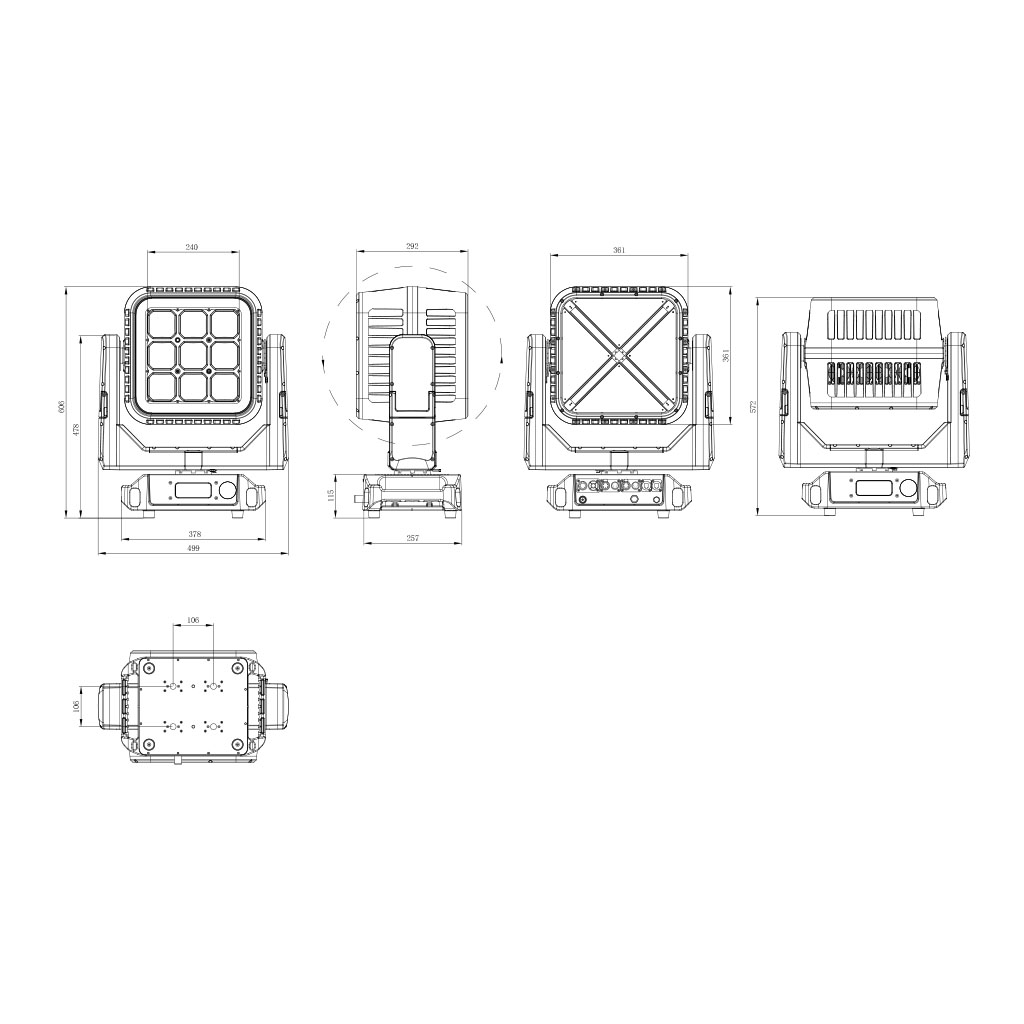

Dimensions: 499 x 292 x 606 mm
Net Weight: 35.85 kg
Gross Weight: 37.00 kg
ADVANCED PRODUCT FEATURES
IP65 WATERPROOF
Engineered for premium global production standards, the AL-980A features a heavy-duty, precision-sealed IP65 weather-resistant housing. This structural integrity ensures ultimate resistance against downpours, fine dust, and extreme moisture. It effectively guards all internal electronic subsystems and optical pathways, providing total stability for high-tier outdoor music festivals, massive stadium events, and rigorous rental tours.

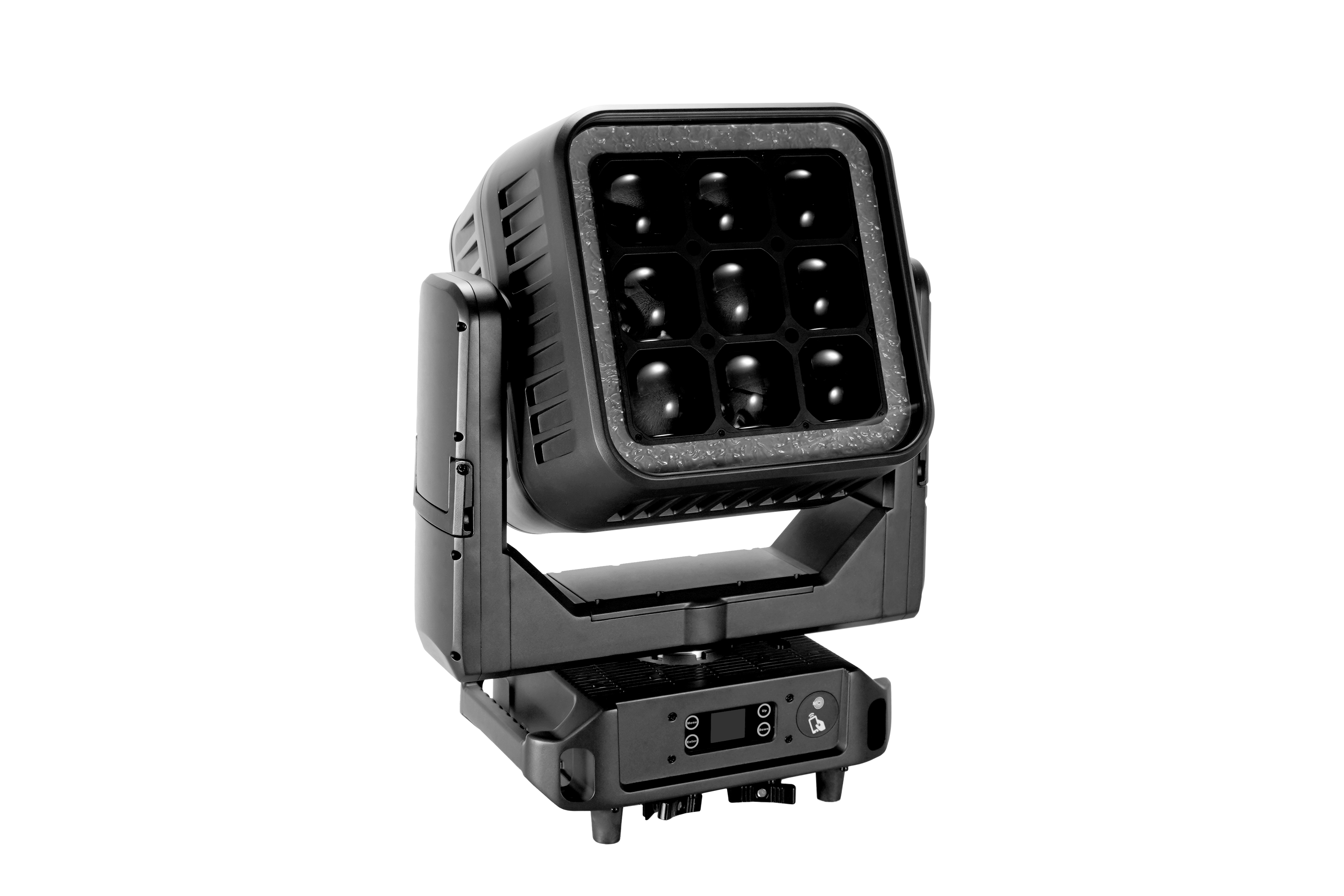

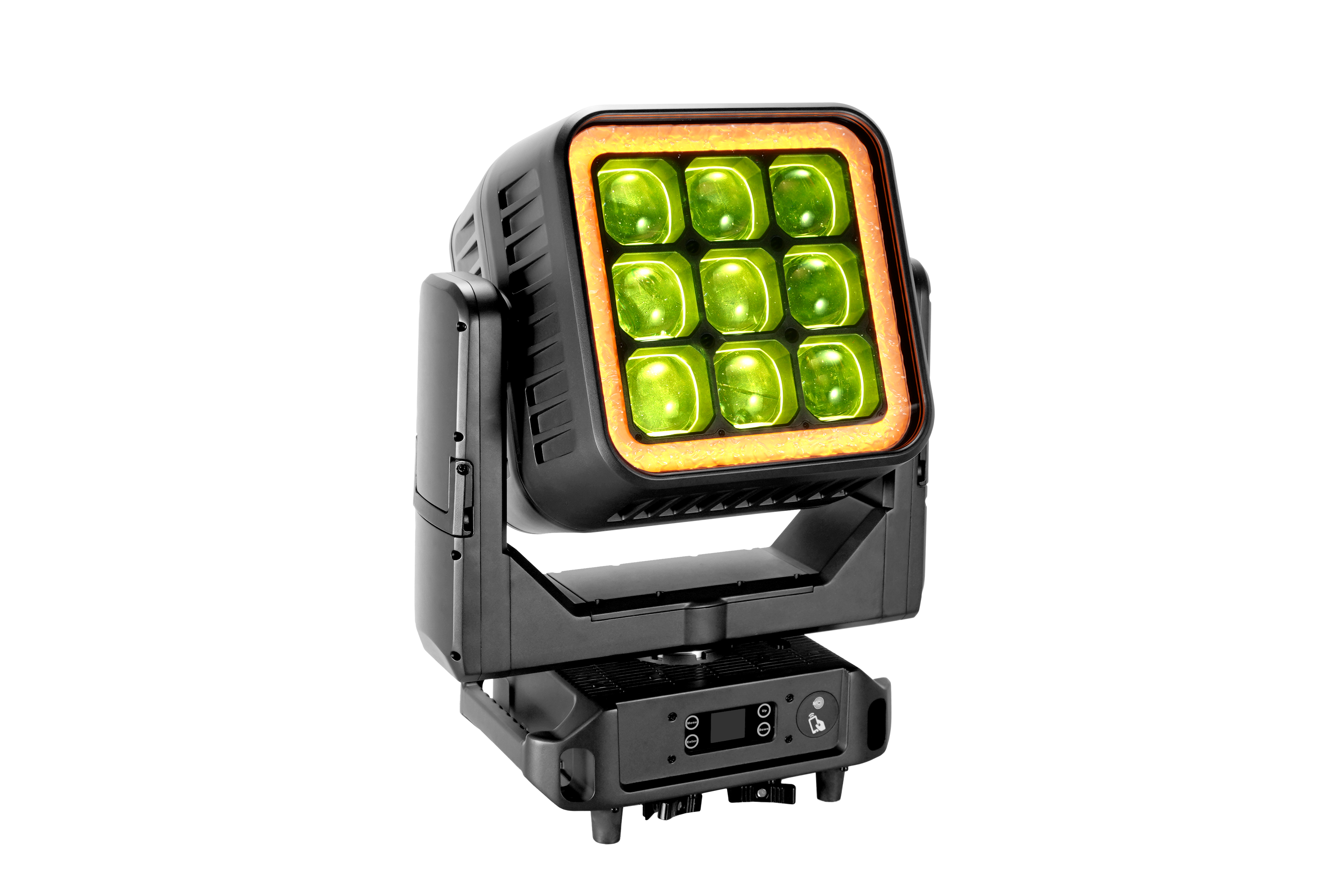

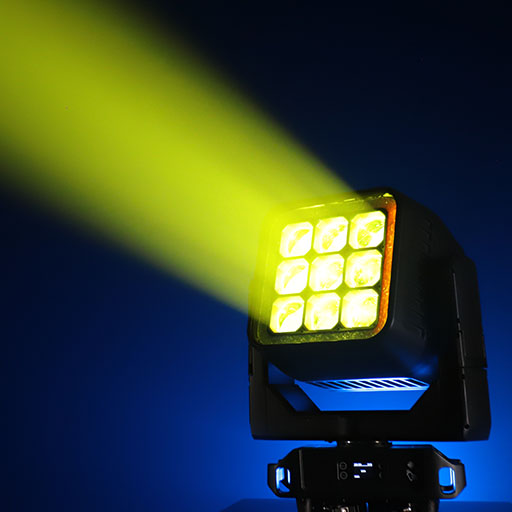

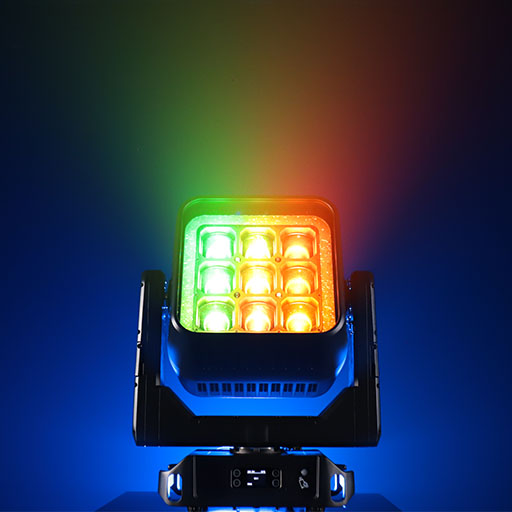

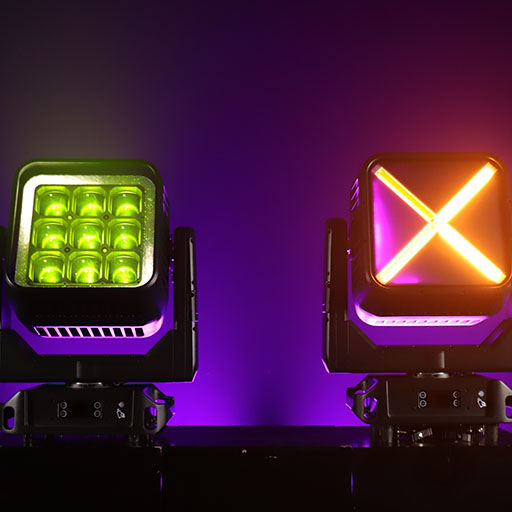

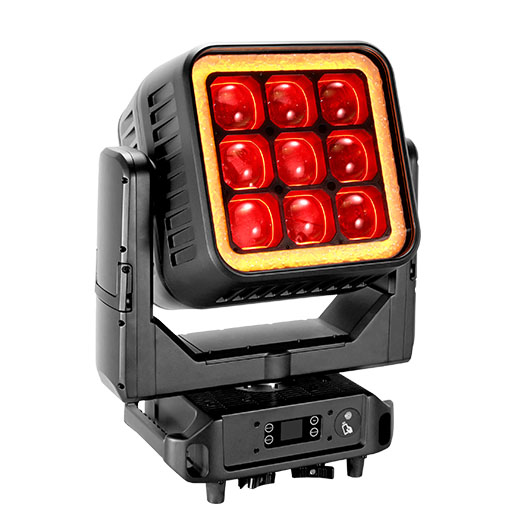

A-SIDE: BEAM & WASH ZOOM

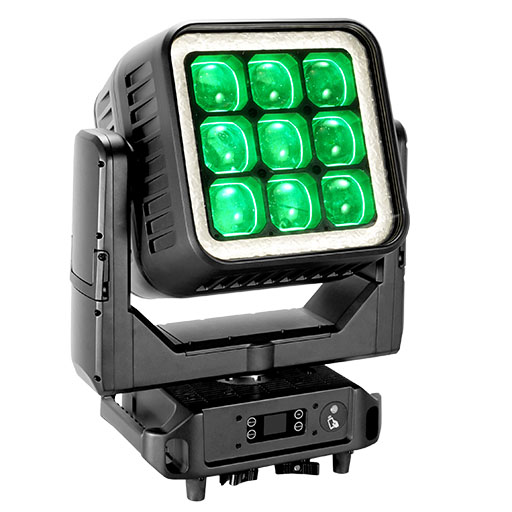

The primary A-side optical engine houses 9 high-output 90W LED arrays matched with a high-precision motorized linear zoom system. This premium integration delivers a highly proportional, smooth tracking curve. It enables seamless transitions from a dense, piercing mid-air narrow effect beam to an expansive, thoroughly homogeneous wash color field, providing lighting designers with comprehensive lumen flexibility on stage.
A-SIDE: CW+WW PIXEL AURA
Featuring a sophisticated secondary backlight illumination framework, the A-side integrates high-definition CW+WW (Cold White + Warm White) LEDs with complete pixel-mapping capabilities. Expertly calibrated for HD television recording, broadcast studios, and high-end static photography, this module offers flicker-free operation, precise color temperature balancing, and captivating geometric background matrices.

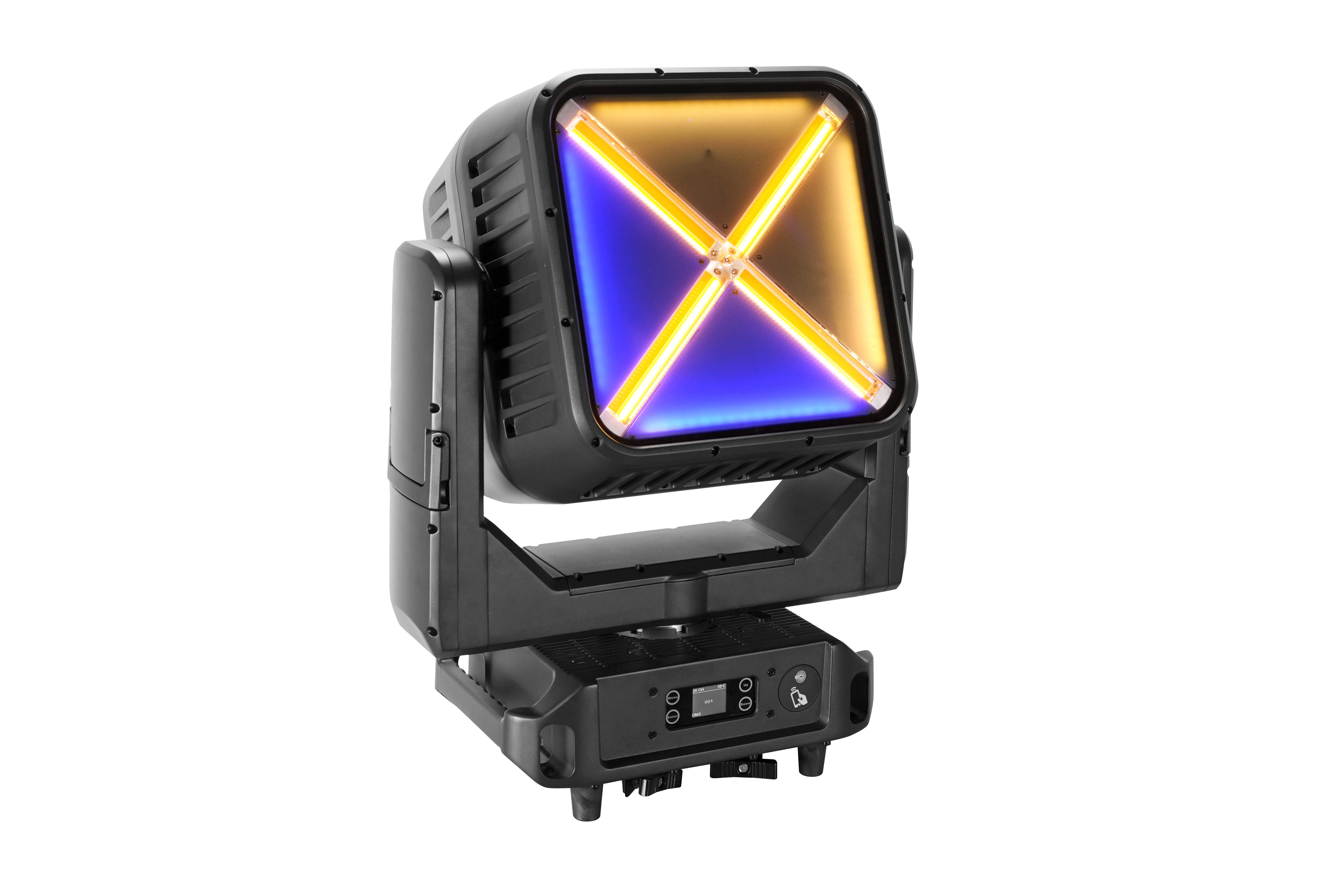

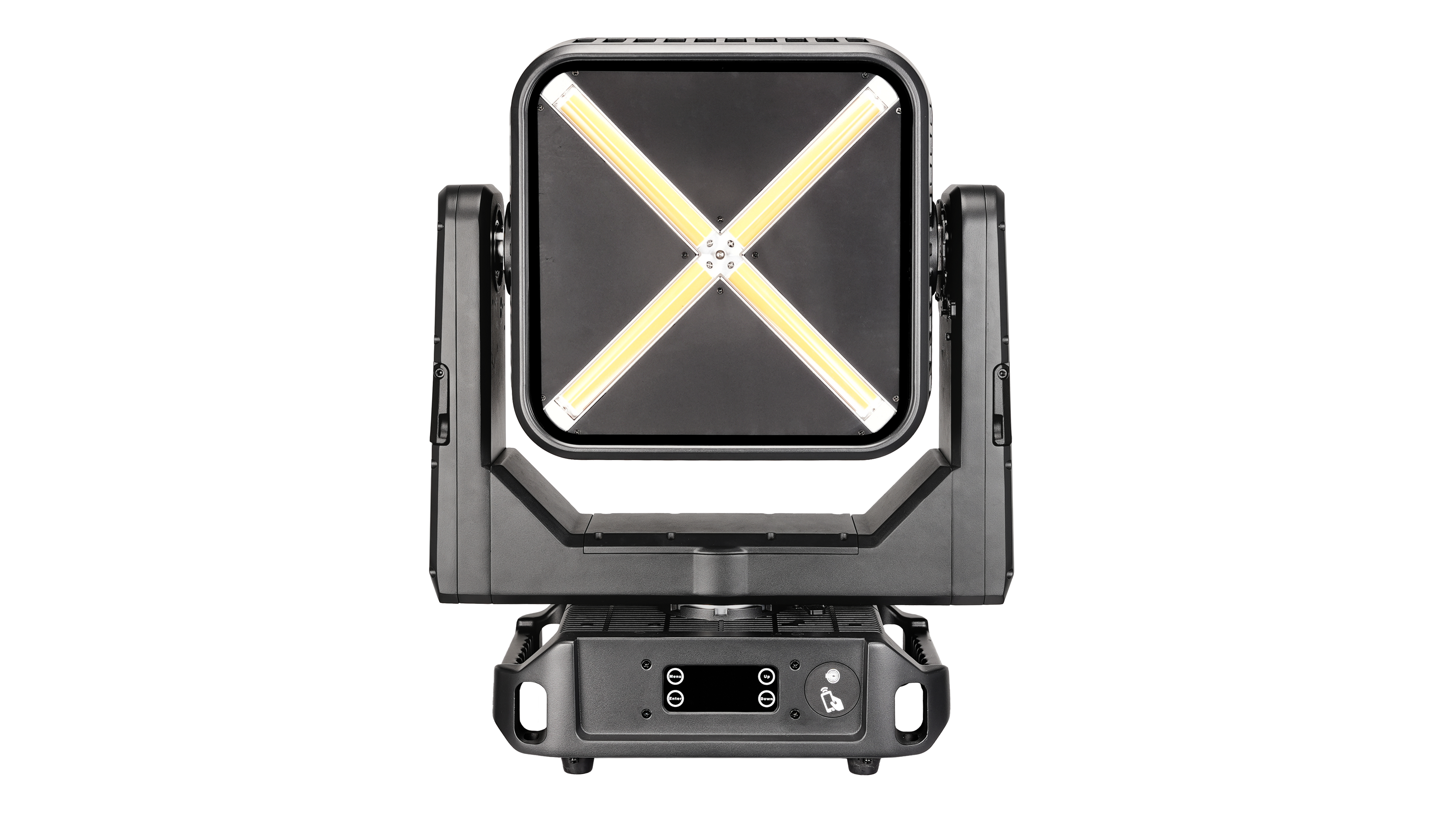

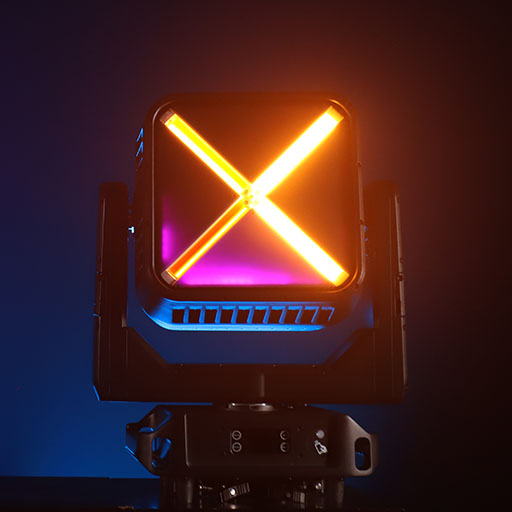

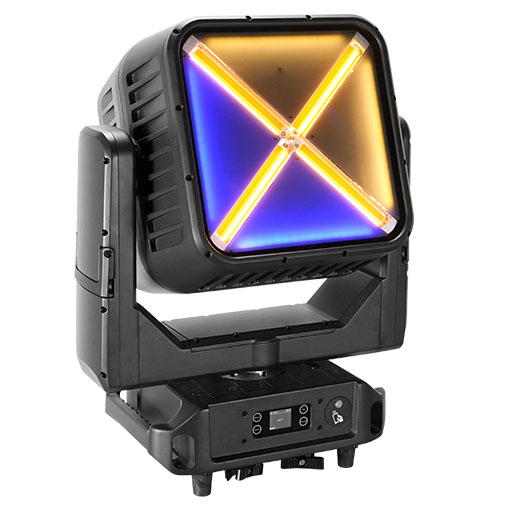

B-SIDE: RETRO COB STROBE
The secondary B-side redefines structural visual energy with a high-power central COB retro blinder and strobe configuration. Engineered to deliver an intense, punchy warm golden wave, it perfectly emulates the rich vintage aesthetic of traditional halogen crowd blinders. Combined with explosive electronic strobing frequencies, it easily creates high-impact rhythmic sweeps during rock concerts.

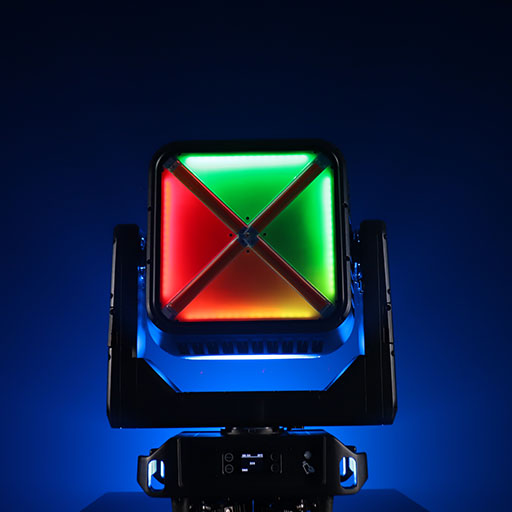

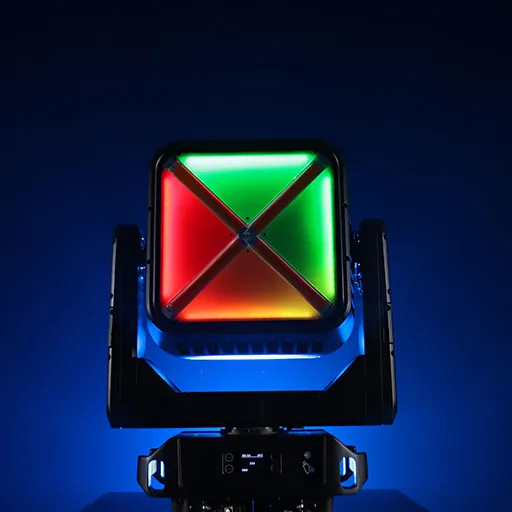

B-SIDE: RGB AURA GLOW
Encasing the intense central COB blinder, the B-side incorporates an independent multi-color RGB Aura background glow layer. This distinct mixing matrix allows professional lighting operators to stack highly saturated running color chases, ambient washes, and intricate pixel patterns over the blinder core, turning the fixture into a highly versatile dual-layer, multi-axis visual hub.
