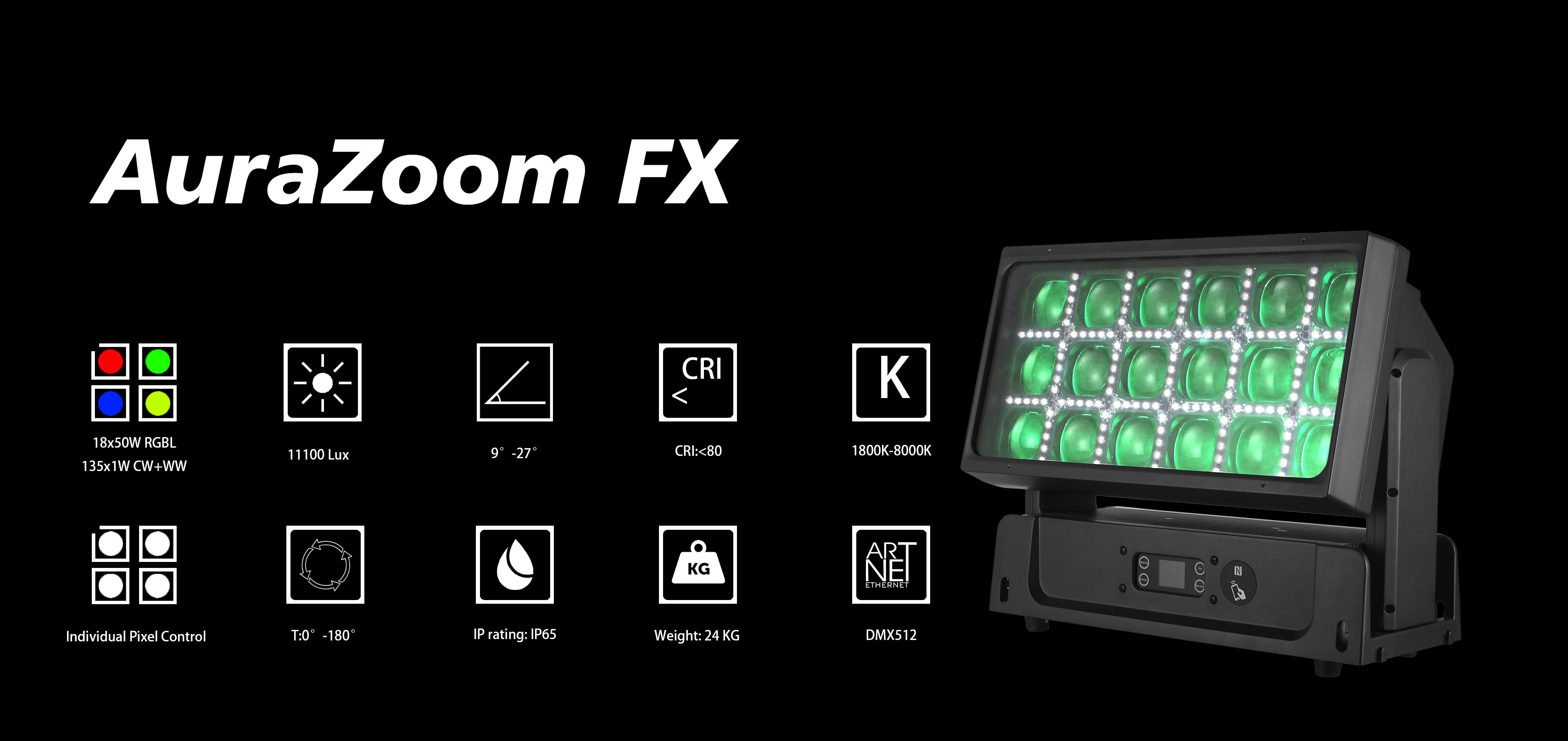

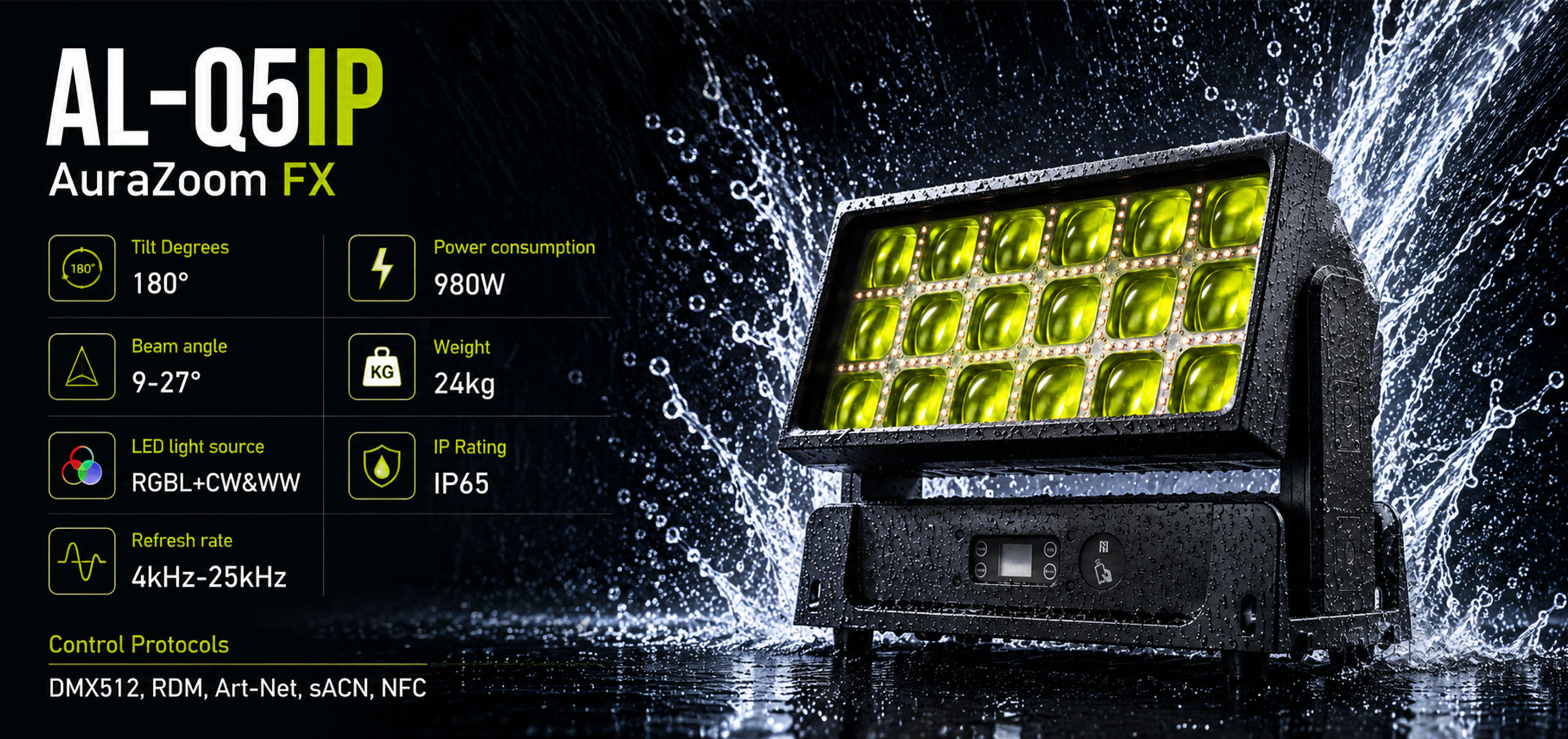

- Tilt Degrees180°
- Beam angle9-27°
- LED light sourceRGBL+CW&WW
- Refresh rate4kHz-25kHz
- Power consumption980W
- Weight24kg
- IP RatingIP65
Technical Specifications
Optical & Photometric

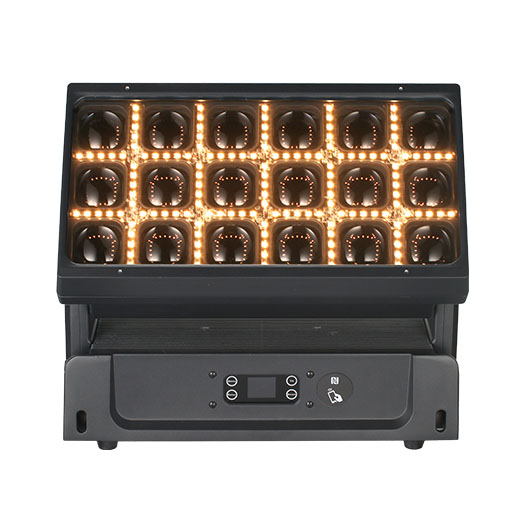

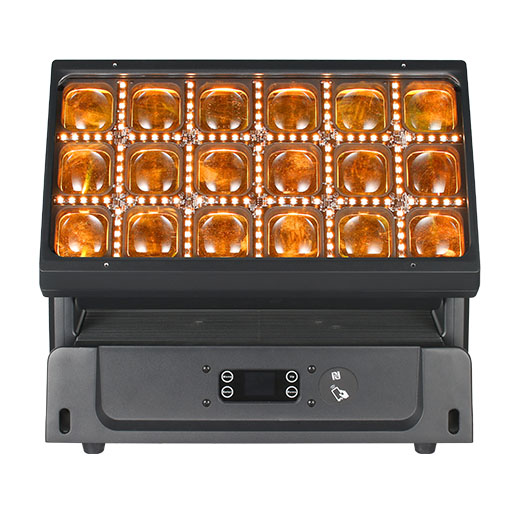

Main LED: 18*50W RGBL
Aura LED: 135*1W CW+WW (5 pcs LEDs per group, 27 groups in total)

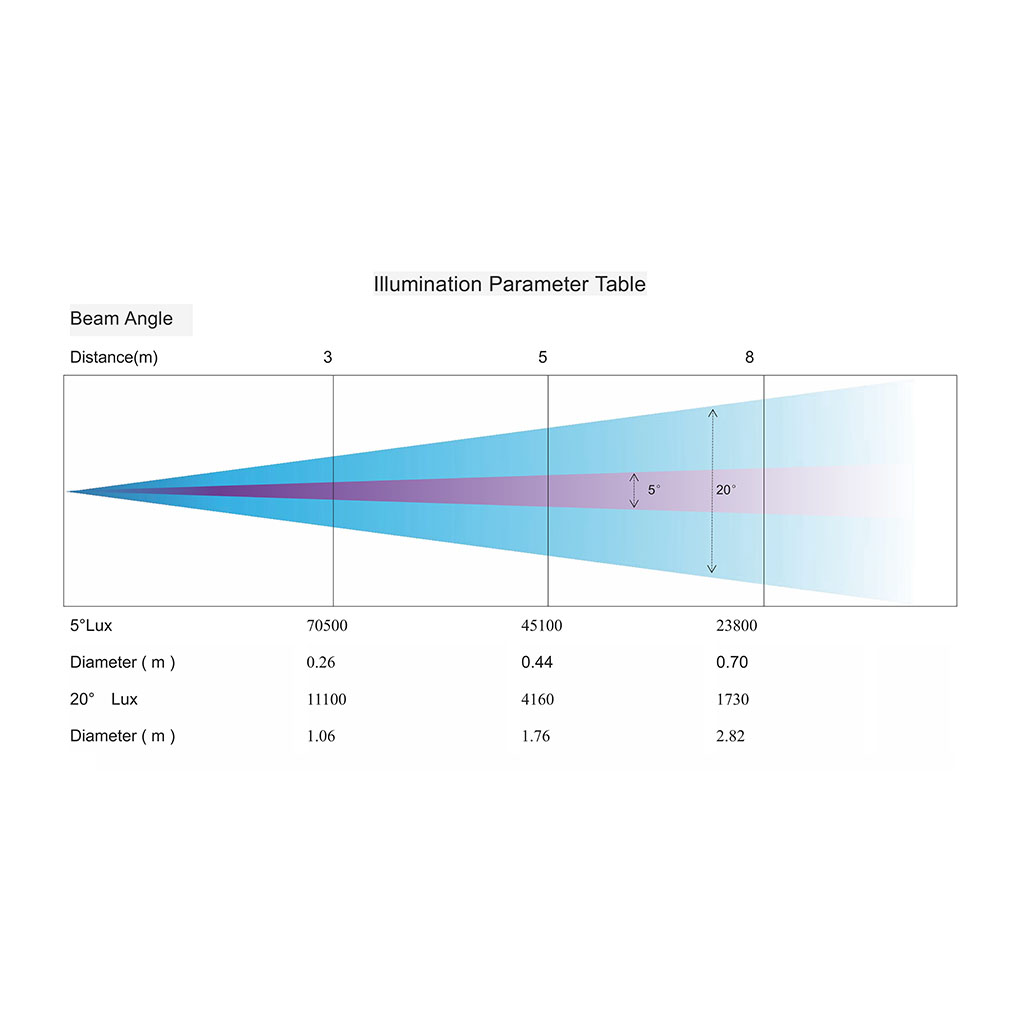

Optical Angle: Beam Angle: 5° - 20° / Field Angle: 9° - 27° / Single Lens Angle: 5°
Photometric (3M): Min. Angle 70,500 Lux | Max. Angle 11,100 Lux
Photometric (5M): Min. Angle 45,100 Lux | Max. Angle 4,160 Lux
Photometric (8M): Min. Angle 23,800 Lux | Max. Angle 1,730 Lux
Control & Performance
DMX Channels: 31CH / 43CH / 67CH / 147CH Modes
Control Mode: RDM, Art-Net, sACN, DMX512, NFC, Auto-run, W-DMX(Optional)
Strobe Rate: 1Hz - 25Hz
Refresh Rate (PWM): 4kHz - 25kHz
Electrical Specifications
Input Voltage: 100-240V AC, 50/60Hz
Power Consumption: 110V/1050W, 230V/980W
Electrical Params (230V): 230V / 4.30A / 0.98 PF
Electrical Params (110V): 110V / 8.86A / 0.99 PF
Power Linking: 110V/8.86A: Max. 1 Unit | 230V/4.30A: Max. 2 Units
Protection: F20AL250V Fuse
Physical & Construction

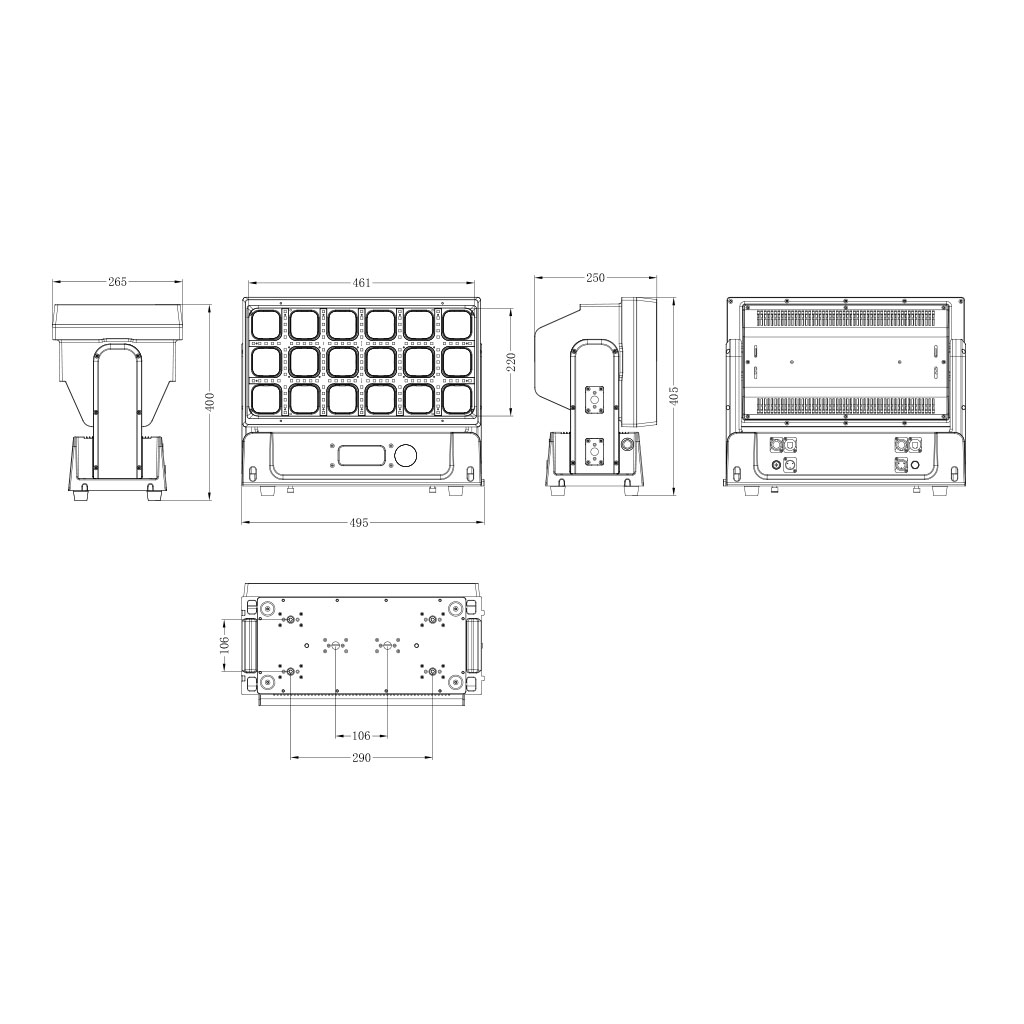

Fixture Dimensions: 495 x 250 x 400 mm
Weight: Net Weight (NW): 24 kg / Gross Weight (GW): 27 kg
Max Surface Temp: 60°C
Operating Temp: -20°C to 45°C
IP Rating: IP65
ADVANCED PRODUCT FEATURES

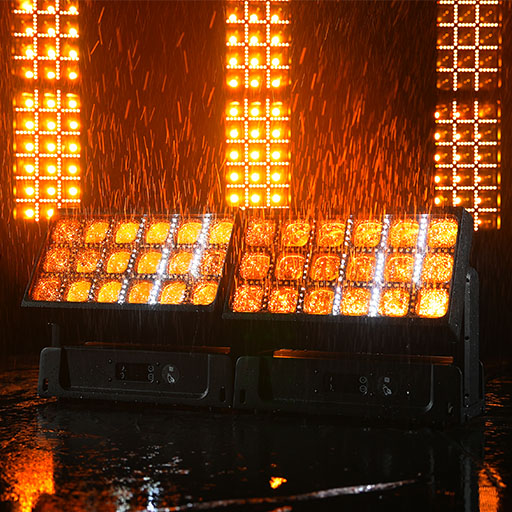

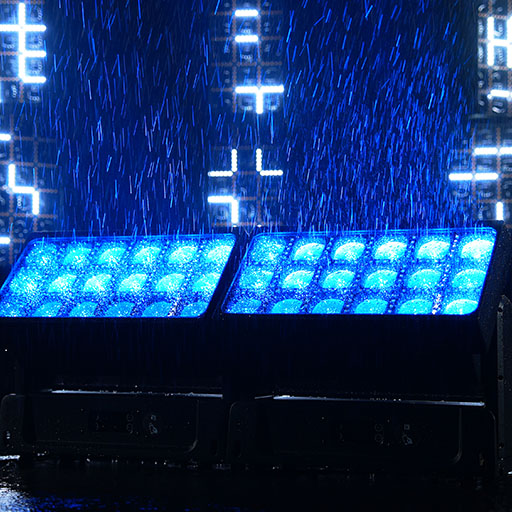

IP65 WATERPROOF

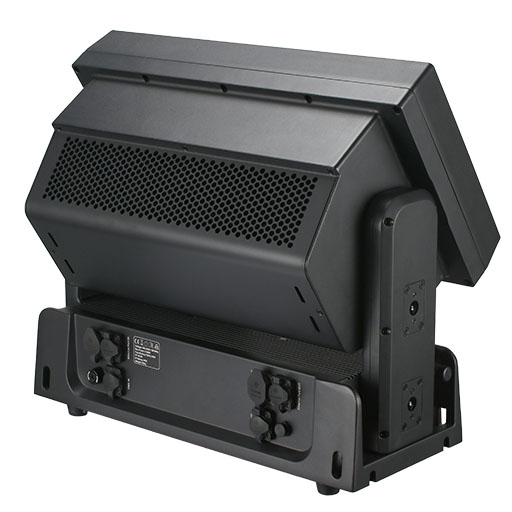

Standing as the definitive flagship supreme of our heavy-duty professional Q-Series matrix—sharing lineage with the elite Q3 and Q4 architectures—the AL-Q5IP is fully integrated into a rugged, precision-sealed IP65 weatherproof chassis. This engineering barrier eliminates internal humidity build-up and blocks rain or dust ingress, delivering unfailing operational security for elite festival tours, premium rentals, and outdoor stadium installations.

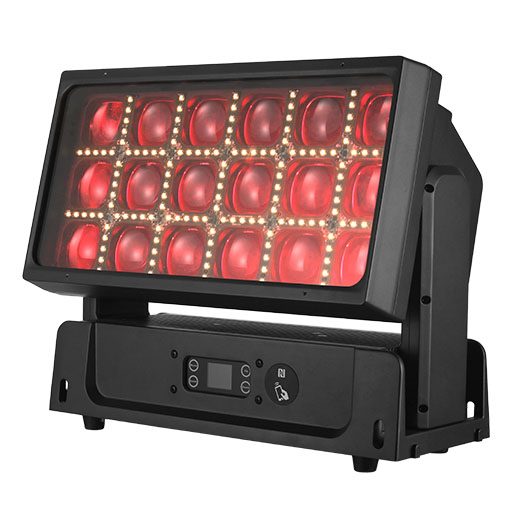

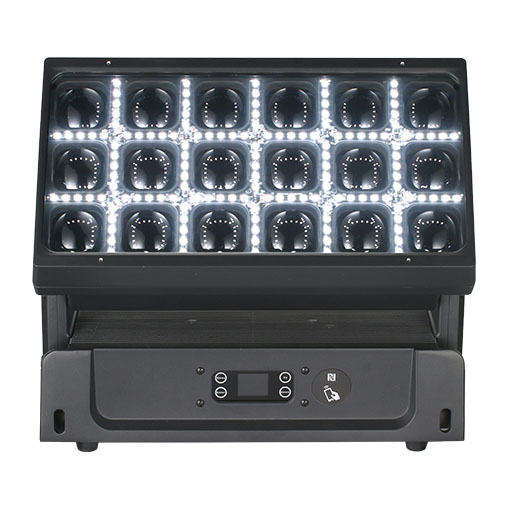

AUXILIARY AURA LIGHTING

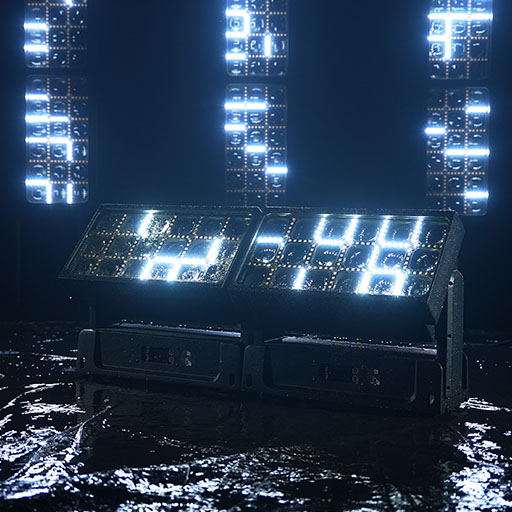

To produce rich, multi-layered theatrical environments, the AL-Q5IP features a comprehensive pixel-mapped CW+WW (Cold White + Warm White) auxiliary aura LED network surrounding the primary optics. This custom dual-color temperature auxiliary layout empowers lighting directors to map sharp graphic chases, create subtle organic transitions, or establish high-contrast static background frames optimized for broadcast studios and elite scenic stages.

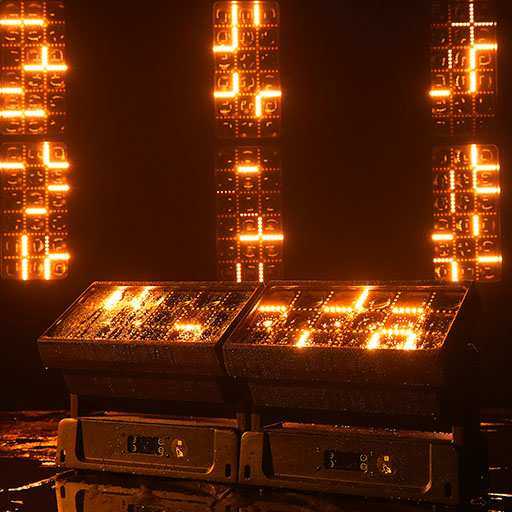

INDEPENDENT PIXEL MAPPING
Unlocking absolute programming freedom, the fixture delivers full single-pixel individual control across its entire matrix face. By controlling each high-power engine zone independently, programmers can map complex digital volumetric textures, geometric pixel chases, and fluid linear color sweeps, transforming the high-performance fixture into a mesmerizing eye-candy visual center on large-scale concert arrays.
MOTORIZED LINEAR ZOOM

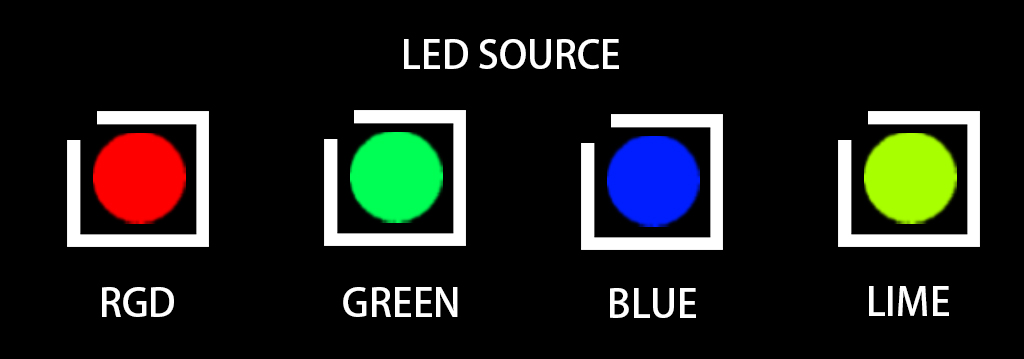

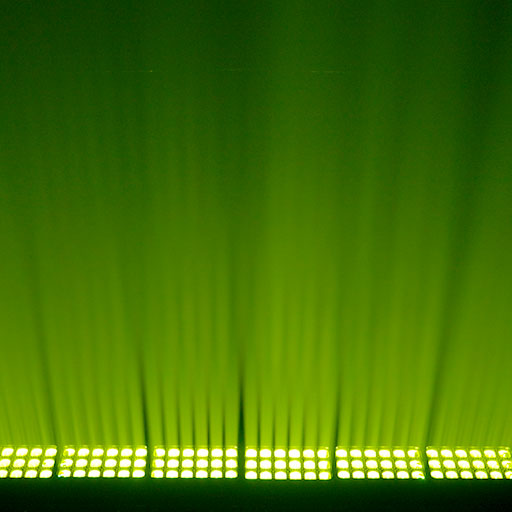

Driven by an intensive array of 18 high-power 50W RGBL (Red, Green, Blue, Lime) LED light sources, the AL-Q5IP incorporates a precision motorized linear zoom mechanism. This advanced optical system provides ultimate hybrid versatility, allowing the fixture to transform instantly from a razor-sharp, narrow-angle aerial beam effect (BEAM) into a wide, smooth, perfectly blended homogeneous color wash (WASH).
NFC WIRELESS CONFIG

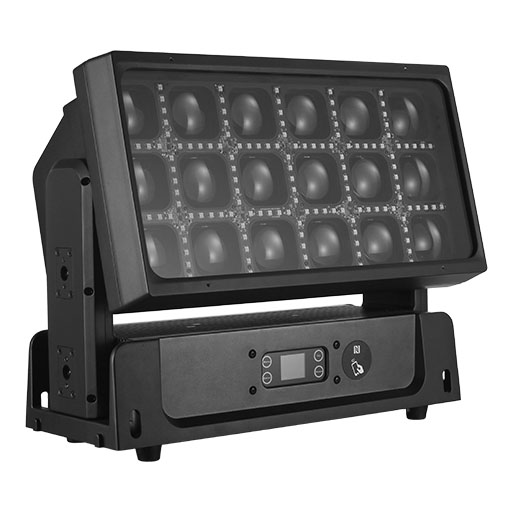

Engineered for maximum rental deployment efficiency, the AL-Q5IP integrates advanced near-field communication (NFC) hardware. We have developed a dedicated professional companion App fully compatible with both iOS and Android ecosystems, available for immediate download directly from the official App Store and Google Play. This integration allows technicians to instantly read, modify, and upload critical DMX addresses, network protocols, and core parameter presets using their mobile devices without connecting the fixture to main power, radically streamlining large-scale warehouse staging and on-site rig setups.
180° MOTORIZED TILT AXIS

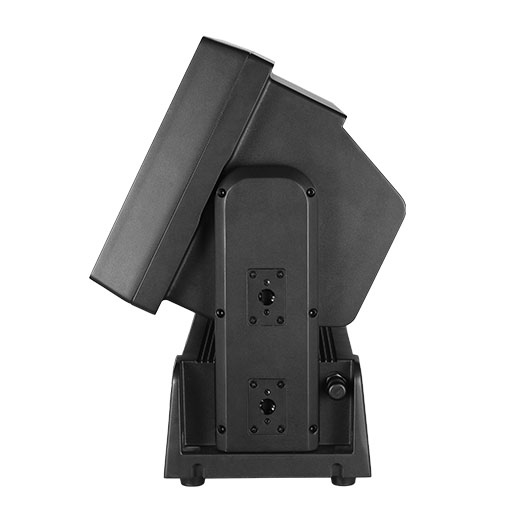

Supported by ultra-responsive, high-torque industrial stepping motors, the panel head houses a high-precision, smooth 180-degree motorized Tilt axis. This mechanical mobility gives operators absolute spatial command, allowing the high-output panel face to transition fluidly between rapid rhythmic position cuts, massive sweeping wash movements, and sudden kinetic audience blinders.
