- Tilt Degrees180°
- LED light sourceRGBL+RGBWW
- Dimming16-bit dimming
- Power800W
- Weight19.5 kg
- IP ratingIP65
- Electronic Frost functionYes
Technical Specifications
Light Source & Optics

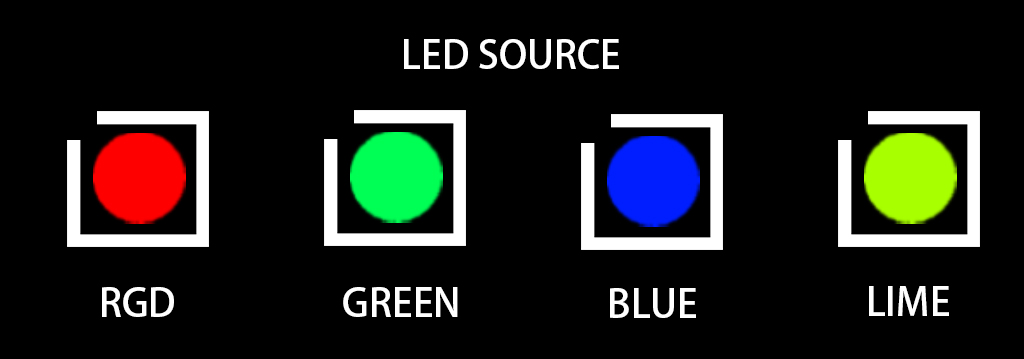

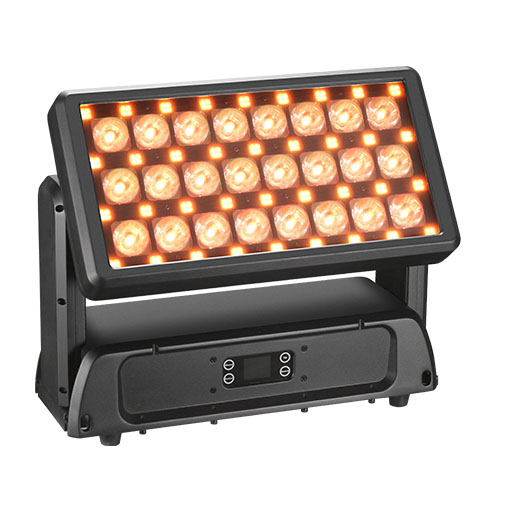

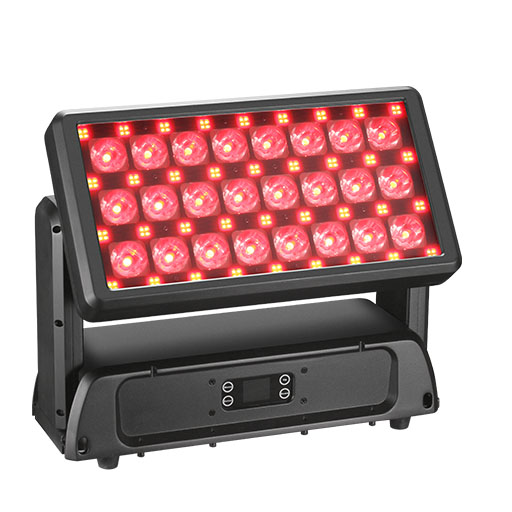

LED Source: 24*25W RGBL LEDs + 36*1.2W RGBA Aura LEDs (4 LEDs as one pixel)

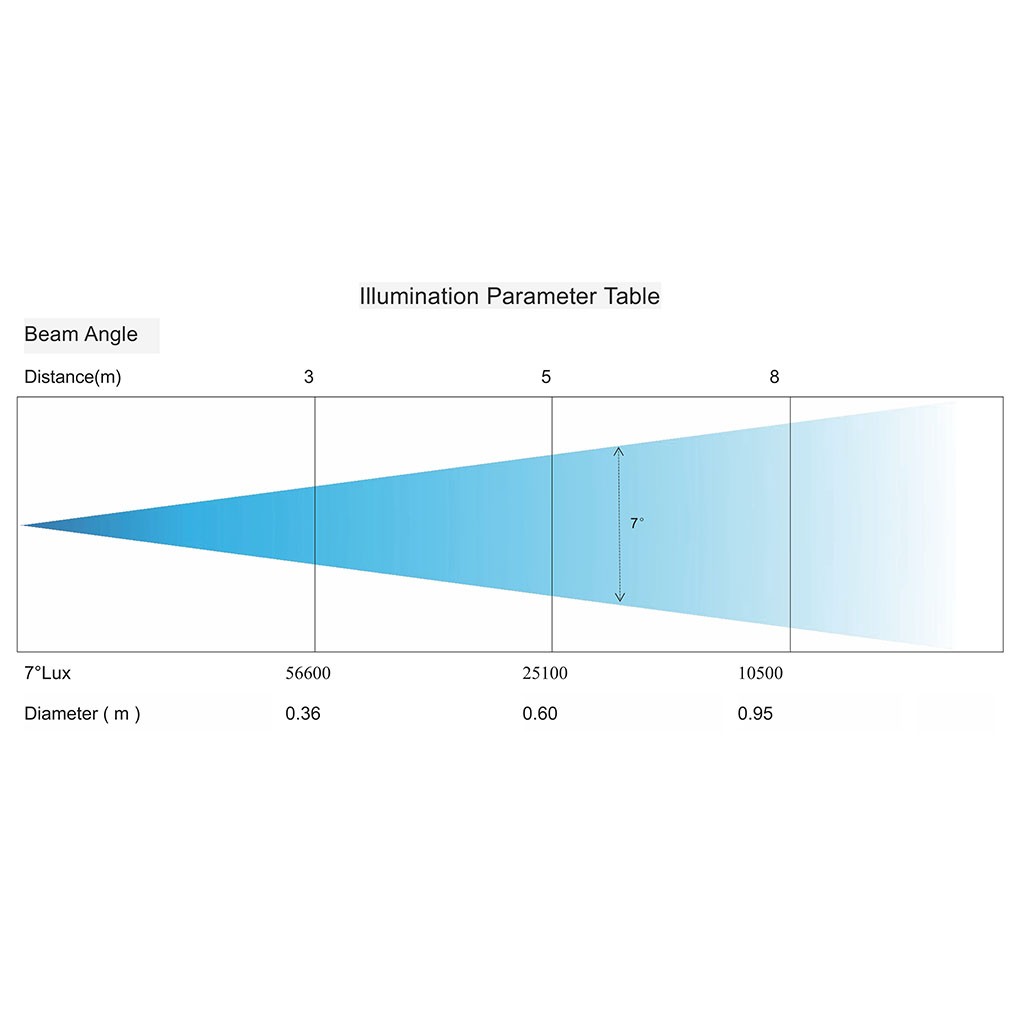

Lens Angle: 6°
Smart Glass Angle: 22°
Dynamic Effects & Movement
Dimmer: 0-100% electronic 16 - bit Dimming
Internal Effects: Preset CTO / LED Macro Effects
Frost: Electronic Frost
Tilt Movement: 180°
Position Feedback: Yes
Control & Connections
Channel Mode: 15/27/47/87/255CH
Protocols: DMX, RDM, ArtNet, sACN

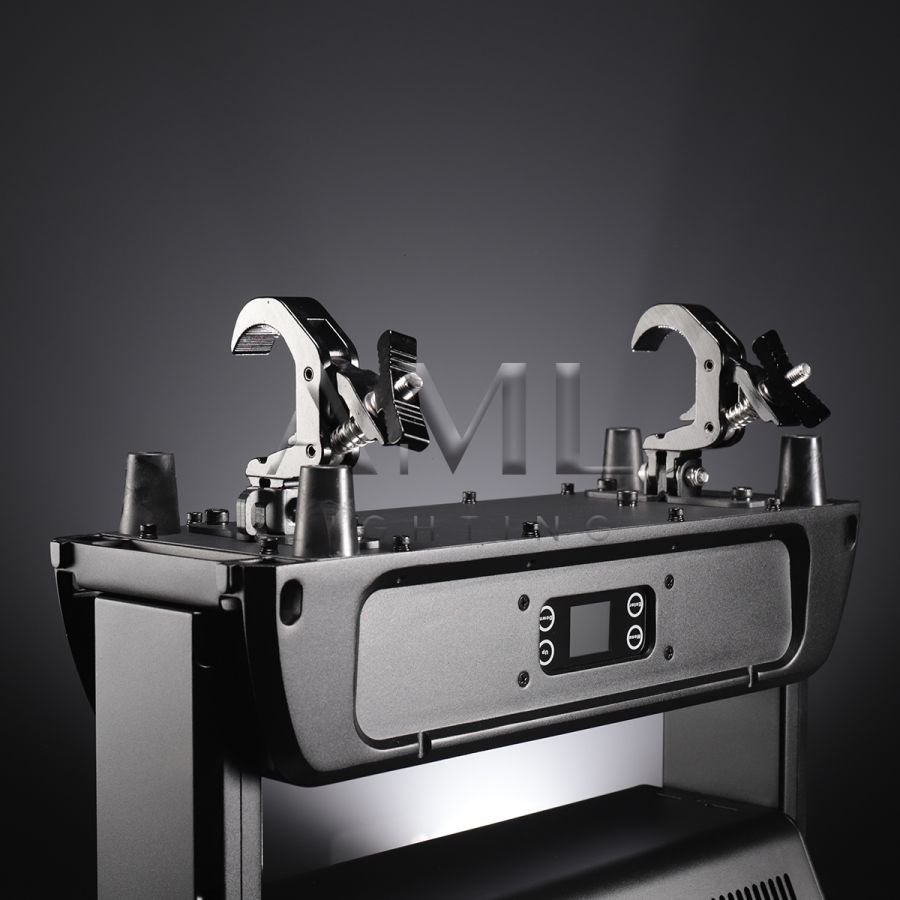

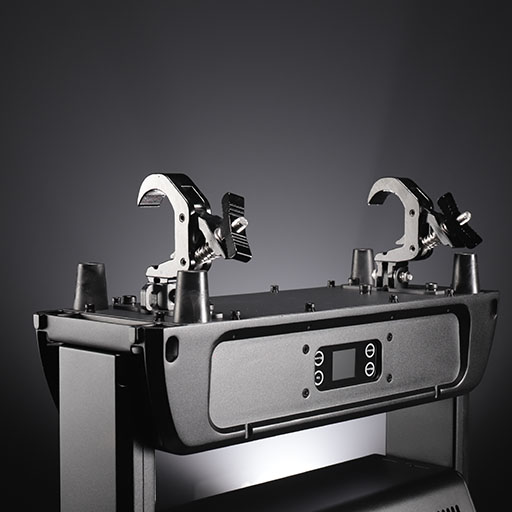

Display: Full Color 180° Reversible LCD Menu Display

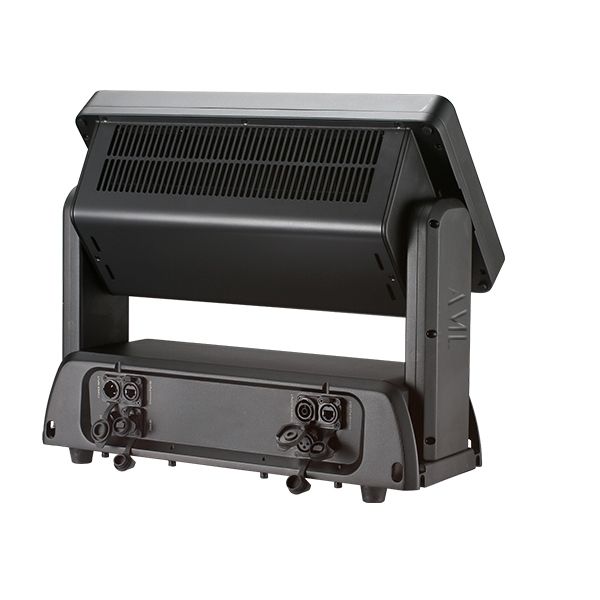

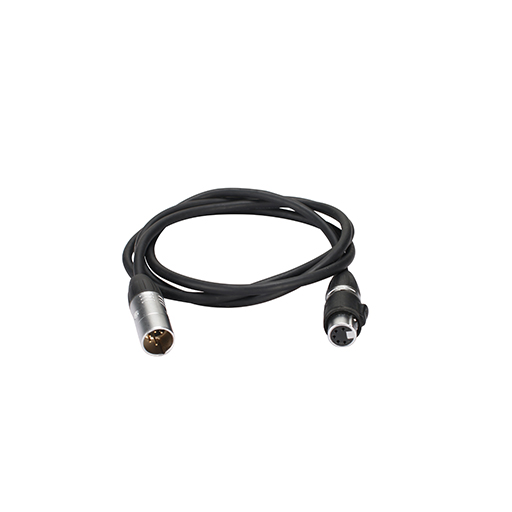

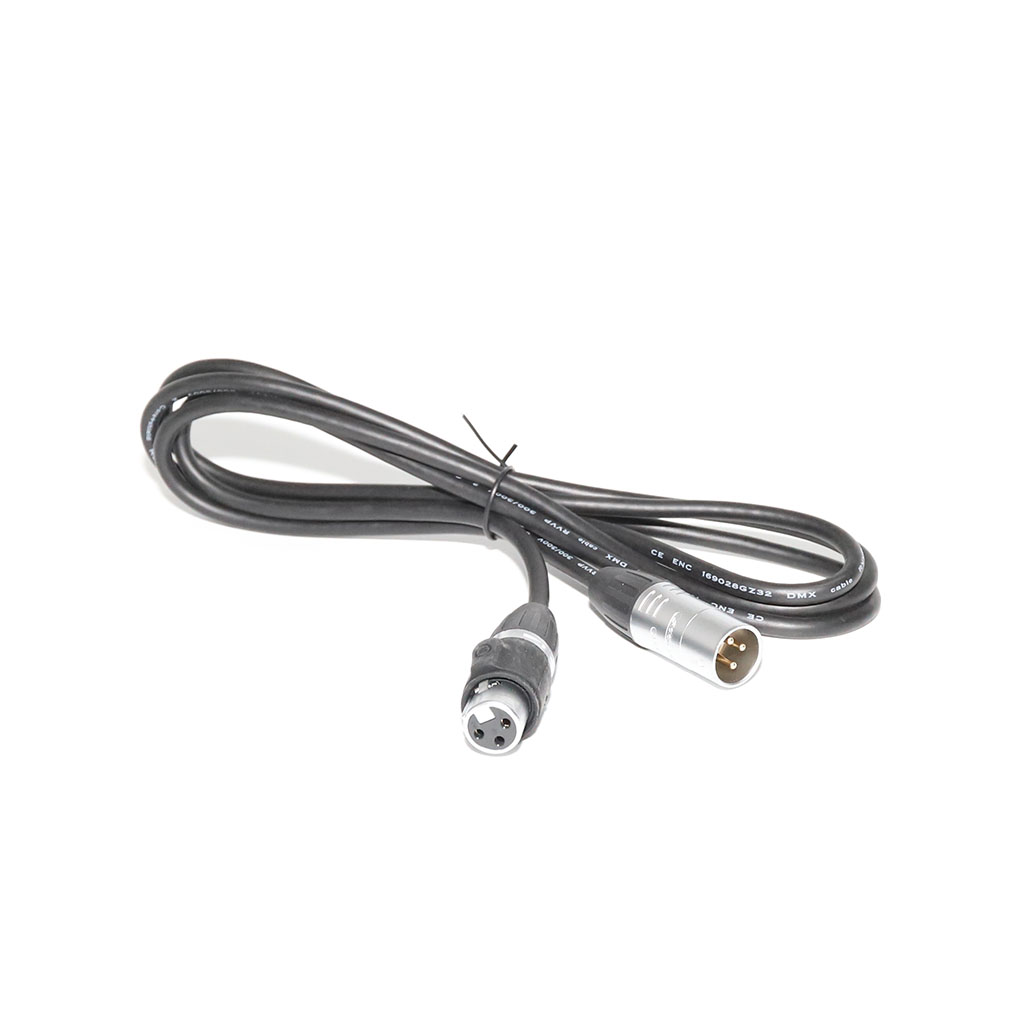

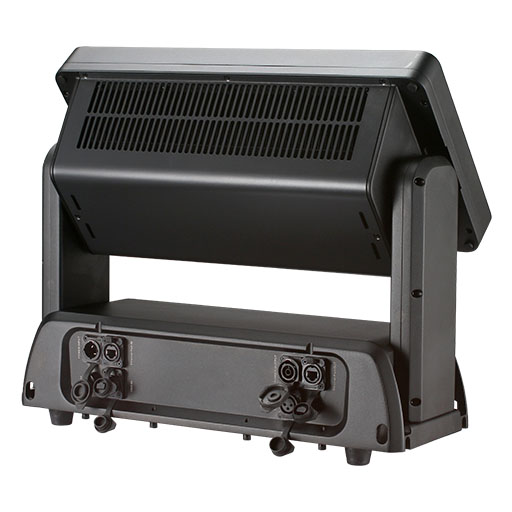

Signal Connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

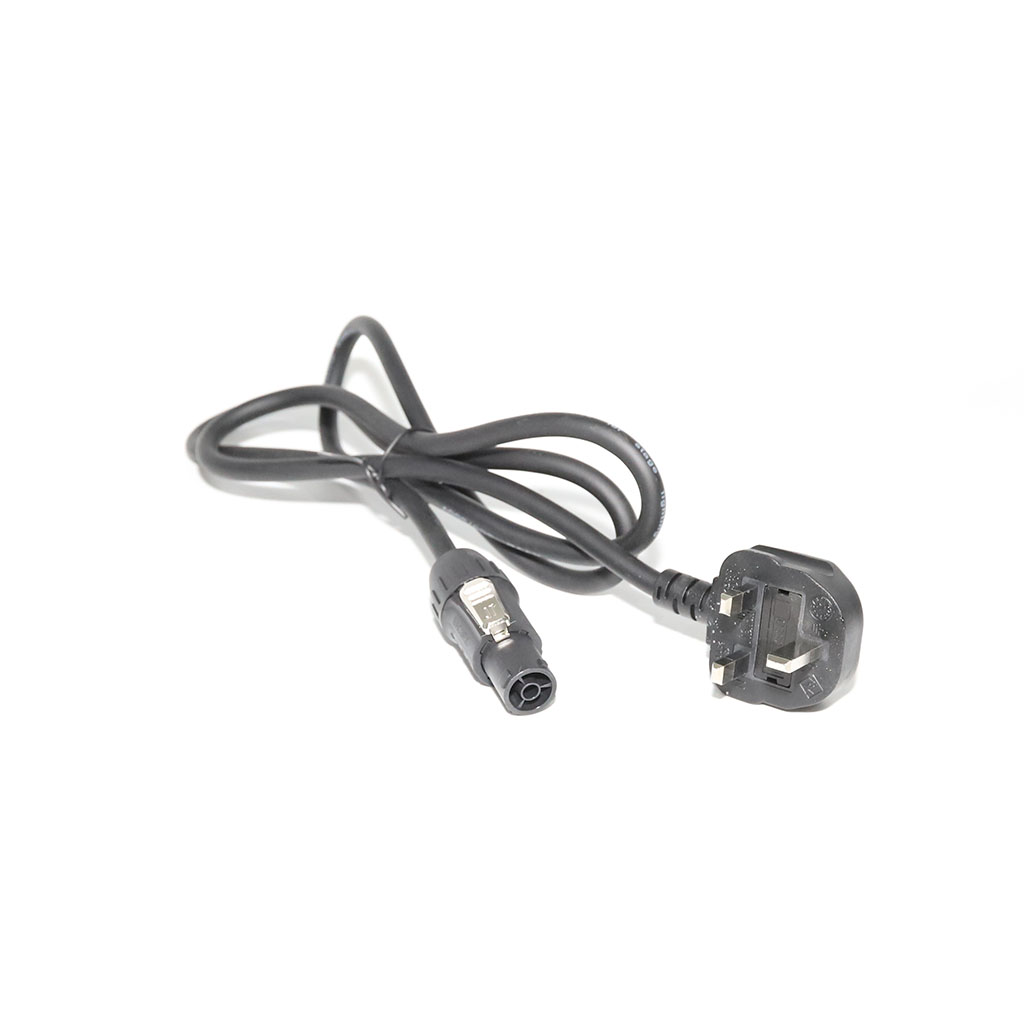

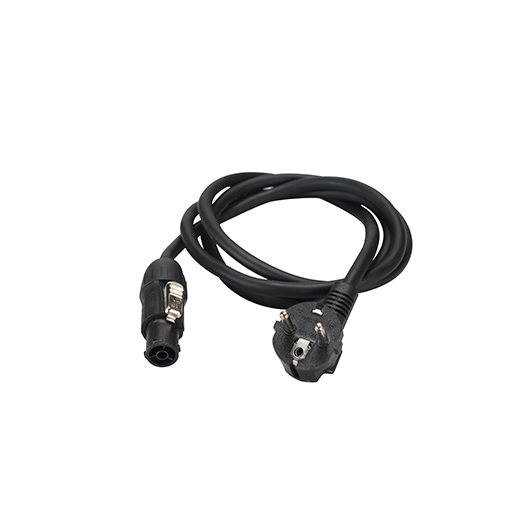

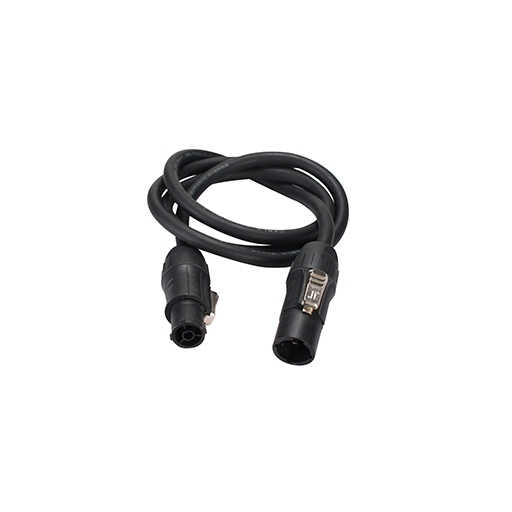

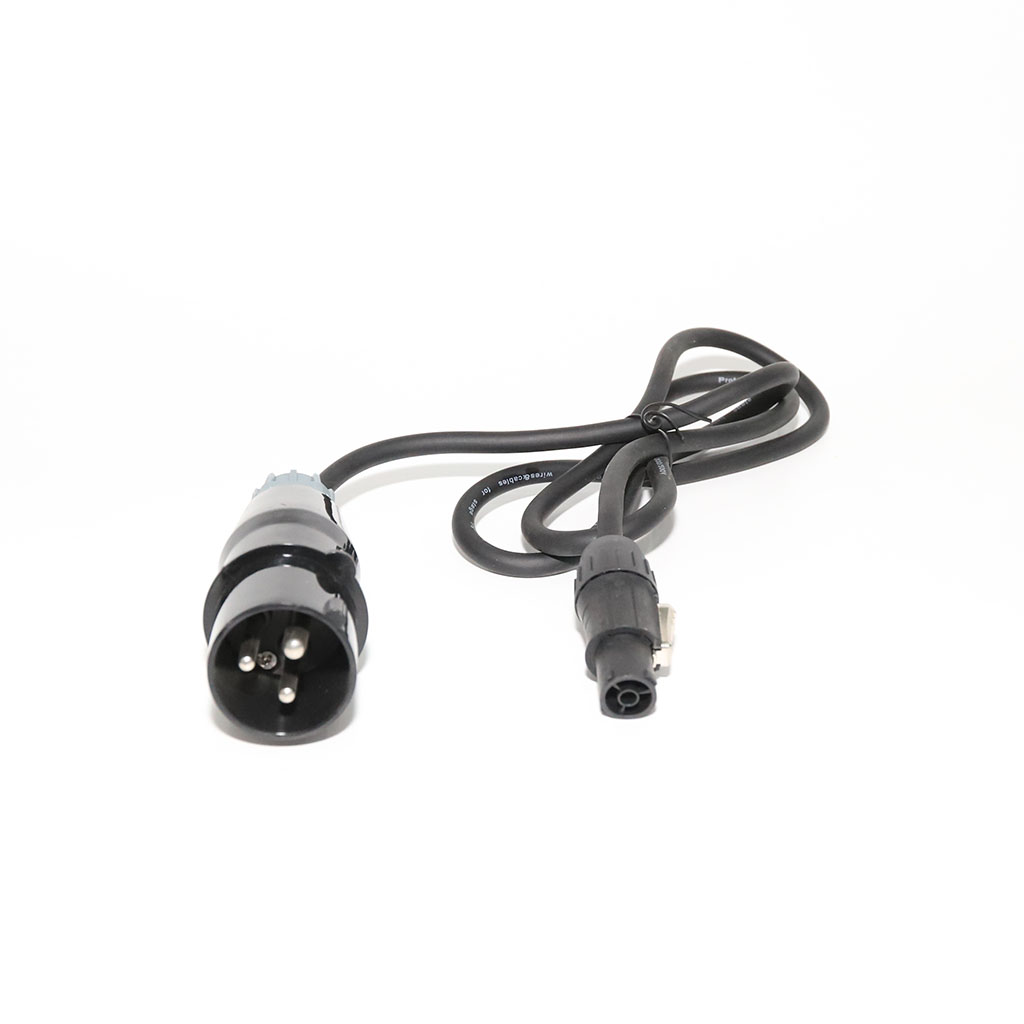

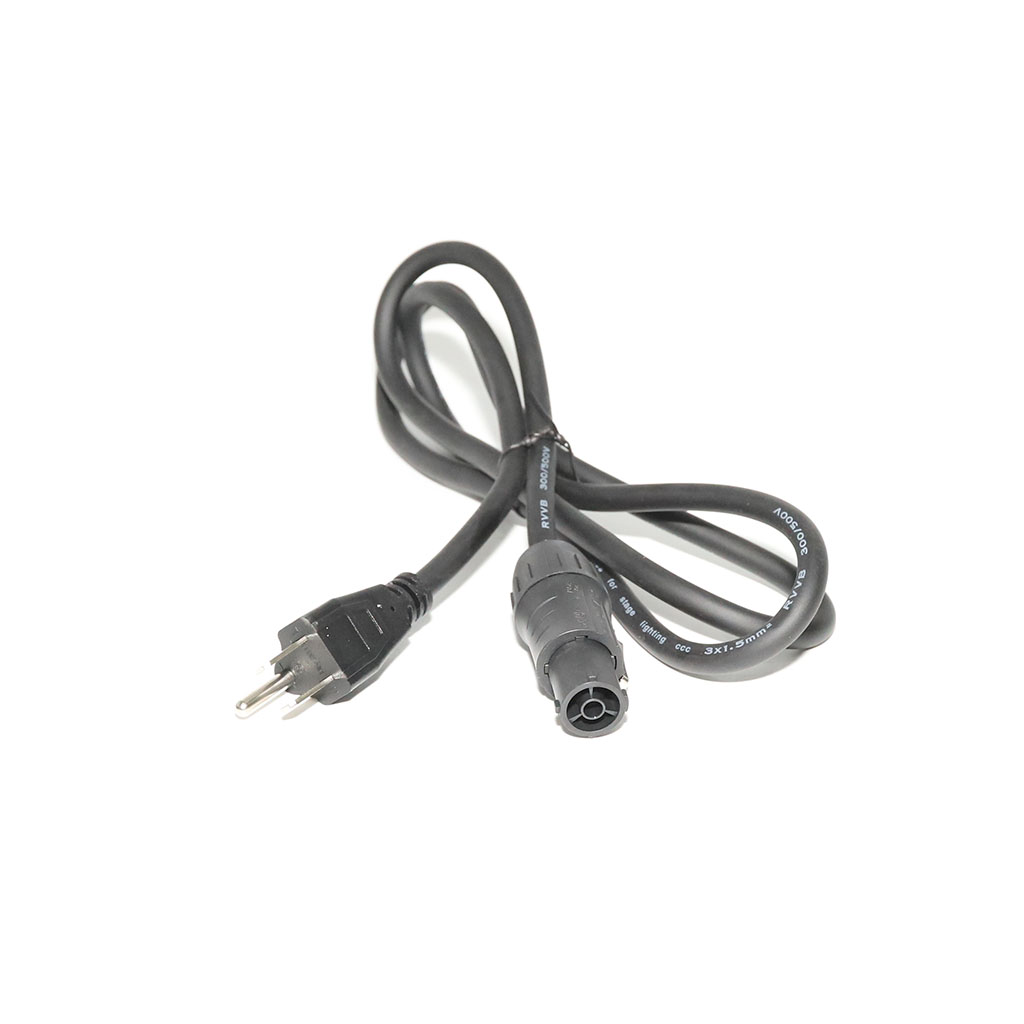

Power Input: Seetronic powerCON TRUE1 In/Out
Electrical & Physical
Mains: 100-240V AC / 50-60Hz
Consumption: 800W
Cooling System: Temperature controlled, Overheating protection, Noiseless fan for forced air
Ambient Temp: -30°C ~ 45°C

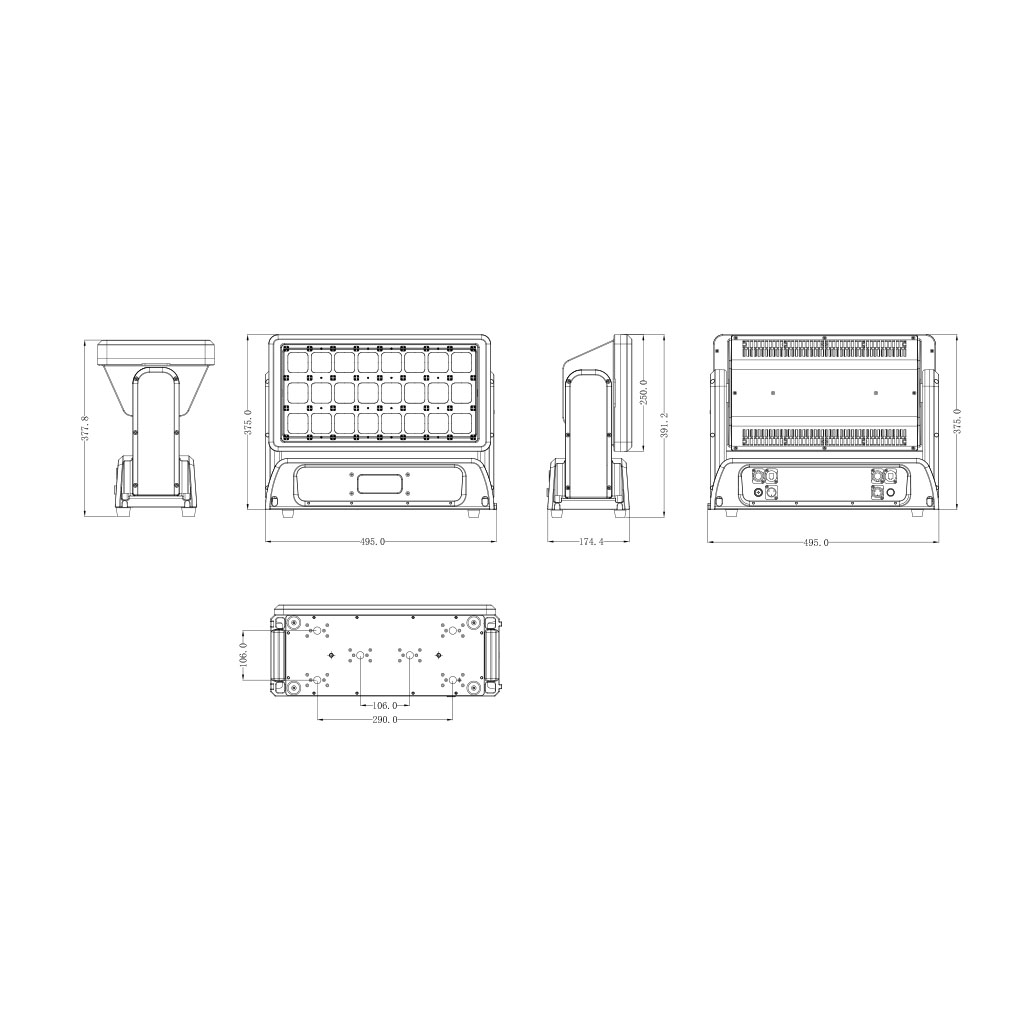

Dimensions: 493 x 175 x 375mm
Weight: 19.5kg
IP Rating: IP65
ADVANCED PRODUCT FEATURES

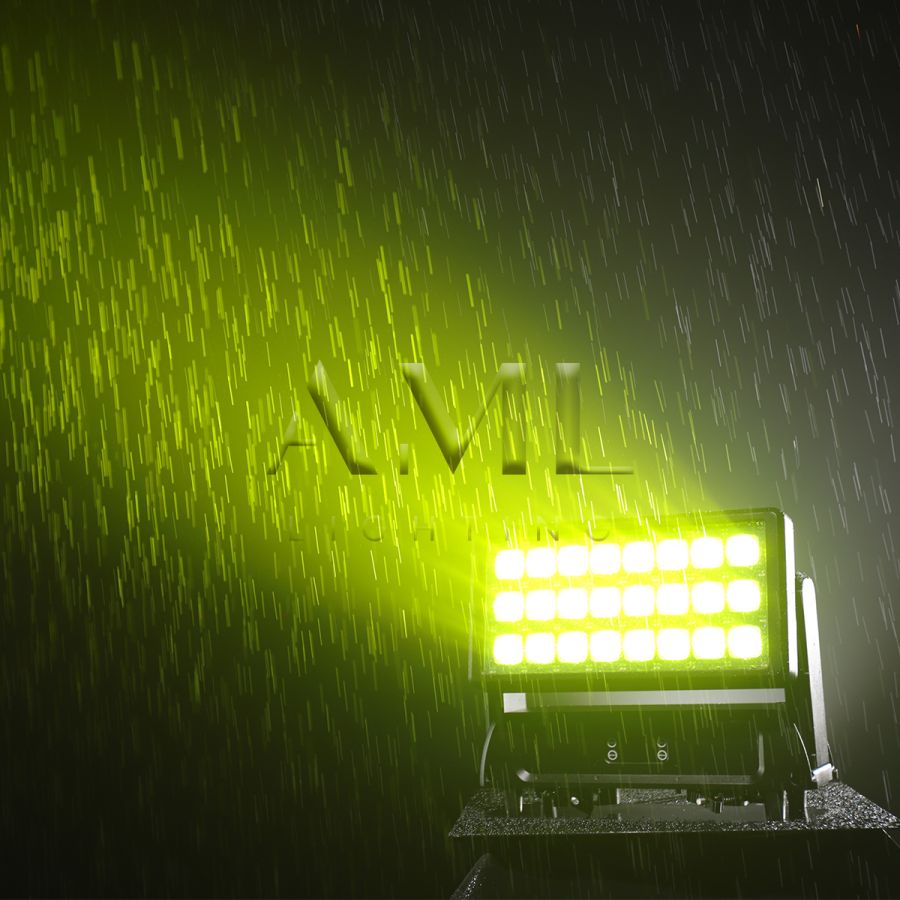

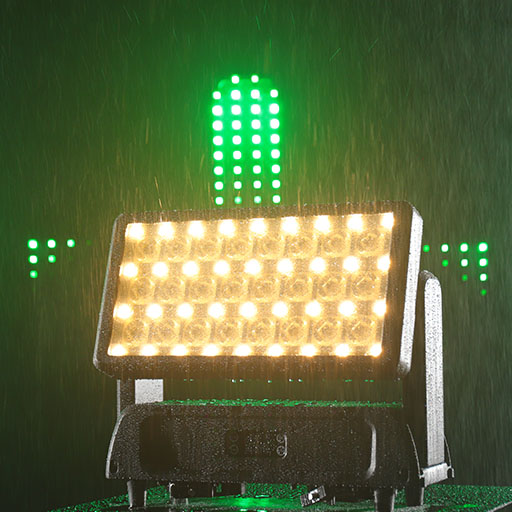

IP65 WATERPROOF
Advancing our heavy-duty professional Q-Series matrix—flanked by the companion Q3 and Q5 panel architectures—the AL-Q4 is fully enclosed inside an elite, rugged IP65 weather-resistant chassis. This advanced engineering completely blocks internal humidity build-up and prevents rain or dust ingress, ensuring absolute performance reliability during continuous rental touring operations and high-end outdoor stage environments.

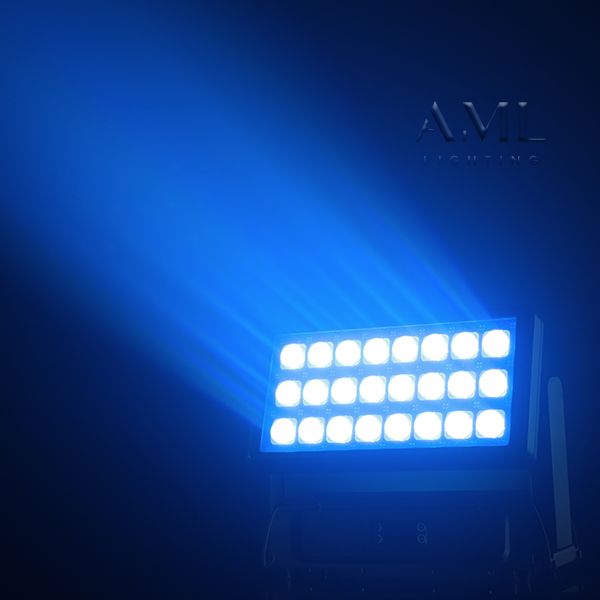

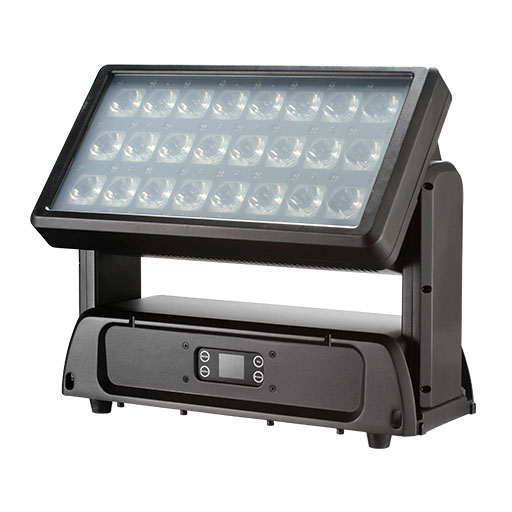

ELECTRONIC SMART GLASS
Breaking away from heavy mechanical zoom structures, the AL-Q4 integrates a revolutionary Electronic Smart Glass layer over the front optics. By shifting its physical molecular density via real-time voltage modulation, this custom frost framework allows lighting programmers to instantly alter the beam projection angle. It switches fluidly from a punchy, highly concentrated directional throw to a thoroughly diffused, wide-reaching homogeneous wash field.

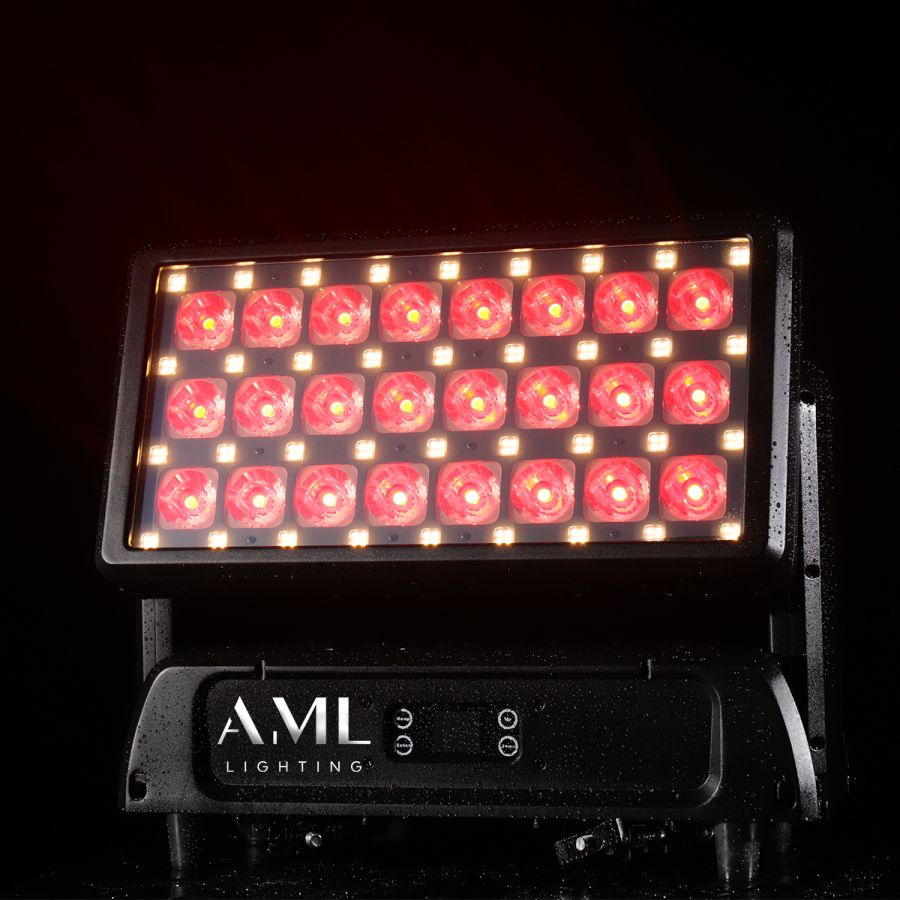

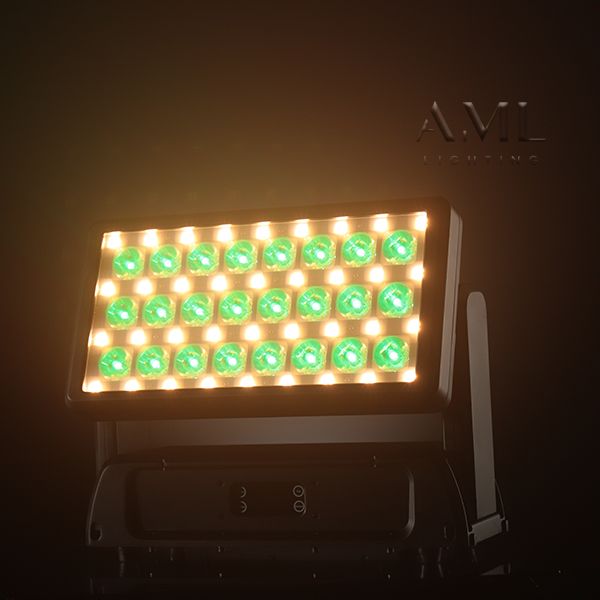

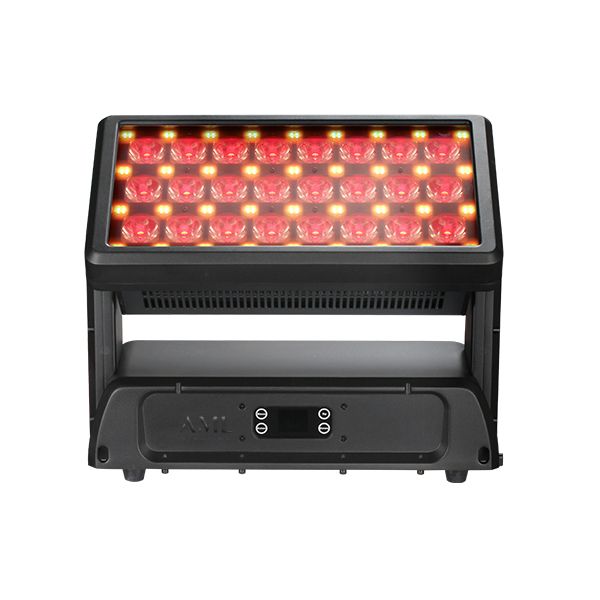

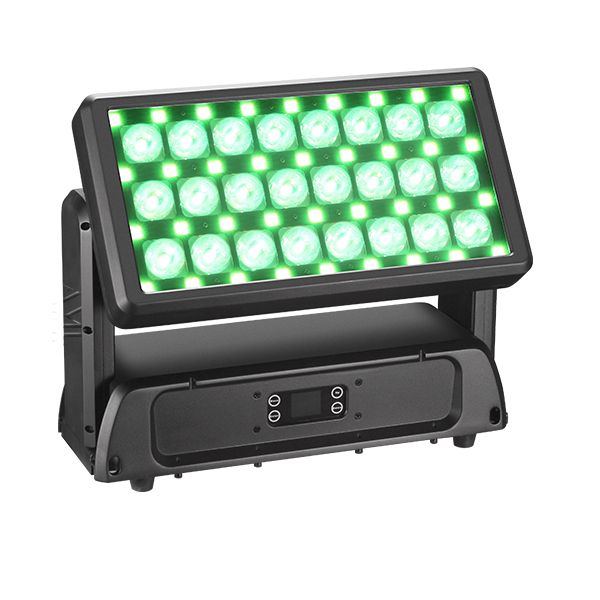

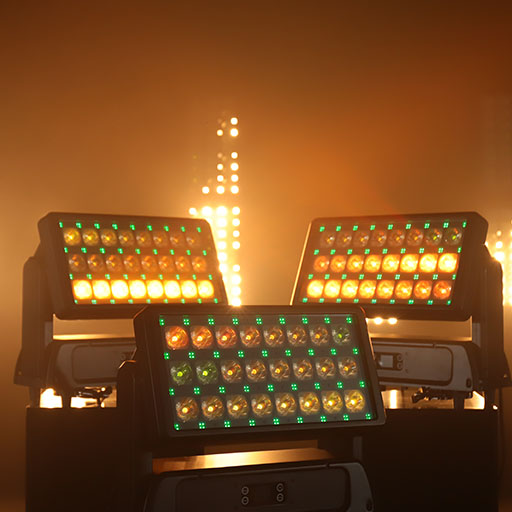

PRIMARY & AURA LEDS

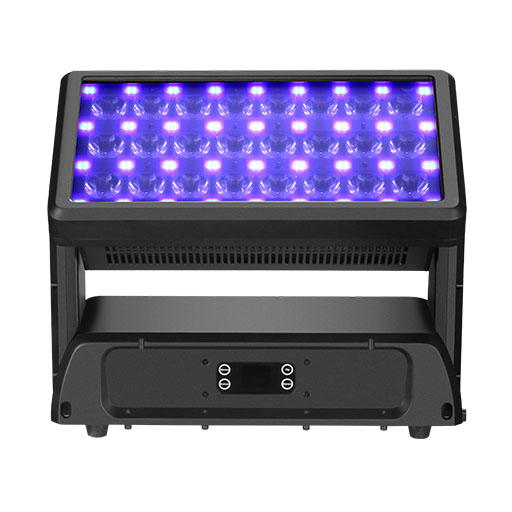

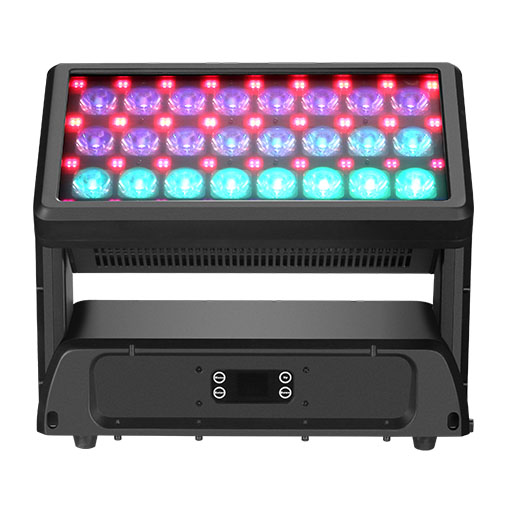

Engineered for multi-layered theatrical depth, the AL-Q4 panel pairs an intensive high-output primary wash source with an independent, high-definition RGBWW pixel auxiliary aura system. This dual-engine topology allows operators to trigger saturated core beams while simultaneously washing the surrounding background plate with smooth, delicate pastels, offering unmatched versatility for high-end concerts and studio productions.

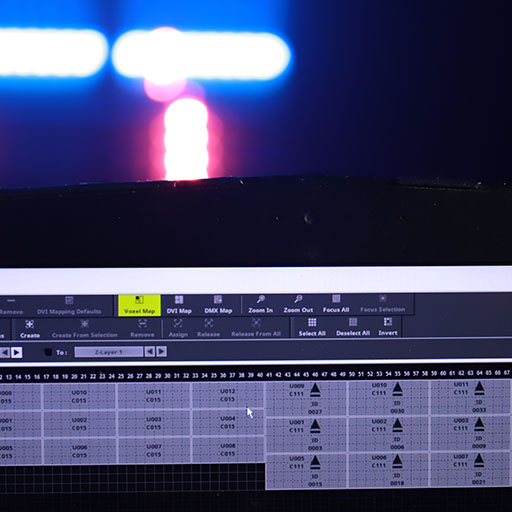

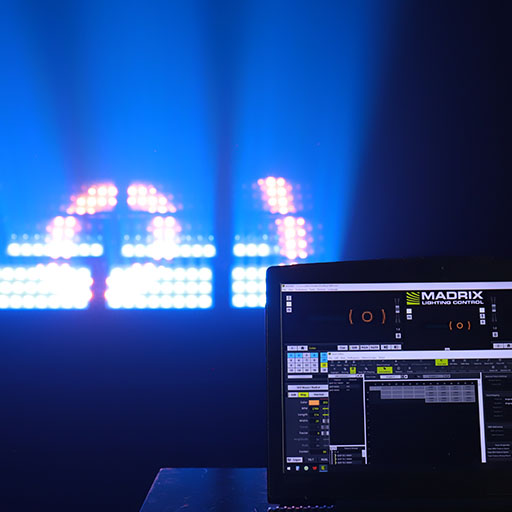

PIXEL-MAPPED MATRIX
Unlocking complete creative command, the fixture features individual multi-zone pixel mapping across its entire high-density LED matrix panel. Lighting designers can easily bypass static color washes, uploading intricate geometric color chases, flowing texture patterns, and rich volumetric video effects that track across the panel face, making it a powerful eye-candy centerpiece on premium stages.
180° MOTORIZED TILT Axis
Driven by ultra-responsive, high-torque industrial stepping motors, the panel assembly incorporates a smooth, high-precision 180-degree motorized Tilt axis. This mechanical capacity allows the high-power panel to execute lightning-fast position changes, smooth sweeping wash trajectories, and dramatic kinetic blinders, providing programmers with absolute control over vertical spatial fields.
