- Tilt Degrees180°
- Power1200W

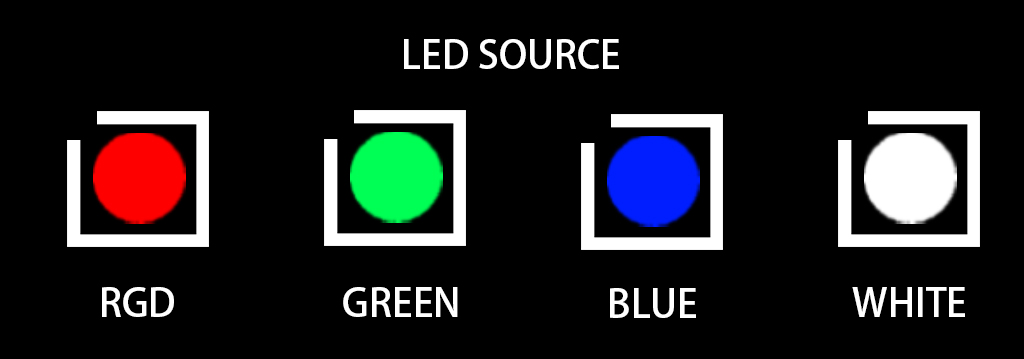

- LED sourceRGBW+CW
- Dimmingelectronic 16-bit dimming
- Pixel control3x8/24x4
- Weight14 kg
- IP ratingIP65
Technical Specifications
Light Source & Effects
Strobe Panel LEDs: 1.6W RGBW 4in1 LEDs 864pcs , LED Segments: 24 (3 x 8)
Strobe Tube LEDs: 1W CW LEDs 576pcs , LED Segments: 96 (24 x 4)
Dimmer: 0-100% electronic 16 - bit Dimming
Internal Effects: Preset CTO / LED Macro Effects
Movement & Control
Movement (Tilt): 180°
Position Feedback: Yes
DMX Channels: 18/33/56/76/112/114/138/208/92 DMX Channel Modes
Control Protocols: DMX, RDM, ArtNet, sACN
Display: Full Color 180° Reversible LCD Menu Display

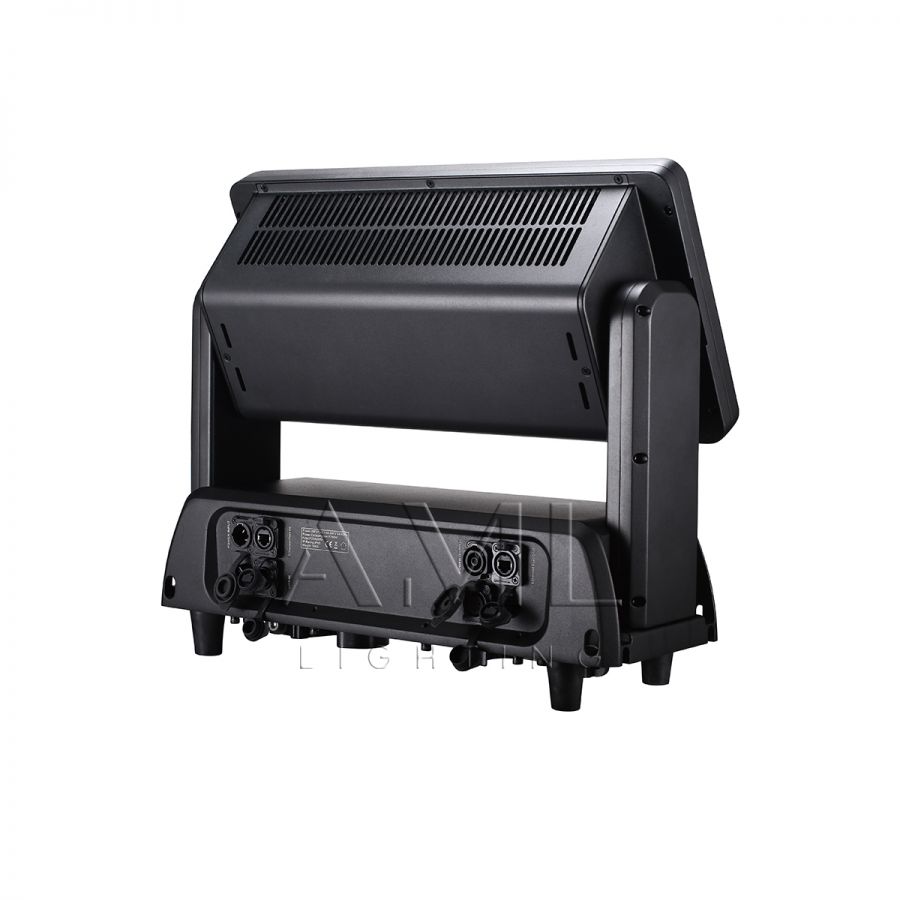

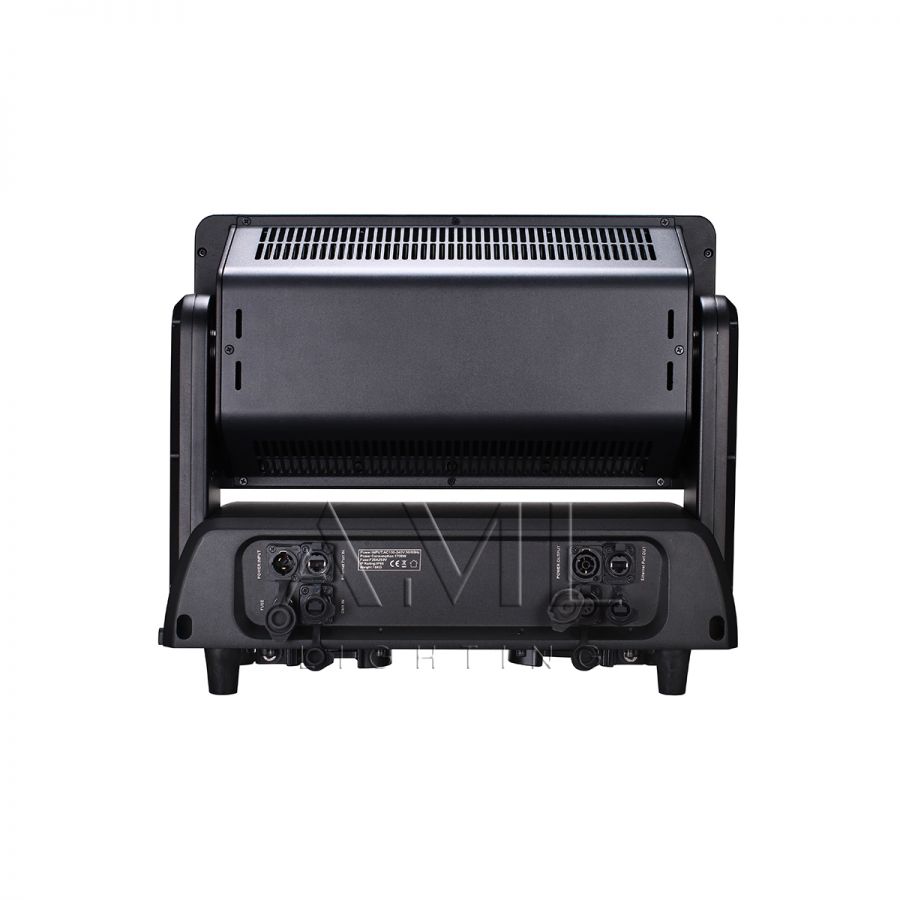

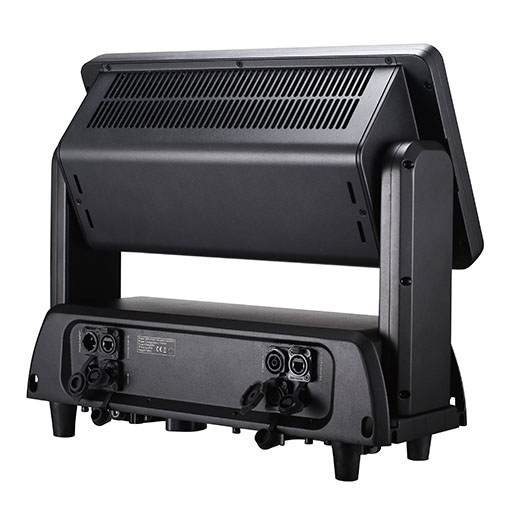

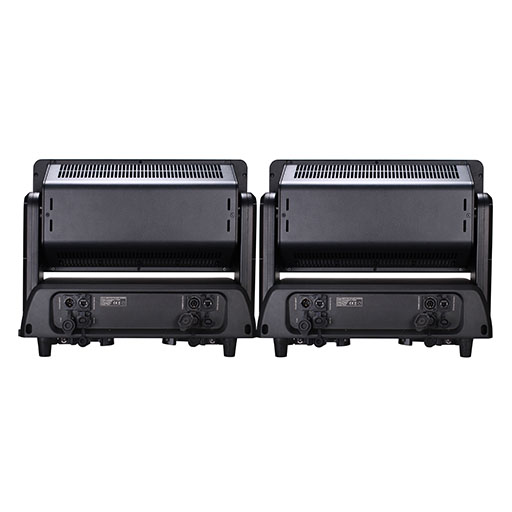

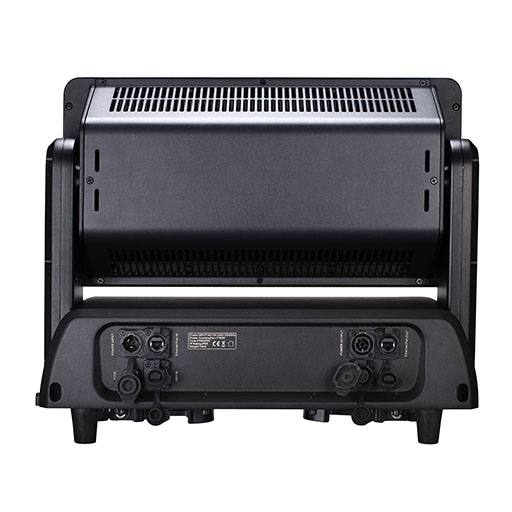

Connectors & Cooling

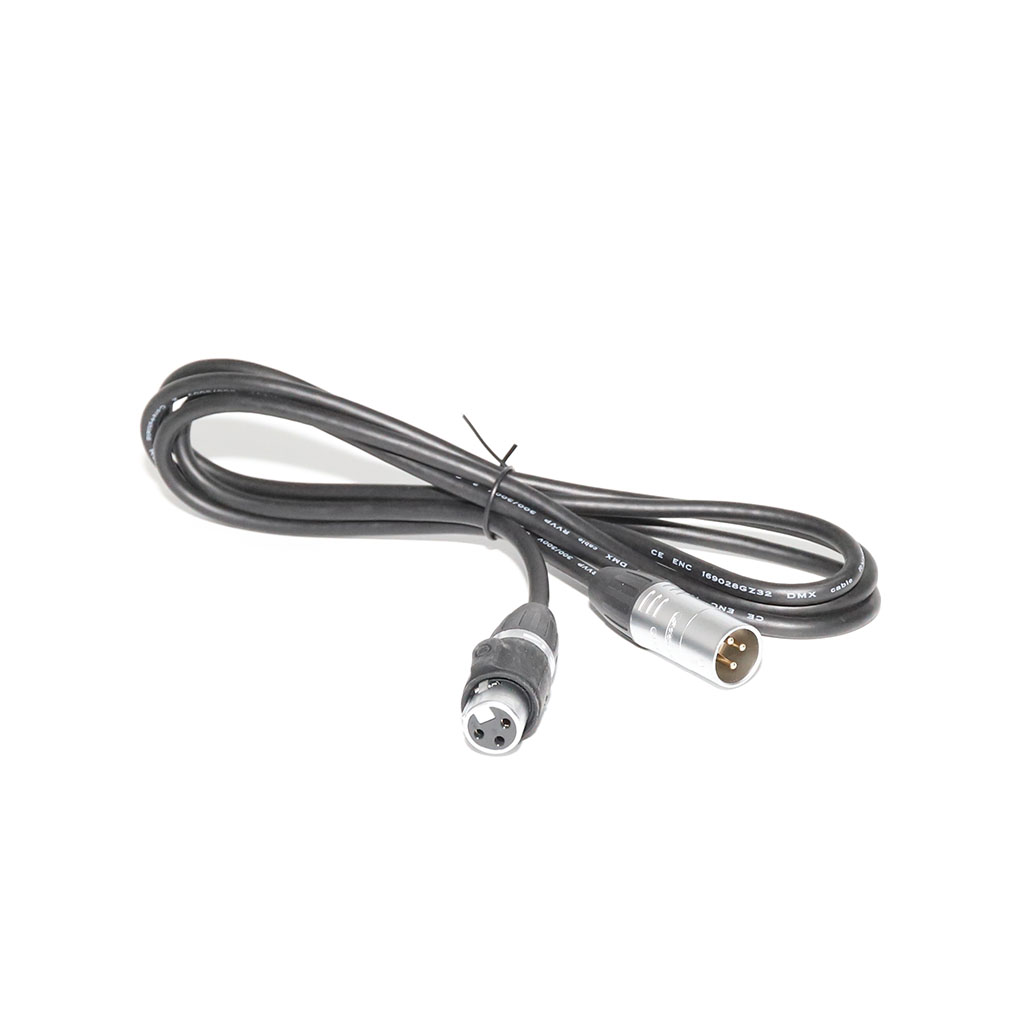

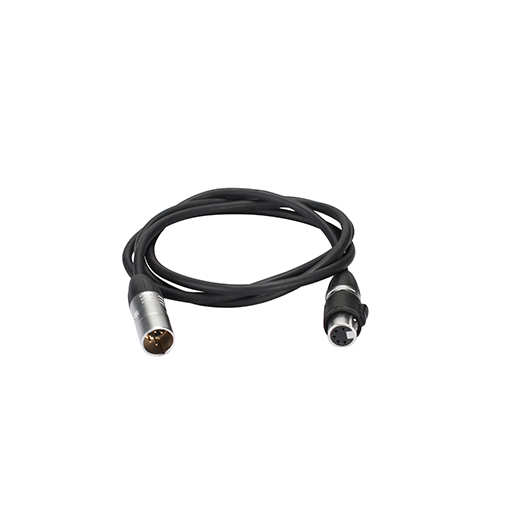

Signal Connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

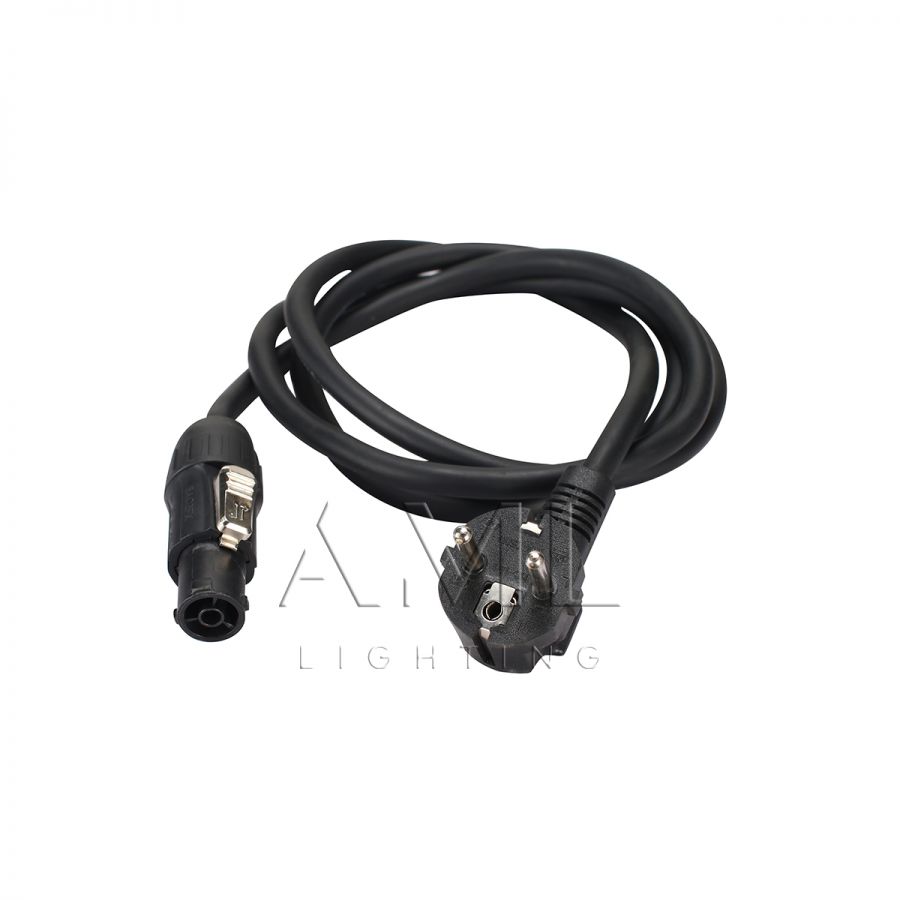

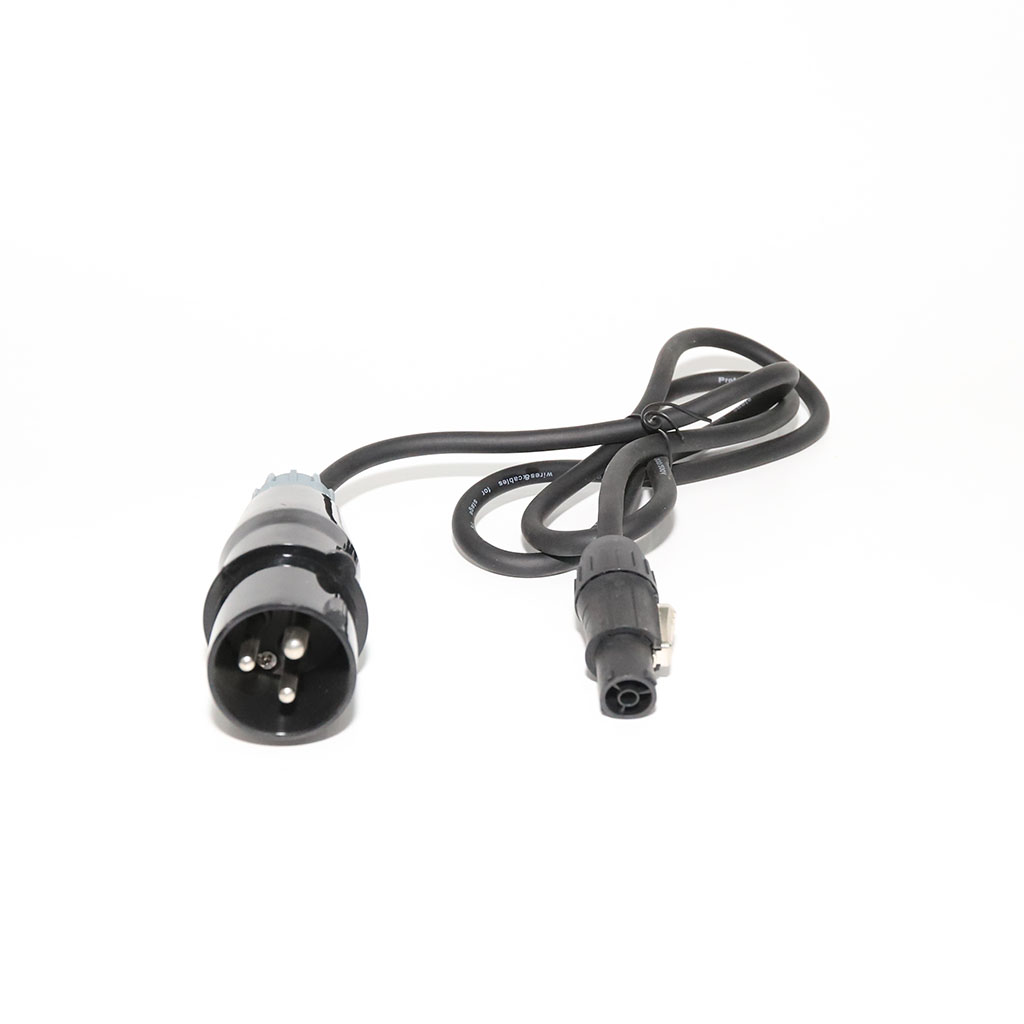

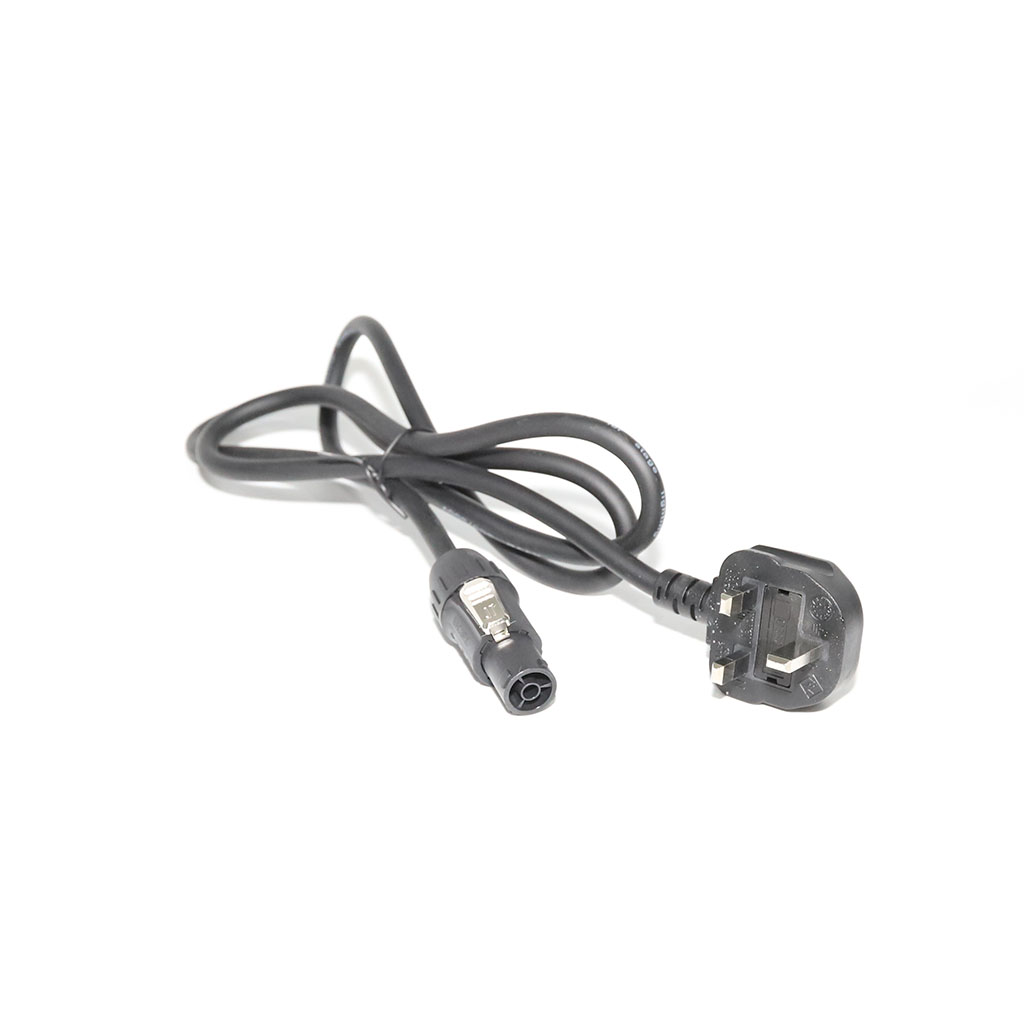

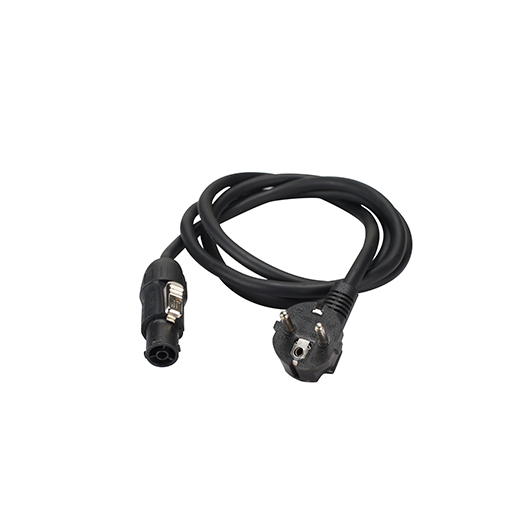

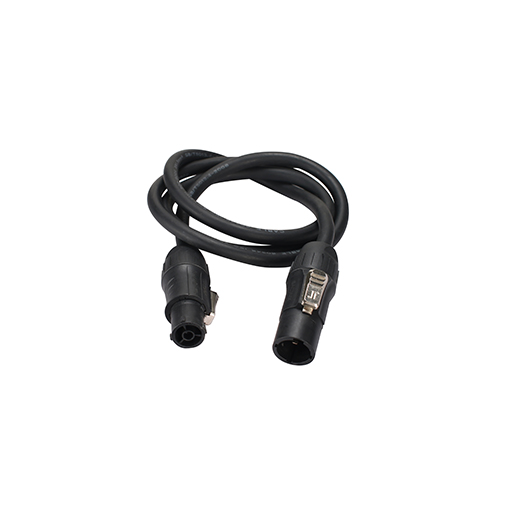

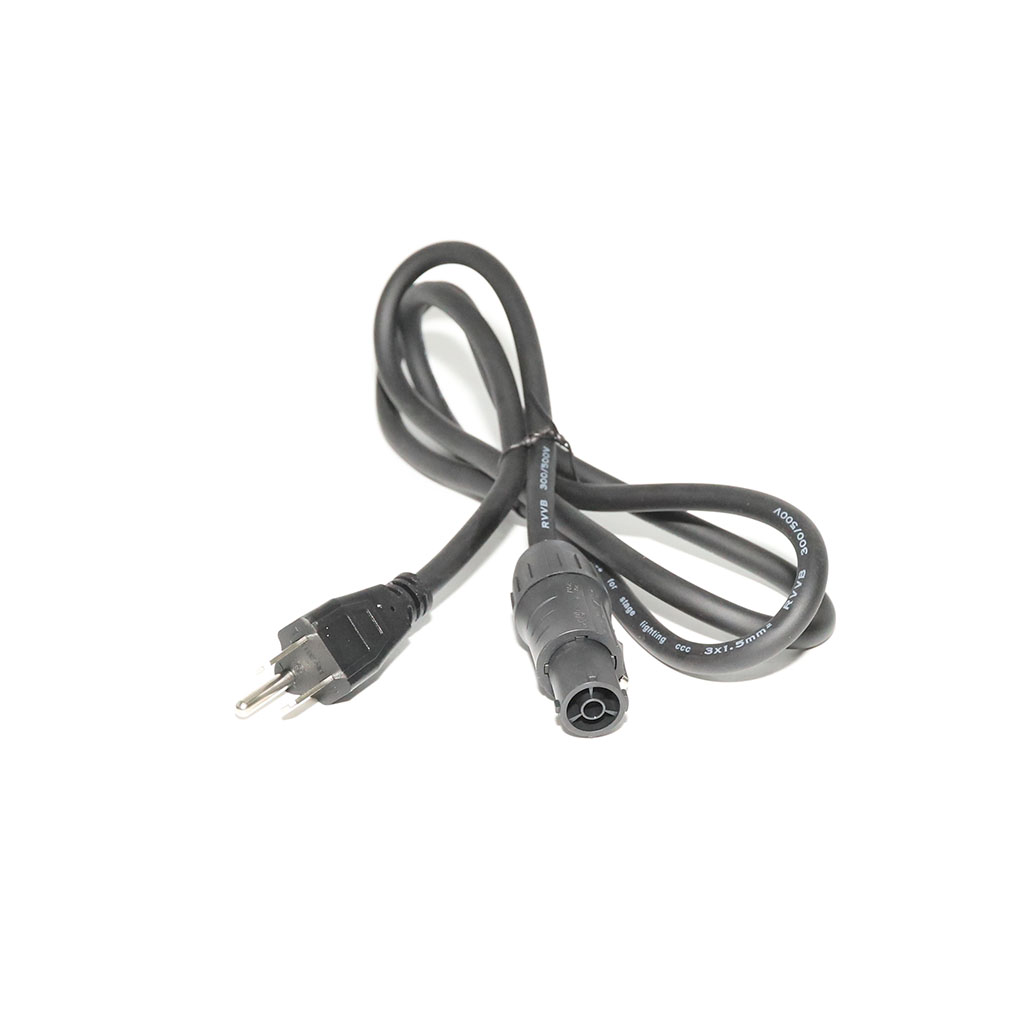

Power Input: Seetronic powerCON TRUE1 In/Out
Cooling System: Temperature controlled, Overheating protection, Noiseless fan for forced air
Electrical & Physical
Mains: 100-240V AC / 50-60Hz
Consumption: 1200W/230V(Dynamic) 1800W/230V(Peak value @ strobe)
Ambient Temp: -30°C ~ 45°C

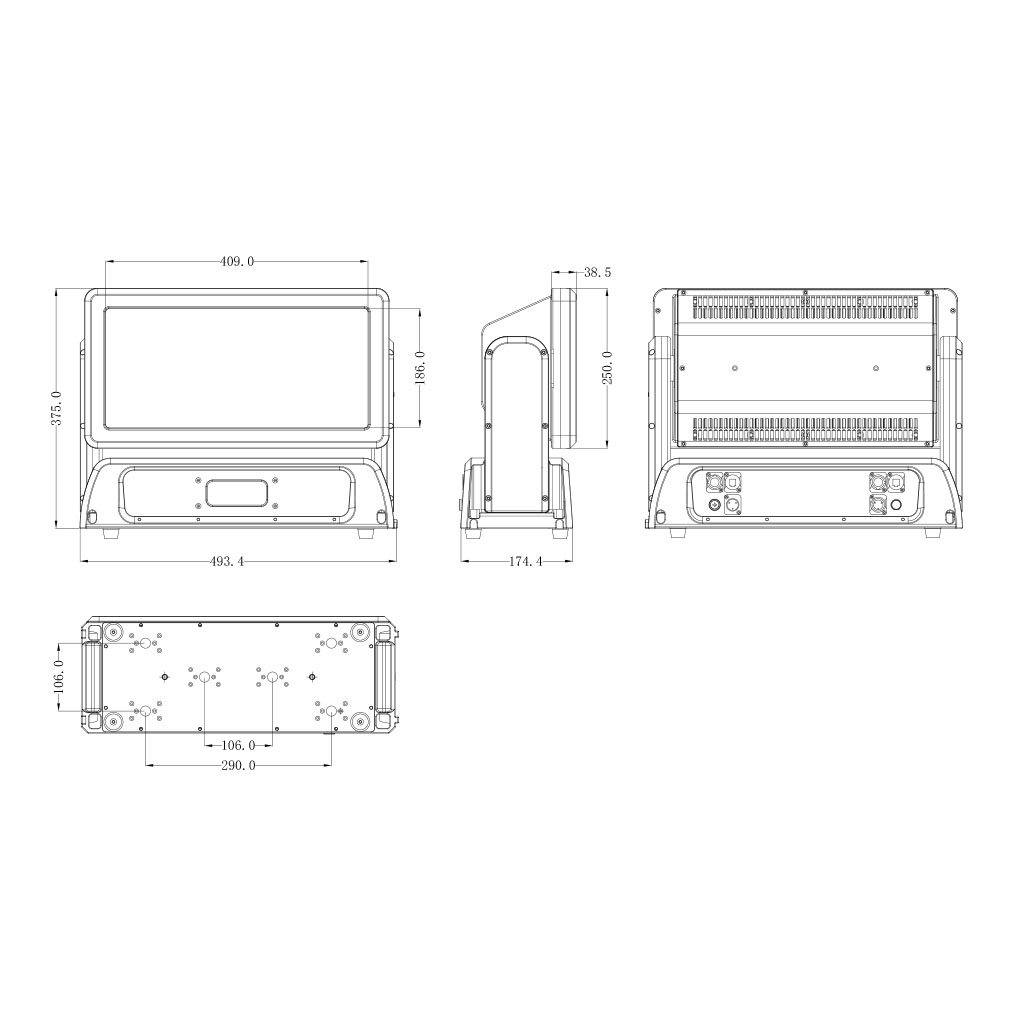

Dimensions: 493 x 175 x 400mm
Weight: 17kg
IP Rating: IP65

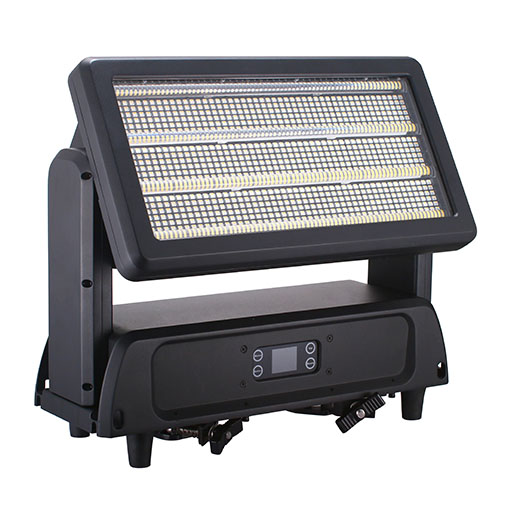

ADVANCED PRODUCT FEATURES

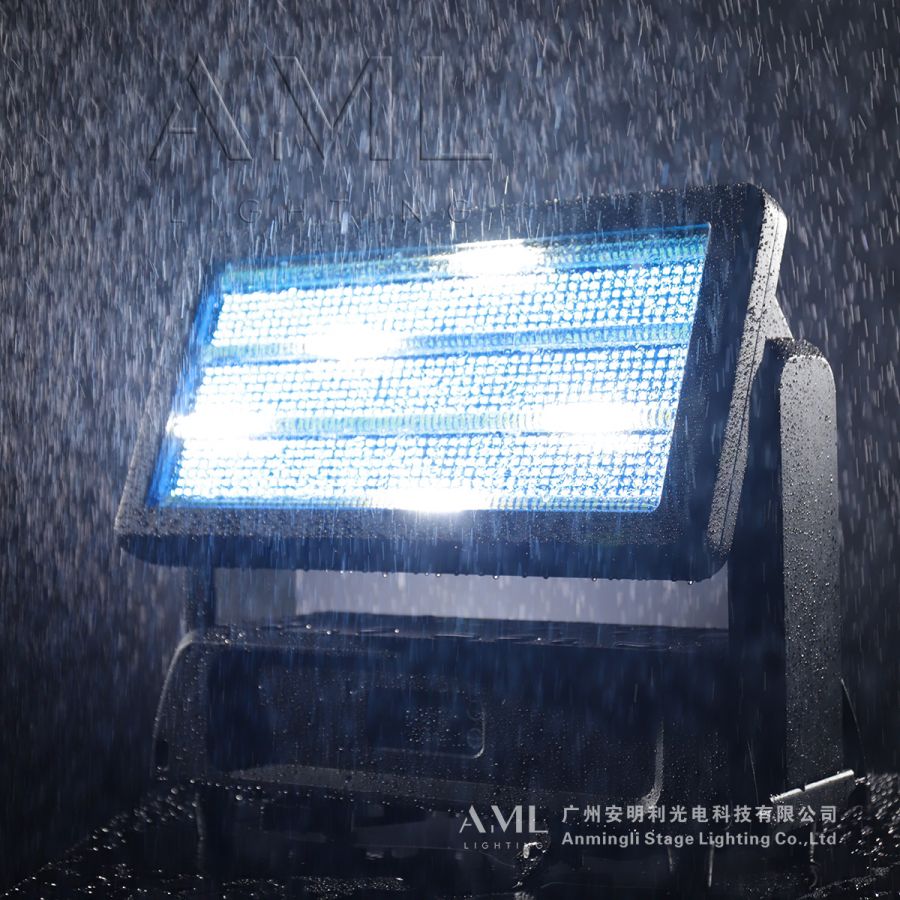

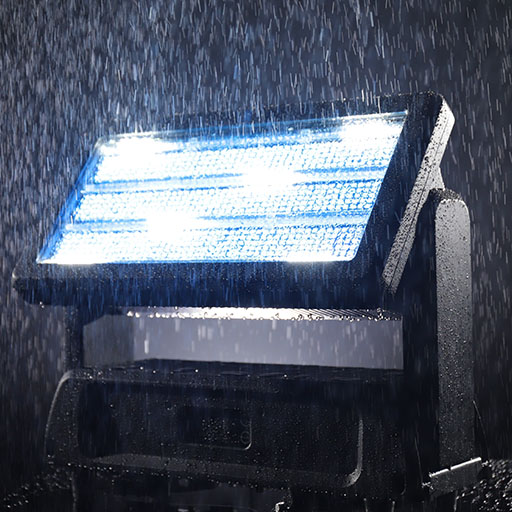

IP65 WATERPROOF
Representing the cutting edge of our premium Q-Series matrix—which features the advanced Q3, Q4, and Q5 panel architectures—the AL-Q3IP is engineered with a heavy-duty, precision-sealed IP65 chassis. This robust weatherproof enclosure prevents internal moisture build-up and maintains absolute component isolation against heavy rain, sand dust, and extreme moisture during high-profile touring productions and outdoor festival installations.

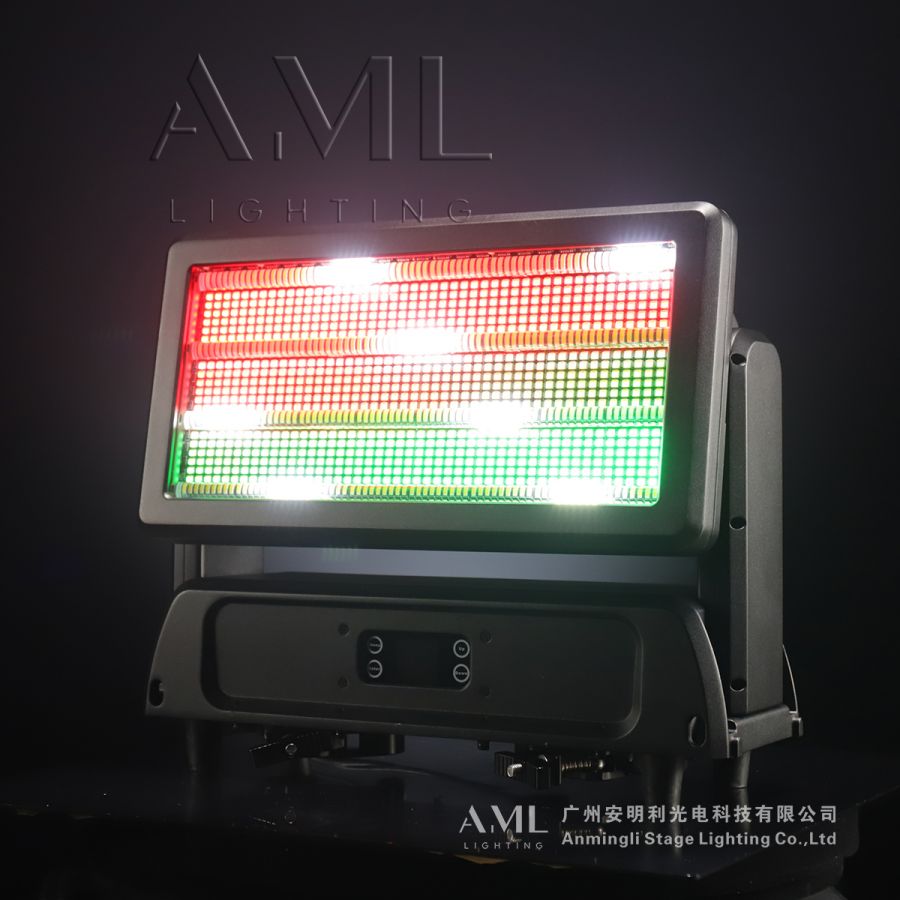

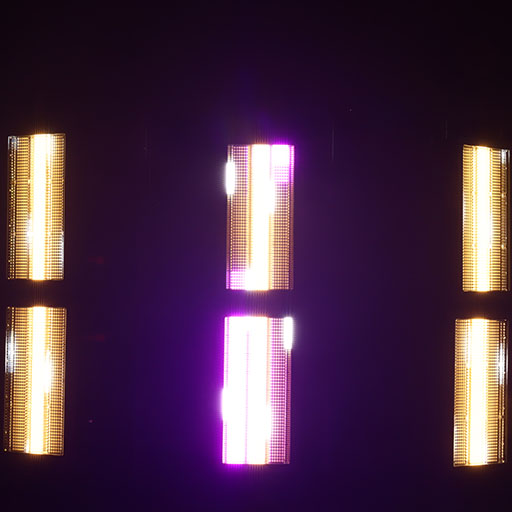

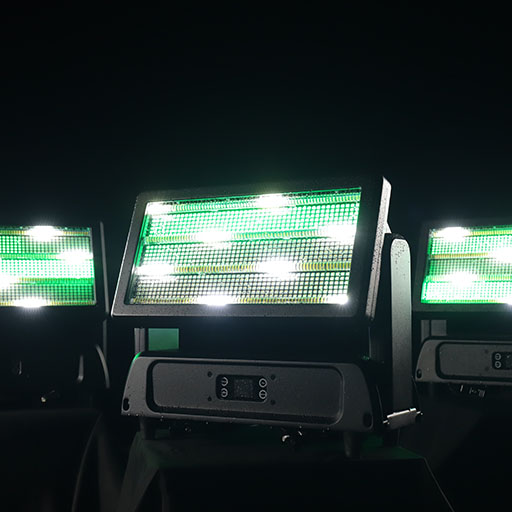

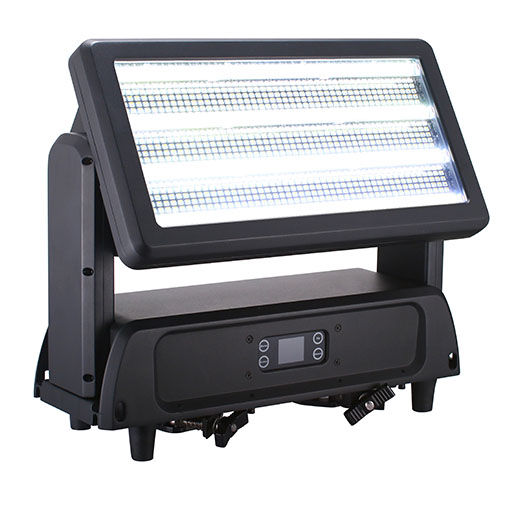

CW BLINDING PIXELS

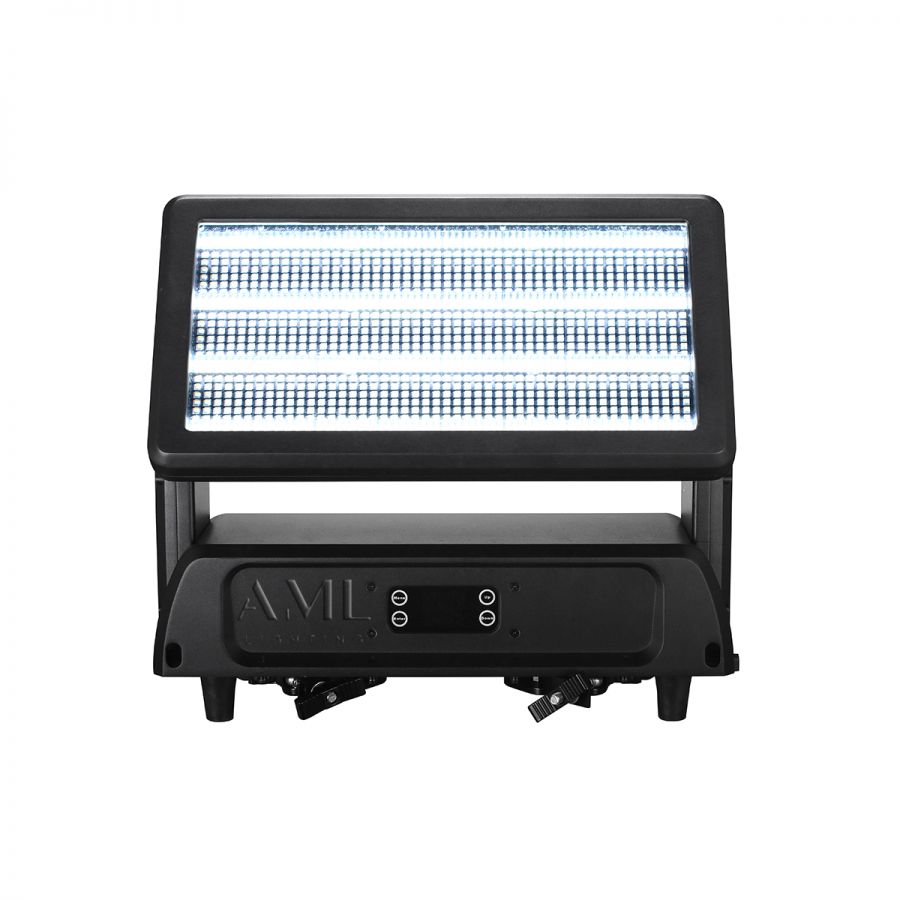

Engineered to deliver extreme visual contrast, the high-power CW (Cold White) LED matrix faces deliver crisp response times and massive localized lumen output. This independent white emitter matrix features specialized pixel segment control, enabling programmers to execute intense graphic matrix scrolls, bright solid blocks, and sharp rhythmic pixel chases optimized for massive concert arenas.

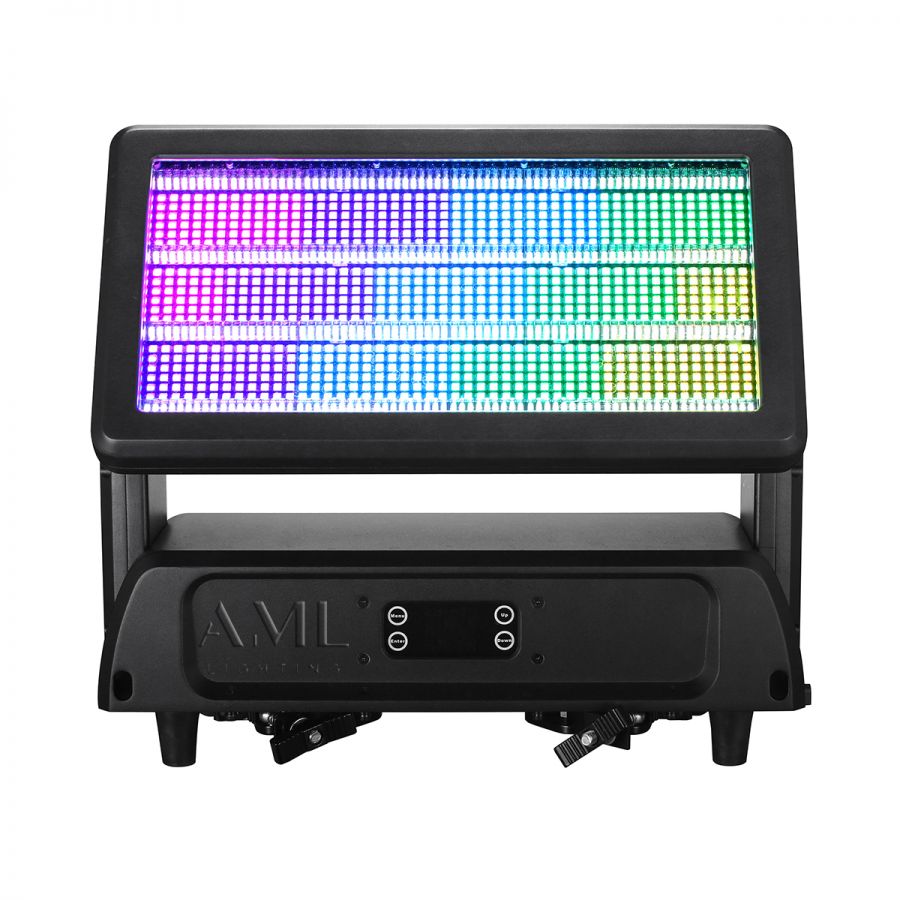

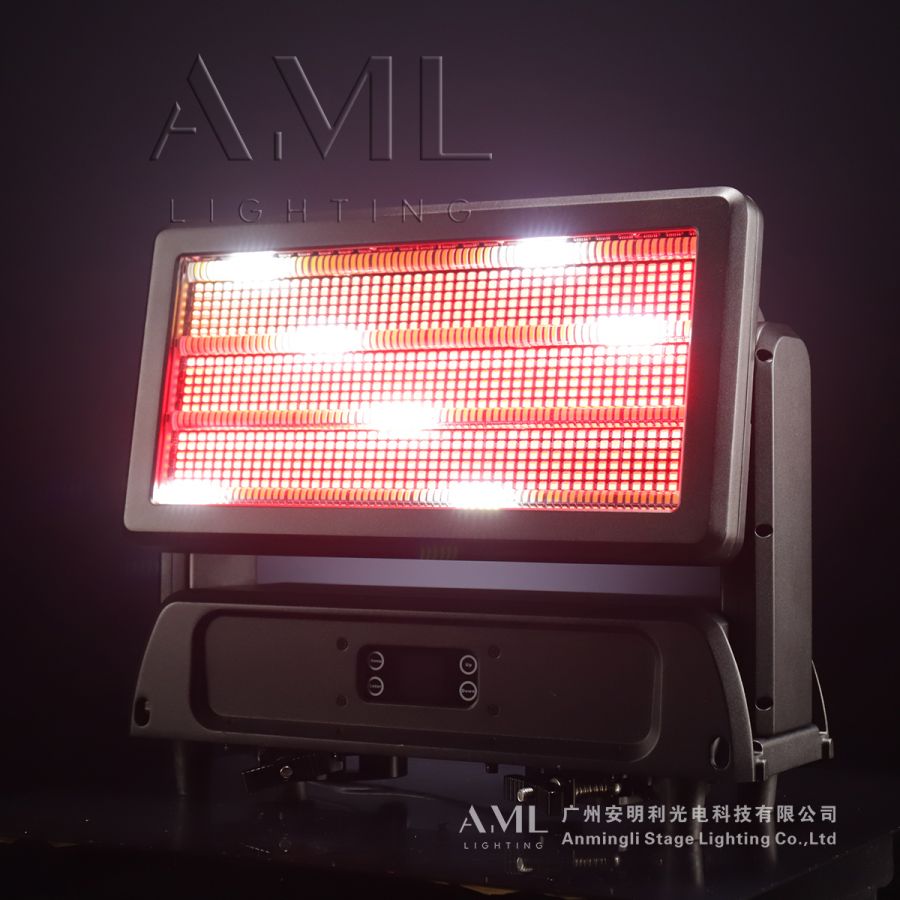

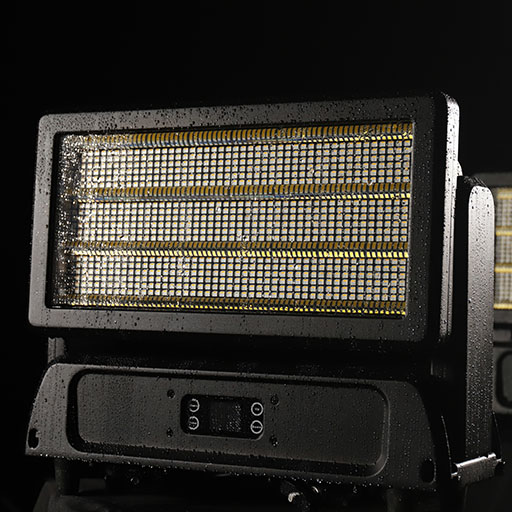

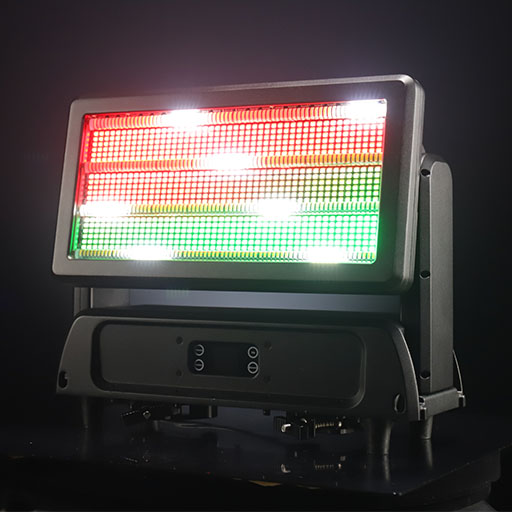

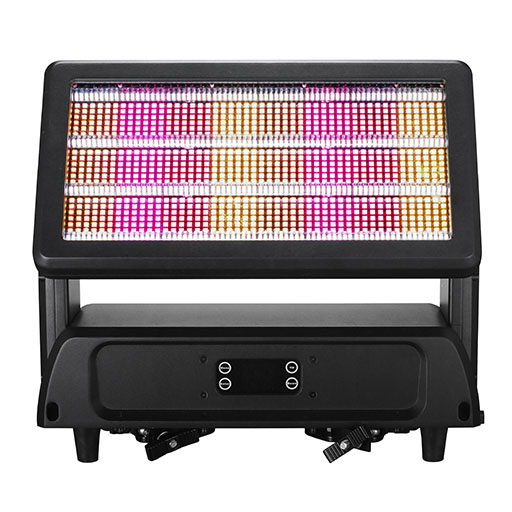

RGBWW + CW DUAL ENGINES

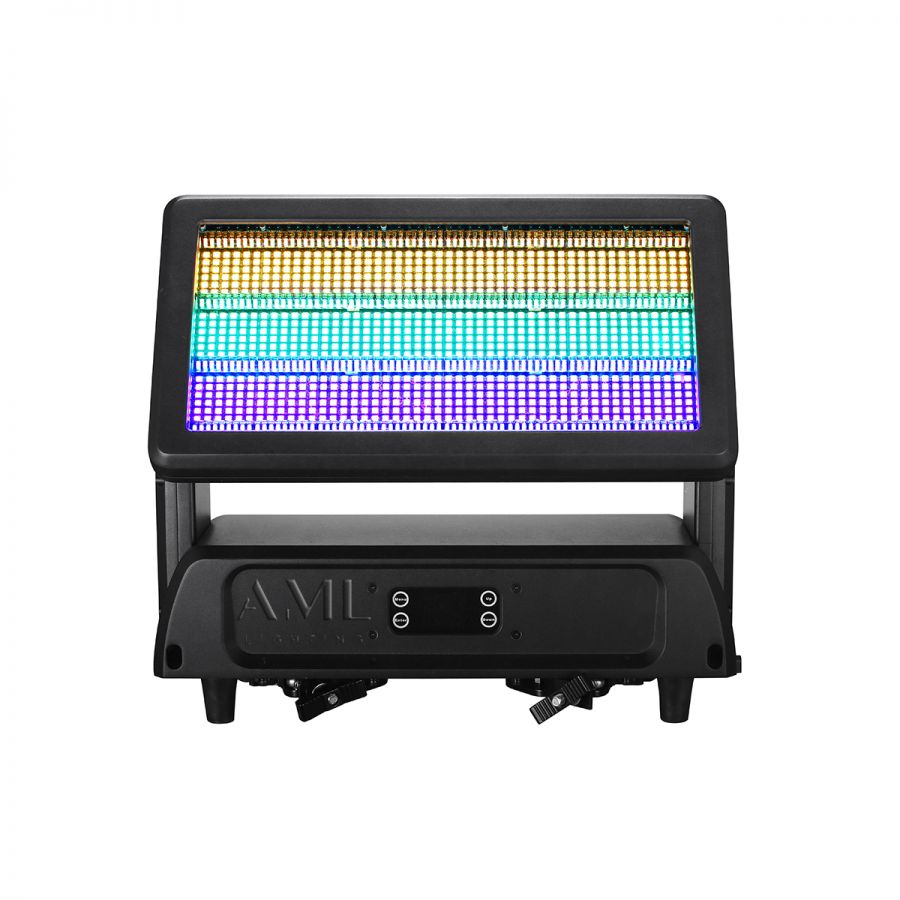

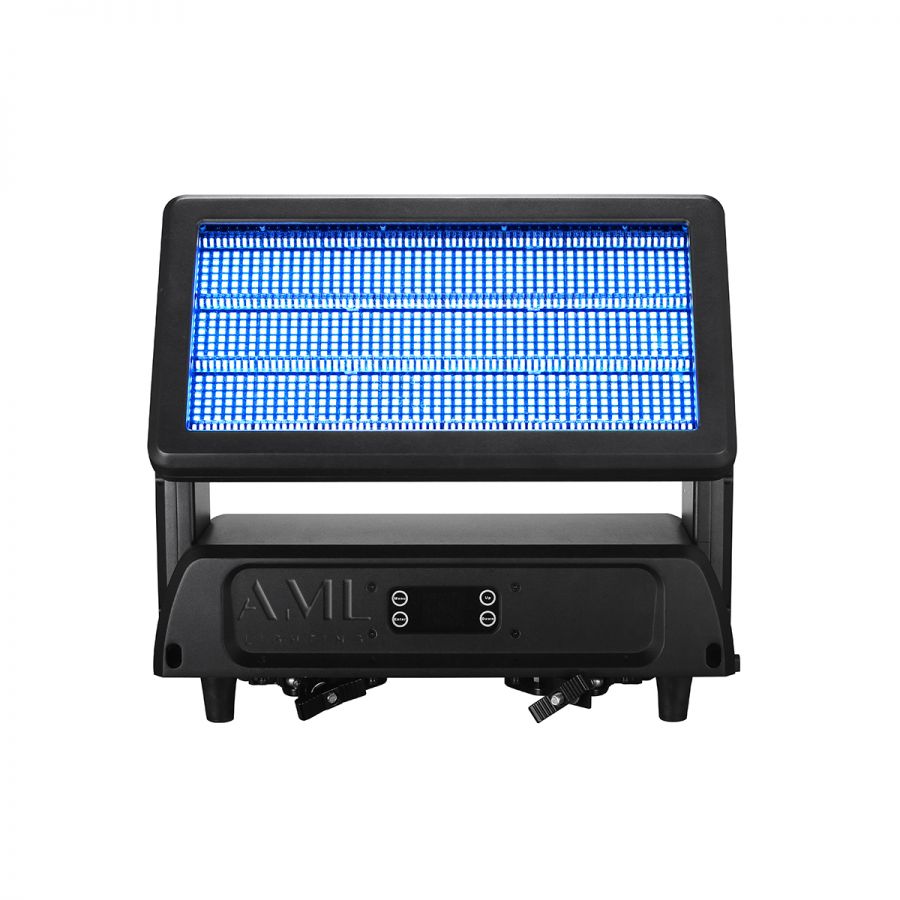

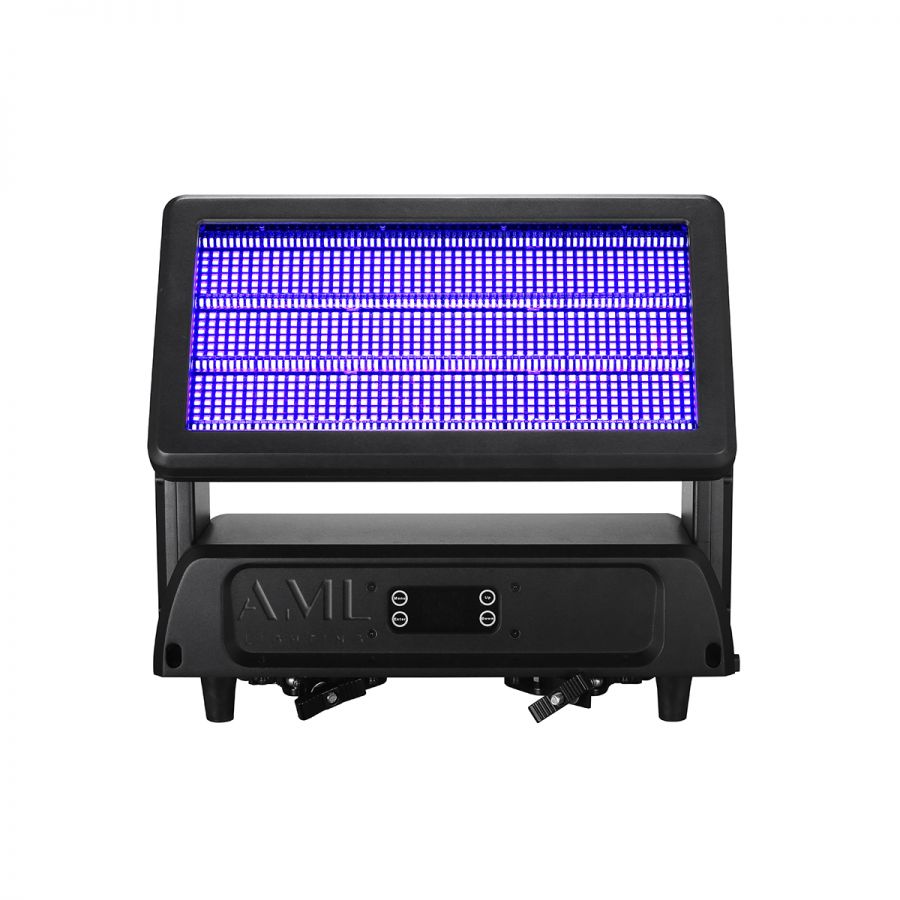

To deliver uncompromising versatility across varied stage environments, the AL-Q3IP integrates two distinct LED types into a single high-density panel layout. The high-saturation RGBWW arrays provide a vibrant color mixing spectrum and warm white pastel control, while the independent CW system triggers raw, blinding white strobe blocks. Backed by individual multi-zone pixel mapping, operators can overlay complex color washes with stark matrix sweeps simultaneously.

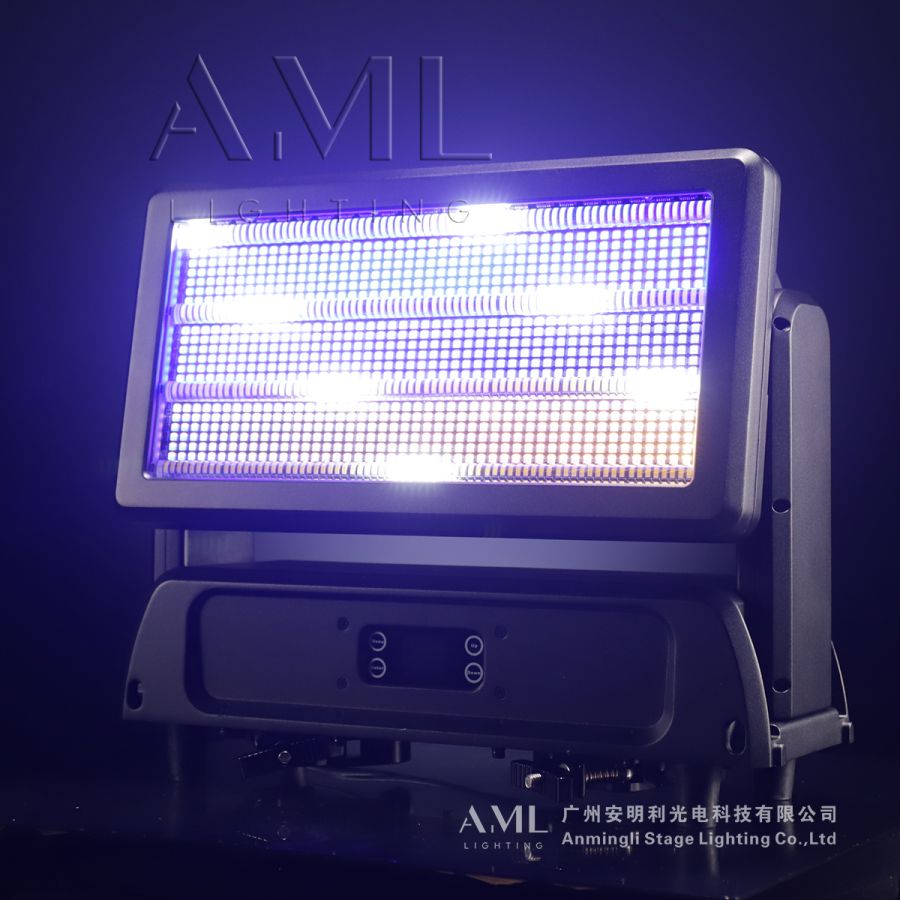

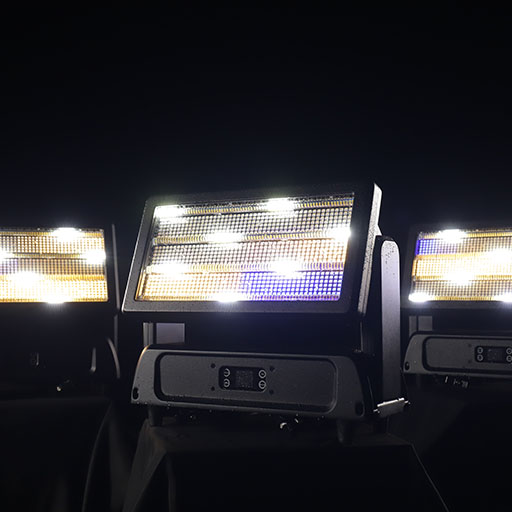

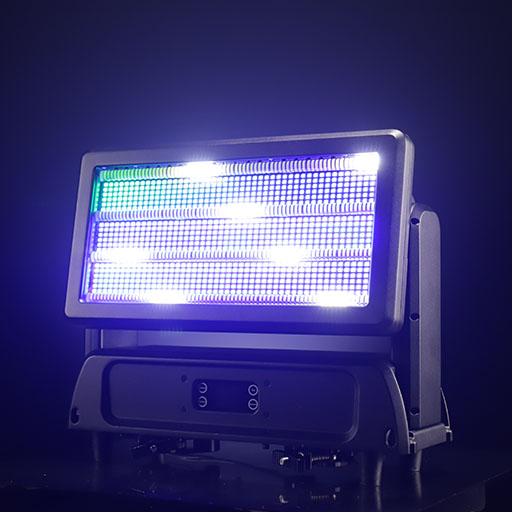

HIGH OUTPUT STROBE
The AL-Q3IP redefines massive audience blinder dynamics by unlocking explosive electronic strobe capabilities across both color and white pixel segments. Engineered for extreme peak power, it outputs instant high-frequency strobe bursts and immense wash blinders. This massive light stream cuts cleanly through competing ambient stadium illumination, building immense visual energy during live show climaxes.

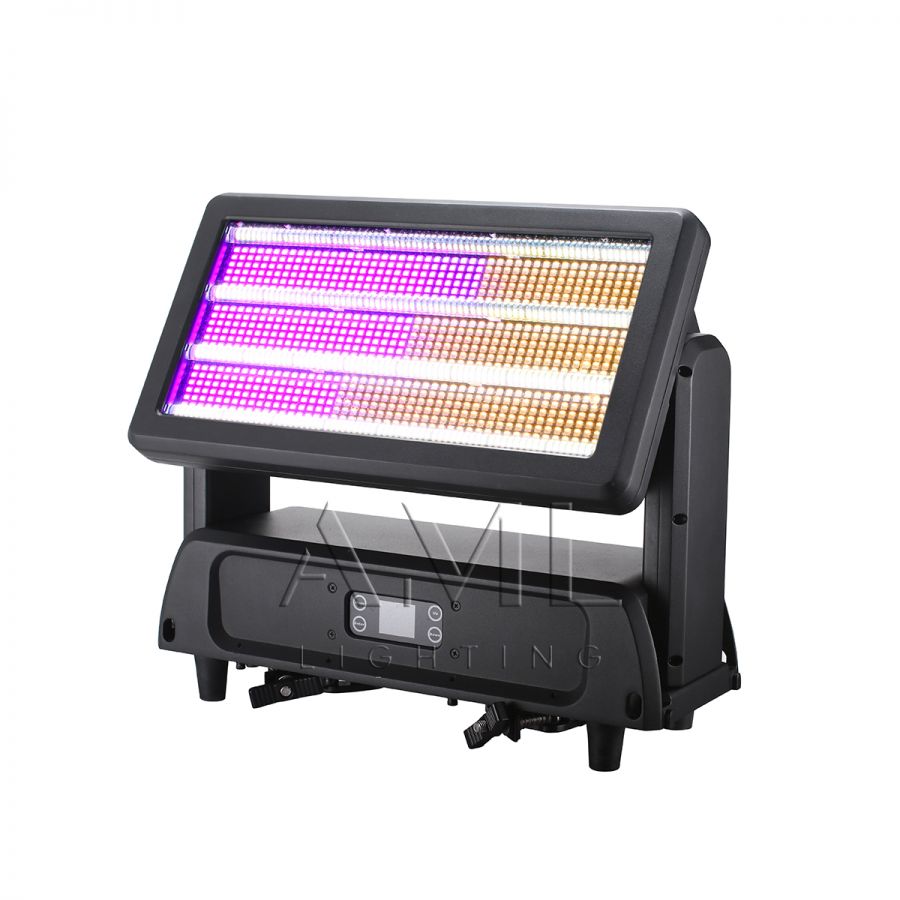

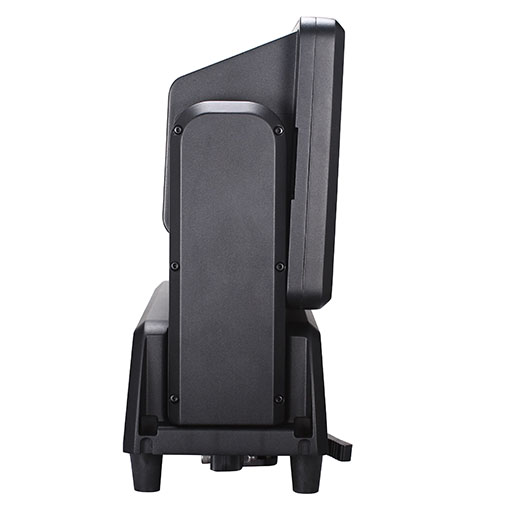

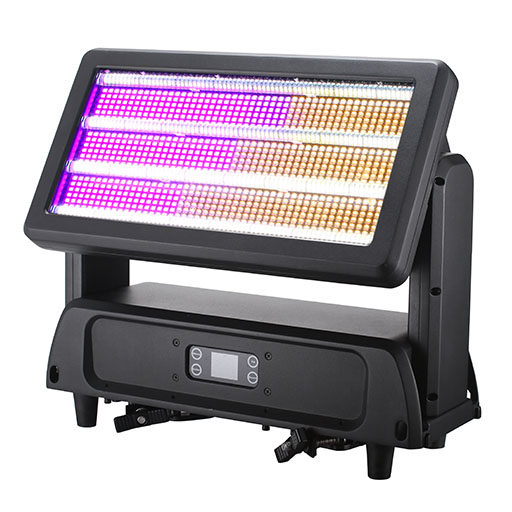

180° MOTORIZED TILT Axis
Driven by high-torque internal stepping motor arrays, the fixture provides a smooth, highly precise 180-degree motorized Tilt rotation axis. This agile mechanical capacity enables the high-output panel face to transition fluidly between rapid rhythmic position changes, shifting wash trajectories, and sweeping matrix blinders, offering lighting operators dynamic command over vertical spatial coverage fields.
