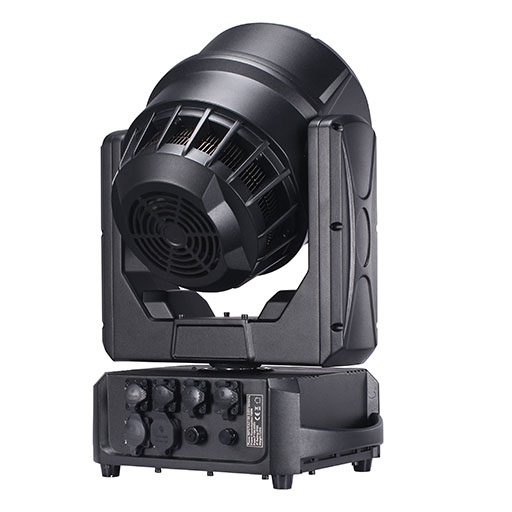

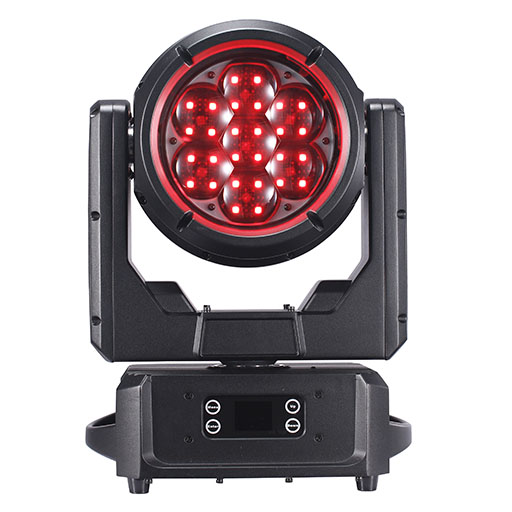

- Beam angle3-45°
- LED source7RGBL+28Aura LED
- Power consumption520W
- Weight12kg
- Color temperature2400K-8000K
- IP RatingIP65
Technical Specifications
Light Source & Photometrics

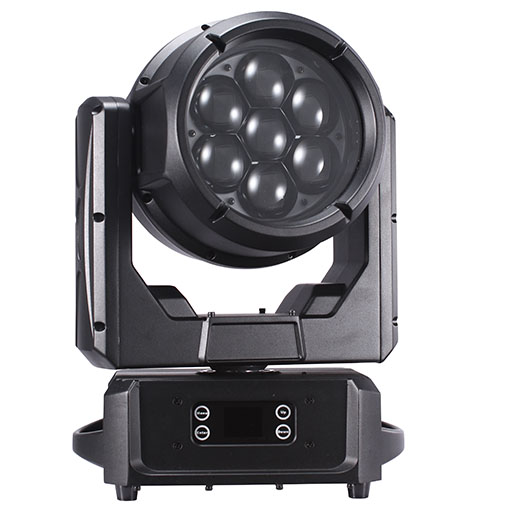

Light Source: 7pcs* 60W RGBW or RGBL LEDs, 28pcs* 0.5W RGB LEDs
LED Life: 50,000 Hour Average
Lumen Output: 7200 Total Lumen Output
CRI: 82

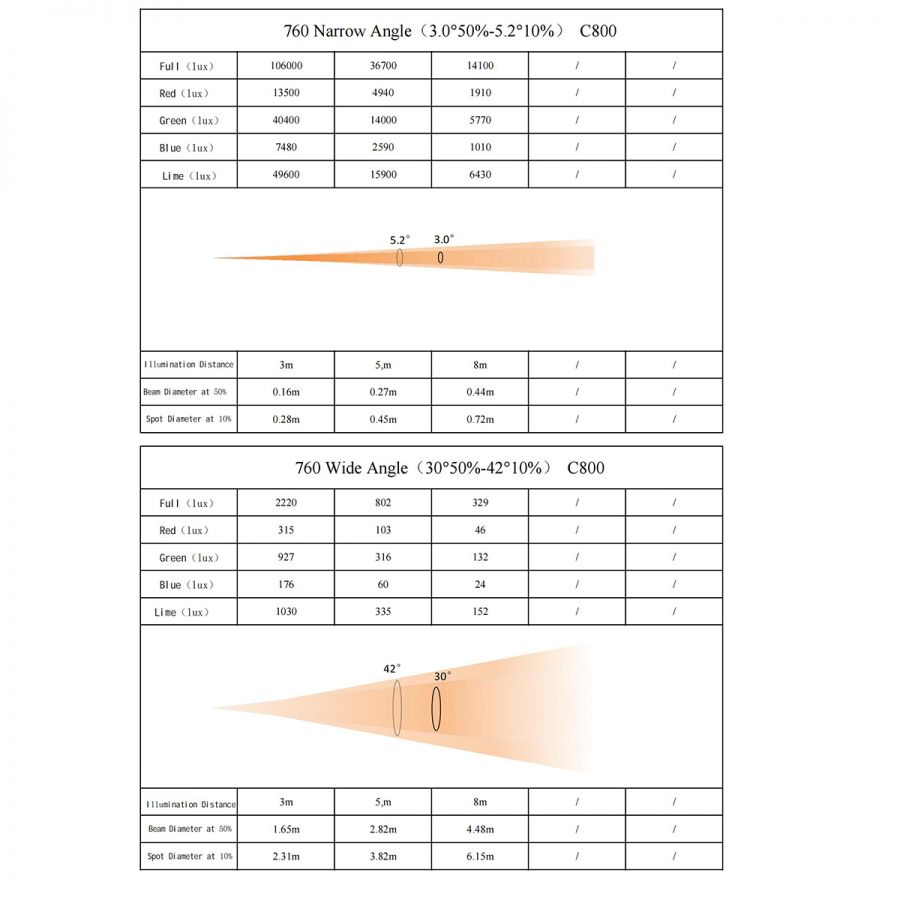

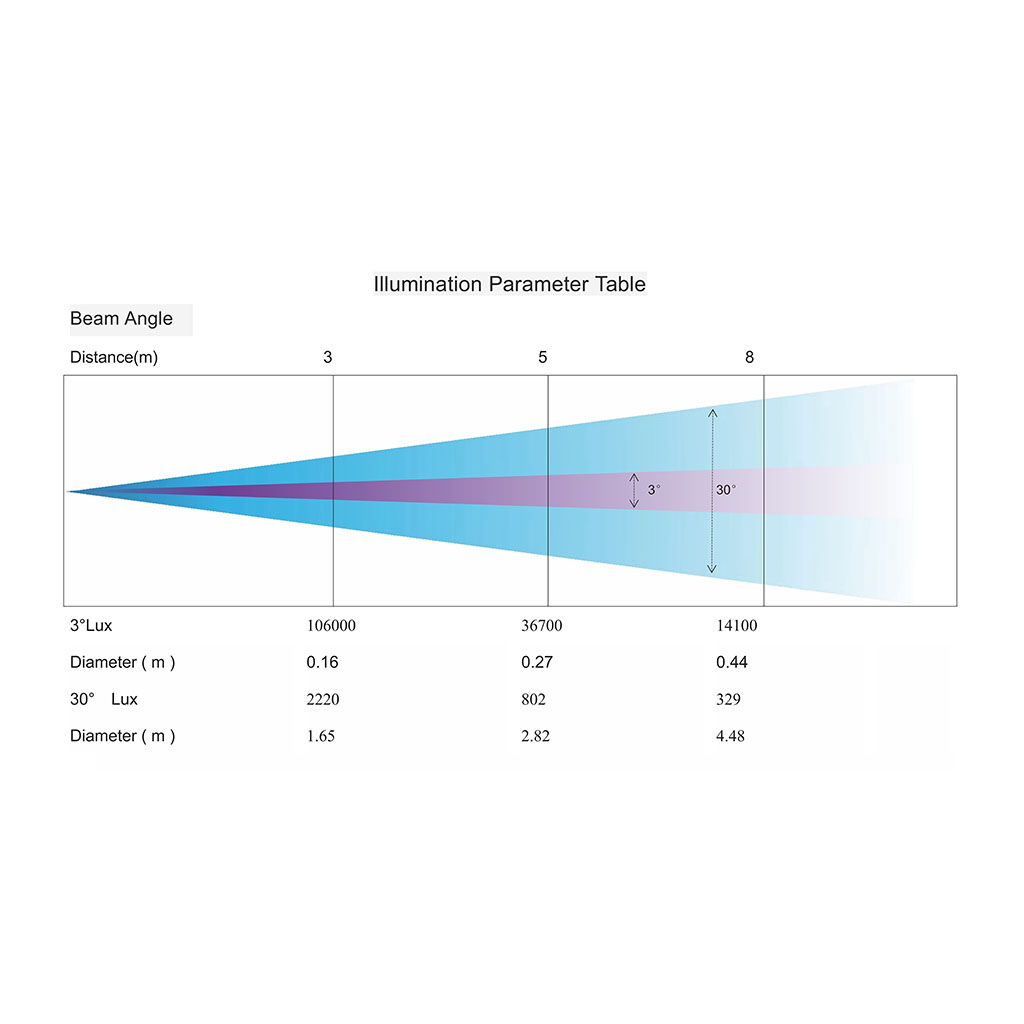

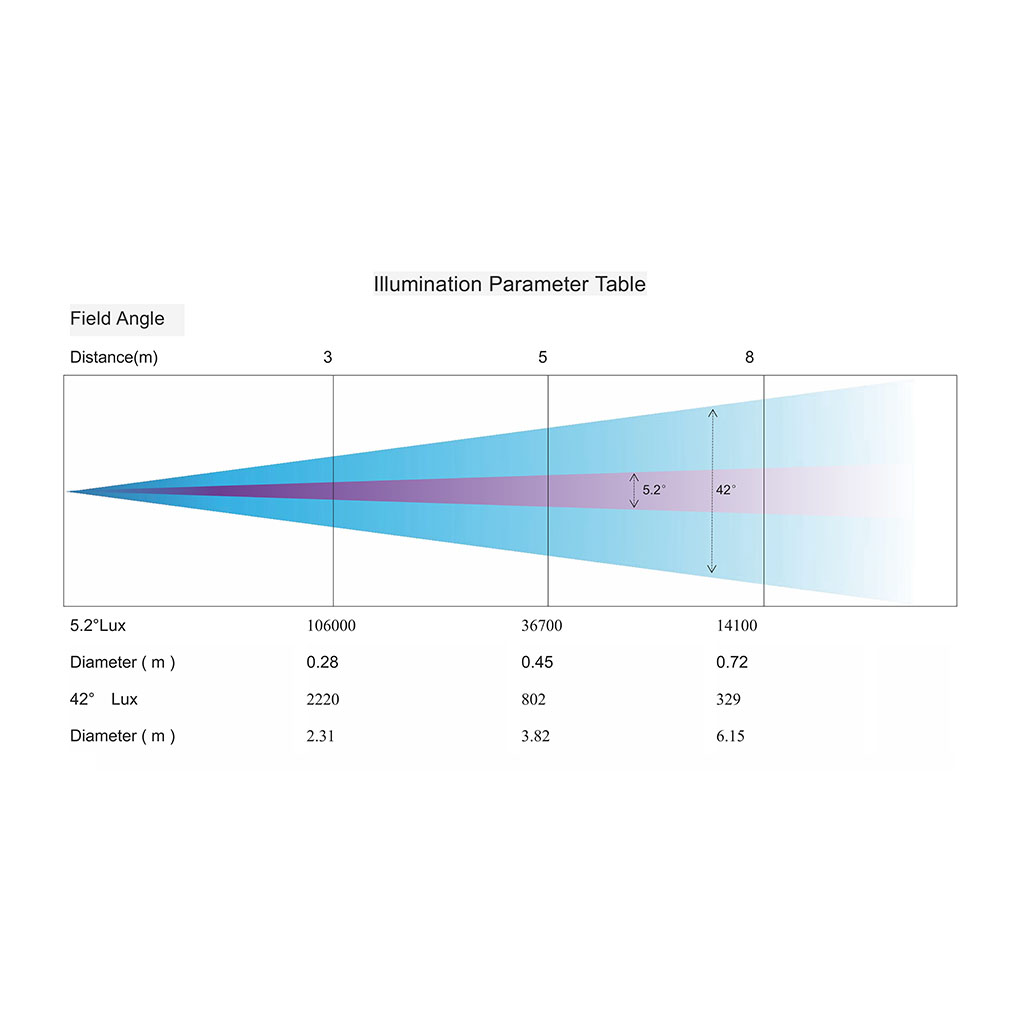

Beam Angle: Zoom Range 3.5° - 45°
Dynamic Effects
Color Temp: Linear Color Temperature Presets (2700 -8000K)
Background FX: RGB SparkLED Lens Effect
Color & Macros: Color Presets and Macros
Dimming: 16-bit Dimming, Variable Dimming Curves
Strobe: Electronic Strobe
Control & Movement
Movement: Pan and Tilt Movement
DMX Channels: 26 / 49 / 105 / 127 DMX Channel Modes
Protocols: RDM Support, Art-Net, sACN
Refresh Rate: DMX Adjustable Refresh Rate (900 - 25000 Hz)
Display: Full Color 180° Reversible LCD Menu Display

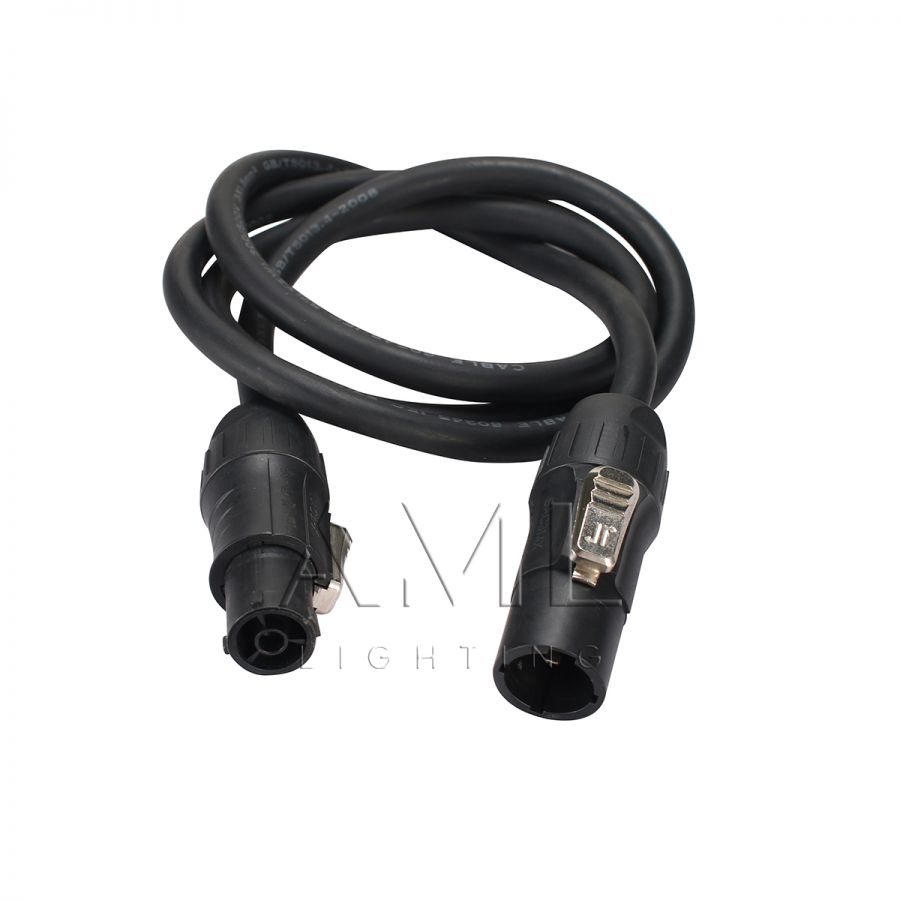

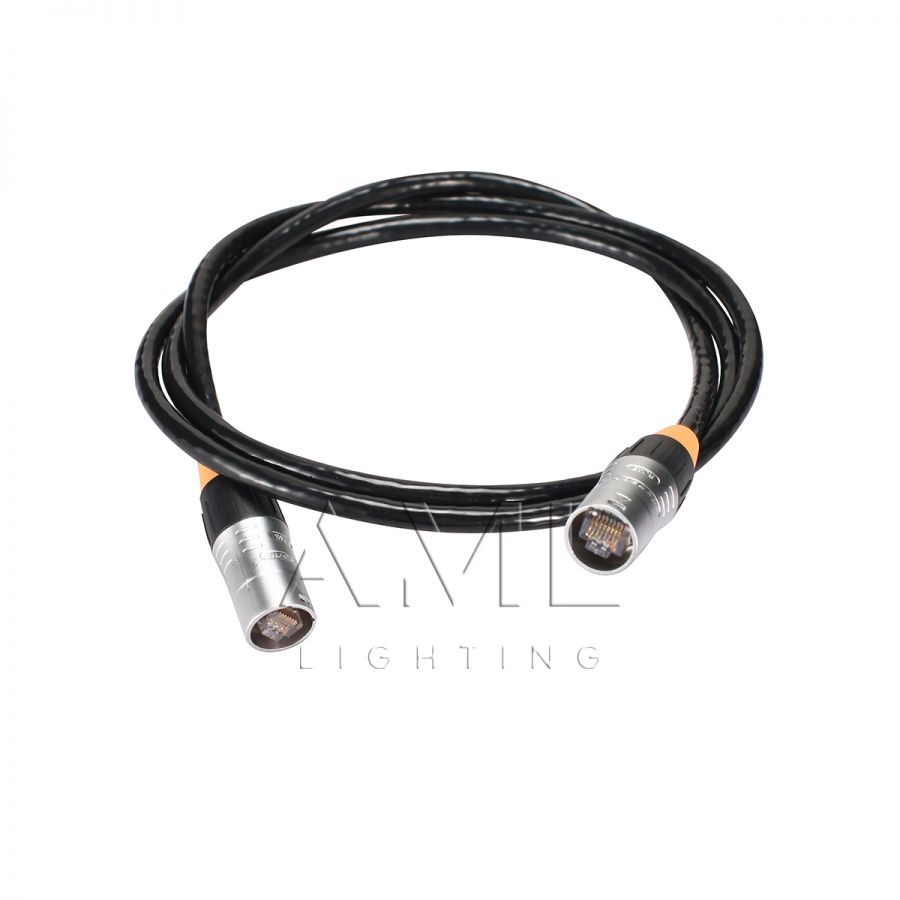

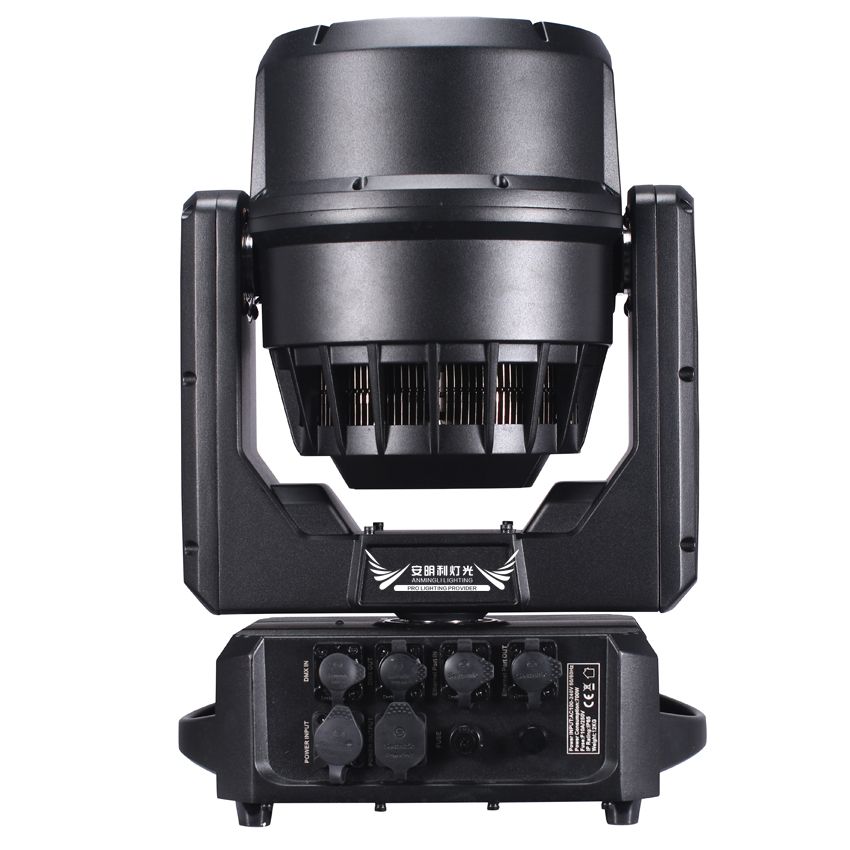

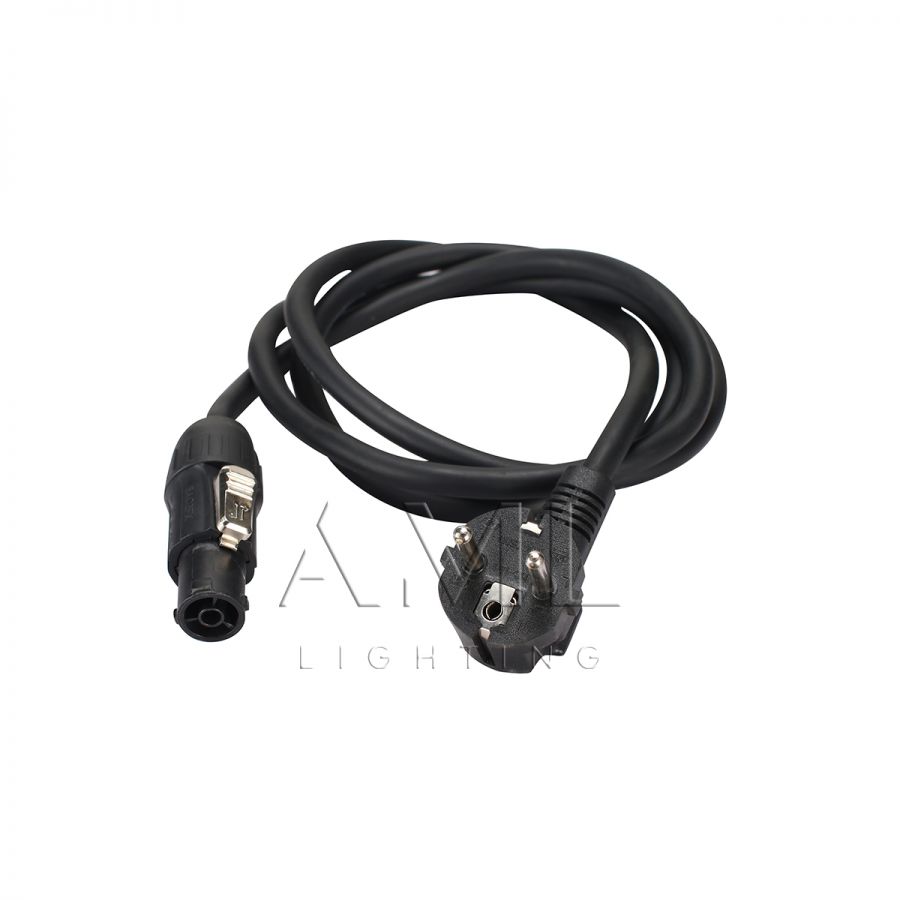

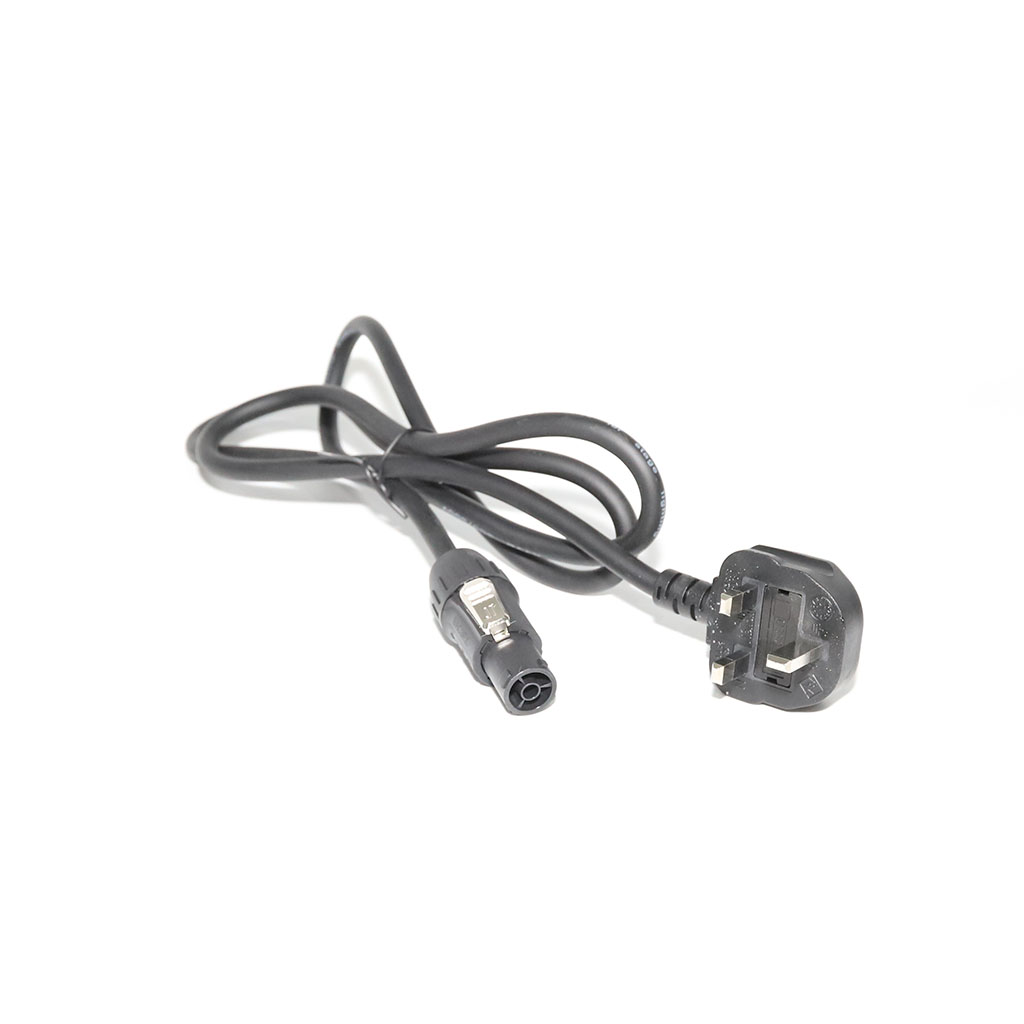

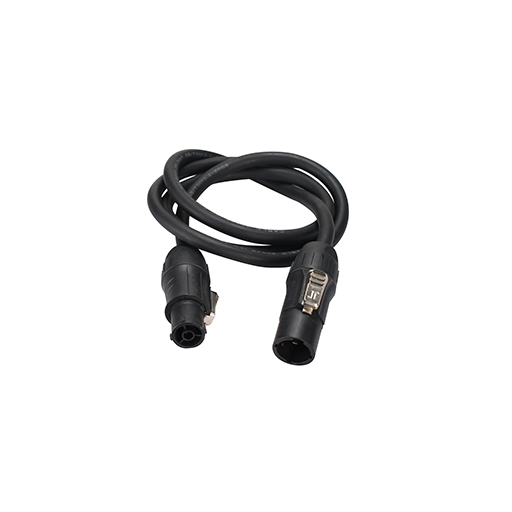

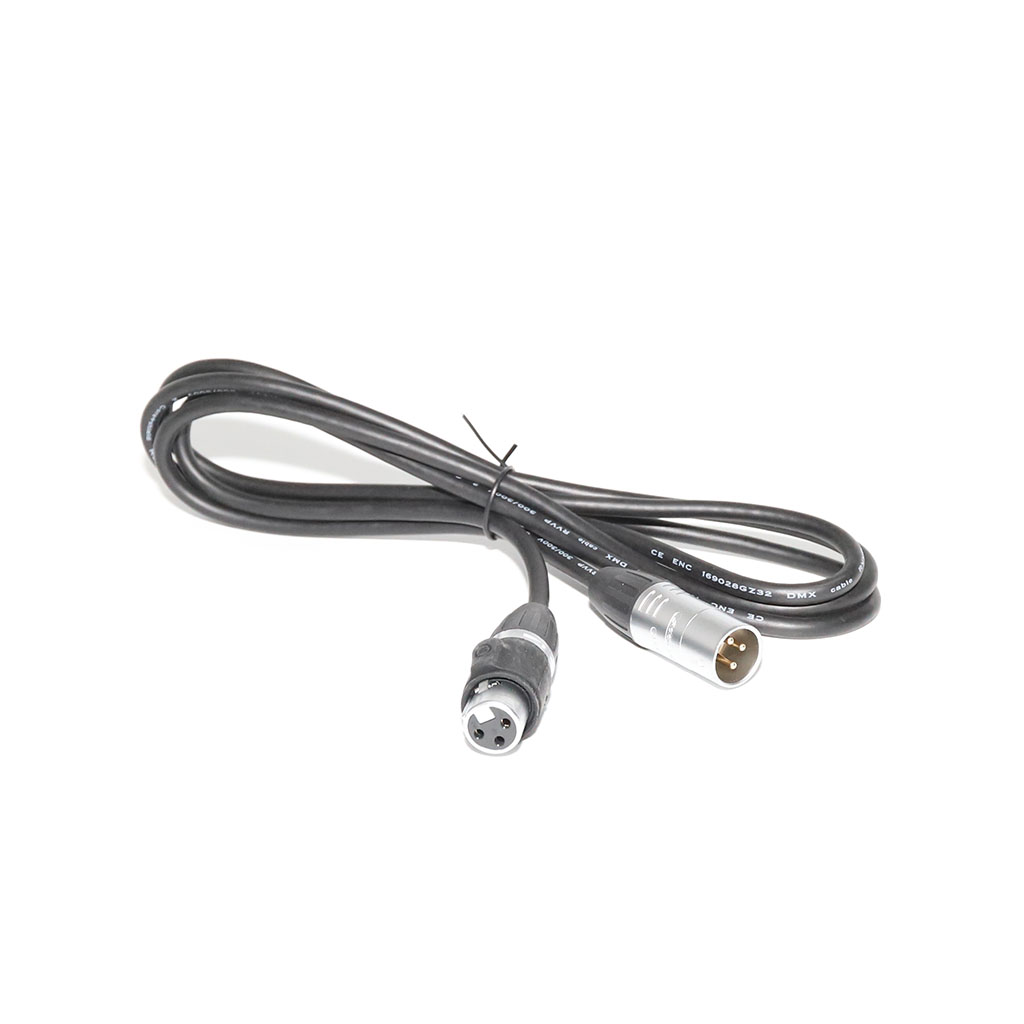

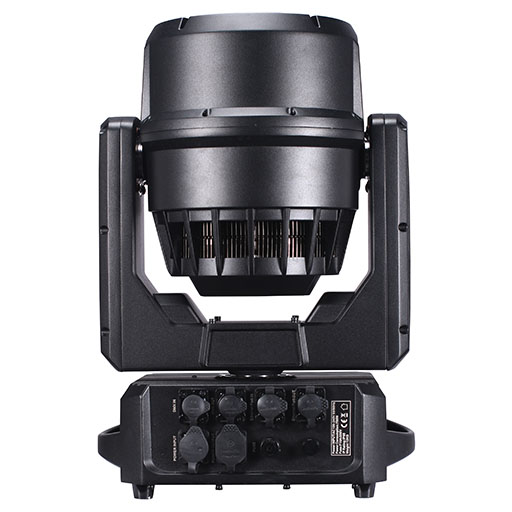

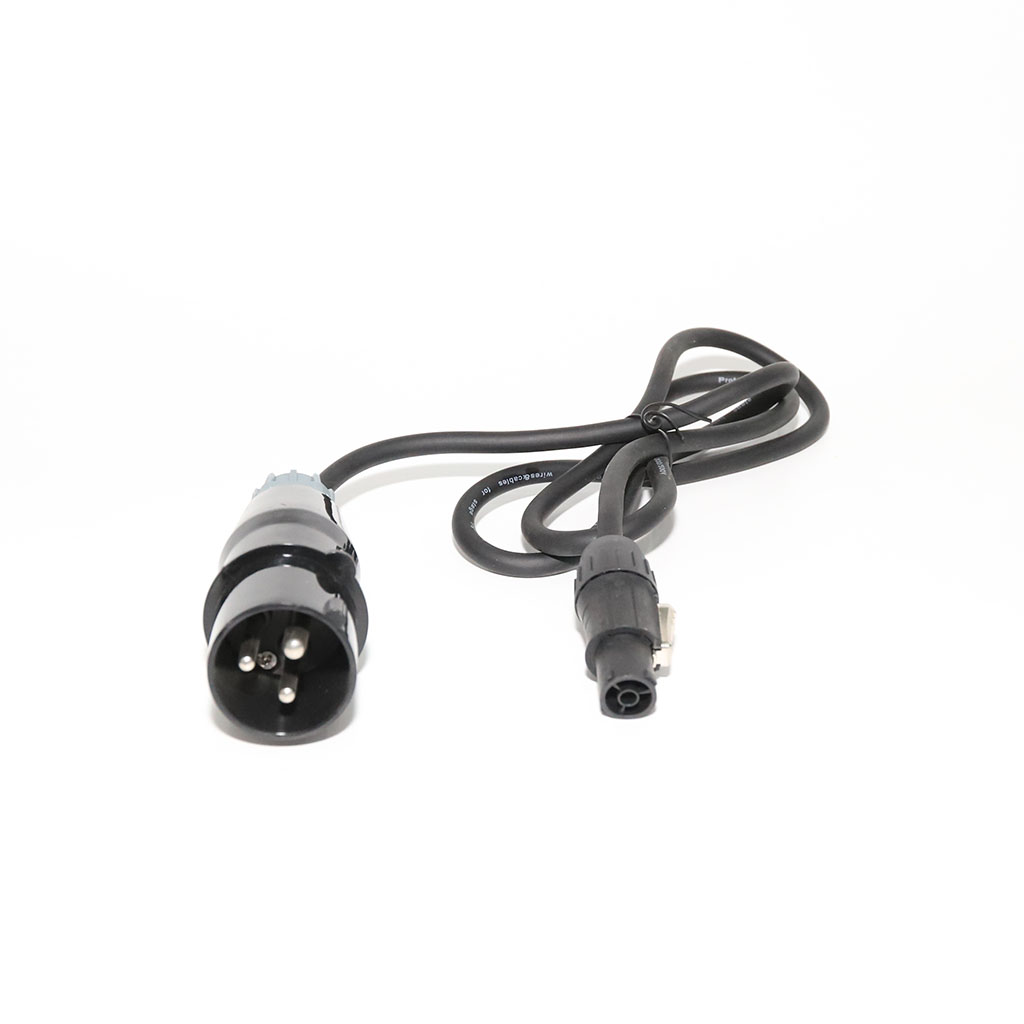

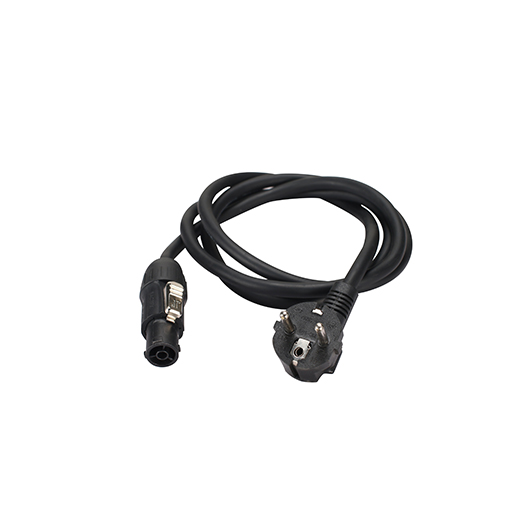

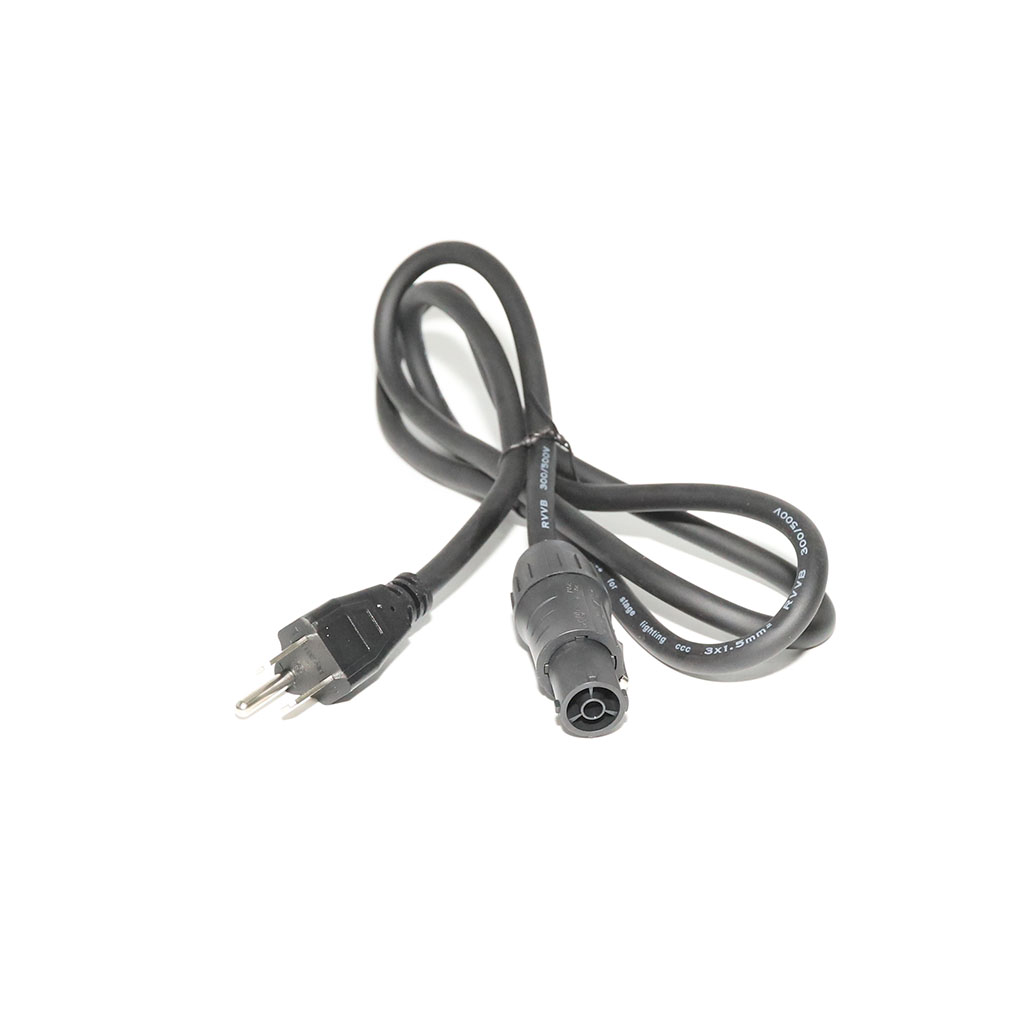

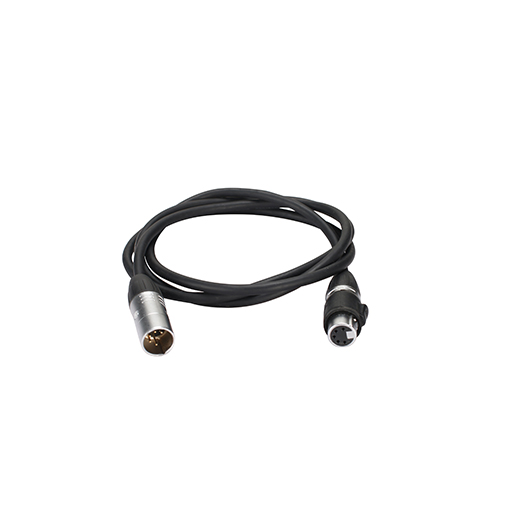

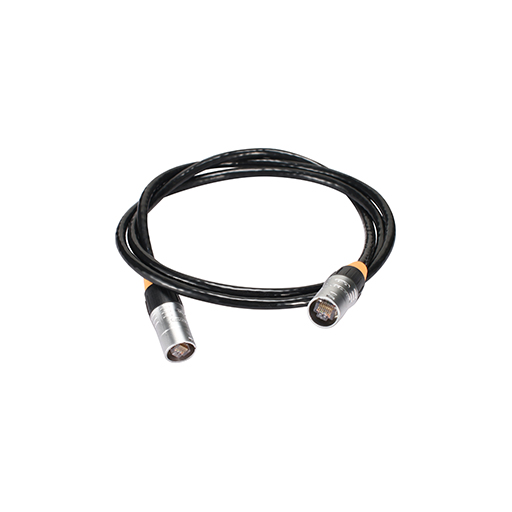

Connections: IP65 5pin XLR DMX In/Out, IP65 RJ45 Ethernet In/Out, IP65 Locking Power Cable In
Electrical & Physical
Input Voltage: AC 100-240V 50/60Hz
Max Power: 700W Max Power Consumption
Thermal Output: BTU/hr (+/- 10%) 2387

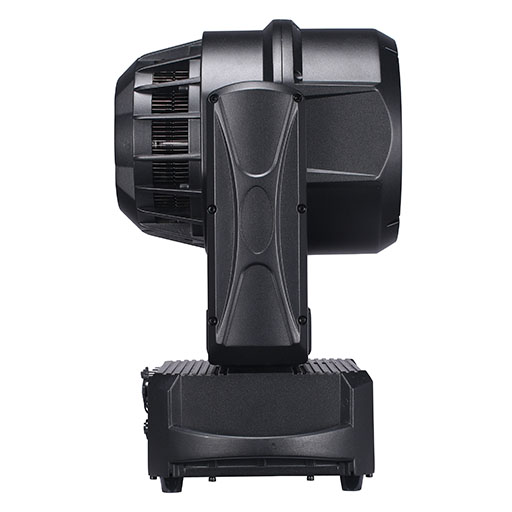

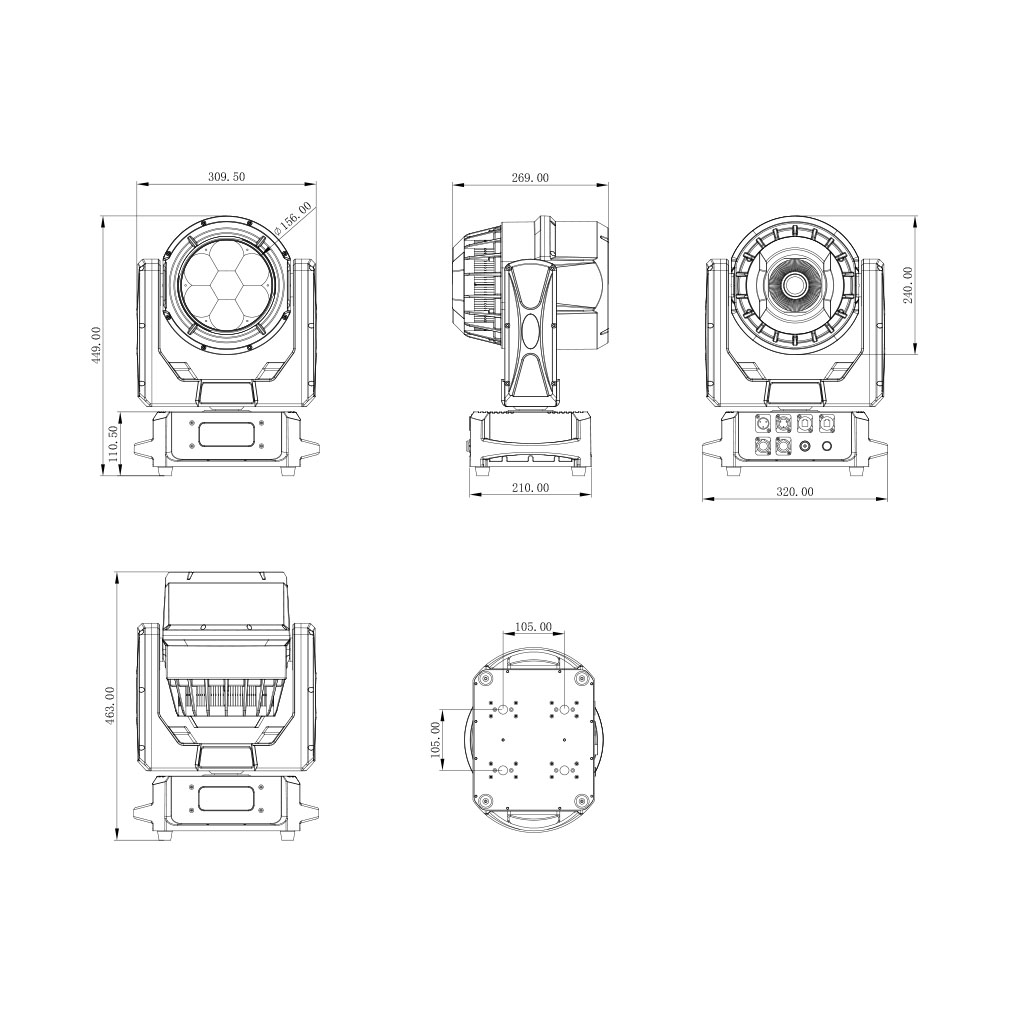

Dimensions: 309.5X210X463 mm
Weight: 12 KGS
ADVANCED PRODUCT FEATURES
IP65 WEATHERPROOF
Sharing the heavy-duty industrial DNA of its twin series, the AL-MH760IP features a precision-sealed IP65 structural enclosure. Engineered to withstand relentless rain, sandstorms, and high humidity, this resilient exterior protects all internal optical components and advanced electronics, ensuring absolute reliability for professional outdoor festivals, arena tours, and premium rental operations worldwide.

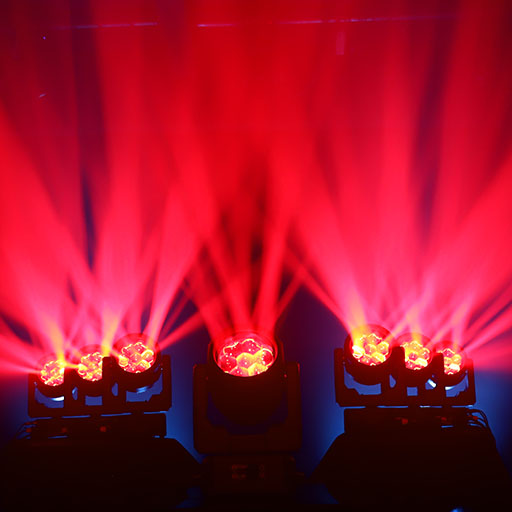

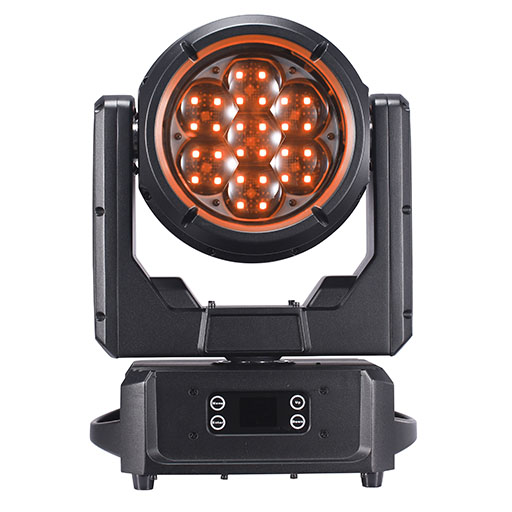

PIXEL EFFECT & AURA GLOW
Featuring a sophisticated dual-layer optical design, the fixture provides independent control over individual LED pixel emitters combined with a stunning auxiliary aura background illumination system. This engineering breakthrough allows lighting designers to overlay high-definition graphic matrixes and multi-color running animations onto a rich background glow, generating hypnotic eye-candy visuals for modern live event stages.

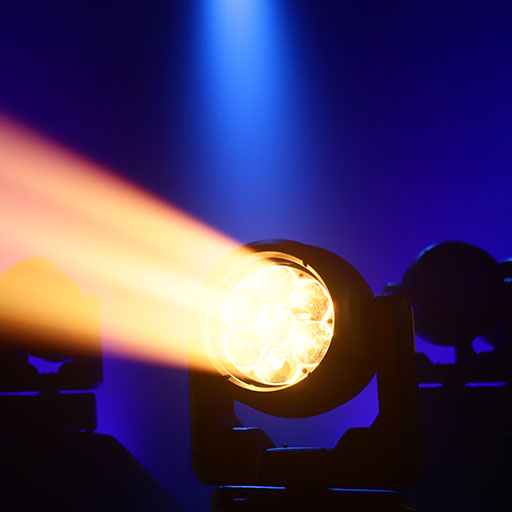

LINEAR MOTORIZED ZOOM
Driven by an advanced multi-group motorized optical lens array, the AL-MH760IP delivers an ultra-smooth, highly proportional linear zoom curve. It effortlessly transitions from an intensely concentrated, punchy narrow wash beam to a wide-spreading, uniform wash field, maintaining immaculate color temperature and extreme lumen efficiency at any zoom angle.
ROTATING VORTEX LENS
Equipped with a continuously rotatable front lens assembly capable of high-speed bi-directional 360° rotation, the fixture transforms standard wash fields into extraordinary dynamic aerial spectacles. By breaking up the solid light path, it creates multi-directional vortex rays, intricate kaleidoscopic flower beams, and mesmerizing mid-air geometric patterns to revolutionize live concert programming.

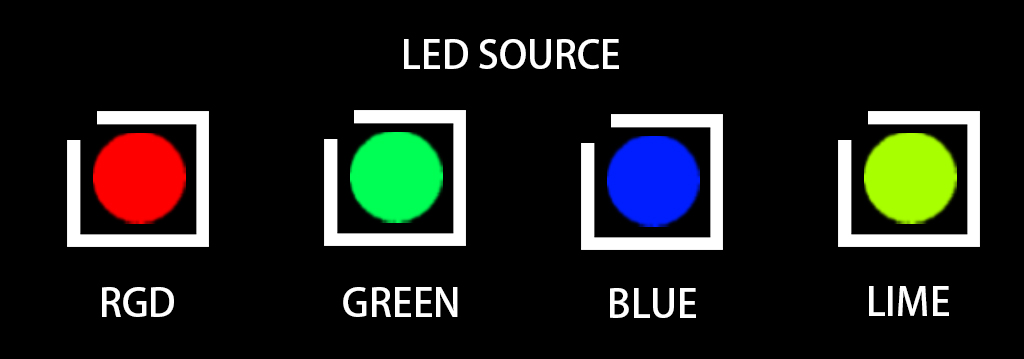

LED OPTIONS: RGBW VS RGBL
To deliver elite performance across diverse applications, the fixture offers two customizable chip configurations. The standard RGBW engine produces a piercing cold white beam alongside vibrant, high-saturation primary colors optimized for live concerts. The premium RGBL engine replaces the white chip with an ultra-efficient Lime emitter, significantly enriching the yellow-green spectrum to provide highly nuanced warm pastel mixing, supreme CRI/TLCI fidelity, and natural skin-tone rendering tailored for professional television studios and high-end theater stages.
