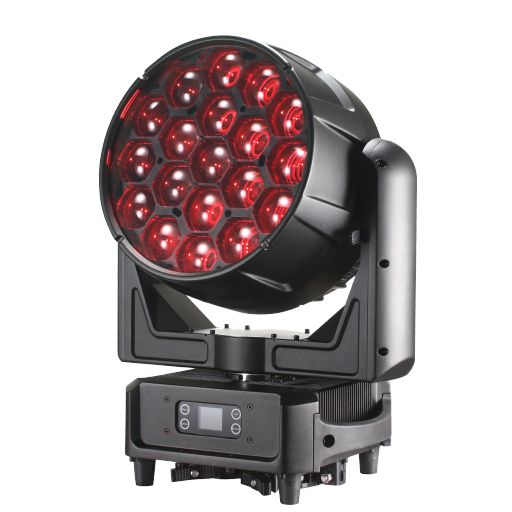

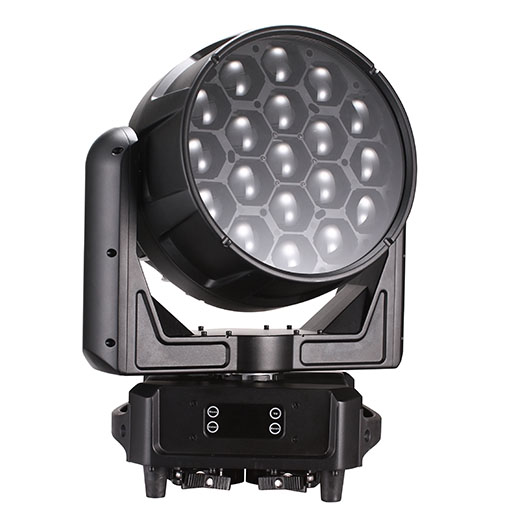

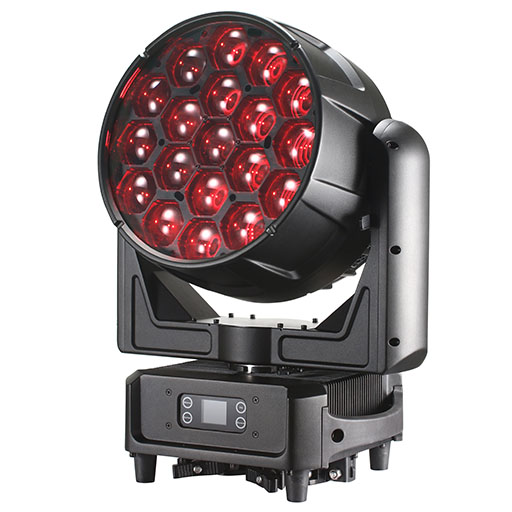

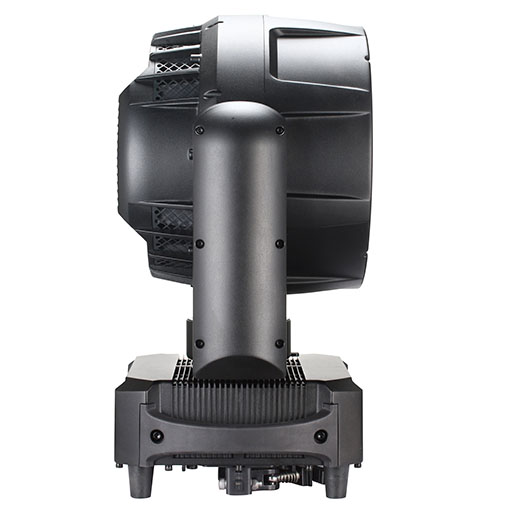

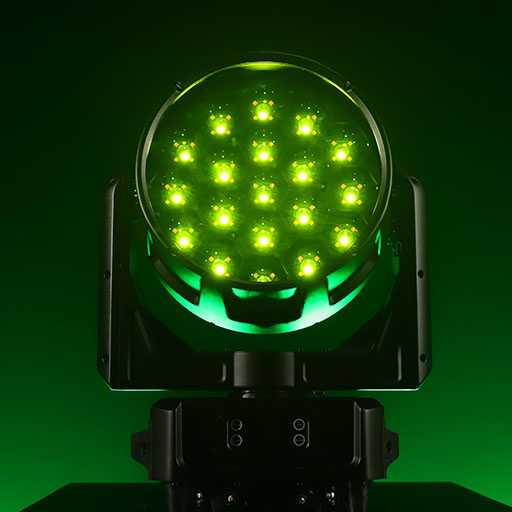

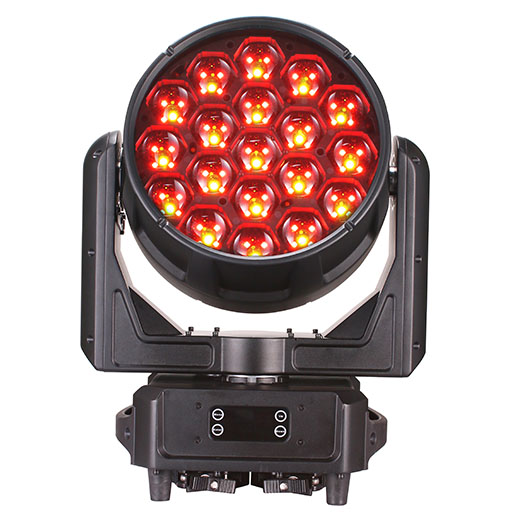

Product Images

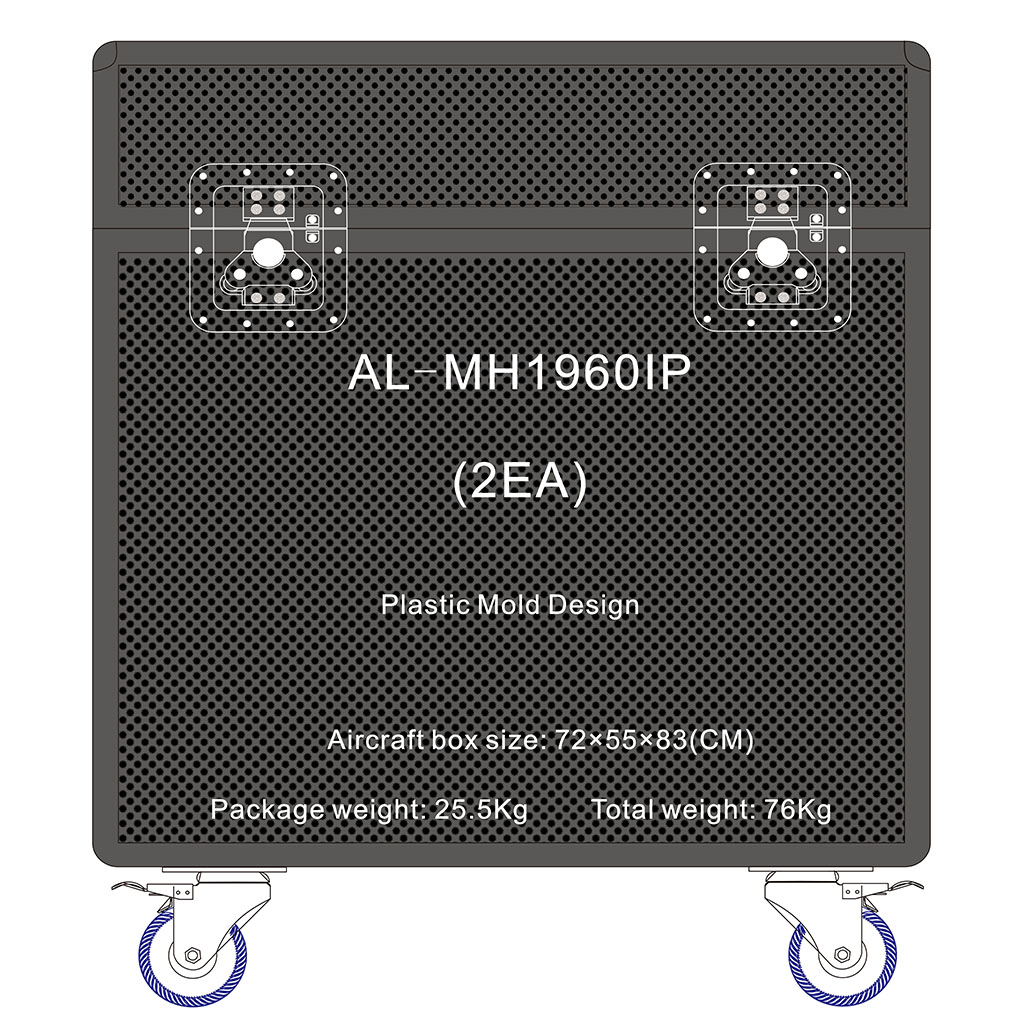

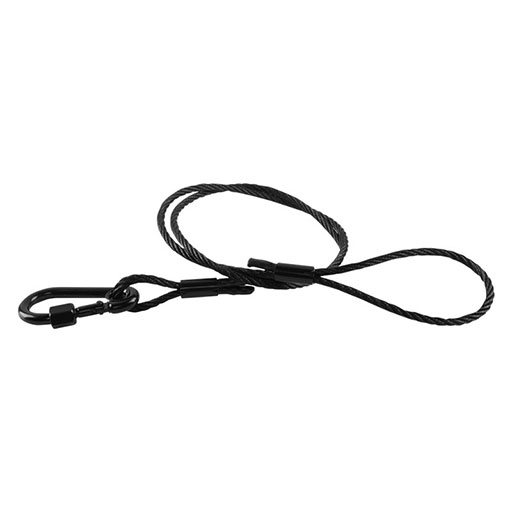

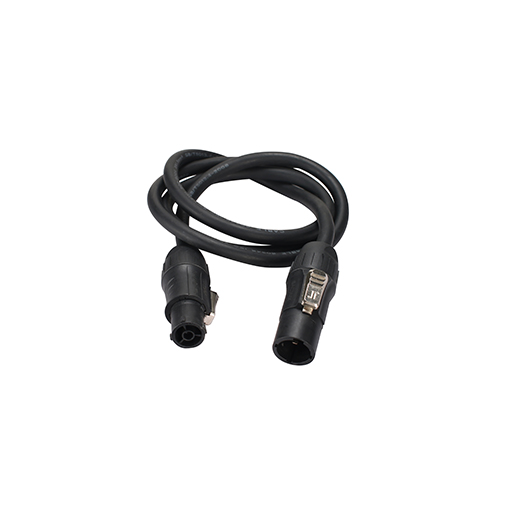

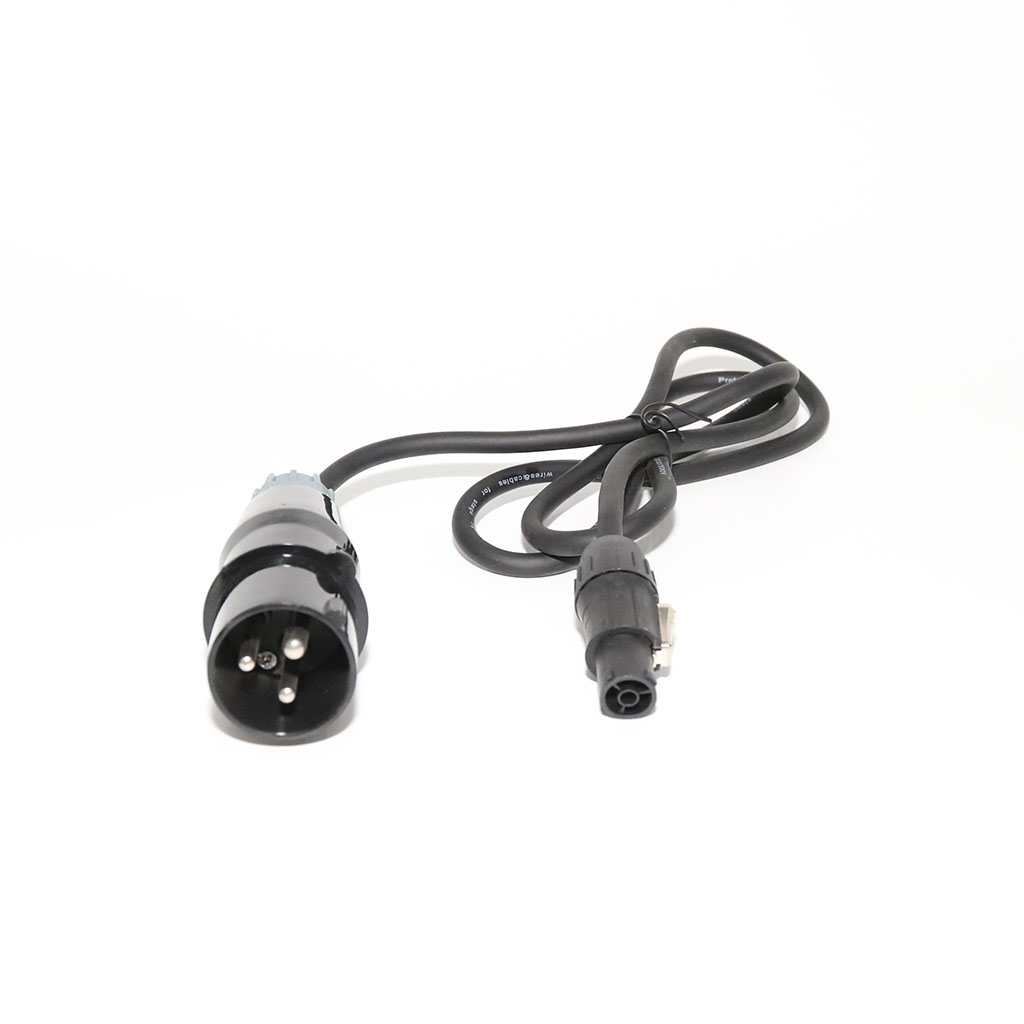

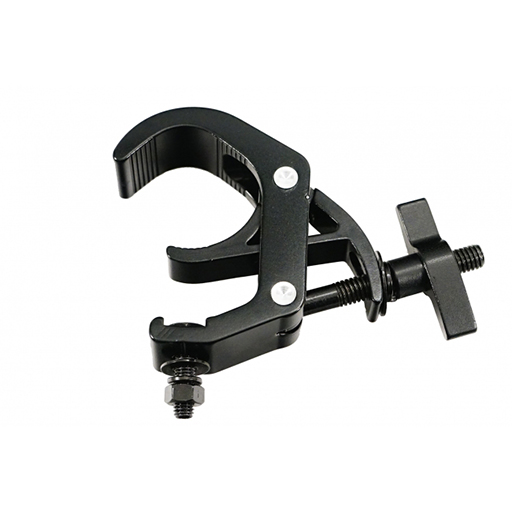

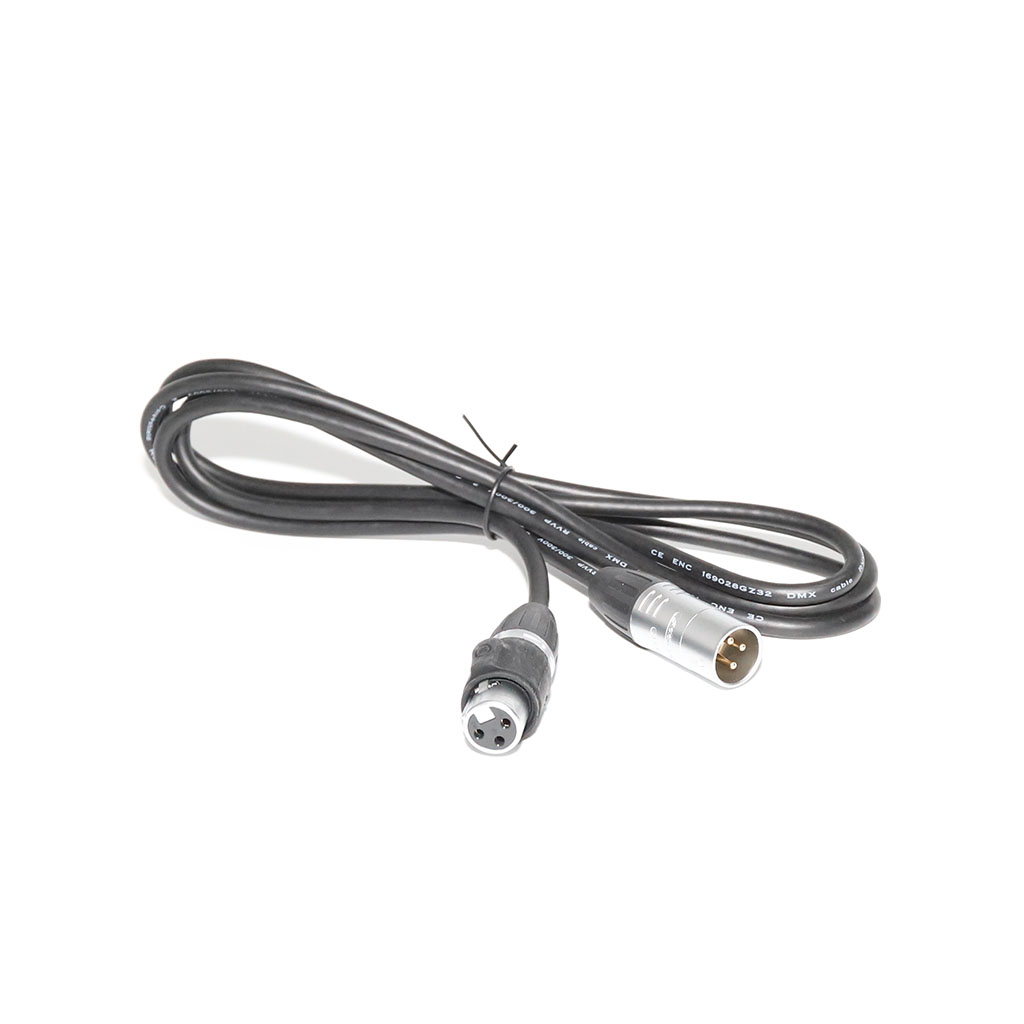

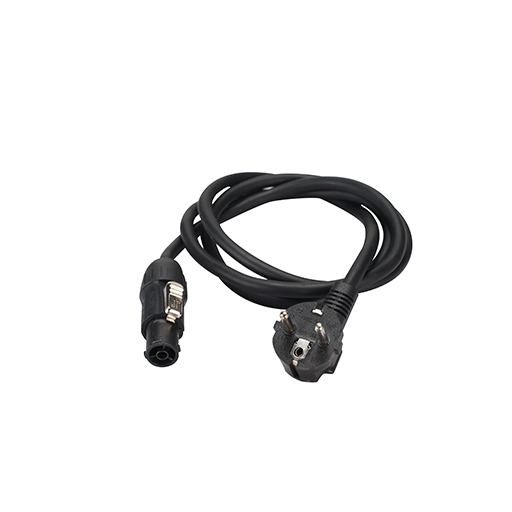

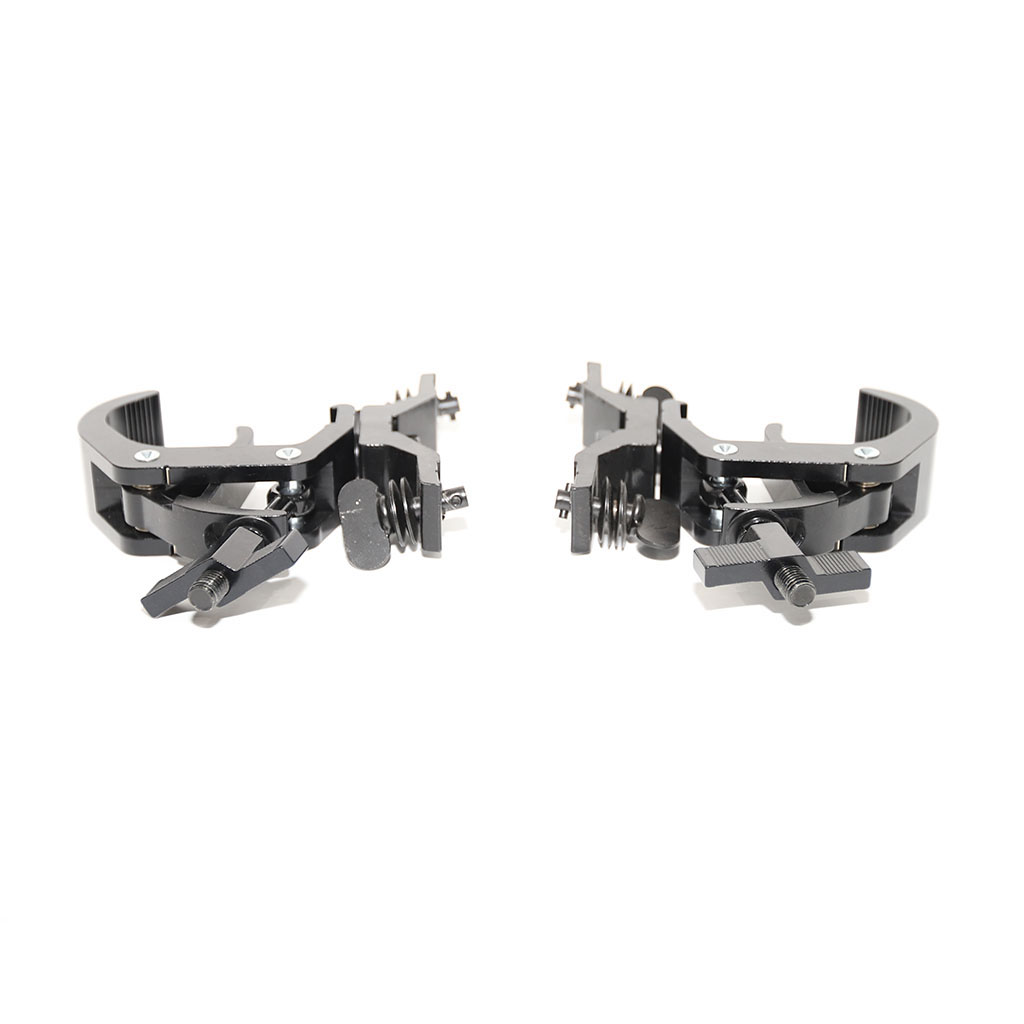

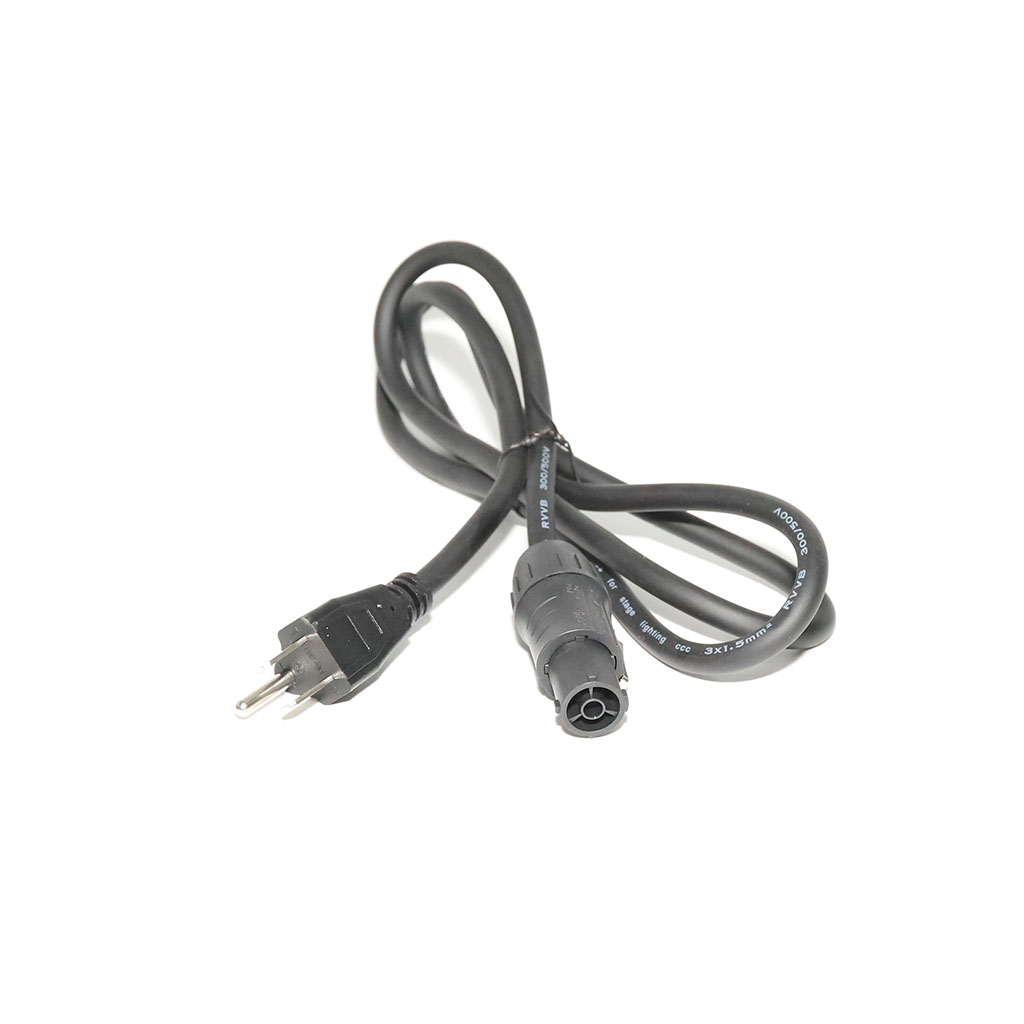

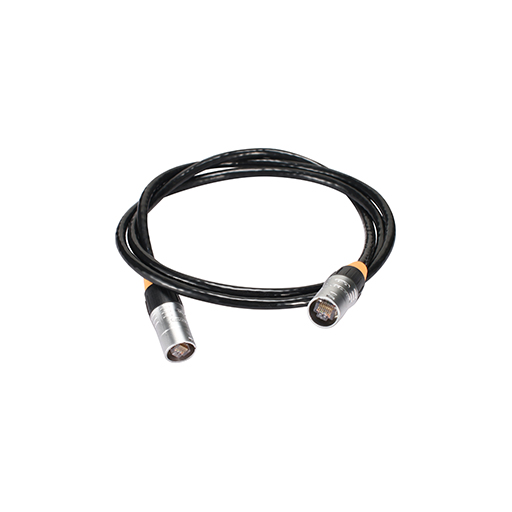

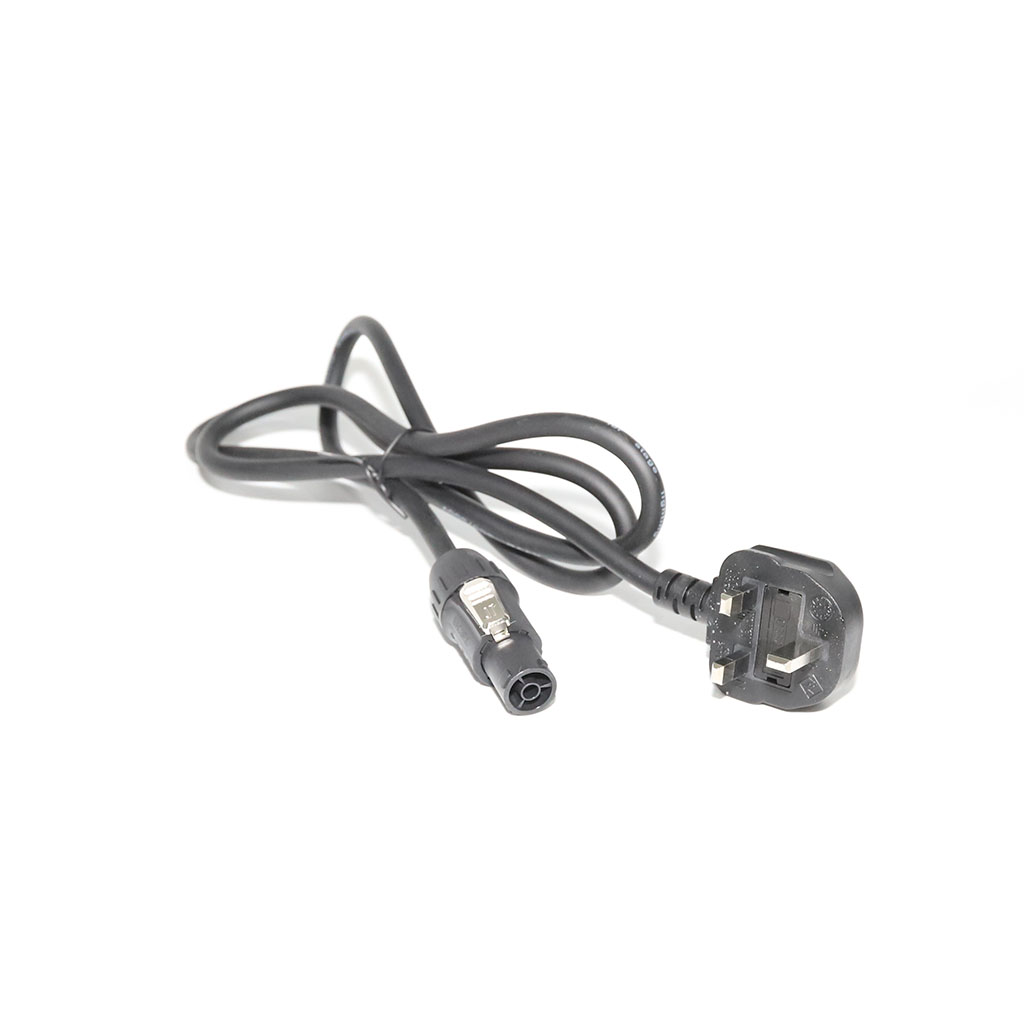

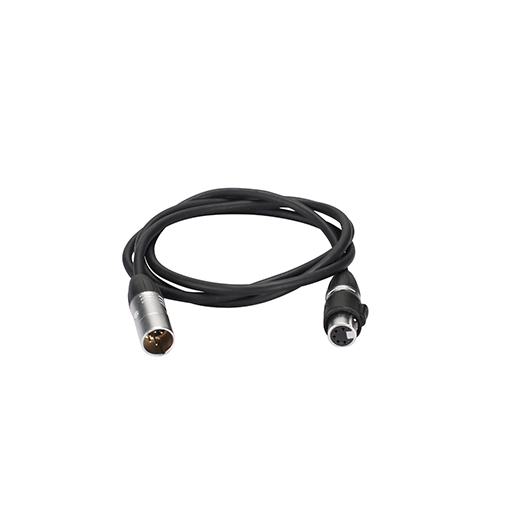

Accessories

Technical Drawing

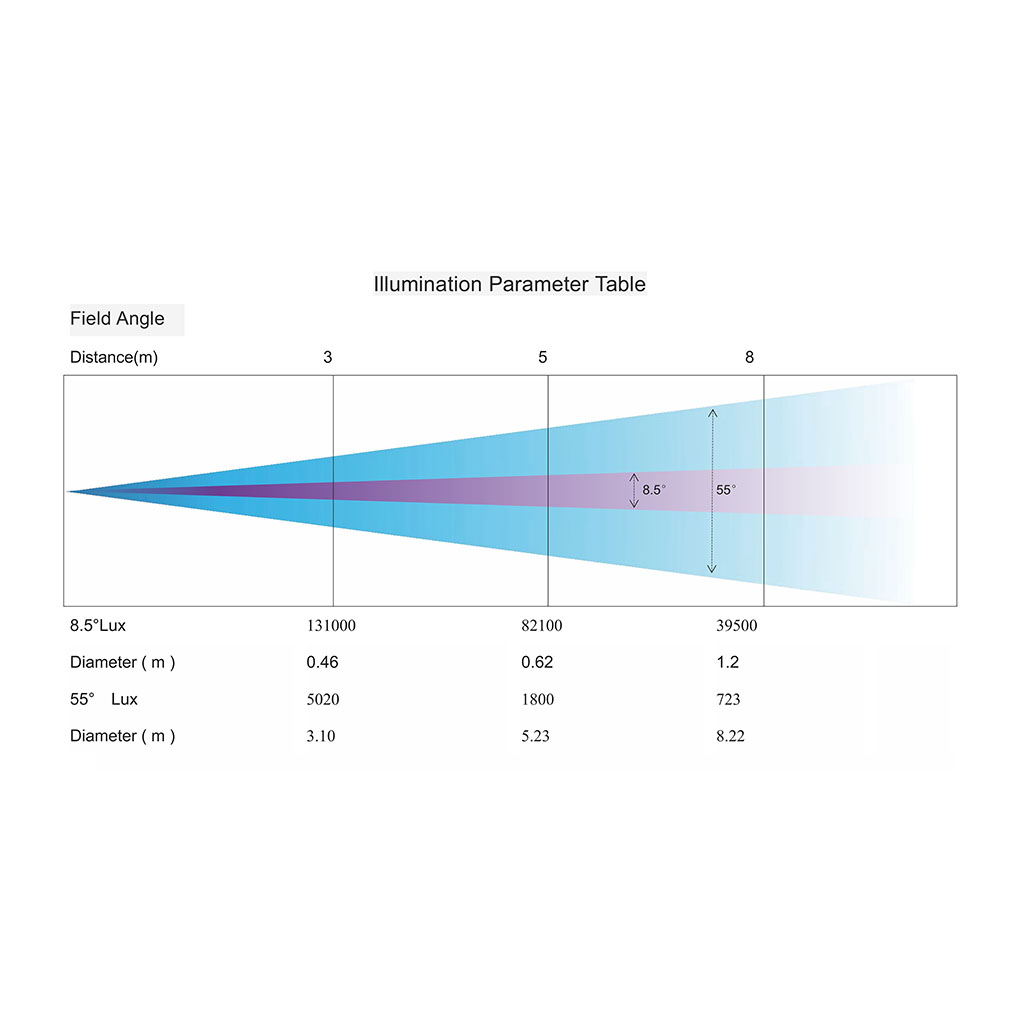

Beam angle

4.5-60°
LED light source

19RGBL+76 RGB
Power

1500W
Weight

23kg
Color temperature

2000K-8000K
IP Rating

IP65

AML LIGHTING - AL-MH1960IP Technical Specifications

Light Source & Photometrics

Light Source: 19pcs* 60W RGBL LEDs, 76pcs* 0.5W RGB LEDS as Auar effects[cite: 12]
LED Life: 50,000 Hour Average[cite: 12]
CRI: 83+[cite: 12]

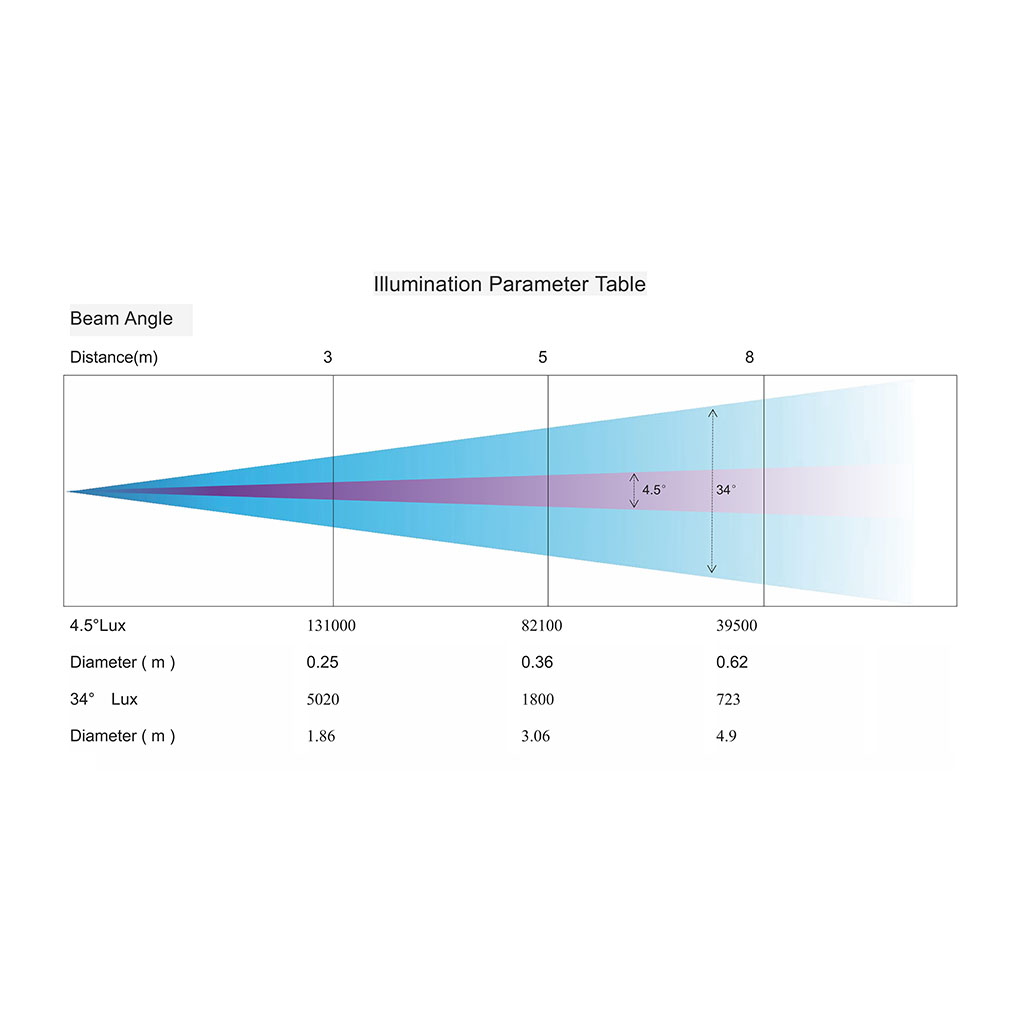

Beam Angle: Zoom Range 4.5° - 60°[cite: 12]

Dynamic Effects

Zoom: Motorized Zoom Linear[cite: 12]
Color Temp: Color Temperature Presets (2000 -8000K)[cite: 12]
Color Mixing: RGBL Color Mixing and Pixel Control[cite: 12]
Background FX: RGB SparkLED Lens Effect[cite: 12]
Color & Macros: Color Presets and Macros[cite: 12]
Dimming: 16 - Bit Dimming, Electronic Strobe and Variable Dimming Curves[cite: 12]

Control & Movement

Movement: Pan Movement: 540°, Tilt Movement: 210°[cite: 12]
DMX Channels: 26/98/238/309 DMX Channel Modes[cite: 12]
Refresh Rate: DMX Adjustable Refresh Rate (800 - 24000 Hz)[cite: 12]
Display: Full Color 180° Reversible LCD Menu Display[cite: 12]

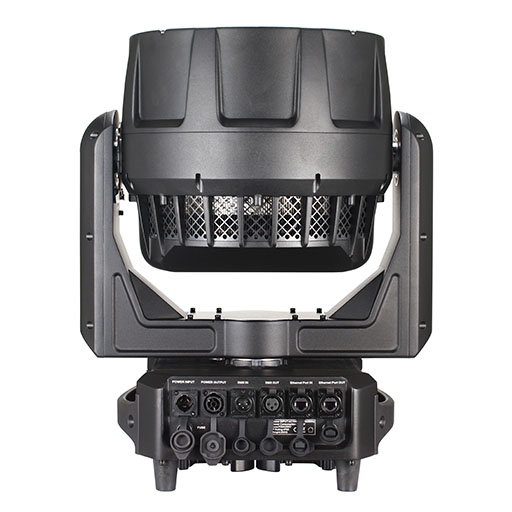

Connections: RDM Support, IP65 5pin XLR DMX In/Out, IP65 RJ45 Ethernet In/Out (Art- Net, sACN)[cite: 12]

Electrical & Physical

Input Voltage: AC 100-240V 50/60Hz[cite: 12]
Max Power: 1500W Max Power Consumption[cite: 12, 13]

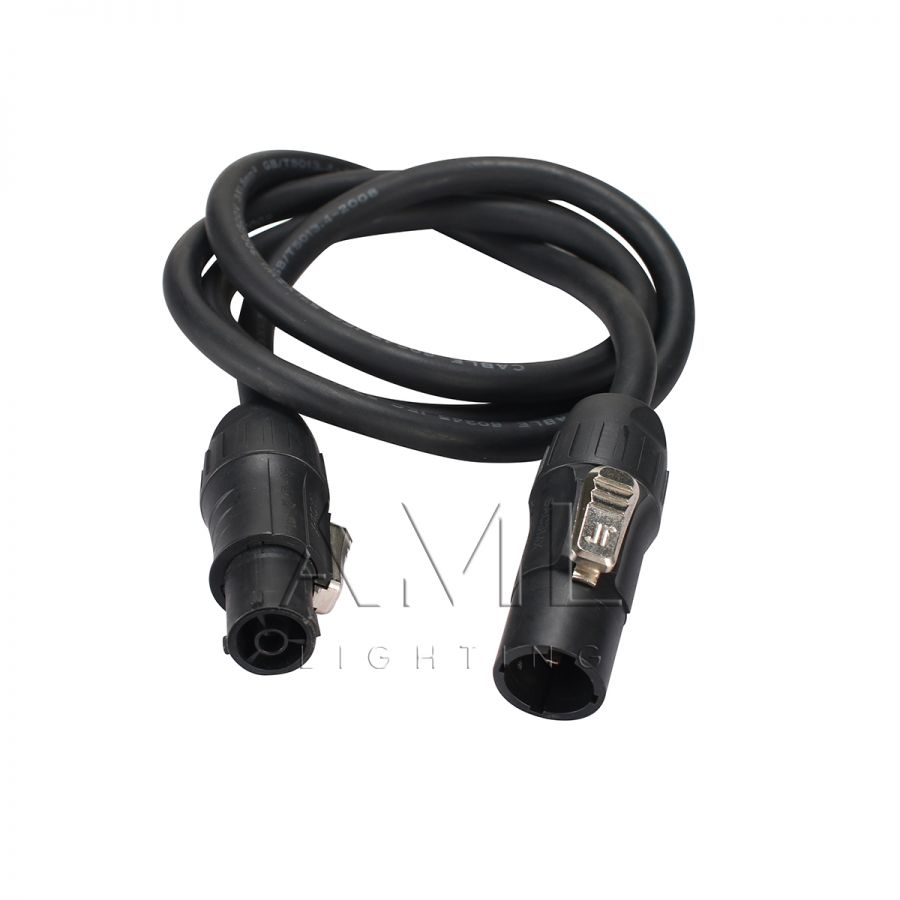

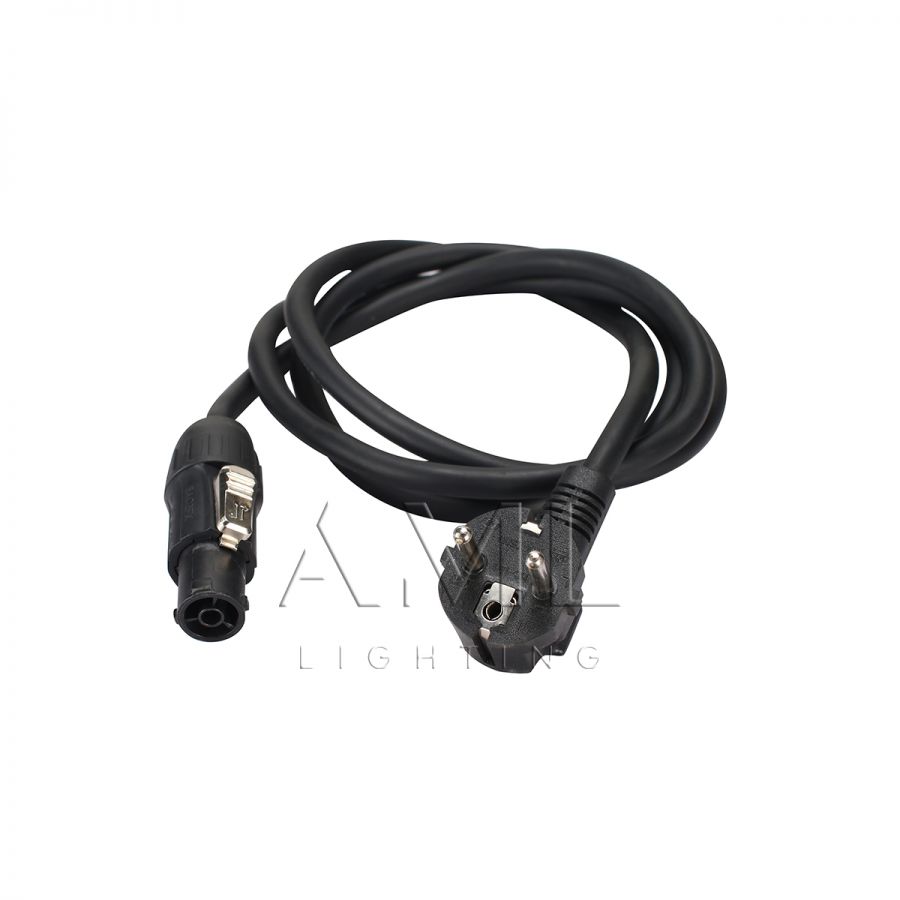

Power Connection: IP65 Locking Power Cable In With Wired Digital Communication Network[cite: 12]
Thermal Output: BTU/hr (+/- 10%) 2387[cite: 13]
IP Rating: IP65[cite: 13]
Dimensions: Length: 430X280X514 mm[cite: 12]
Weight: 23 KGS[cite: 12]

ADVANCED PRODUCT FEATURES

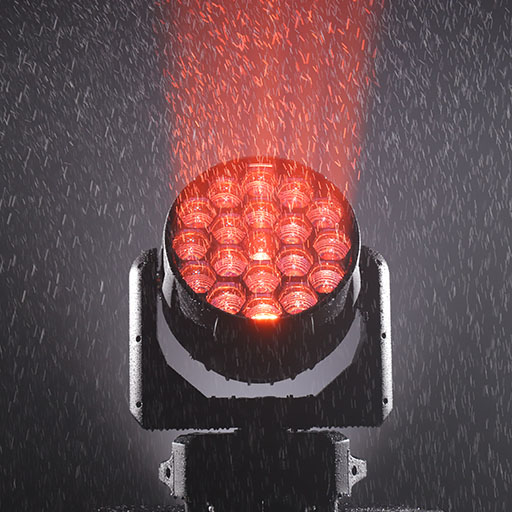

IP65 RATED ALL-WEATHER PROTECTION

Engineered with a high-strength, precision-sealed IP65 chassis, the AL-MH1960IP offers full protection against heavy rain, fine dust, and humidity. This professional-grade structural enclosure prevents internal moisture build-up and maintains absolute optical clarity, ensuring uninterrupted performance for high-end outdoor rental markets, music festivals, and touring event productions.

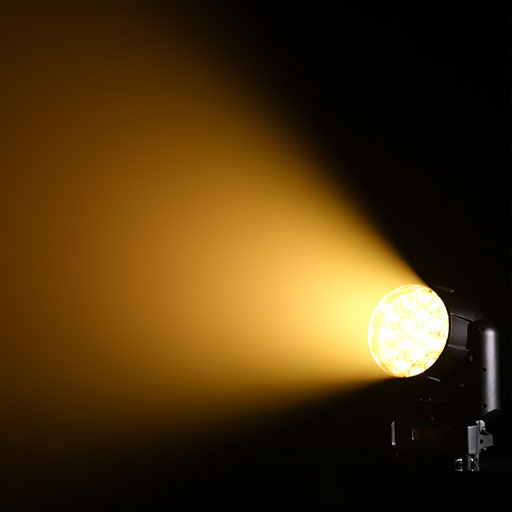

LINEAR MOTORIZED ZOOM SYSTEM

Featuring a state-of-the-art motorized linear zoom mechanism, the fixture transitions smoothly between a sharp, condensed narrow beam and a wide-reaching, uniform wash field. This multi-group optical alignment delivers a highly flexible coverage range, retaining intense punchy lumens and exceptional color consistency across any throw distance.

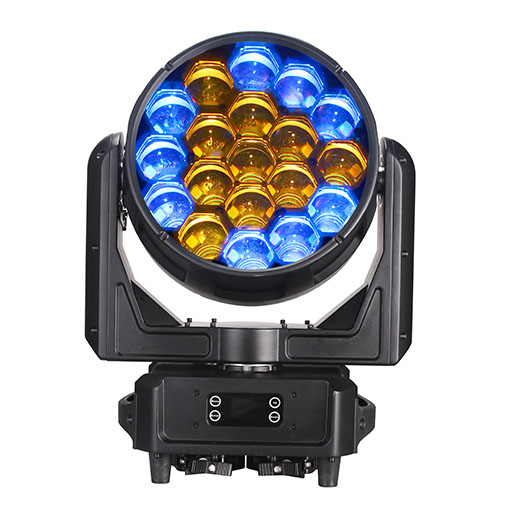

DYNAMIC AURA BACKGROUND GLOW

Equipped with an independent auxiliary LED aura illumination system, the fixture generates stunning dual-layer visual depth. This back-lighting effect delivers eye-catching color mixing behind the primary lenses, allowing lighting designers to blend vibrant background shades with intense front beams for hypnotic eye-candy effects on live concert stages.

ROTATABLE FRONT LENS SYSTEM

The highly customizable vortex front lens assembly features continuous, bi-directional 360-degree rotation. This premium optical configuration transforms uniform wash fields into dynamic, multi-directional aerial vortex rays and kaleidoscopic aerial flower beams, significantly multiplying the creative toolset for complex festival programming.

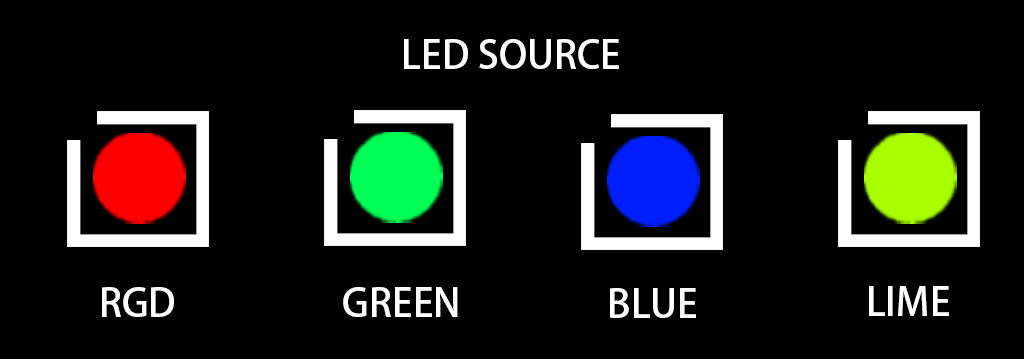

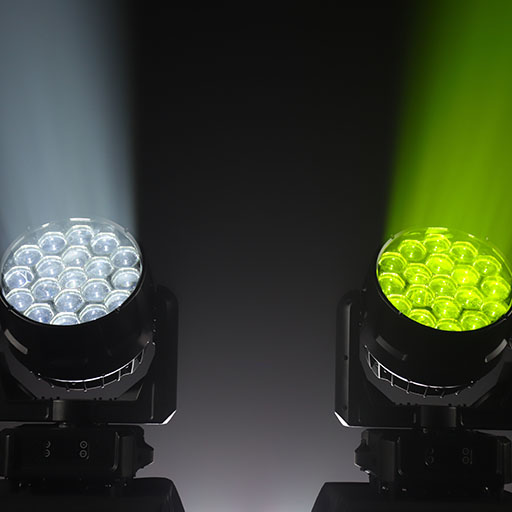

DUAL LED CONFIGURATION: RGBW VS RGBL

To fulfill diverse lighting requirements, we offer two distinct engine configurations. The standard RGBW option delivers crisp, high-intensity cold white beams alongside classic vibrant primary colors. Alternatively, the premium RGBL engine replaces the white chip with an ultra-efficient Lime diode, drastically boosting lumen output across the yellow-green spectrum and providing exceptionally smooth, high-CRI warm pastel mixing tailored for broadcast television studios and theater stages.

LINEAR CTO COLOR CORRECTION

Featuring a dedicated independent linear CTO macro channel, the fixture achieves smooth, stepless color temperature adaptation. It flawlessly shifts the output from a stark, pure daylight white down to a rich, warm tungsten hue, optimizing skin-tone rendering for high-end HD broadcasting, outdoor media studios, and theatrical stage applications.

ADVANCED LED PIXEL MAPPING

With full individual control over each LED pixel emitter, the AL-MH1960IP unlocks sophisticated multi-color graphics, complex text scrolls, and rich volumetric matrix animations. This individual pixel mapping capacity integrates perfectly with professional lighting consoles and media servers, enabling intricate digital lighting designs for premium touring applications.

Technology Support

Depence² R4（Syncronorm）

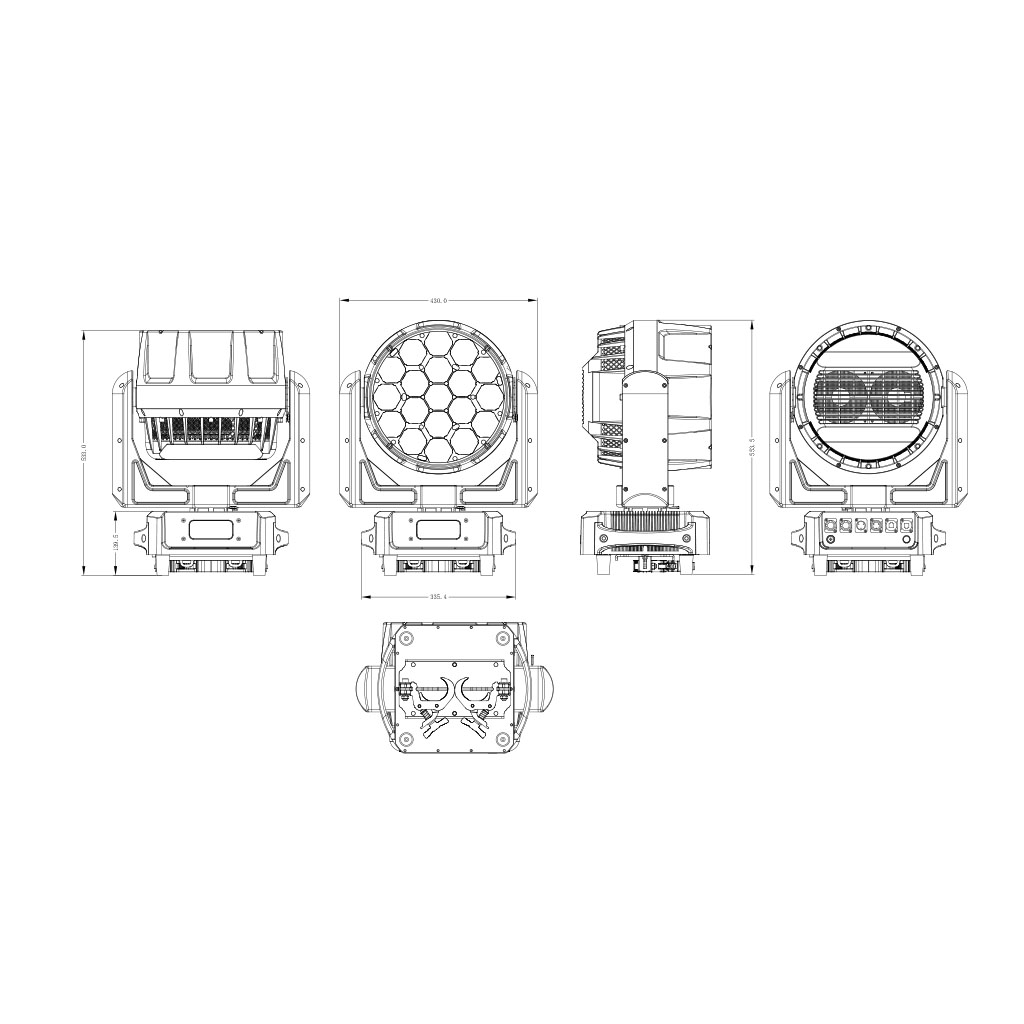

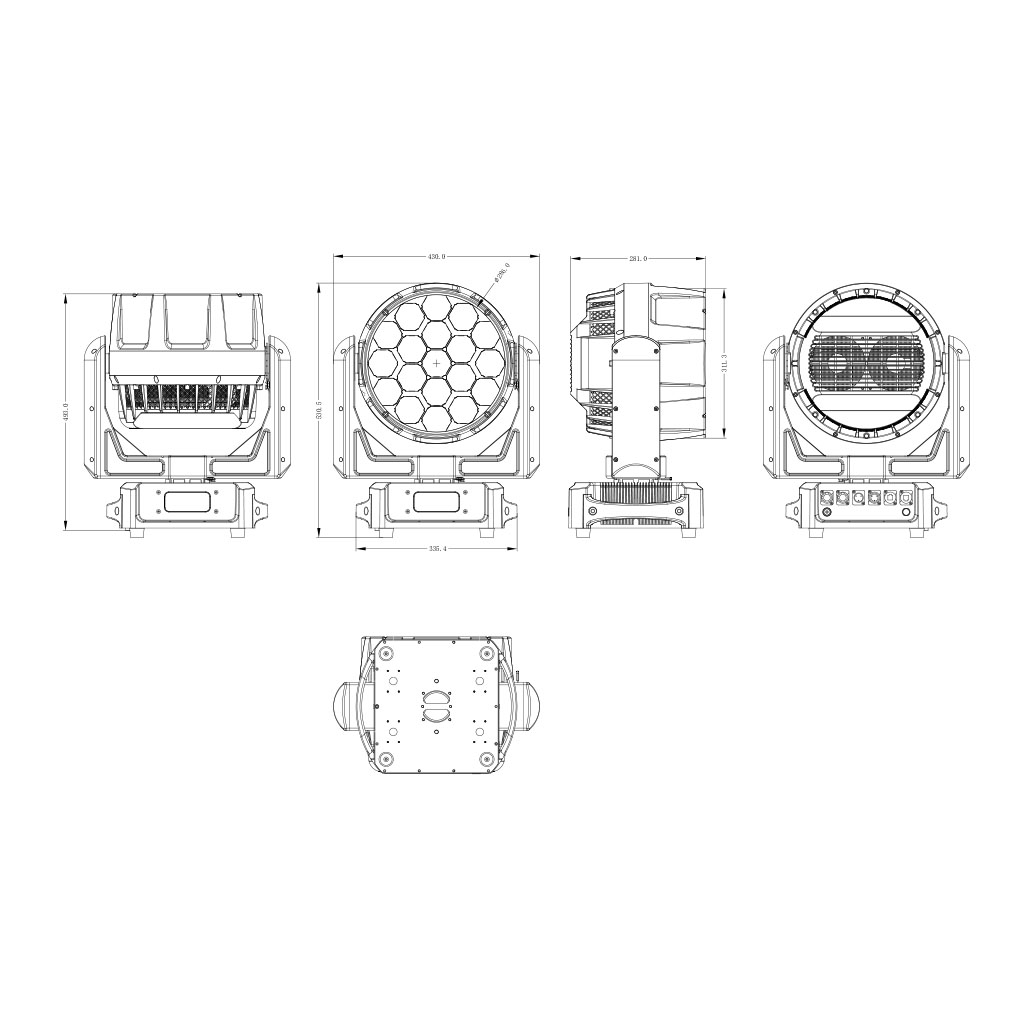

Lighting Fixture Drawing
