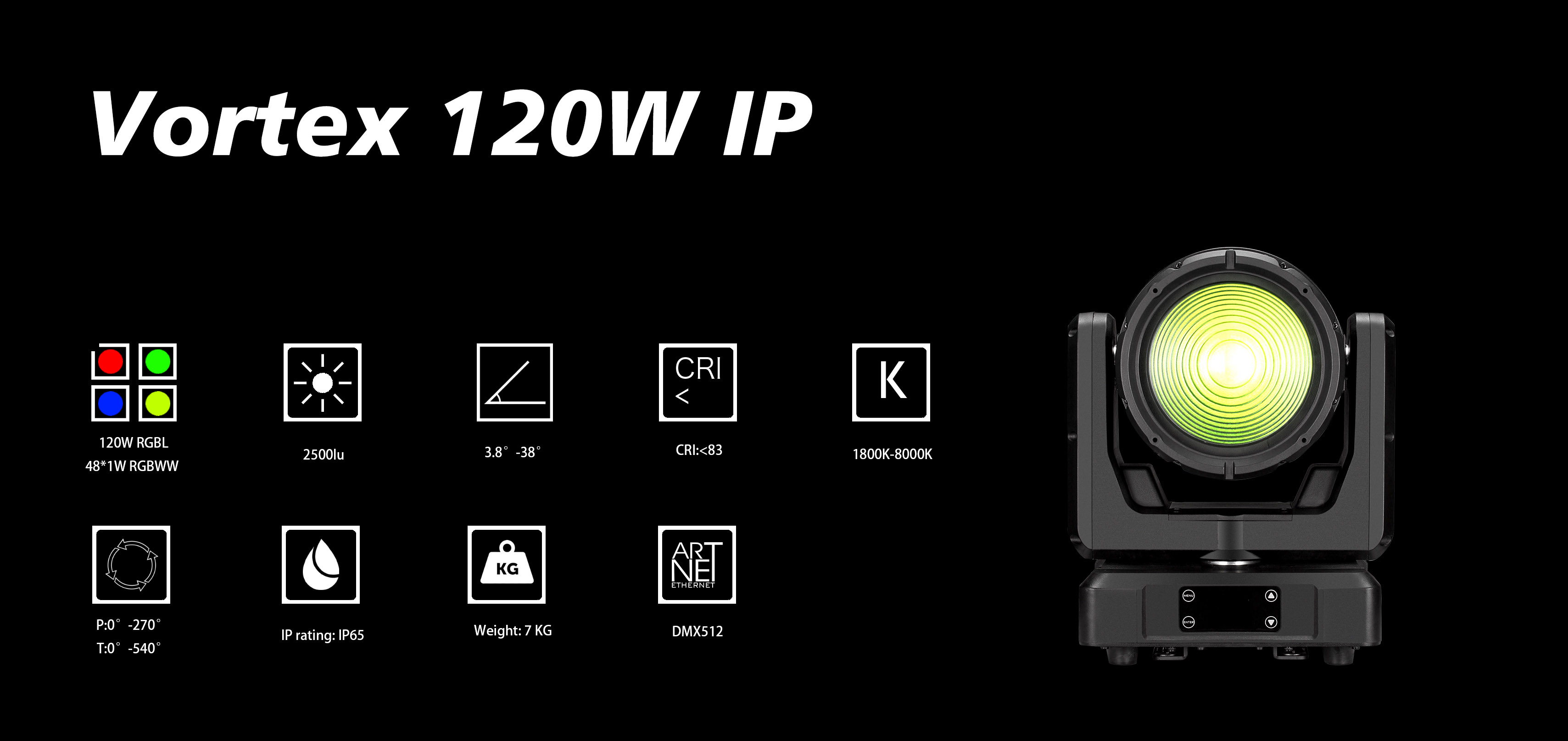

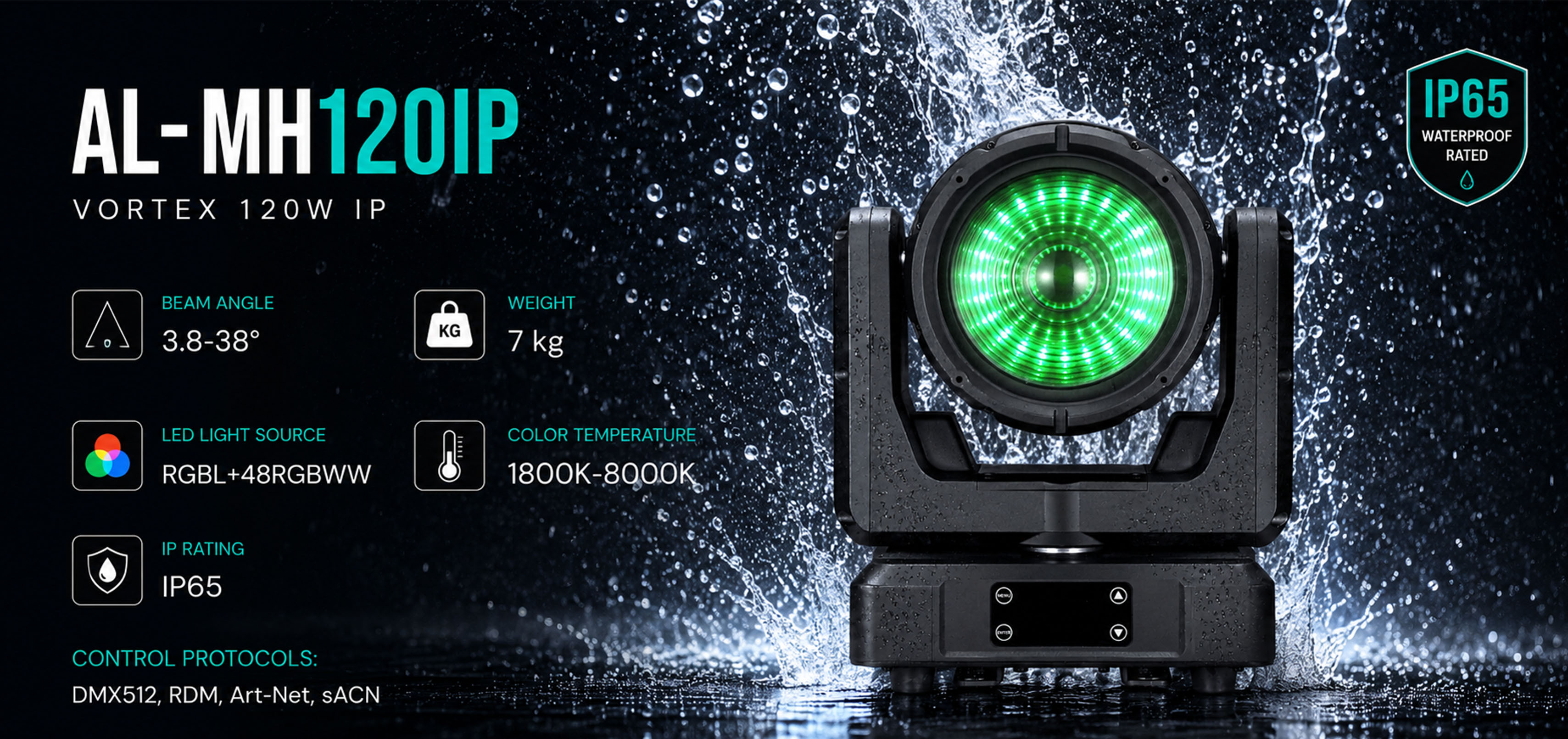

- Beam angle3.8-38°
- LED light sourceRGBL+48RGBWW
- Weight7 kg
- Color temperature1800K-8000K
- IP RatingIP65
Technical Specifications
Light Source & Optics
Main LED: 120W RGBL LEDs
Aura LED: 48*1W RGBWW
Lumen Output: 2500lm

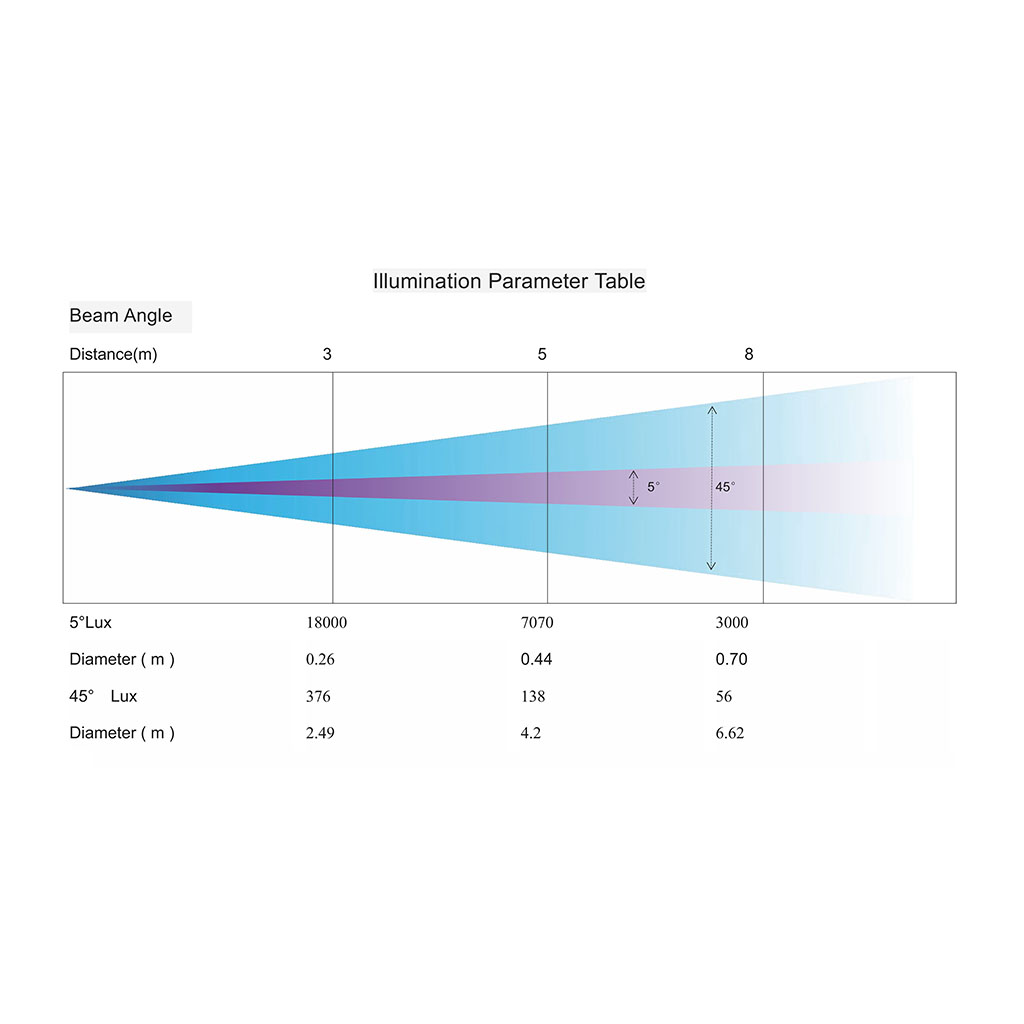

Intensity: 375,000 cd in narrow beam

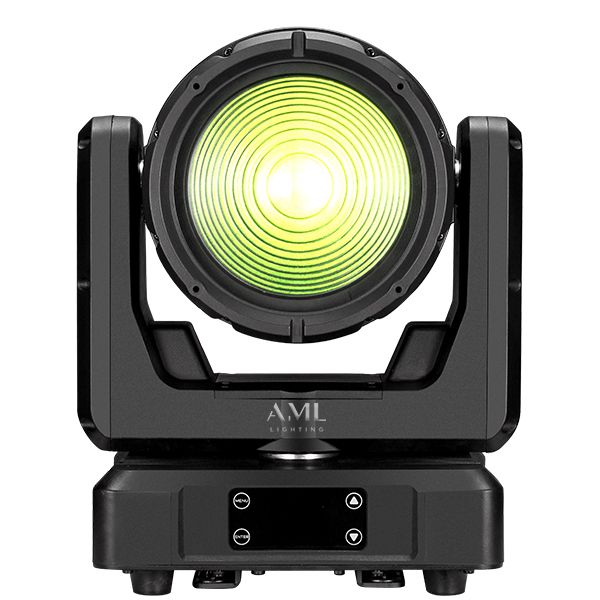

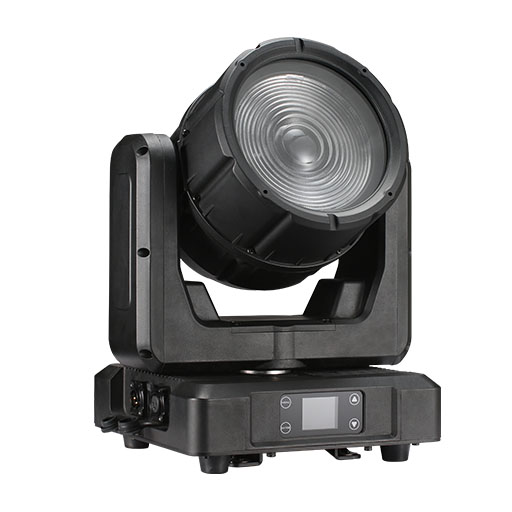

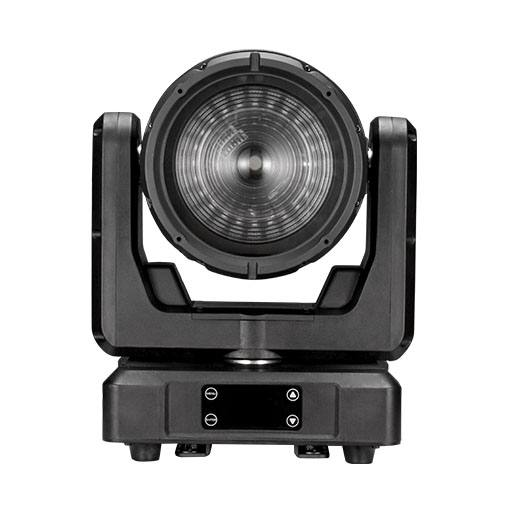

Lens & Beam: 140 mm Fresnel lens, 3.8 to 38 degrees zoom
Optical Features: Defined narrow beam, Soft edge wide wash, Minimal stray light, Minimal color temperature shift from center to edge
Flicker-Free: Flicker-Free operation, LED Driver frequency adjustable for demanding applications
Color Palette

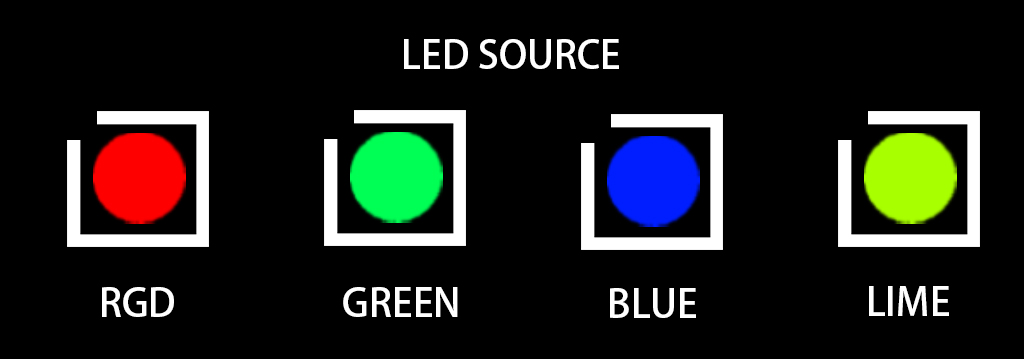

Color Mixing: RGBL color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
Color Modes: Calibrated and Extended Color Modes
Color Temp Control: 2,000‒12,850K
Tint Control: Calibrated Green Magenta Shift (Tint)
Control & Connections
Control Mode: 21CH/39CH/223CH
Protocols: DMX, M/S (Art-Net, sACN optional)
Electrical & Physical
Input Voltage Range: 100-240V; 50/60Hz

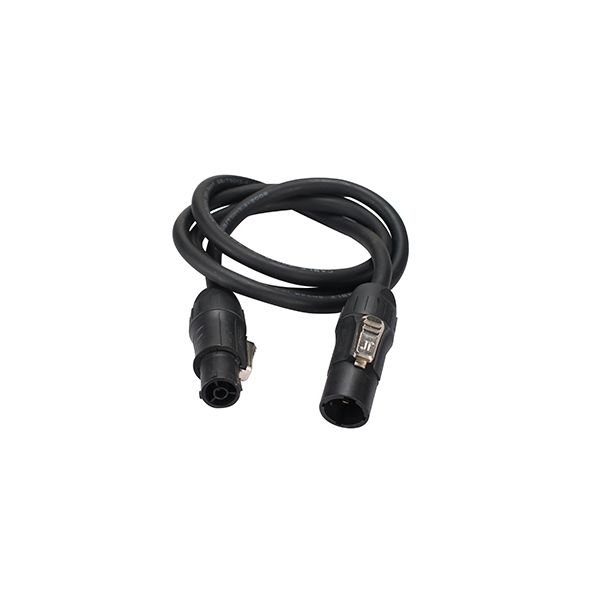

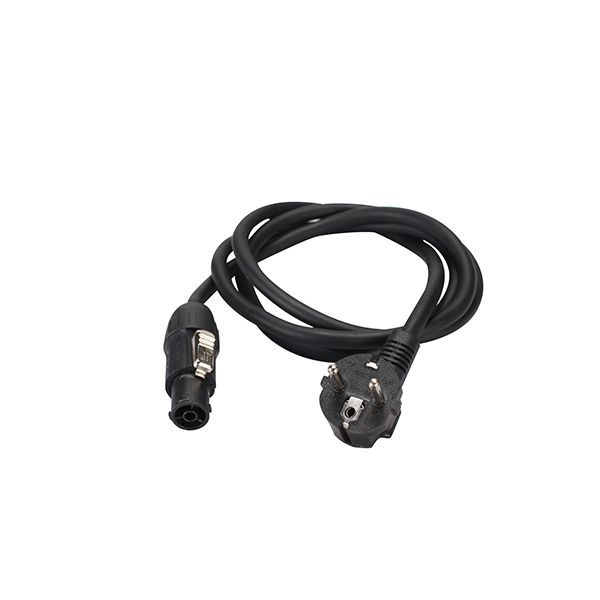

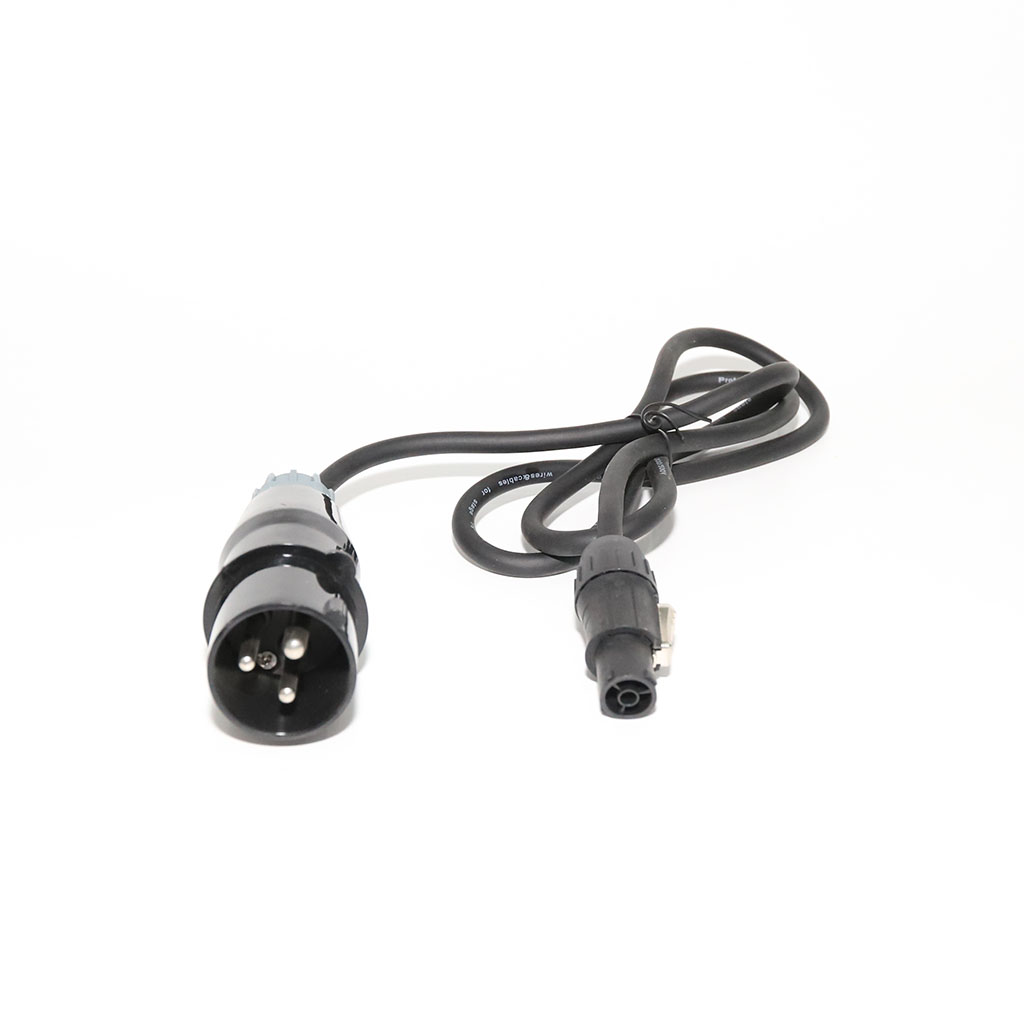

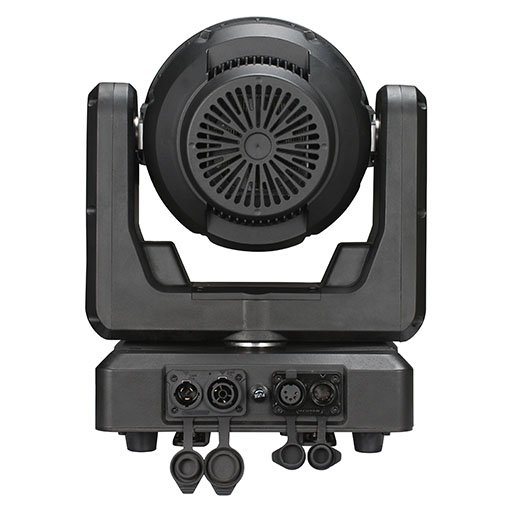

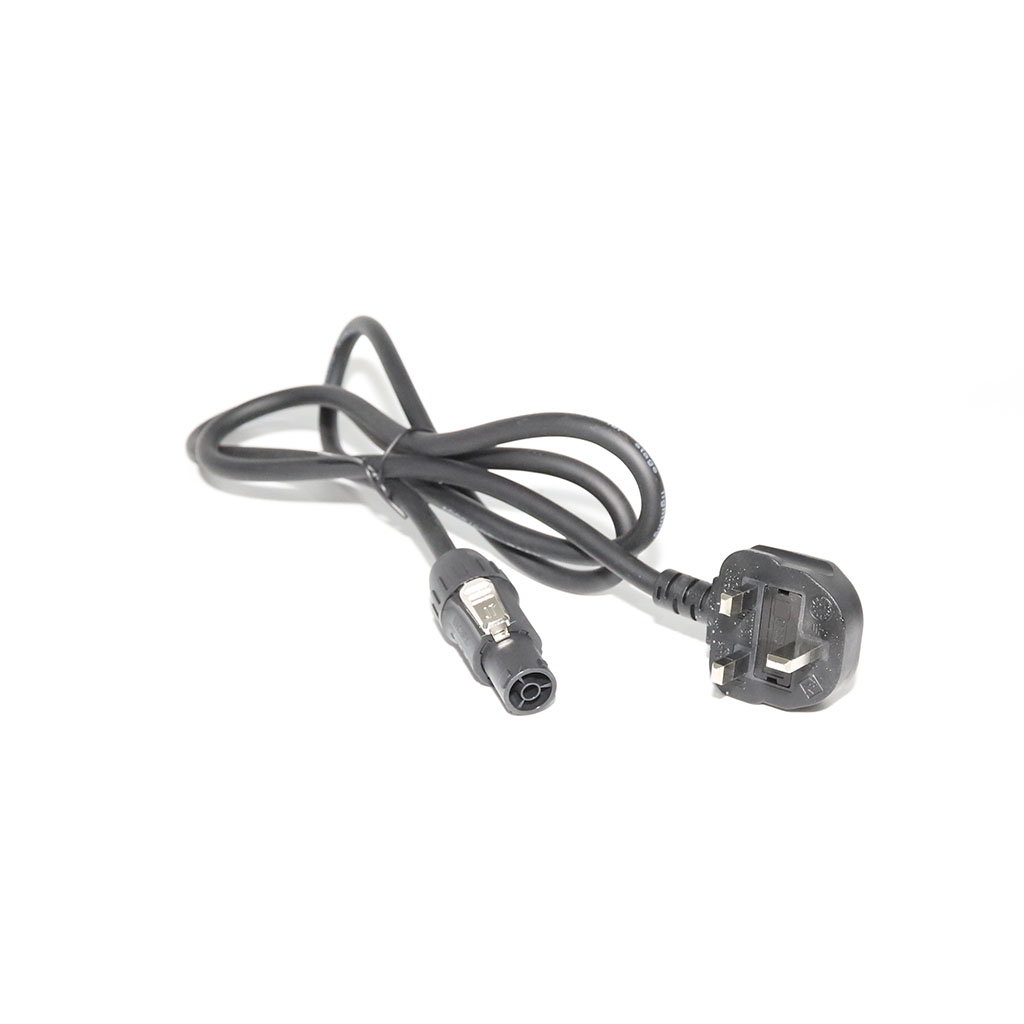

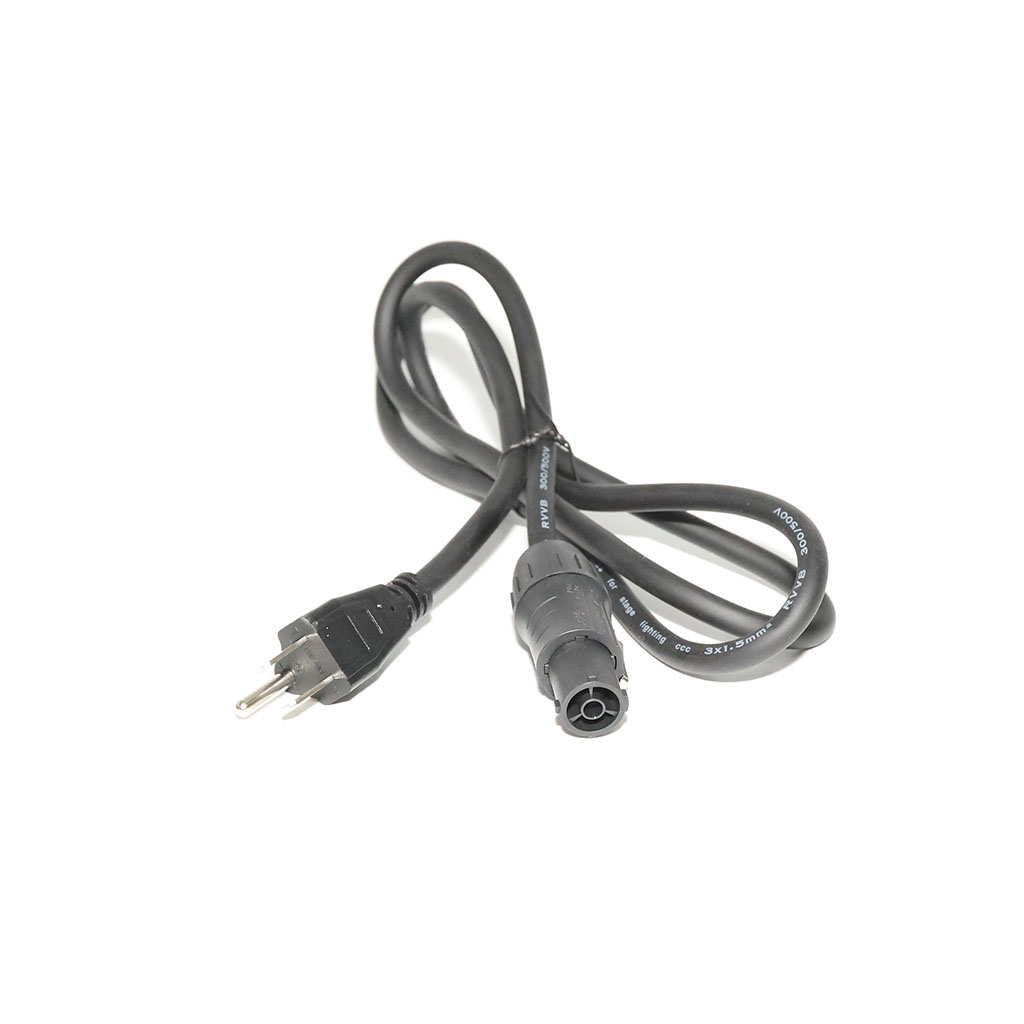

Power In/Out: Waterproof power connector in/out

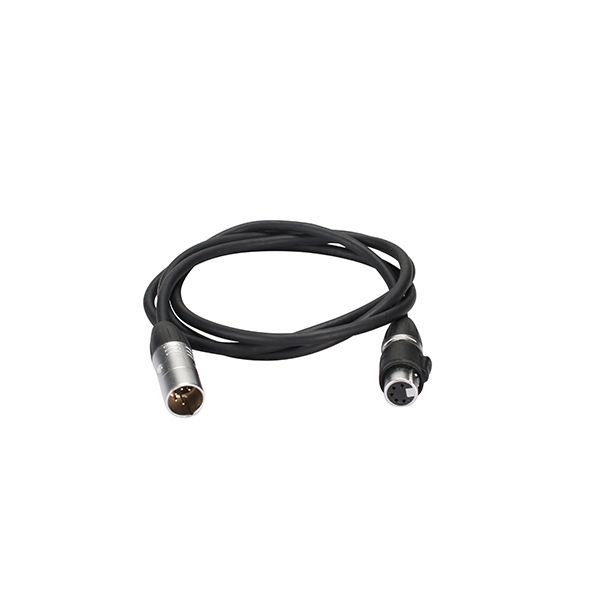

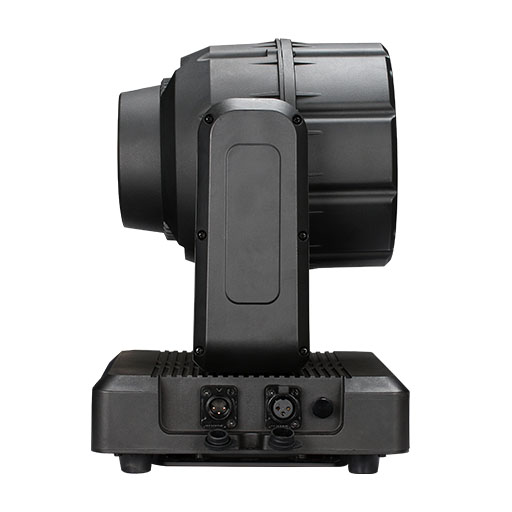

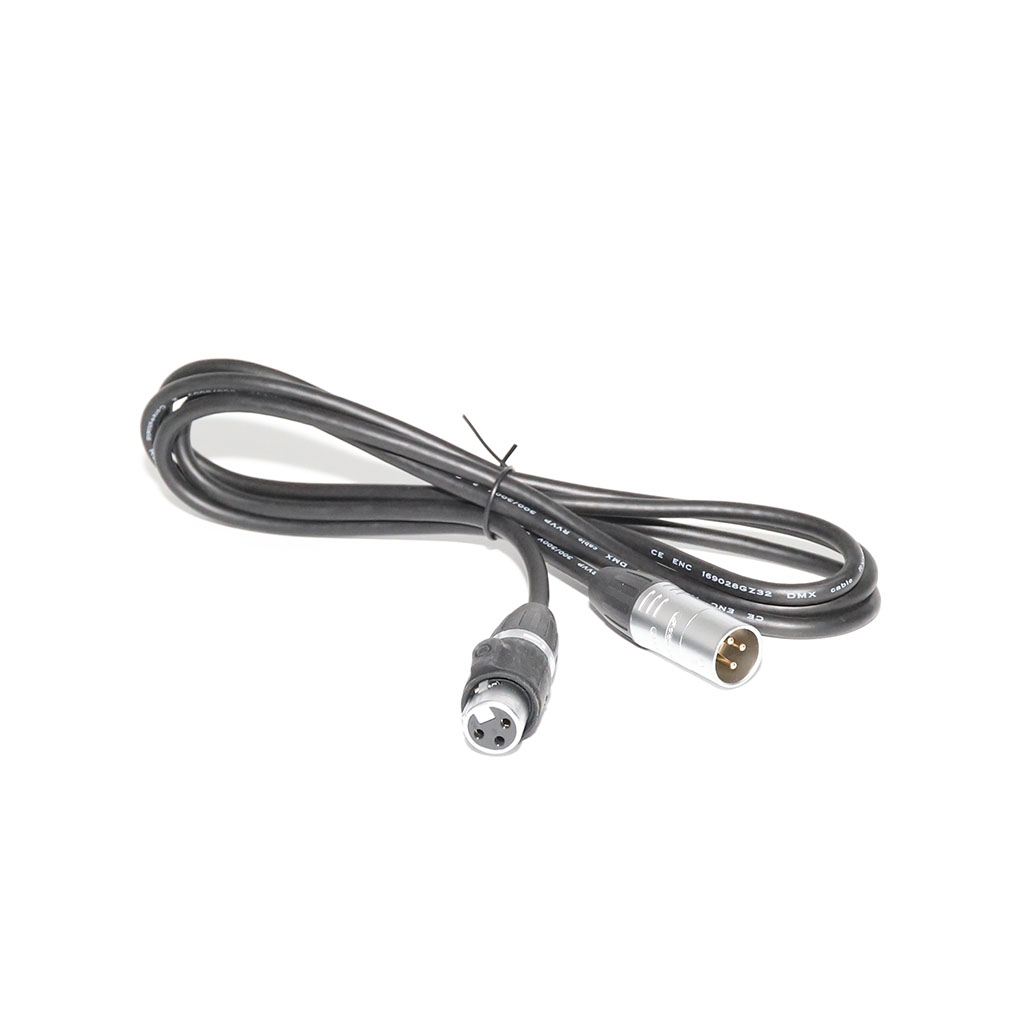

Data In/Out: 3-pin or 5-pin waterproof XLR

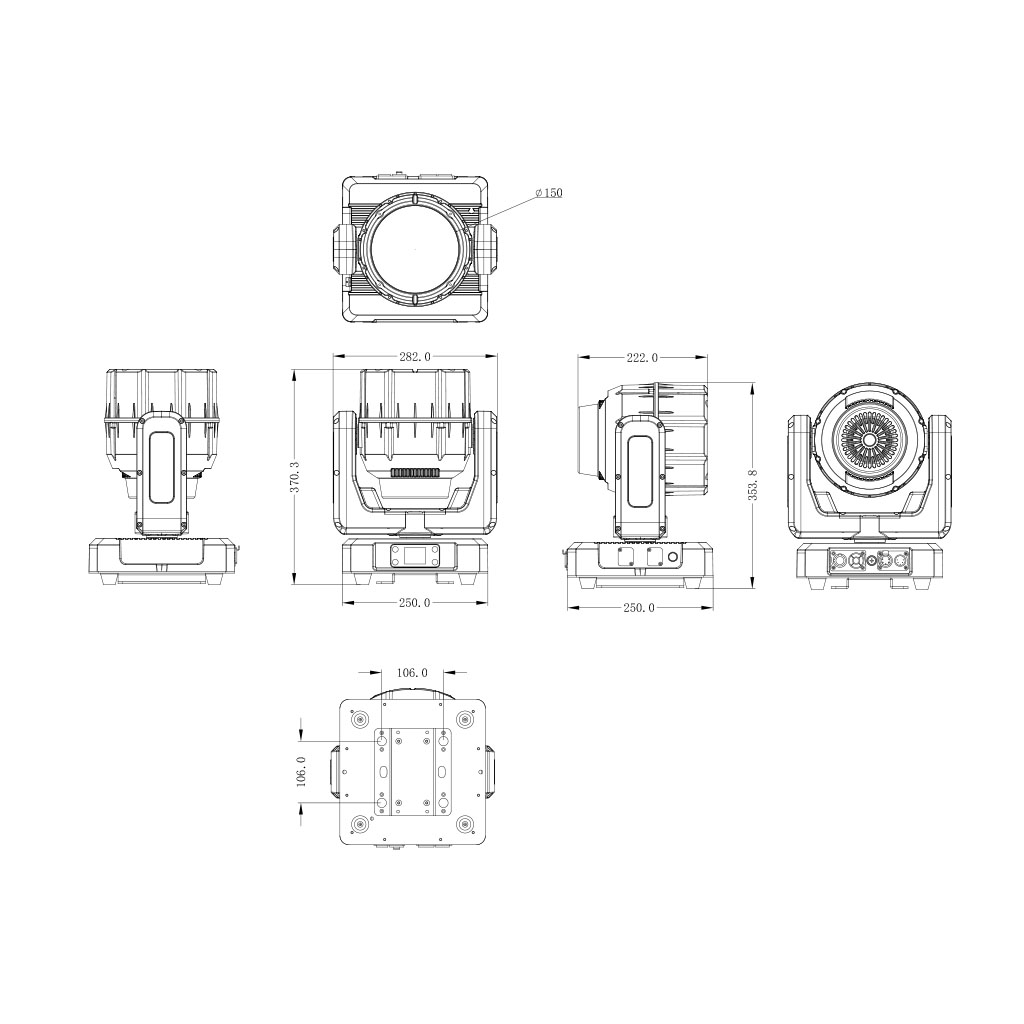

Dimensions: 282x250x364.8MM
Weight: 7 kg
IP Rating: IP65
ADVANCED PRODUCT FEATURES
IP65 WEATHERPROOF
Built with the high-end architectural integrity of its twin series, the AL-MH120IP features a robust, precision-sealed IP65 chassis. Engineered to offer complete protection against heavy downpours, fine dust, and harsh ambient humidity, this weather-resistant housing maintains clean internal optics and stable electronics for high-end outdoor festivals and elite global concert touring markets.

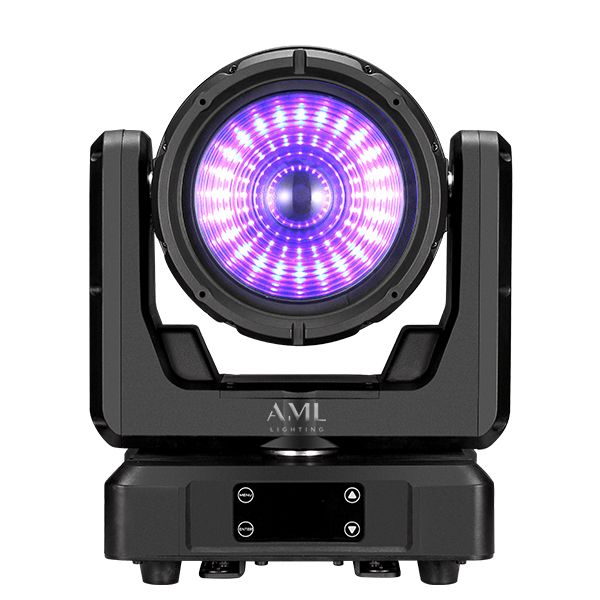

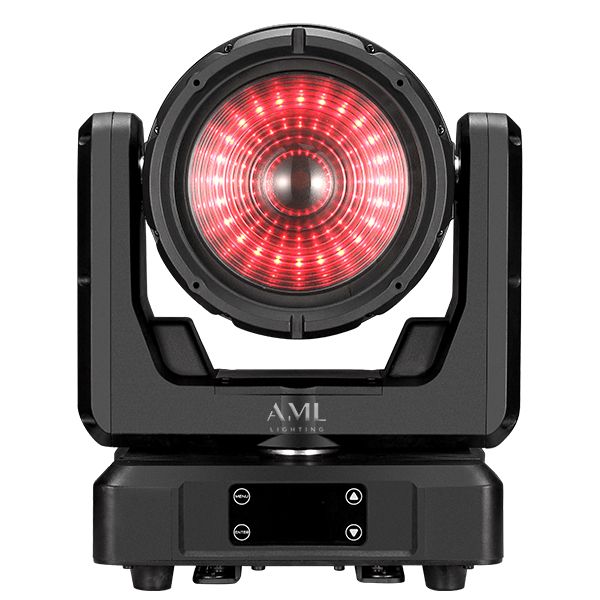

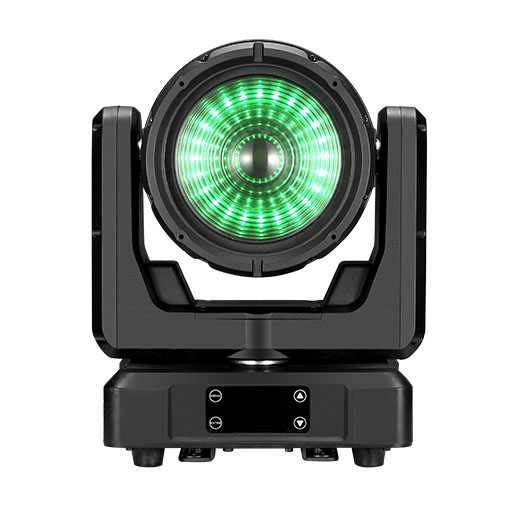

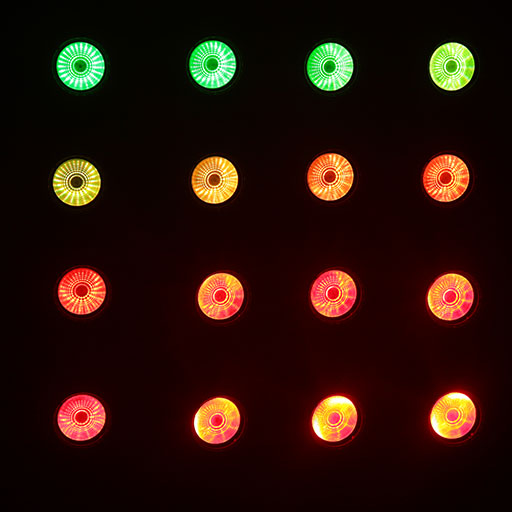

DYNAMIC AURA GLOW
Integrating an advanced secondary backlight illumination system, the fixture delivers a stunning dual-layer optical output. This auxiliary aura background mixing permits lighting designers to create captivating eye-candy effects, overlaying rich, customized background colors behind the main high-output wash lens to expand structural depth on premium entertainment stages.

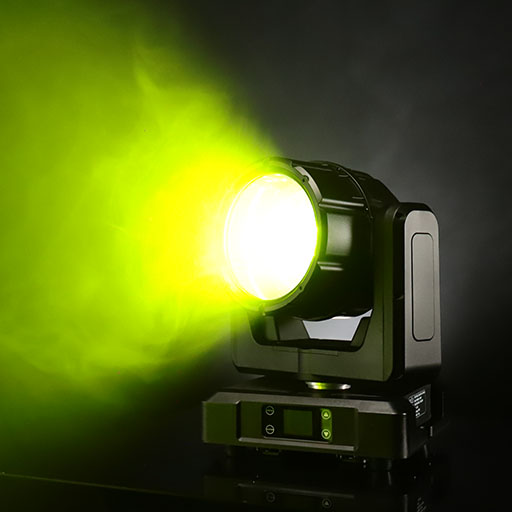

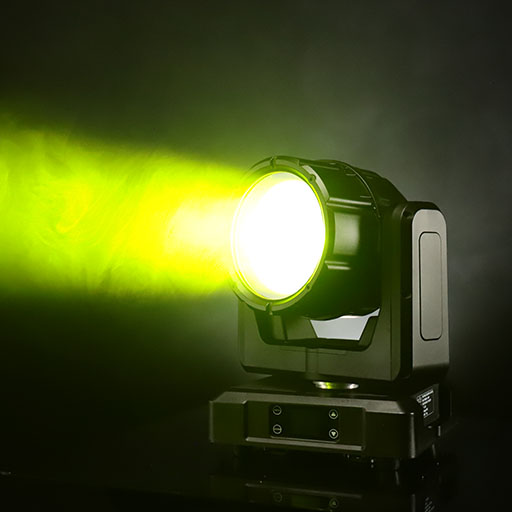

LINEAR MOTORIZED ZOOM
Driven by a high-efficiency motorized linear optical lens assembly, the AL-MH120IP provides an ultra-smooth, proportional zoom tracking curve. It transitions fluidly from a highly condensed, intense mid-air effect beam to a wide-expanding, homogeneous wash field, ensuring precise color field uniformity and unmatched candlepower at any chosen zoom angle.
PAN & TILT MOVEMENT
Equipped with high-torque, ultra-responsive internal stepping motors, the fixture guarantees exceptionally fast, whisper-quiet, and high-precision 16-bit Pan and Tilt panning. This agility lets operators execute instantaneous beam sweeps, sharp rhythmic position changes, and continuous fluid paths, fully satisfying the fast-paced choreography of modern live music events.
LINEAR CTO SHIFTING
Featuring a dedicated independent linear CTO color correction macro channel, the fixture achieves seamless, stepless color temperature tuning. It shifts the output flawlessly from a sharp, pure daylight white down to a rich, warm tungsten glow, optimizing natural skin-tone rendering for high-end HD broadcasting, outdoor television studios, and theatrical stage applications.
