- Beam angle5-45°
- LED Source800W
- Lumens31500 lm
- Power consumption970W
- Weight29 kg
- IP RatingIP65
- Refresh rate24kHz
Technical Specifications
Light Source & Optical System
Light Source: 800W LED Engine
Total Lumen Output: 52,500 lumens (Engine)
Luminous Flux: 31,500 Lm (Fixture)
Color Temp Output: 7,000K
Life Expectancy: ≥ 20,000 hours

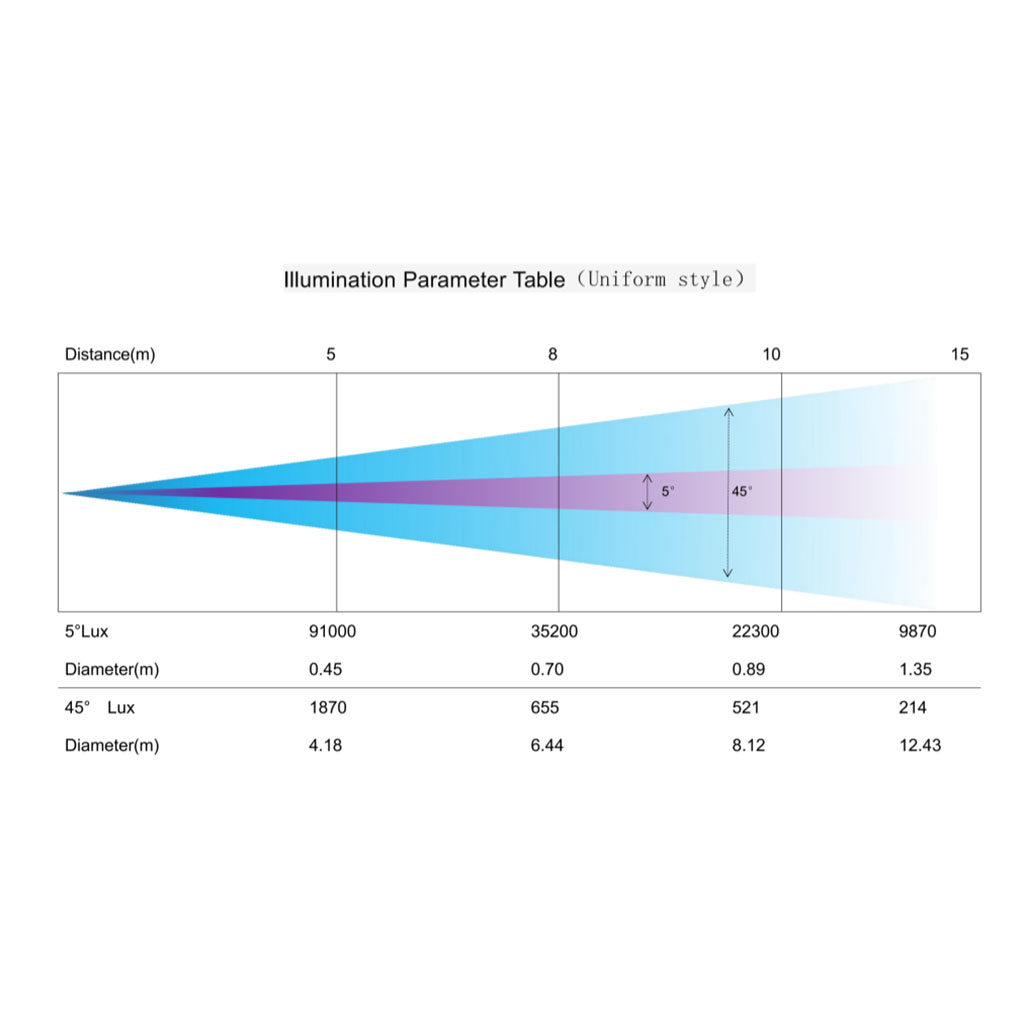

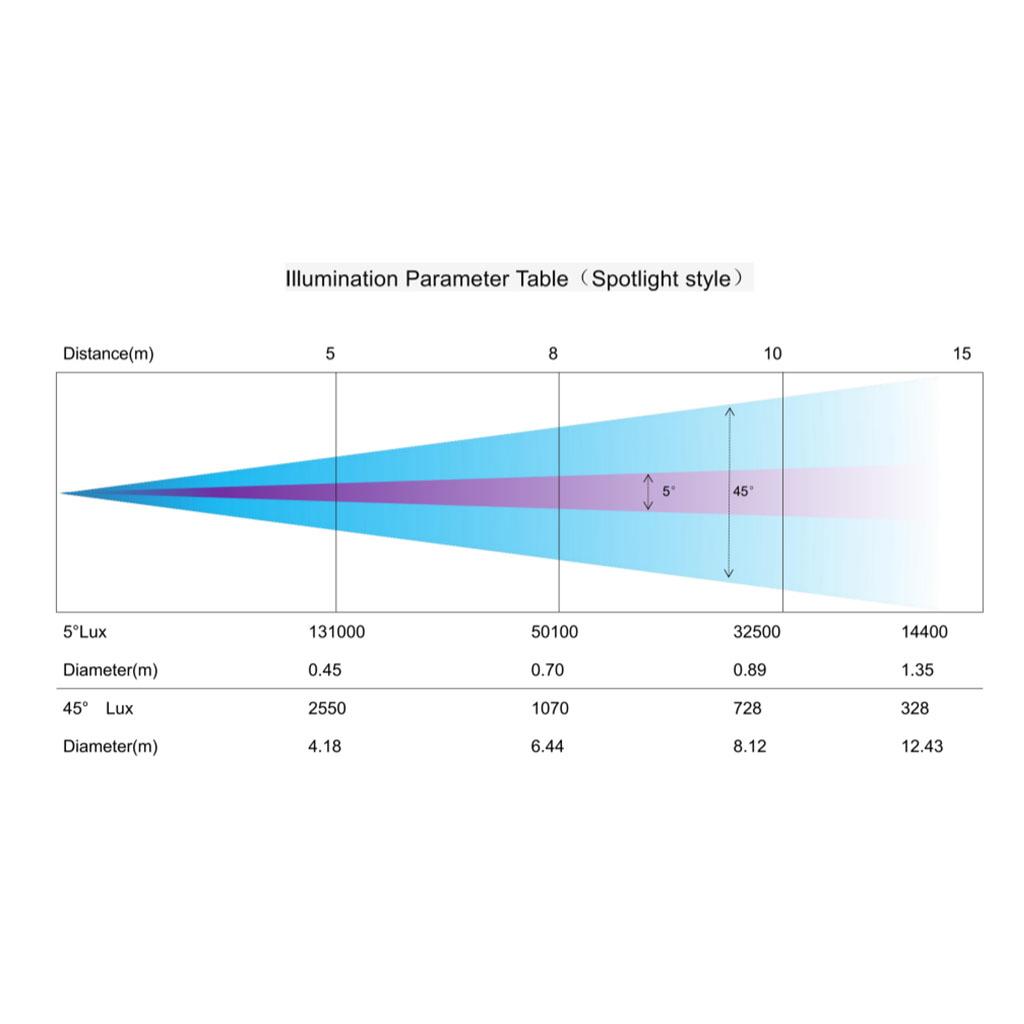

Beam Angle: 5°–45°
Colors & Pattern System
Color Temperature: 7000K
CRI: Ra72 (High-Brightness Mode) / Ra95 (High-CRI Mode)
Color Wheel: 5 colors + CRI filter + 1 open + CMY
CMY + CTO Mixing: CTO range 2700K–7000K
Rotating Gobo Wheel: 7 patterns + 1 open, quick-swappable (Ø20mm outer / Ø15mm inner, 1.1mm thickness)
Static Gobo Wheel: 8 patterns + 1 open
Animation Wheel: 1 slot, continuous bidirectional rotation
Effects & Shutter System
Prism: 4-facet prism + 4-line prism, combinable with simultaneous rotation
Shutter/Cutting System: 4 independent blades for fast and smooth cuts
Cutting Control: Individual control of blade direction/angle, full blackout capable
Module Rotation: Full module rotation ±60°
High-Speed E-Strobe: 1–25 Hz
Frost: Medium diffusion
Iris Range: 2.2–45°
Movement & Control
Pan & Tilt: Pan: 540°, Tilt: 260°, 8/16-bit precision
Control Panel: 4 touch button control panel
Display: LCD display
Protocols: DMX512, RDM, Art-Net, sACN
Control Channels: 42CH / 32S CH / 32F CH / 23CH
LED Refresh Rate: 400 Hz–24 kHz
Electrical & Physical
Rated Input Voltage: AC 100-240V~ 50/60 Hz
Total Power Consumption: 970W
Power Factor: ≥0.97
Input Current: 4.5A @ 220V

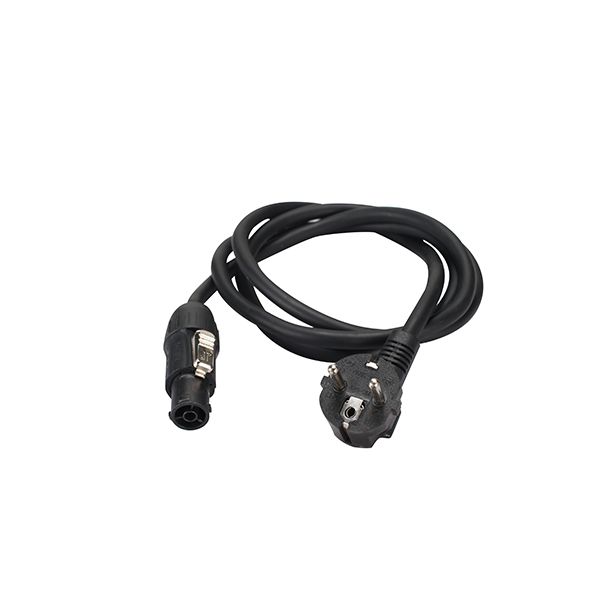

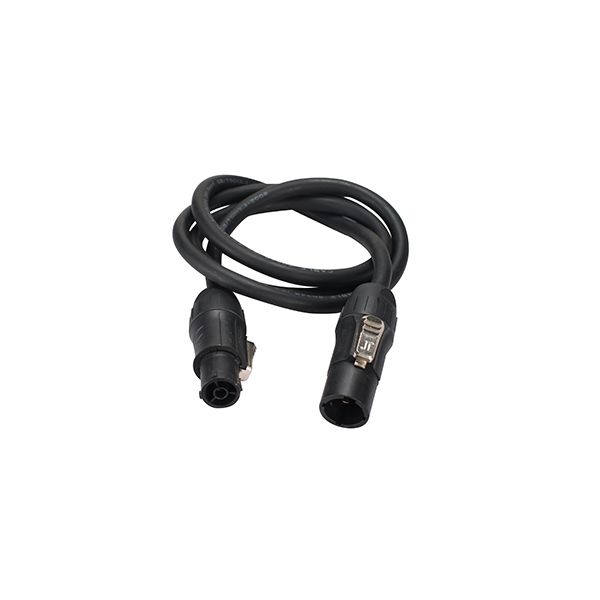

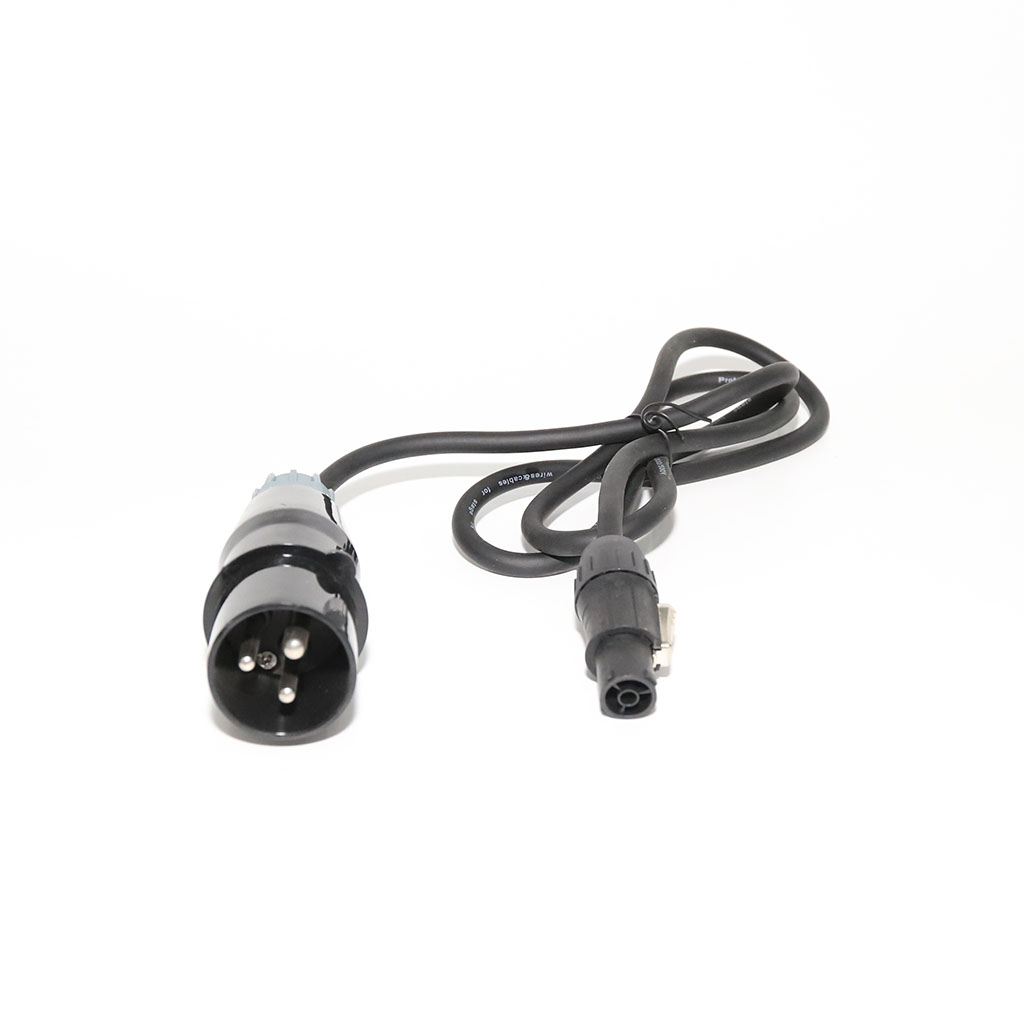

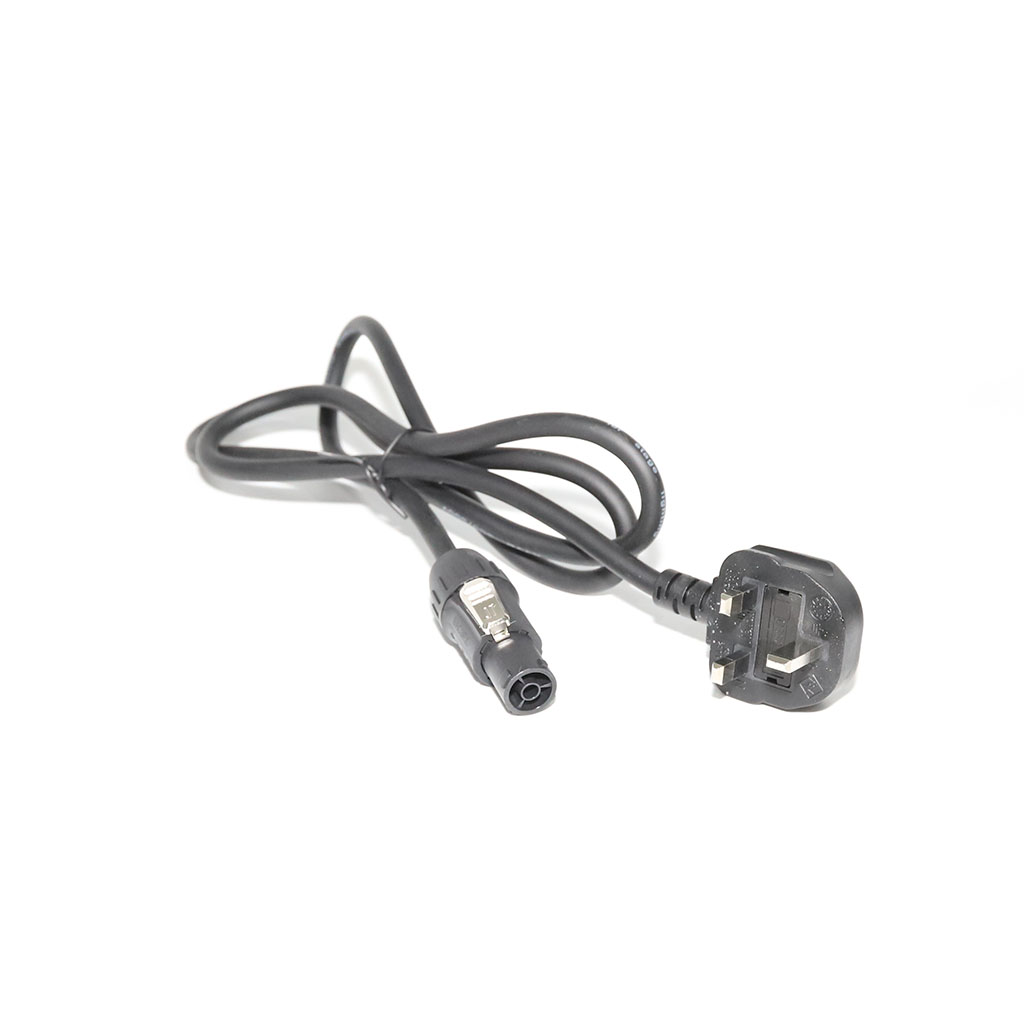

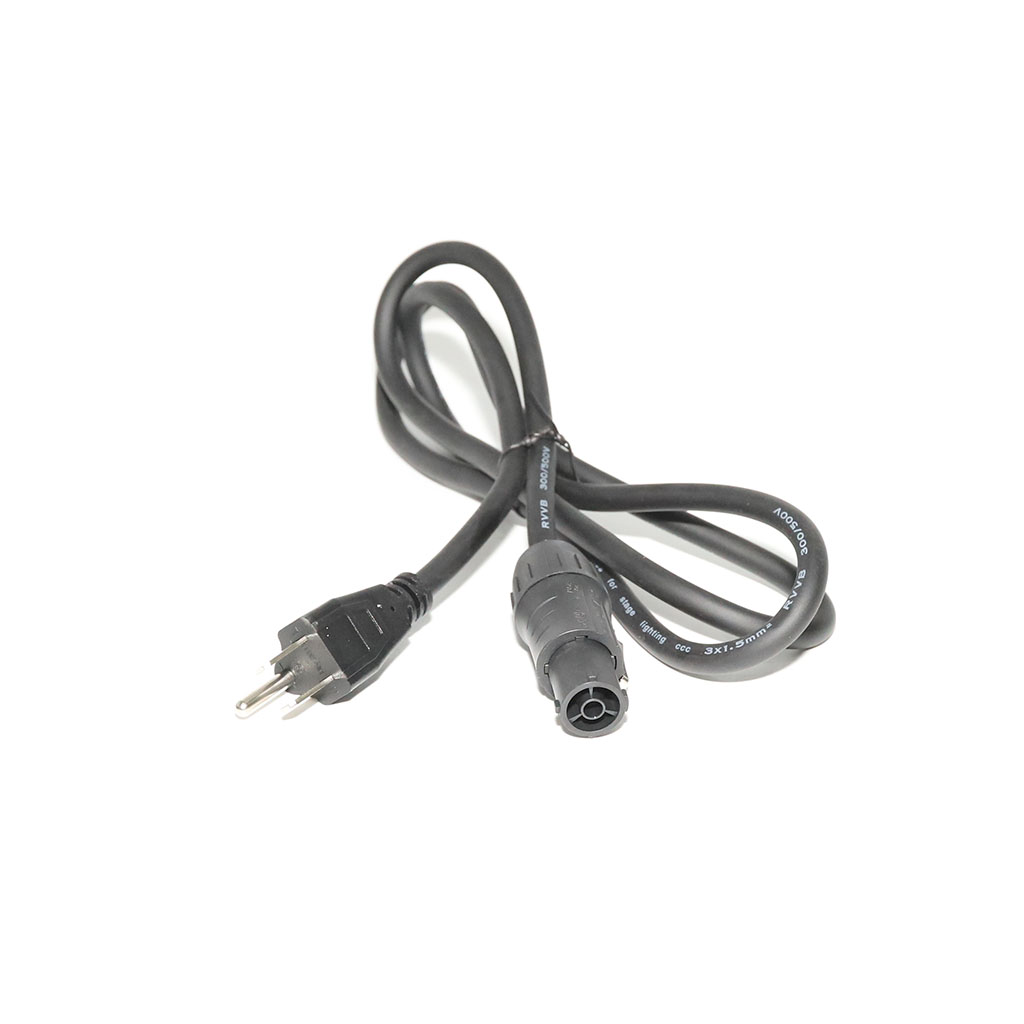

Power In/Out: Waterproof power connector in/out

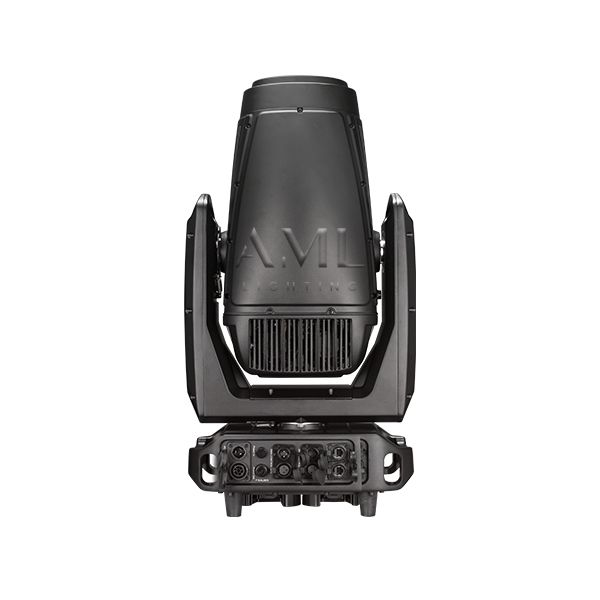

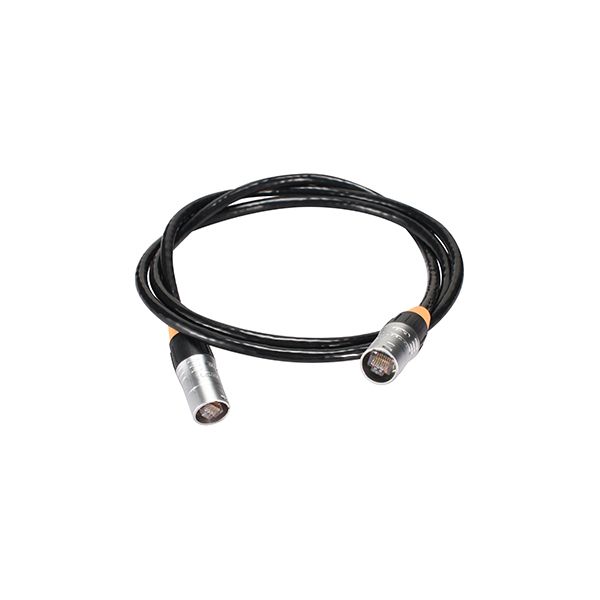

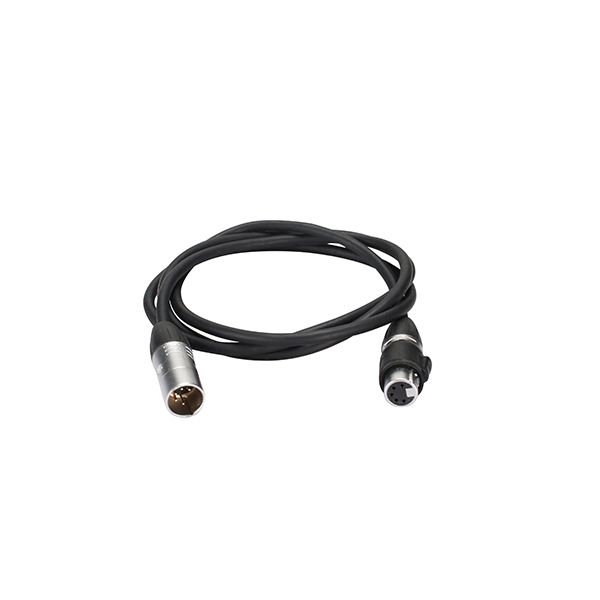

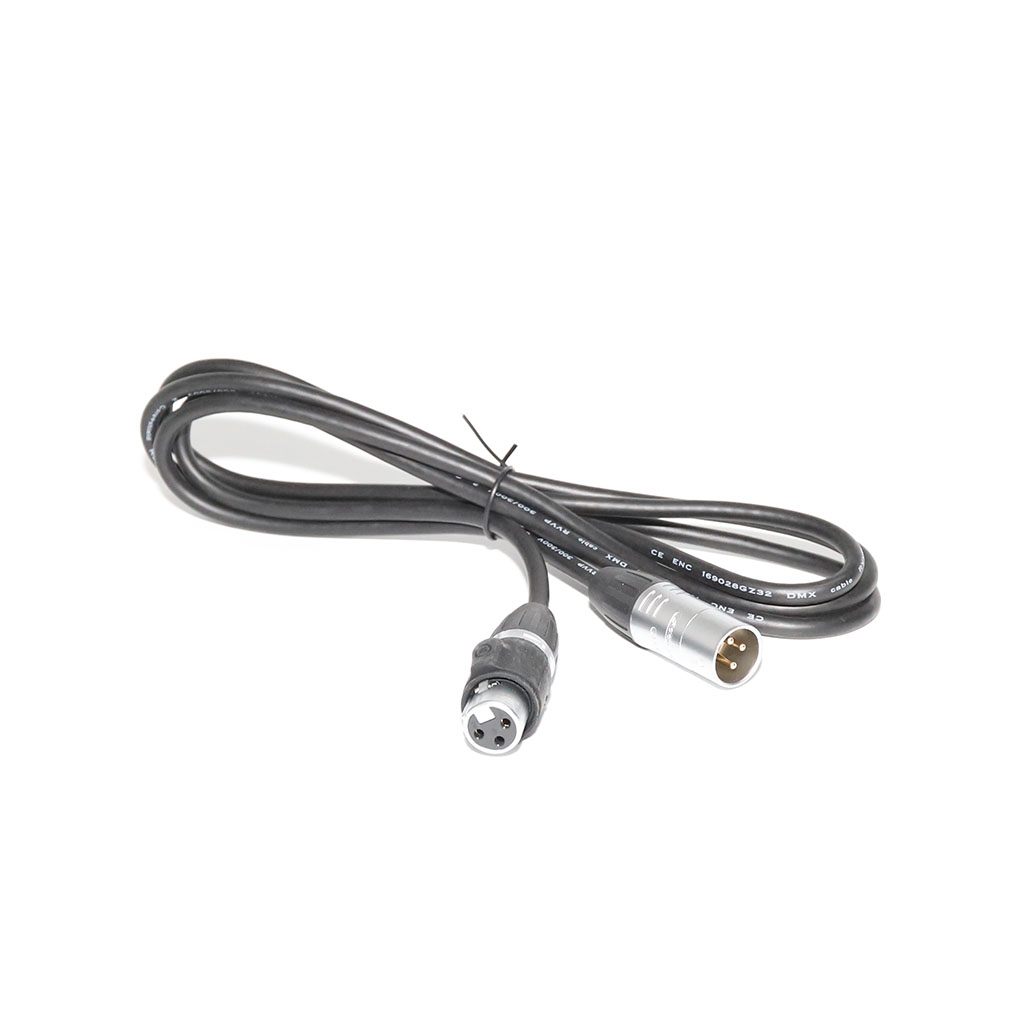

Data In/Out: 3-pin or 5-pin waterproof XLR, RJ45 connector

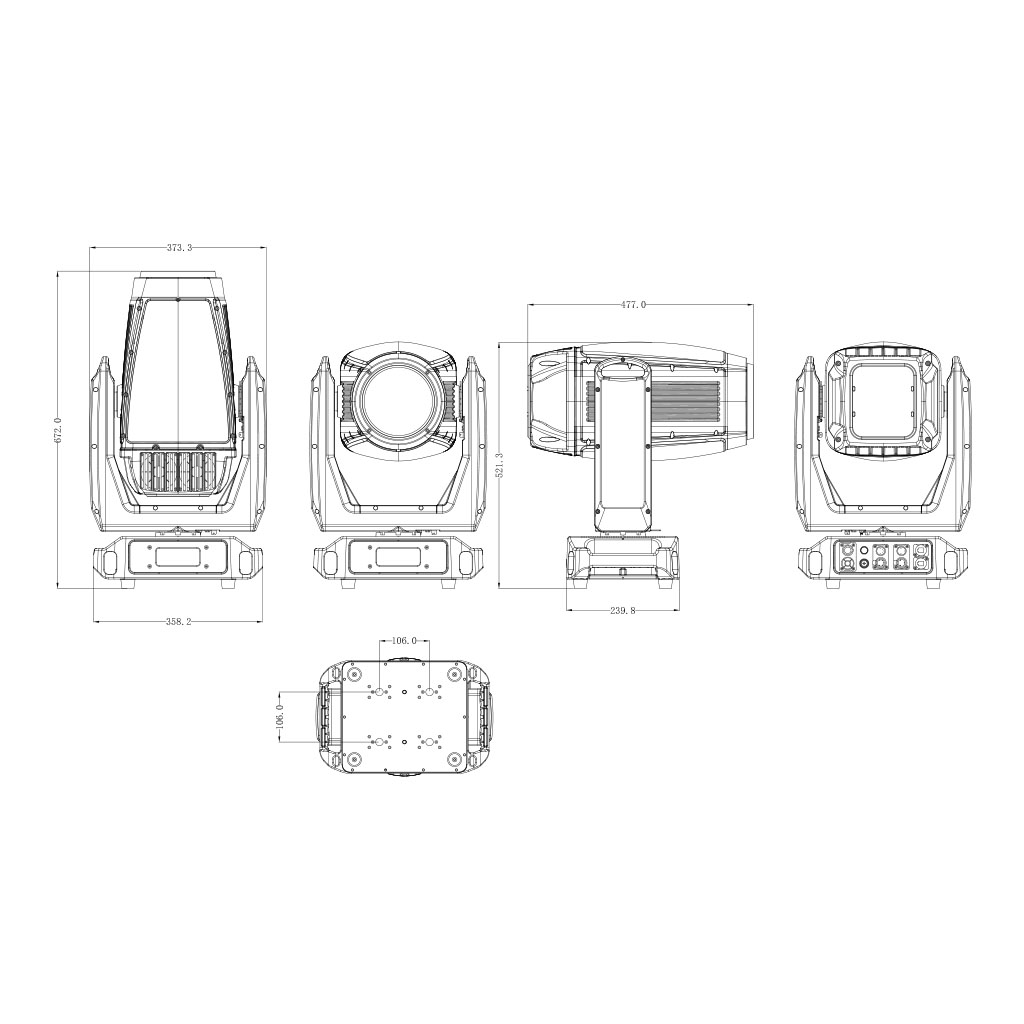

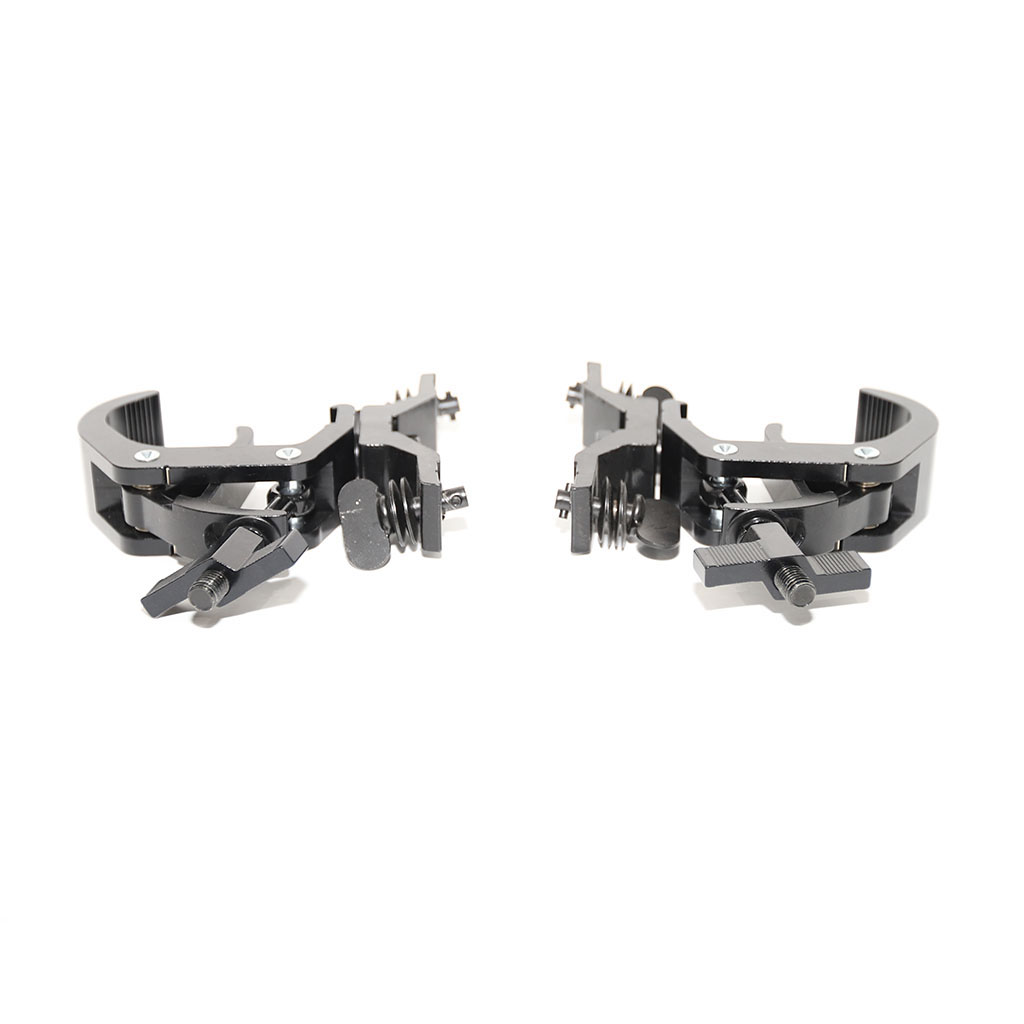

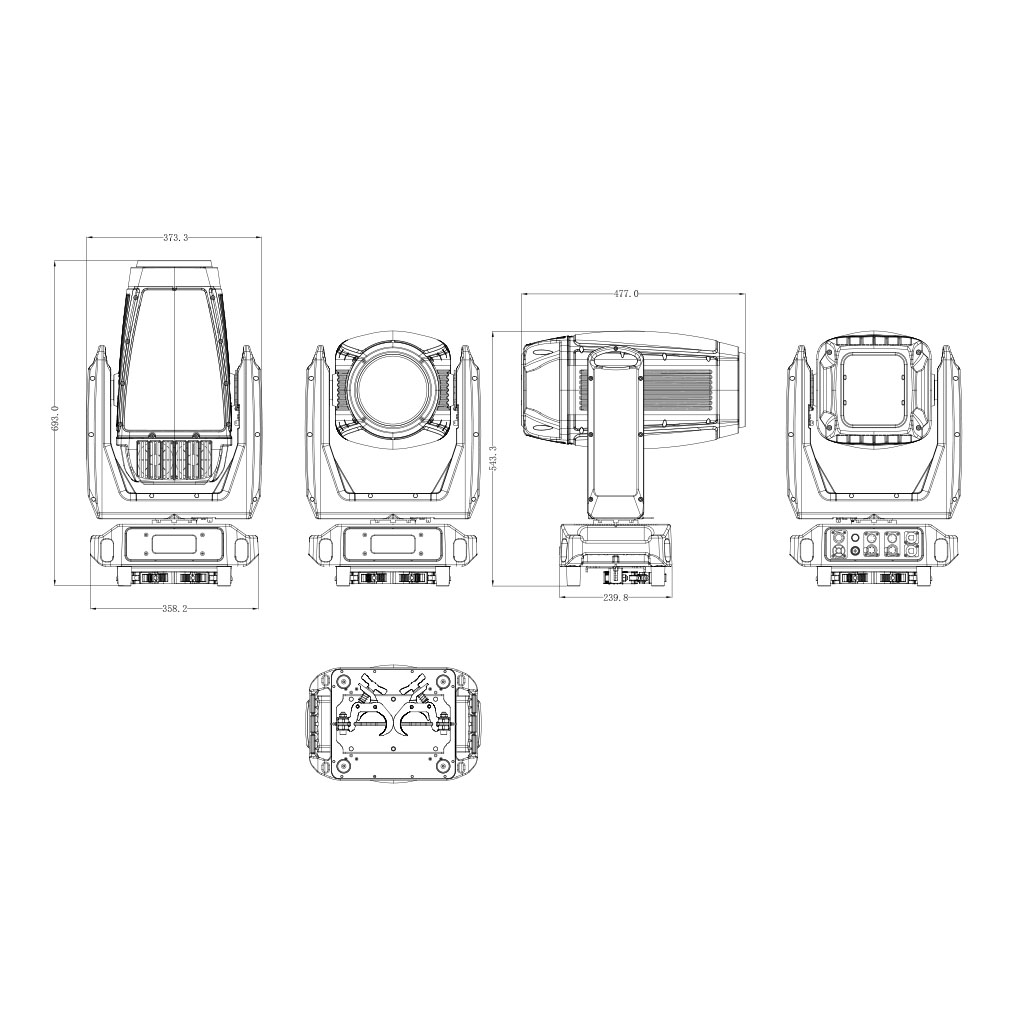

Dimensions: 358×240×672 mm (Quick-lock hook version)
358×240×692 mm (Integrated hook version)Weight: 30 kg (Quick-lock) / 31.5 kg (Integrated hook)
IP Rating: IP65
ADVANCED PRODUCT FEATURES

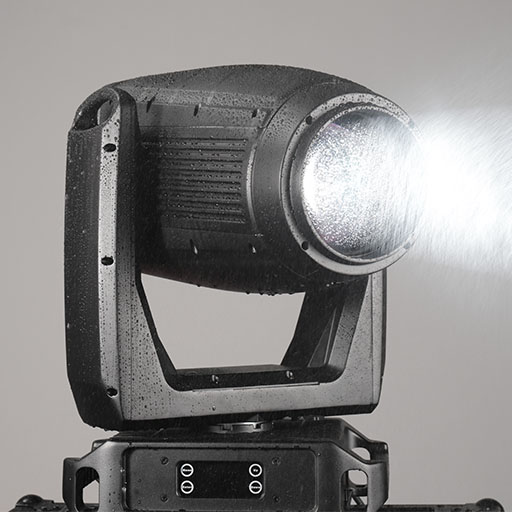

IP65 WEATHERPROOF RATING
Engineered with a high-grade, structurally sealed IP65 chassis, the F800 profile offers uncompromising protection against heavy rain, dust storms, and ambient moisture. It ensures reliable, continuous operation for high-end outdoor concert touring, stadium events, and demanding rental applications under extreme weather conditions.
4-BLADE FRAMING MODULE
The innovative internal motorized framing system features four independently controllable blades with full-directional shutter rotation. Lighting designers can execute razor-sharp shutter cuts and precise beam geometry shaping, making it the ultimate tool for pinpoint illuminating objects, theatrical backdrops, and complex architectural projection.
PRECISION MOTORIZED ZOOM
Equipped with a custom premium optical lens combination, the fixture achieves a wide and linear motorized zoom range. It delivers uniform field distribution from a punchy, tightly focused long-throw beam to a broad, soft-edged wash coverage, retaining superior lumen efficiency and ultra-crisp optical clarity at any angle.

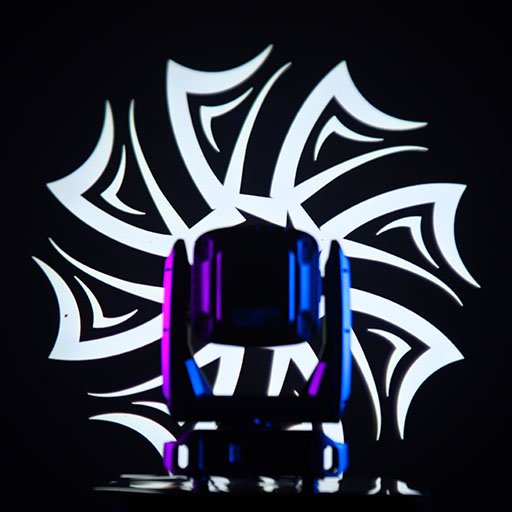

ROTATING GOBO SYSTEM
The specialized rotating gobo wheel features high-definition, interchangeable glass gobos with bi-directional rotation and precise index positioning. This system allows for the creation of intricate mid-air beam structures, detailed graphic textures, and sophisticated volumetric lighting layers for festivals and premium stages.
LINEAR CTO ADJUSTMENT
Featuring a dedicated linear CTO color correction filter, the F800 provides seamless, stepless color temperature tuning. This advanced configuration effortlessly shifts from a bright, high-intensity daylight white output to a rich, warm tungsten glow, optimizing skin-tone rendering for HD broadcasting, theater, and TV studios.

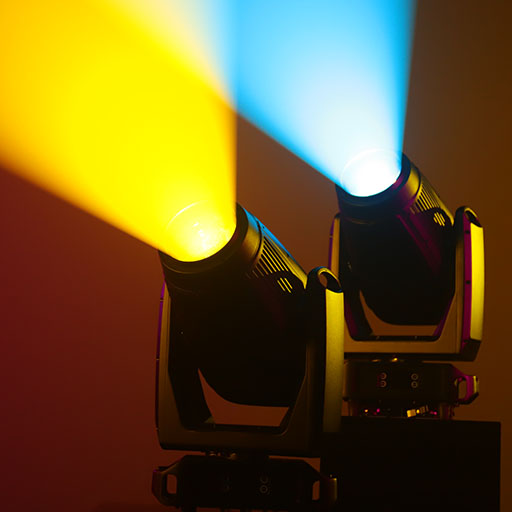

INFINITE CMY COLOR MIXING
The ultra-smooth Cyan, Magenta, and Yellow (CMY) color mixing system delivers an infinite palette of full-spectrum colors. With linear graduation, it transitions flawlessly from extremely smooth, subtle pastel hues to deep, hyper-saturated colors, ensuring immaculate color consistency throughout major event productions.
DYNAMIC GOBO OVERLAY
By overlapping the static gobo wheel and the rotating glass gobo wheel, the F800 creates multi-layered morphing animations and hypnotic psychedelic visuals. This dual-wheel combination significantly expands the creative landscape for visual effects designers at live concert tours.
ANIMATION EFFECT WHEEL
The high-performance, continuous bi-directional animation wheel delivers realistic scenic graphics. Lighting operators can generate organic atmospheric conditions such as rippling water current projections, flickering realistic flame effects, and abstract moving skies, adding breathtaking cinematic depth to set designs.
HIGH CRI 95 PERFORMANCE
Utilizing a state-of-the-art 800W high-output LED engine with a High CRI (Color Rendering Index) filter option, the fixture achieves a professional rating of 95. This spectral quality guarantees that physical set textures, true wardrobe colors, and performers' complexions look flawless on camera and under broadcast lighting.
