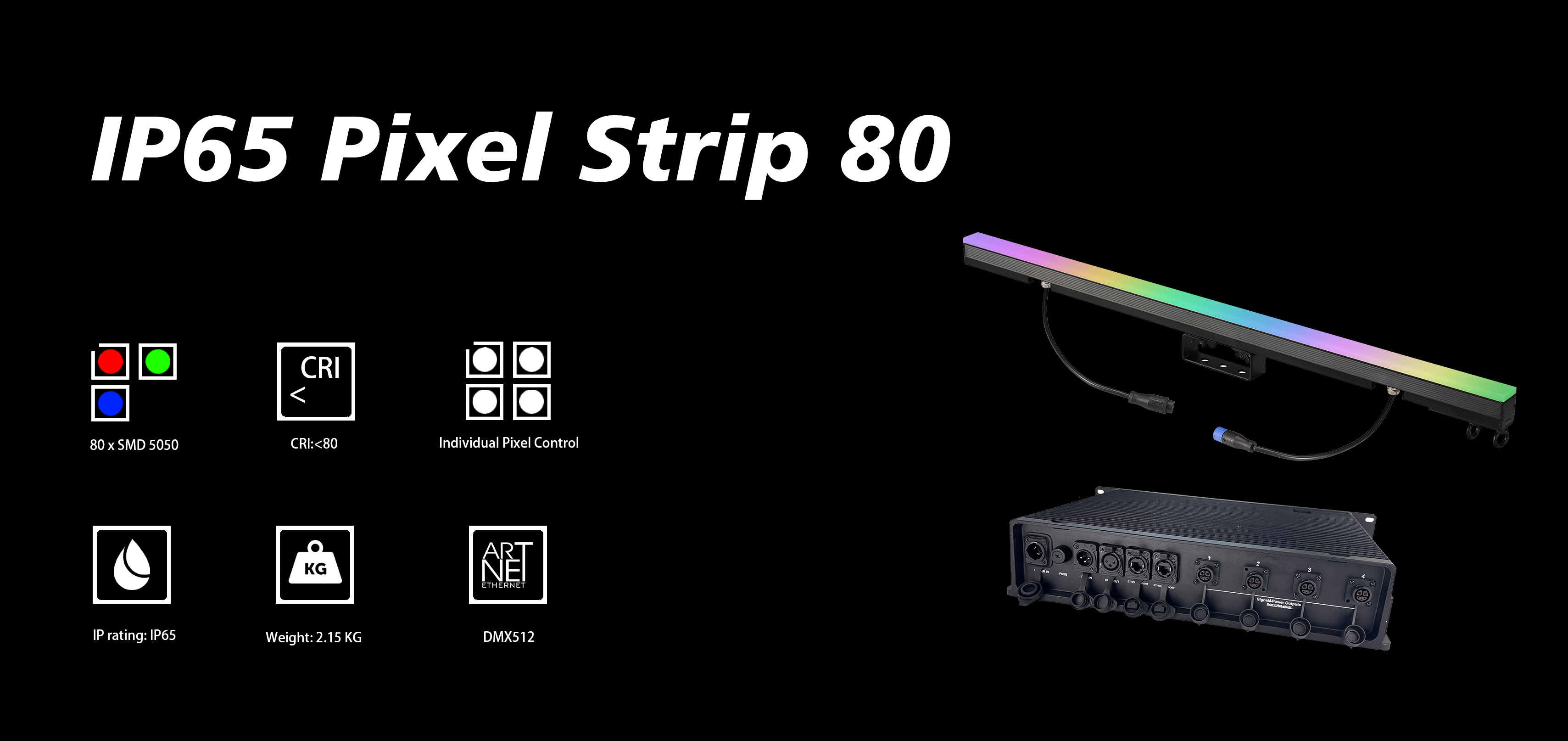

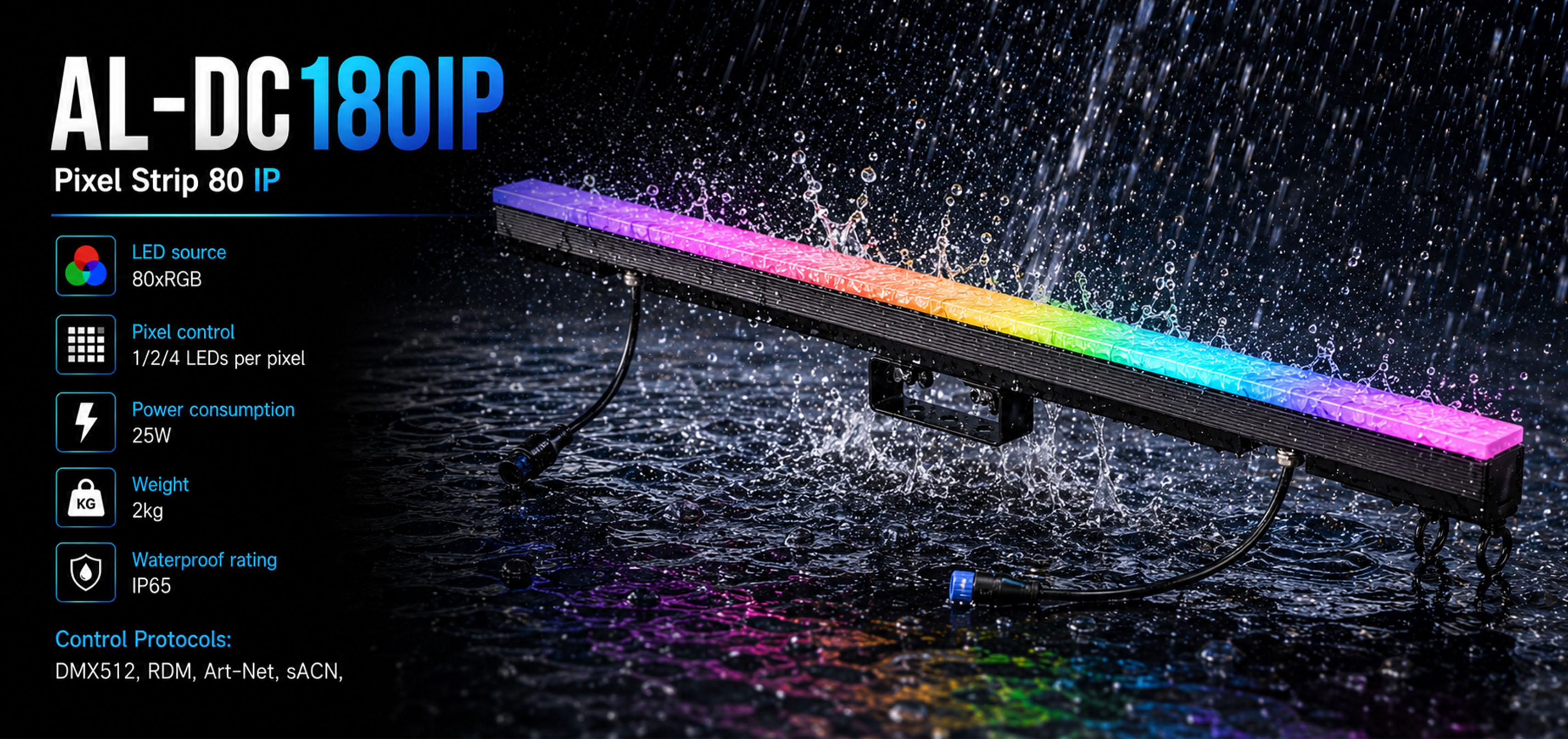

- LED source80xRGB
- Pixel control1/2/4 LEDs per pixel
- Power consumption25W
- Weight2kg
- Waterproof ratingIP65
Technical Specifications
Optical & Photometric

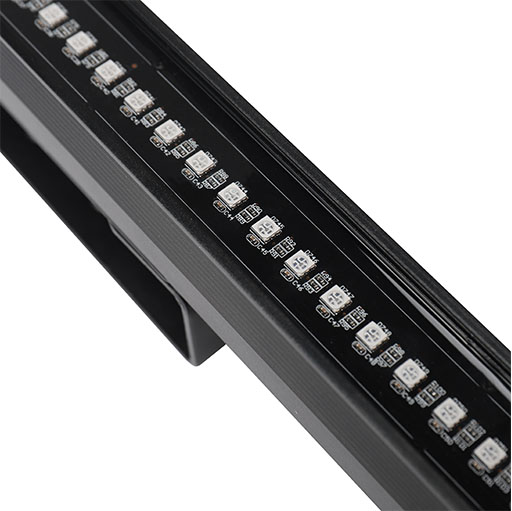

Light Source: 80 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 160° (with installed square milky filter or optional dome filter)
Illuminance (NITS): 8,640 NITS (Open) / 2,470 NITS (Square milky filter) / 1,455 NITS (Black stealth filter) / 1,360 NITS (Round milky filter)
Pixels: 1LED / 2LEDs / 4LEDs as 1Pixel
Refresh Rate: 4800 Hz
Control & Connections
Control Protocol: Art-Net, sACN, RDM, DMX
Control Channels: 3 (Art-net, sACN)
Connections: 2+3pin cable (for both power & data to the product)
Physical Linking: 8 pcs of Strip IP per port of Drive IP / Total 32 pcs of Strip IP for the whole Driver IP
Electrical & Physical
Power & Current: 25 W, 0.195 A @ 230 V, 50 Hz
Housing Material: Aluminum (Exterior Color: Black)

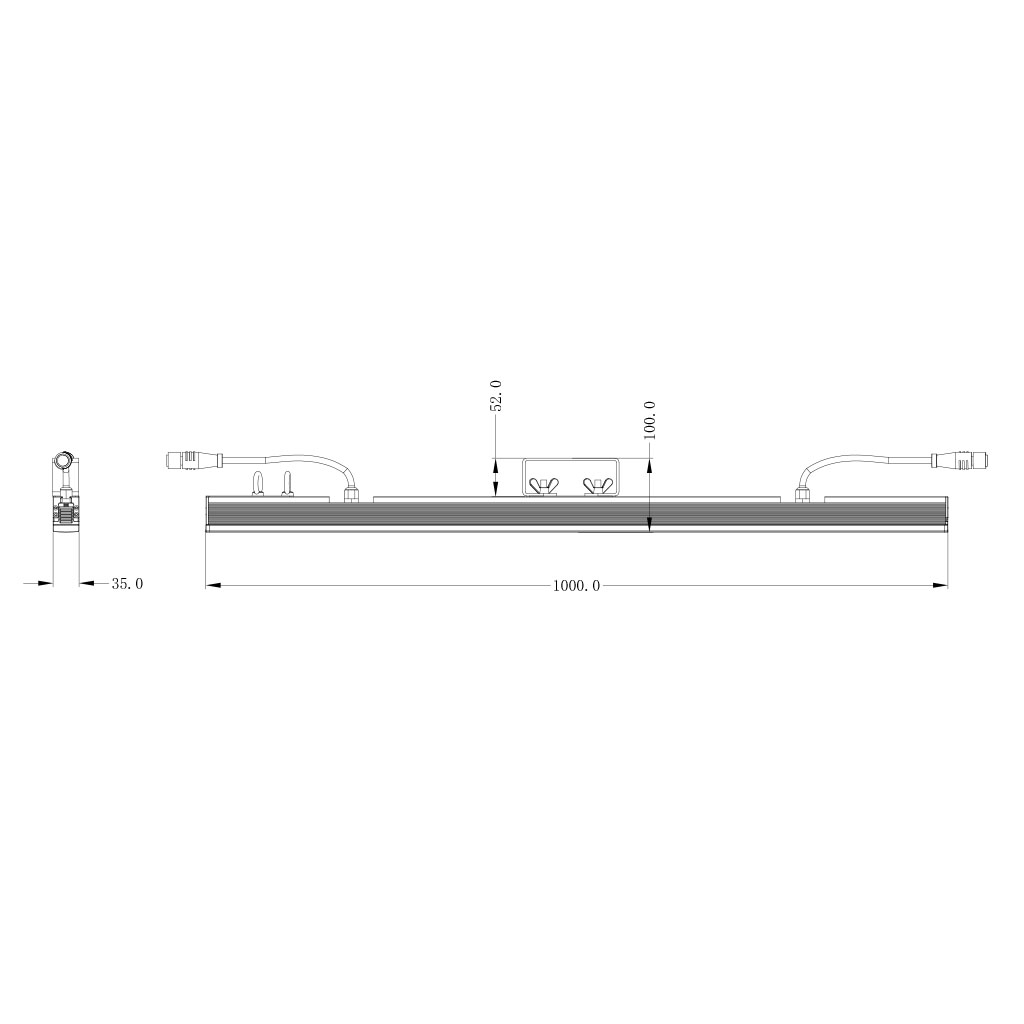

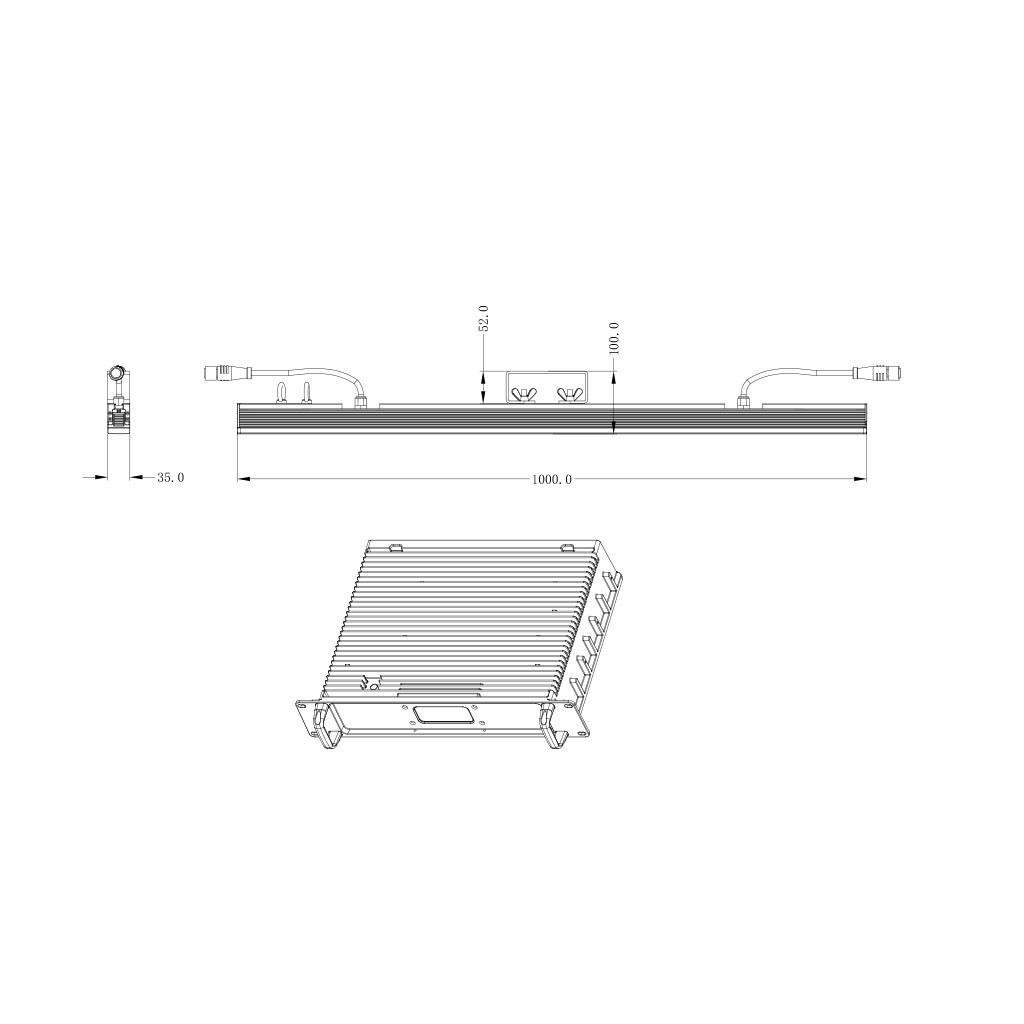

Dimensions: 1000 x 35 x 100 mm (with handle)
Weight: 2.15 kg
IP Rating: IP65
ADVANCED PRODUCT FEATURES

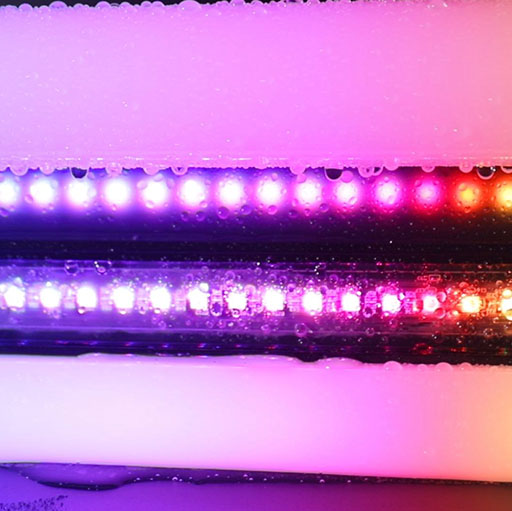

IP65 WATERPROOF

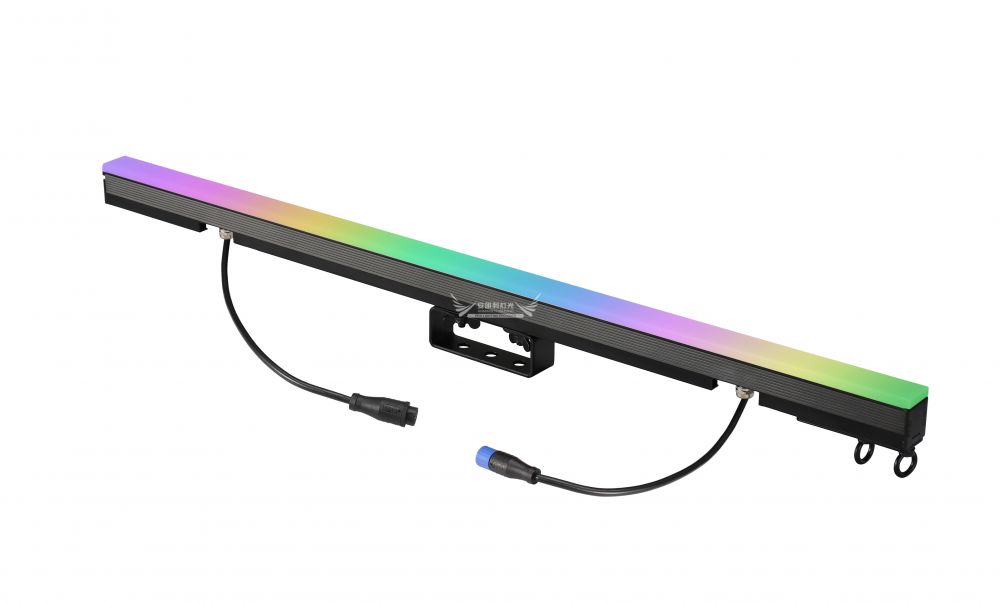

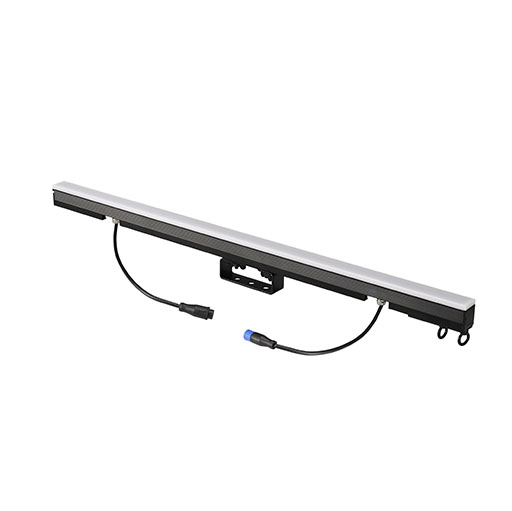

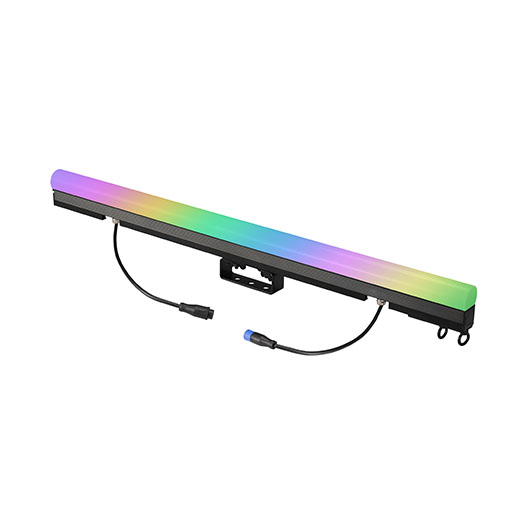

Engineered for professional heavy-duty performance, the AL-DC180IP 1-meter LED pixel mapping strip is housed within a rugged, precision-sealed IP65 chassis. This robust weatherproof barrier effectively blocks out pouring rain, fine dust, and high humidity, protecting the sensitive interior pixel logic boards during demanding outdoor concert tours, theme park installations, and high-profile architectural lighting spectacles.
PIXEL MAPPING
Unlocking absolute creative freedom, the fixture features individual single-pixel mapping across its entire 1-meter high-density linear layout. Built for heavy multi-zone video configurations, the system natively supports all professional network lighting protocols, including Art-Net, sACN, and Kling-Net. This enables seamless, latency-free streaming of intricate geometric color chases, organic video textures, and fluid real-time media effects across massive distributed layouts.

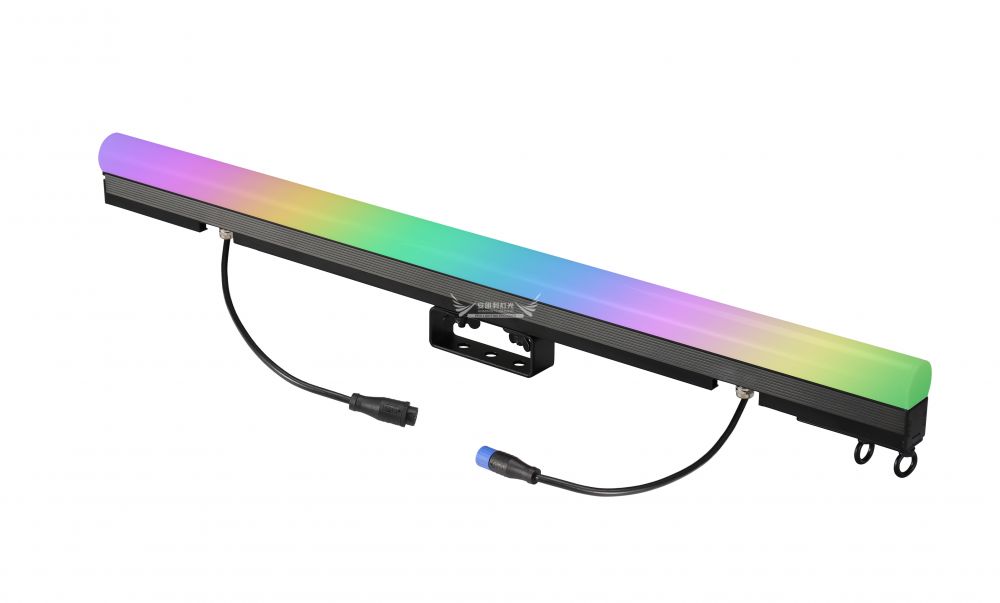

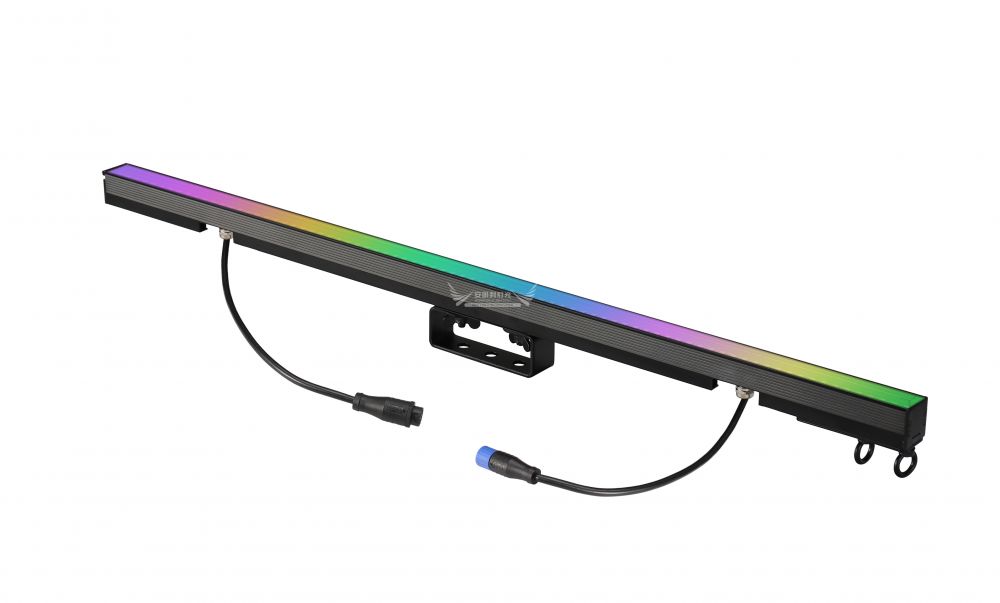

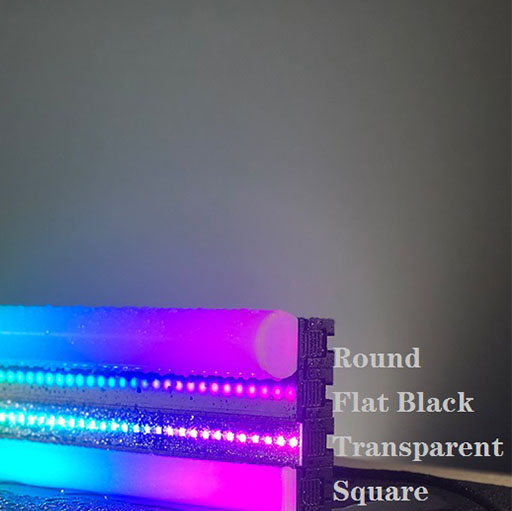

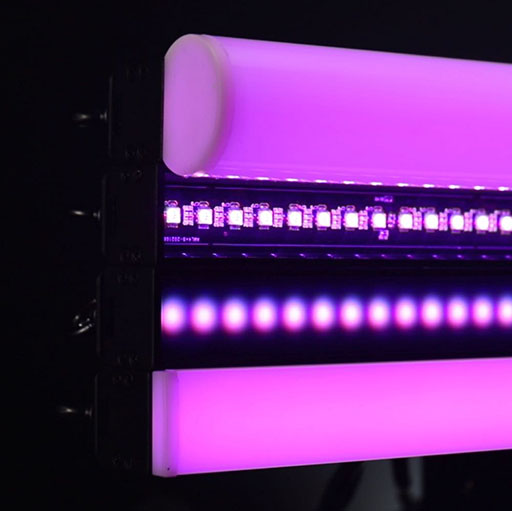

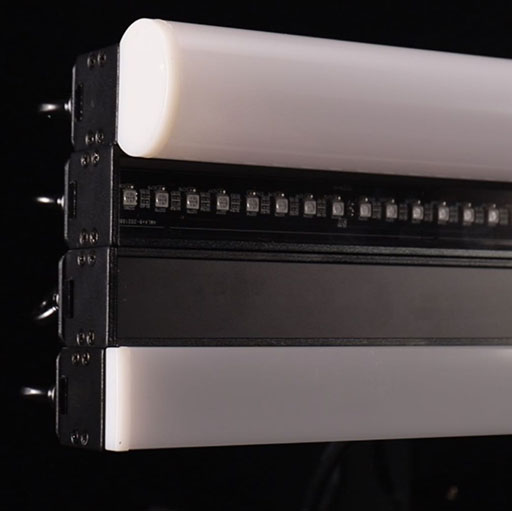

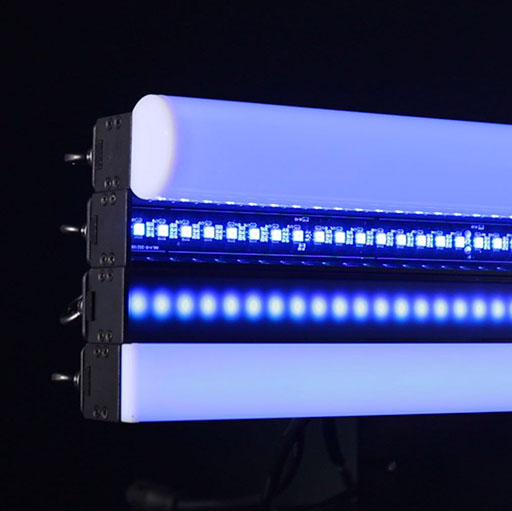

DIFFUSER EFFECTS

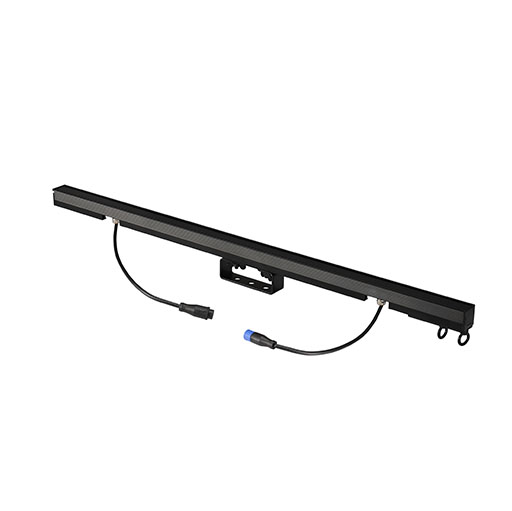

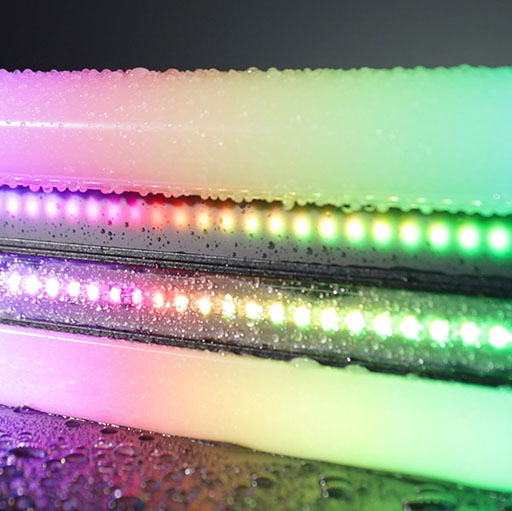

The AL-DC180IP system redefines visual adaptation by delivering distinct optical personalities through interchangeable faceplate filters. Operators can swap between the Milky Round Cover for a 180° smooth, seamless neon-like glow, the Clear Cover to unleash the raw candlepower of the intensive LED array directly to the crowd, or the Smoked Cover to completely blend the hardware into dark background plates when unlit, adding sleek, industrial elegance to front-stage scenic arrays.

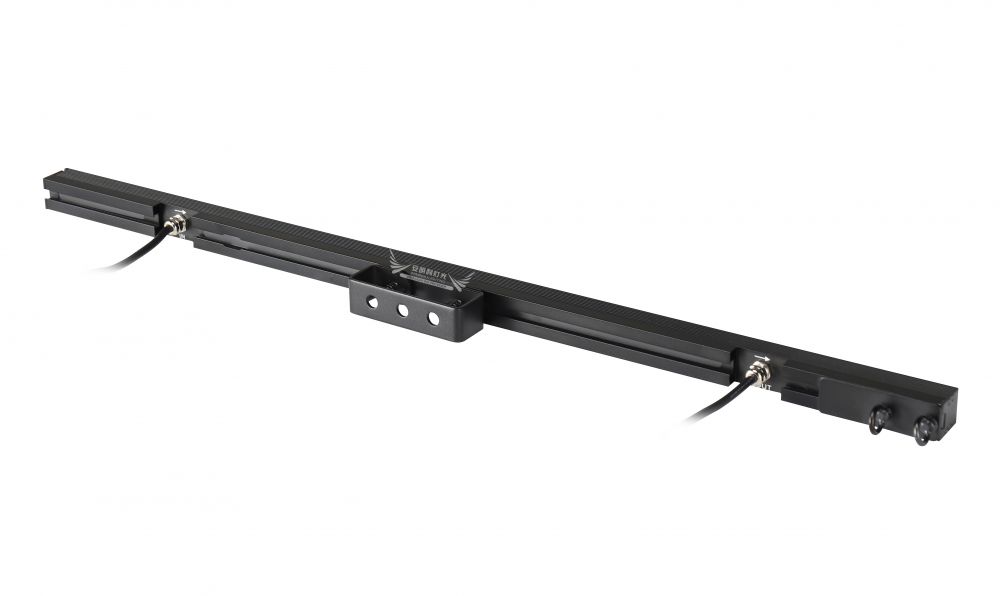

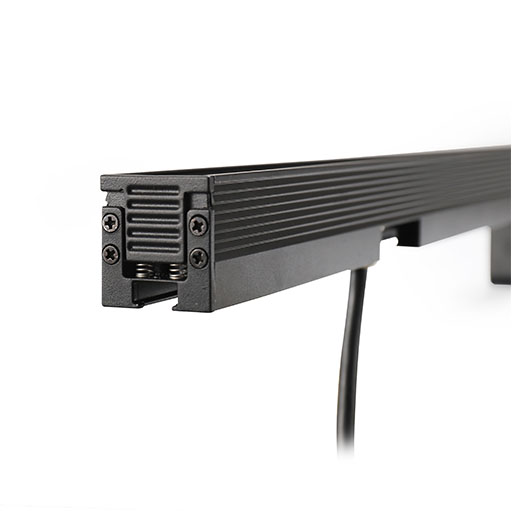

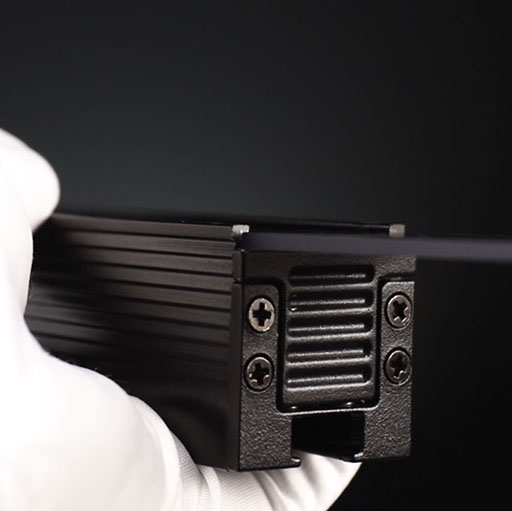

TOOLLESS COVER SWAP
Designed to maximize deployment speed in fast-paced rental workflows, the 1-meter pixel strip features an advanced slide-and-lock modular mechanism. Technicians can execute quick, toolless faceplate cover replacements within seconds on-site. This intuitive mechanical layout allows rental houses to instantly customize their inventory aesthetic without tedious teardowns or risking internal optical component contamination.

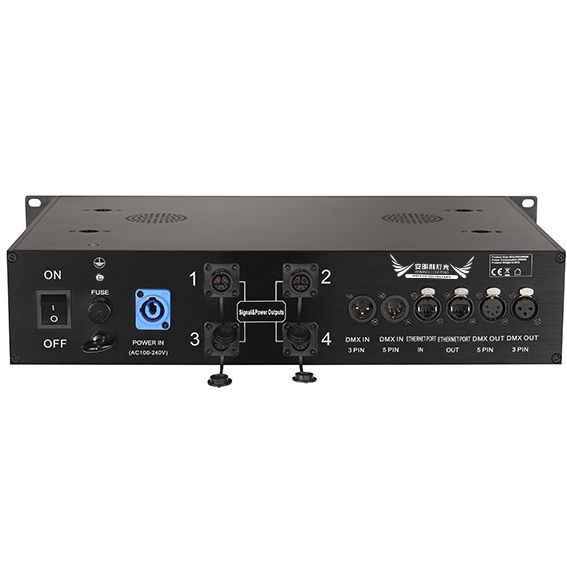

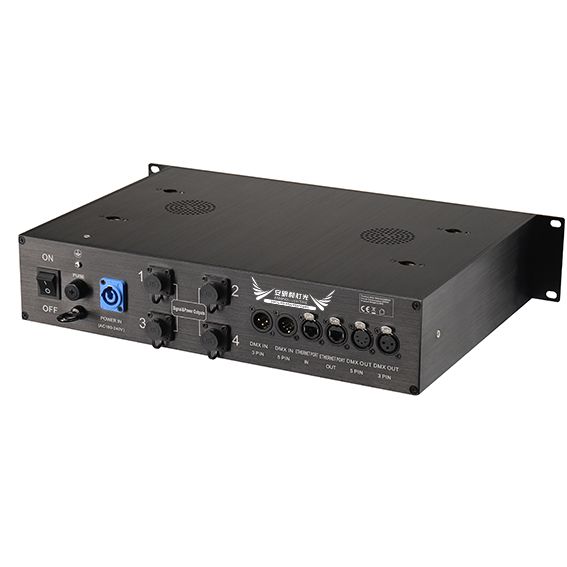

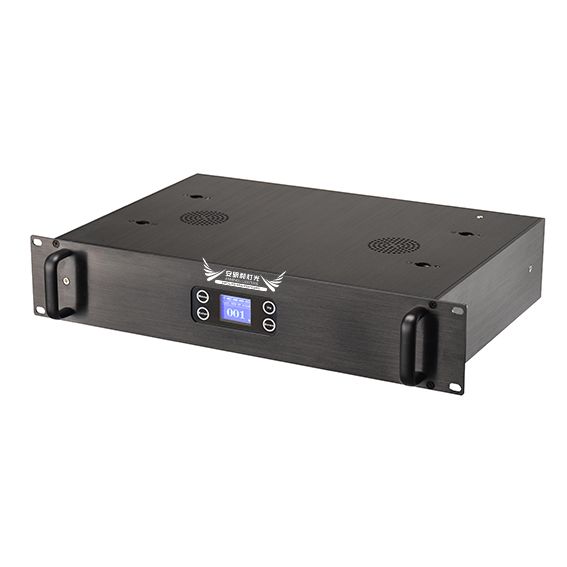

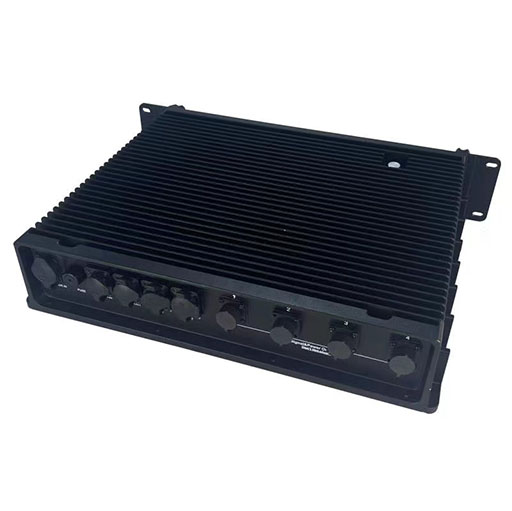

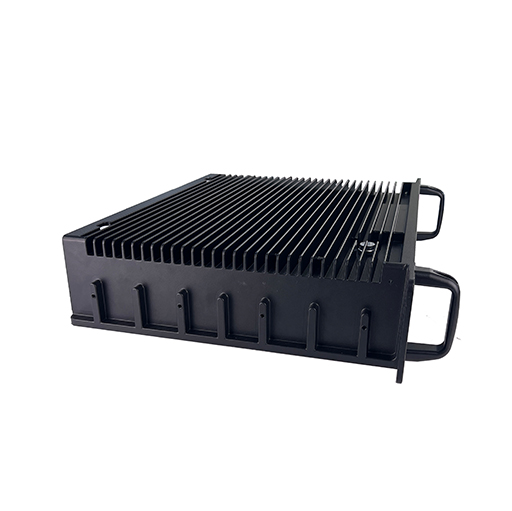

CONTROLLER MATRIX

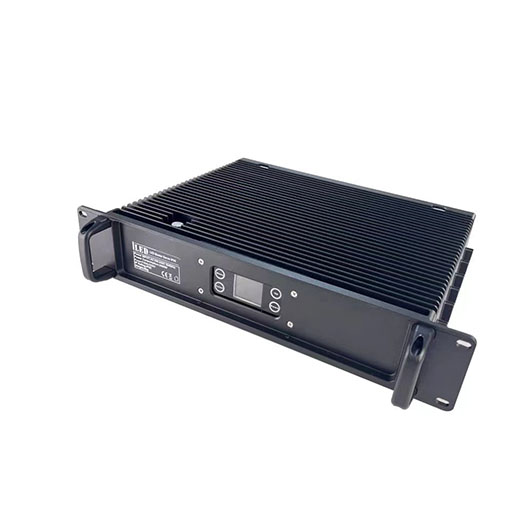

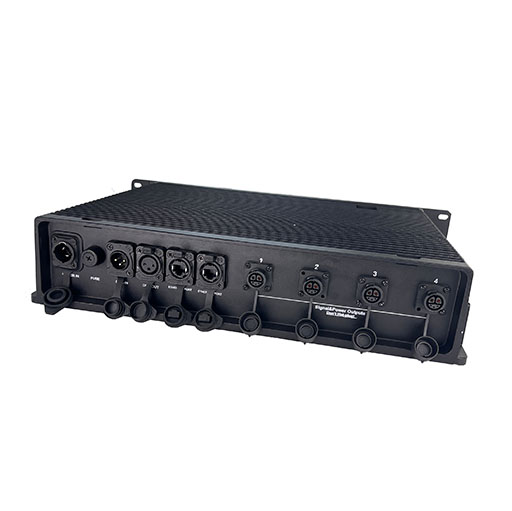

The system utilizes a split centralized power-data architecture to eliminate heavy onboard components and clutter on structural trusses. Driven by a dedicated Master Pixel Controller, the hardware features 4 independent output ports. Each individual port supports a daisy-chained run of up to 8 1-meter strips, allowing a single centralized driver to seamlessly power and decode a massive matrix of 32 strips (32 meters total) for highly integrated rigging environments.

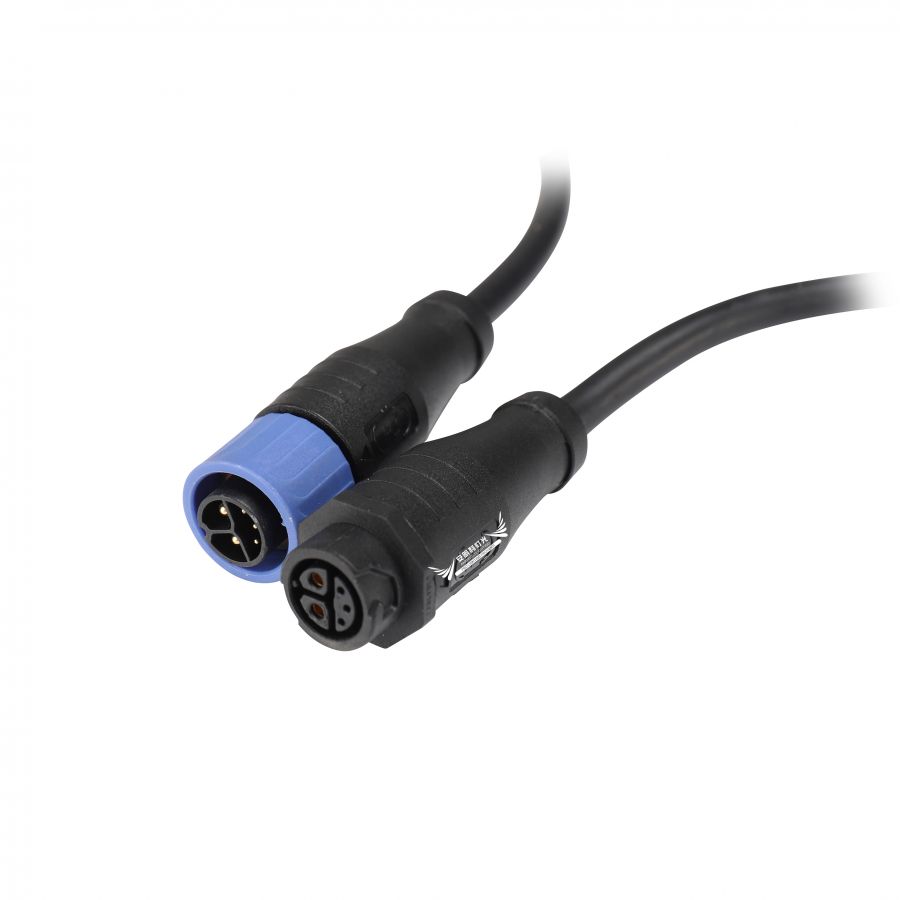

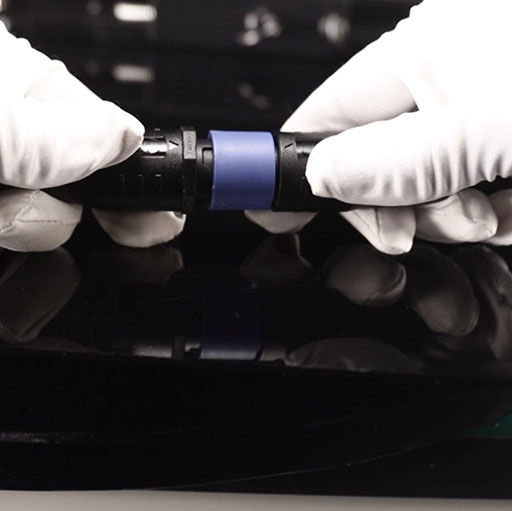

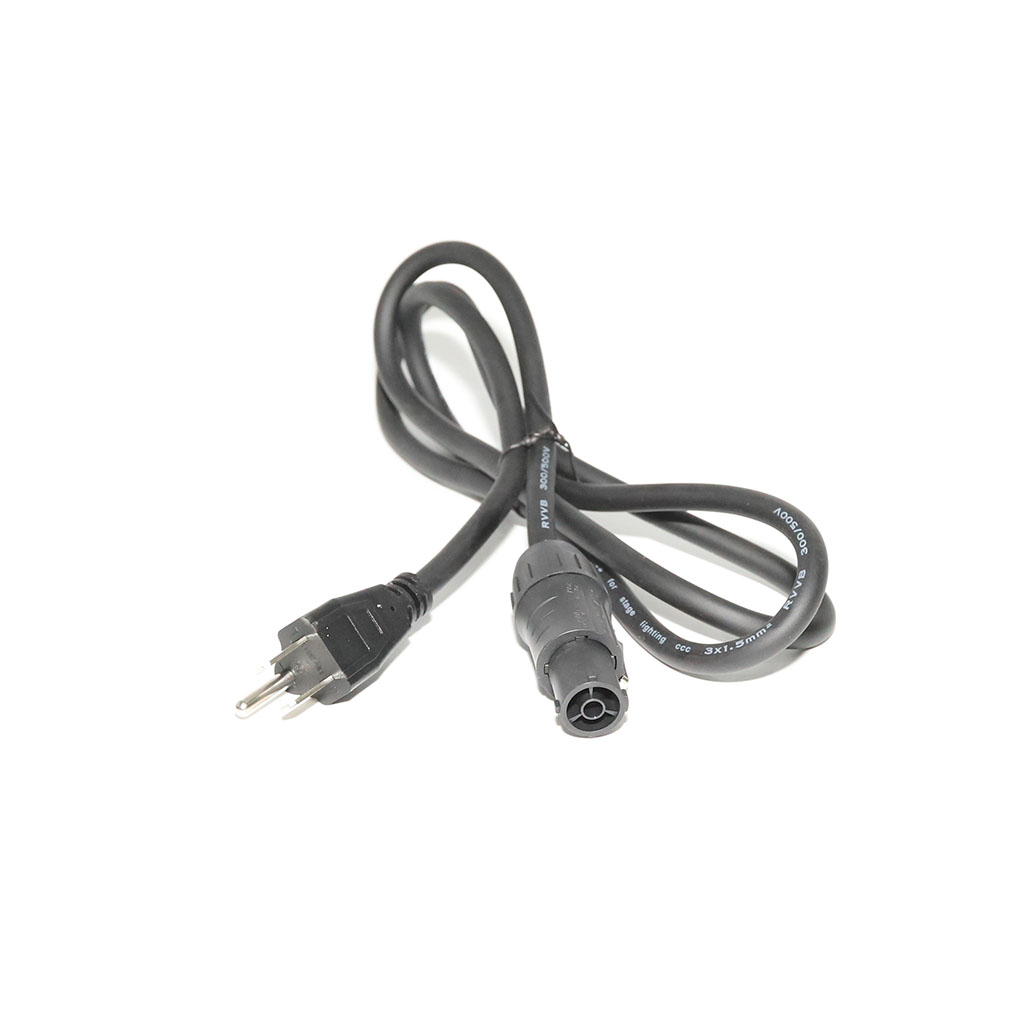

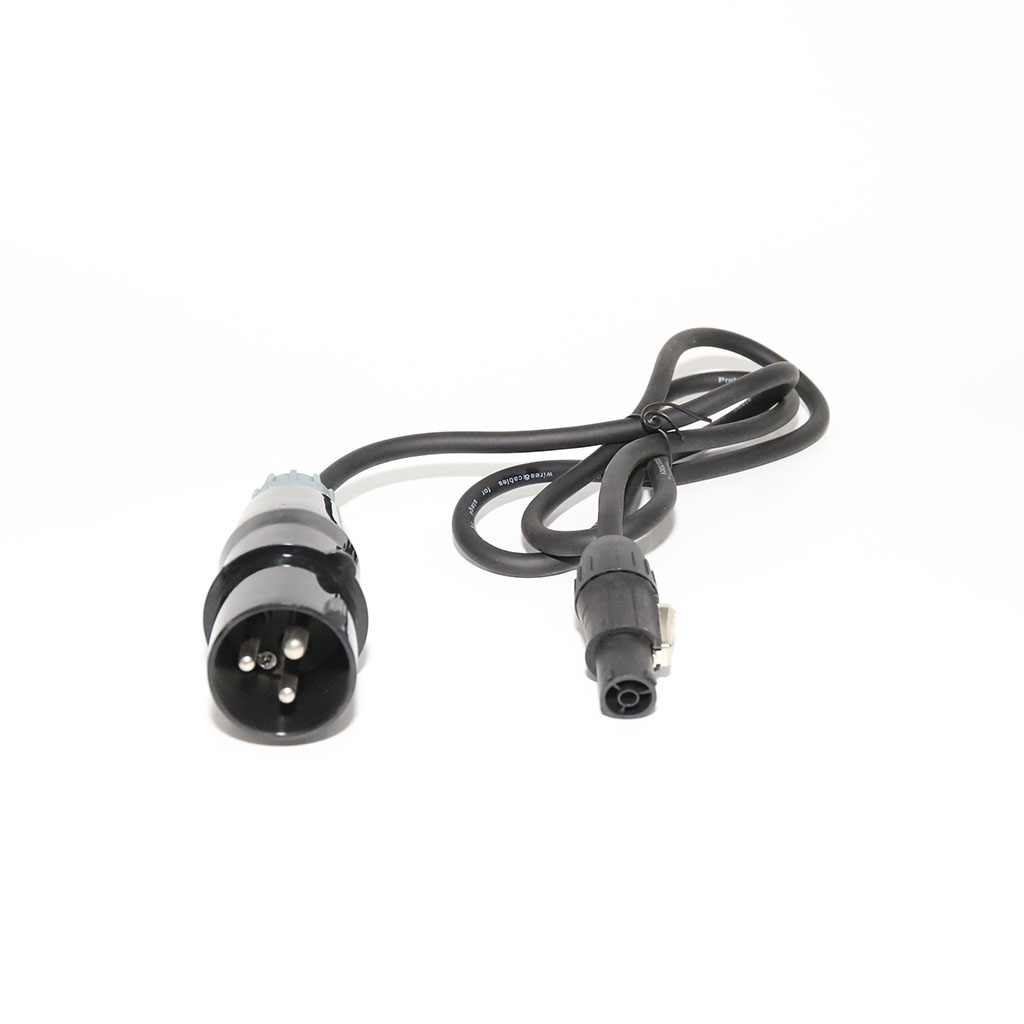

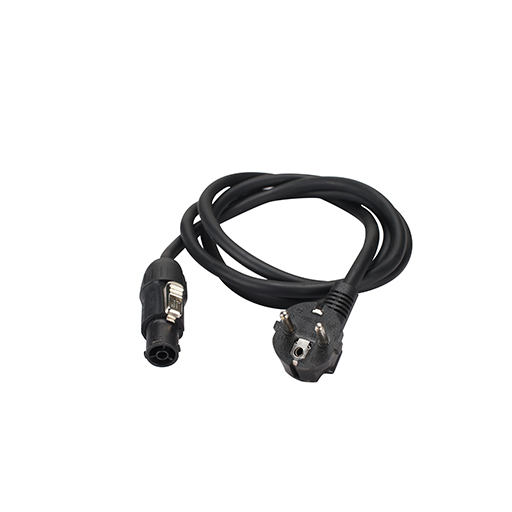

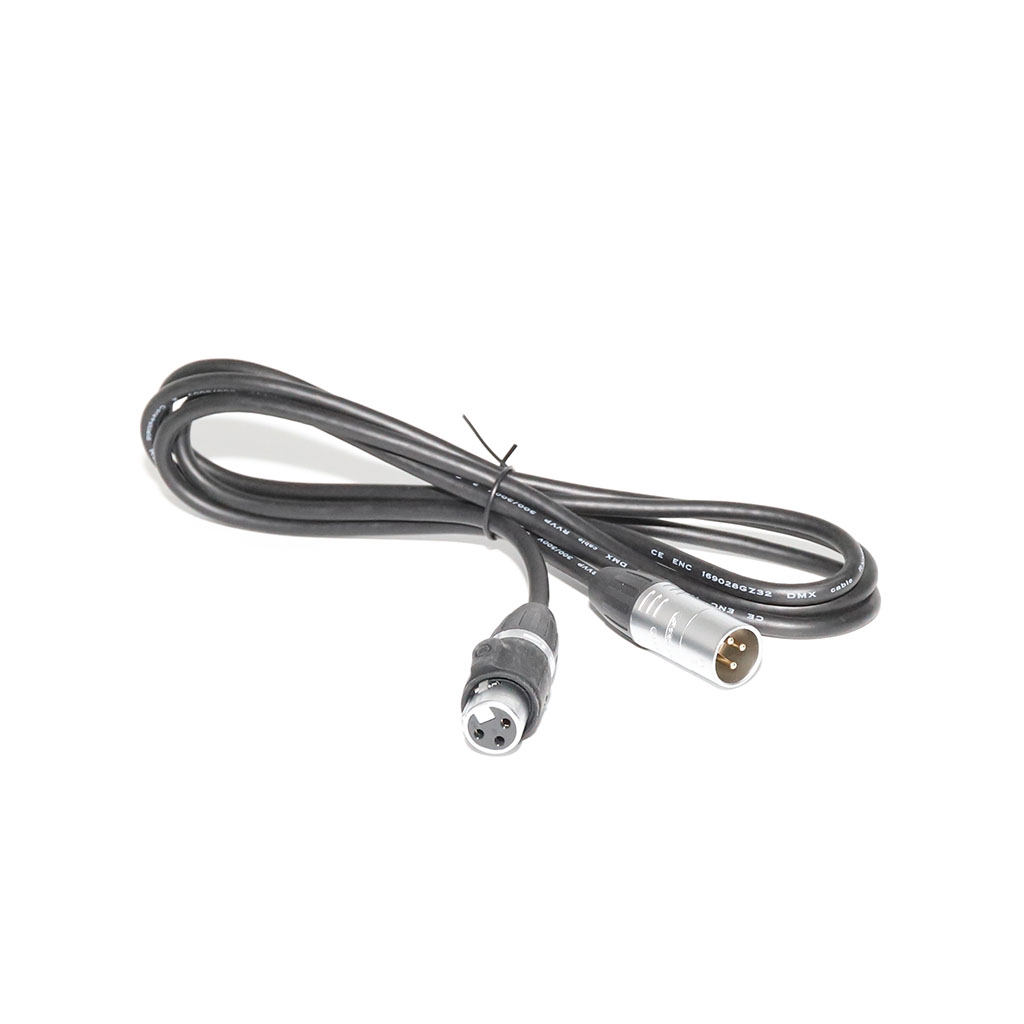

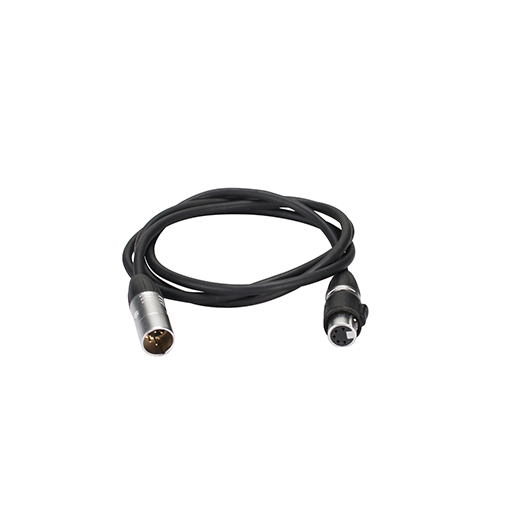

UNIFIED 2+3 PIN CABLING

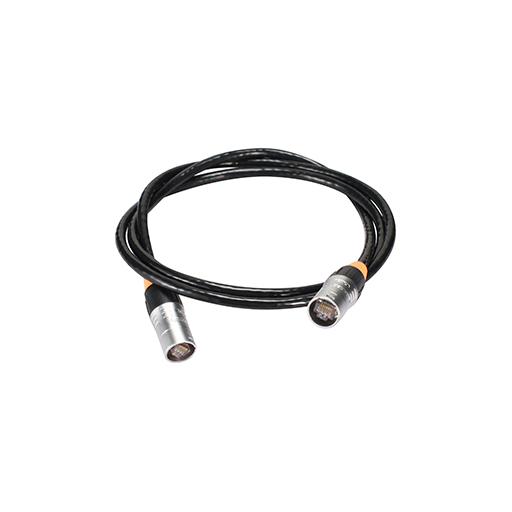

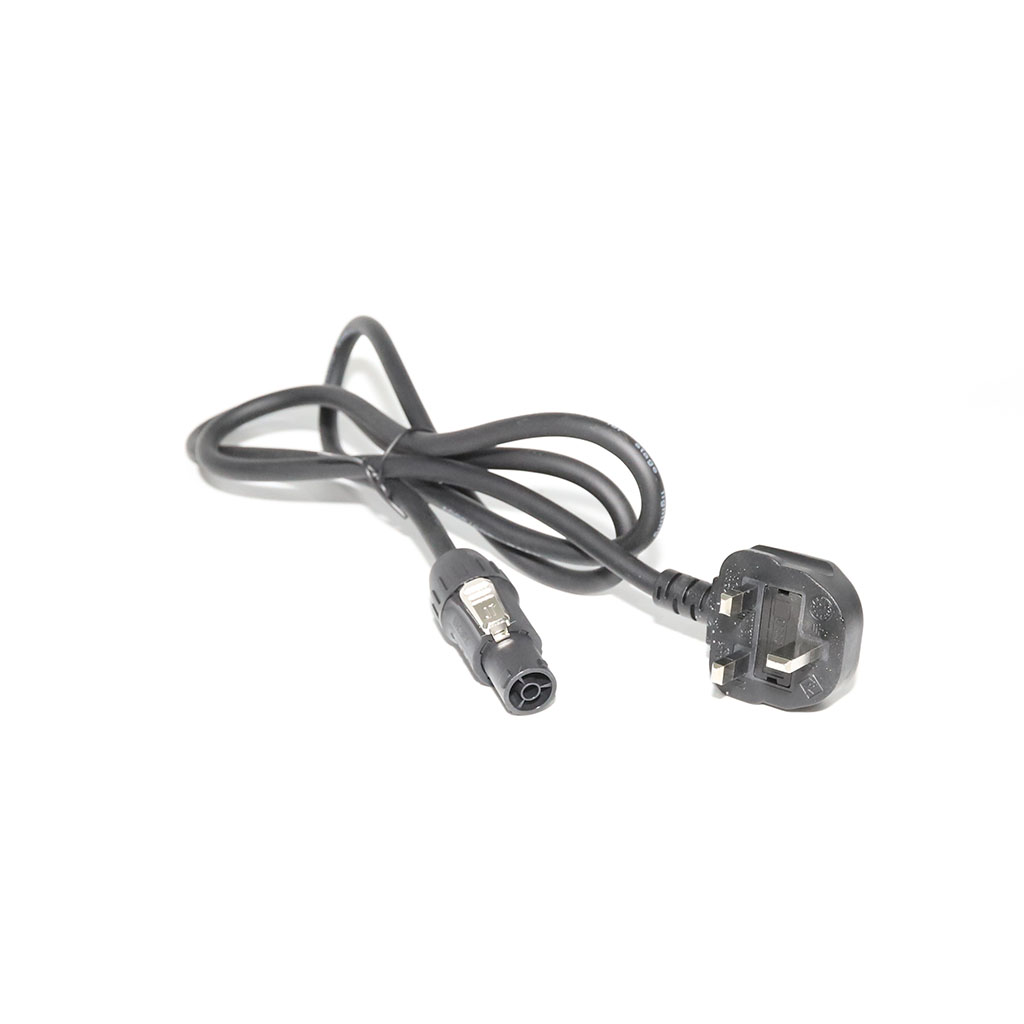

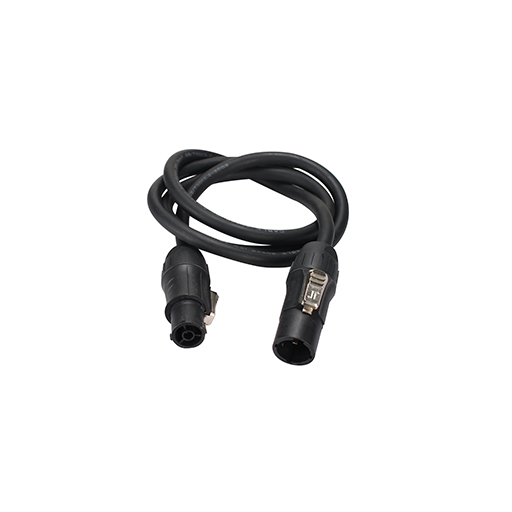

To secure flawless electrical delivery and absolute data integrity across long rental extensions, the system implements proprietary, heavy-duty 2+3 pin hybrid cabling. Combining a robust 2-core heavy-gauge power conduit with a high-shielded 3-core data link inside a unified IP65 weatherproof connector, this customized engineering prevents data skew and voltage drops, guaranteeing stable DMX/pixel communication across immense touring spans.
MODULAR FILTER OPTIONS
By investing in a single AL-DC180IP asset core, clients unlock a premium multi-optic toolkit through its curated selection of optional diffusion plates. Whether deploying the wide-angle Milky Round diffusers for spatial scenery outlining, the Clear variants for intense direct beam walls, or the Smoked versions for cloaked underground stage sets, this modular flexibility offers unrivaled multi-tier production capabilities.
