- Beam angle6°/20°/45°/60°
- Power500W
- ColorRGBL
- Weight11 kg
- IP RatingIP65
- Color temperature2700-8000K
Technical Specifications
Optics & Light Source

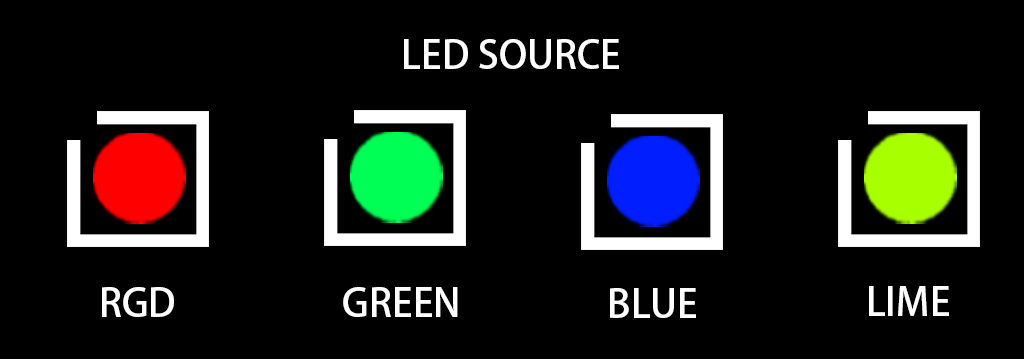

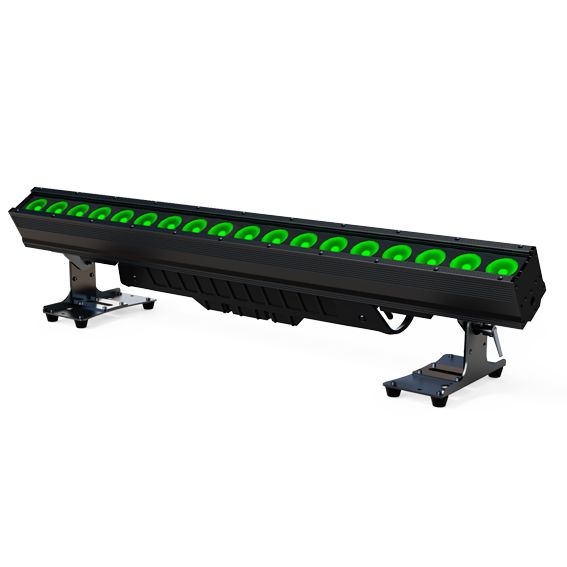

Light Source: 18pcs*25W RGBL 4IN1 colors
Color Temperature: 2700-8000K
Installed Optics: 6° (can be changed)
Dynamic Effects
Dimming & Shutter: Electronic Dimmer (4 Dim Modes) / Electronic Shutter/Strobe
Strobe Rate: 0-25Hz
Color Features: Color Mixing, Color Temperature Presets, White Balance
Operational Modes: Standalone mode supported, Built-in Effects
Control & Connections

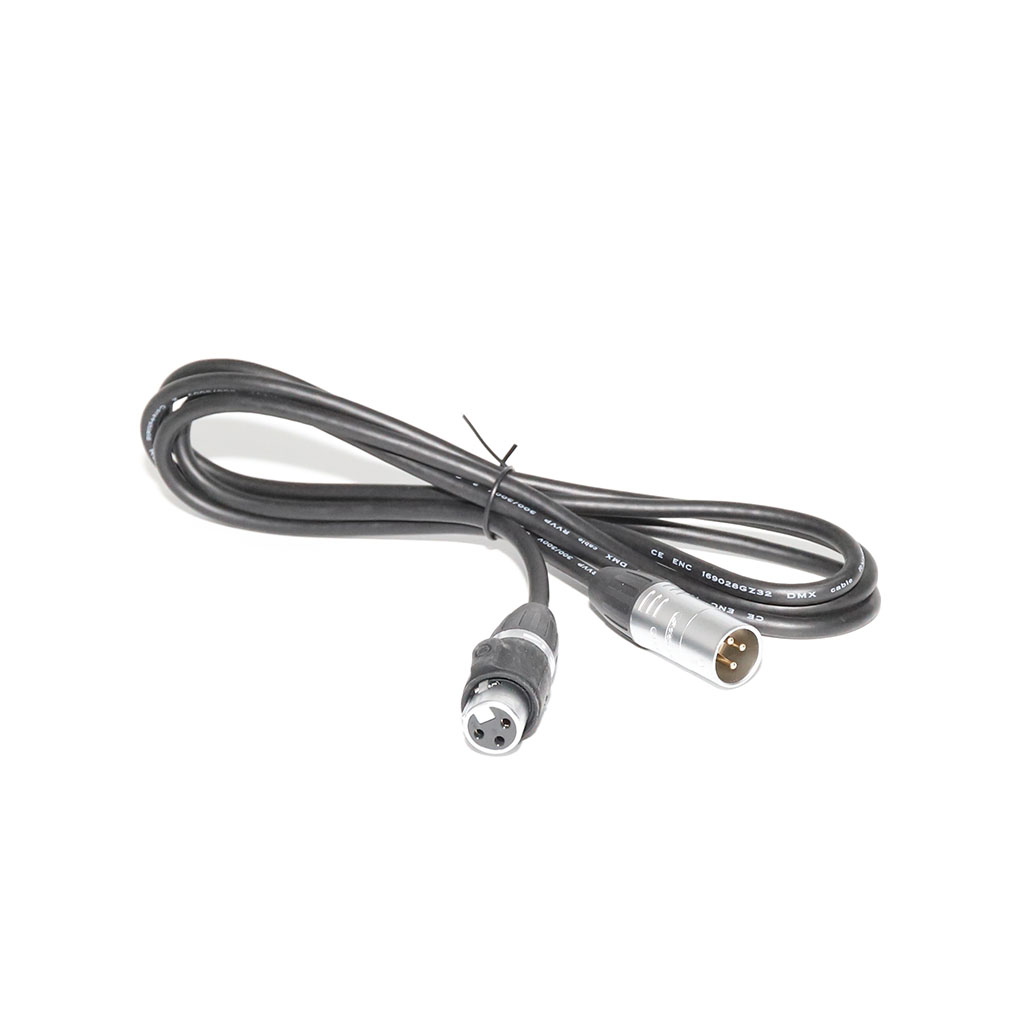

Control Protocol: DMX/ArtNet/sACN/RDM
DMX Channels: 9/19/77CH

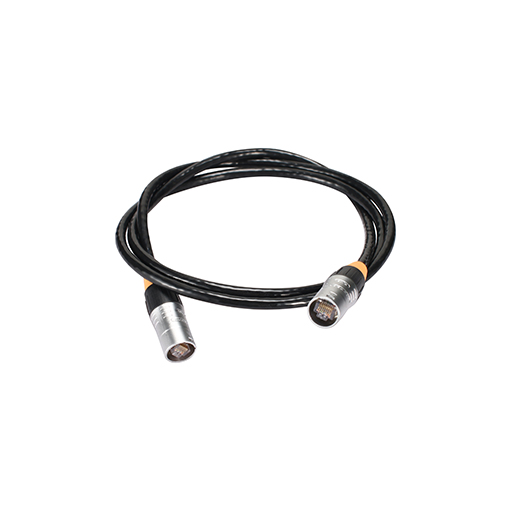

Software Update: Via RJ45 Cables

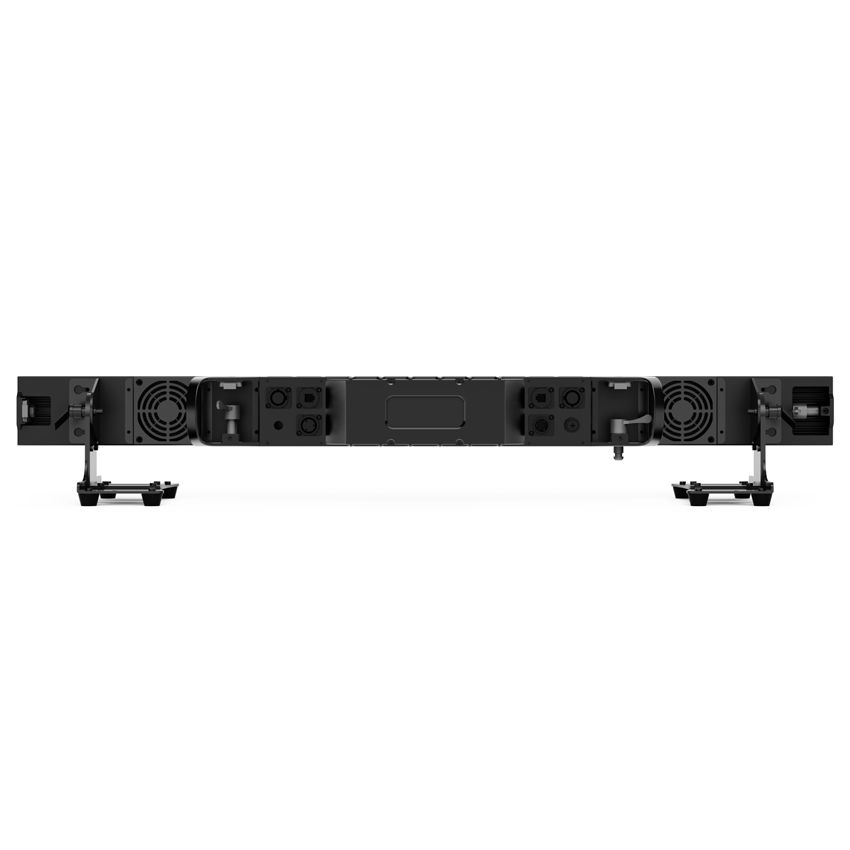

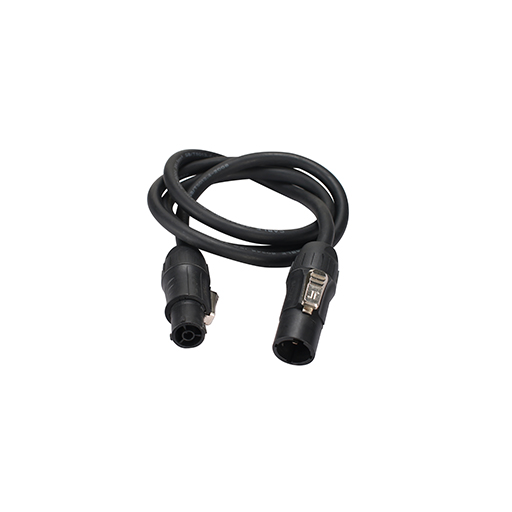

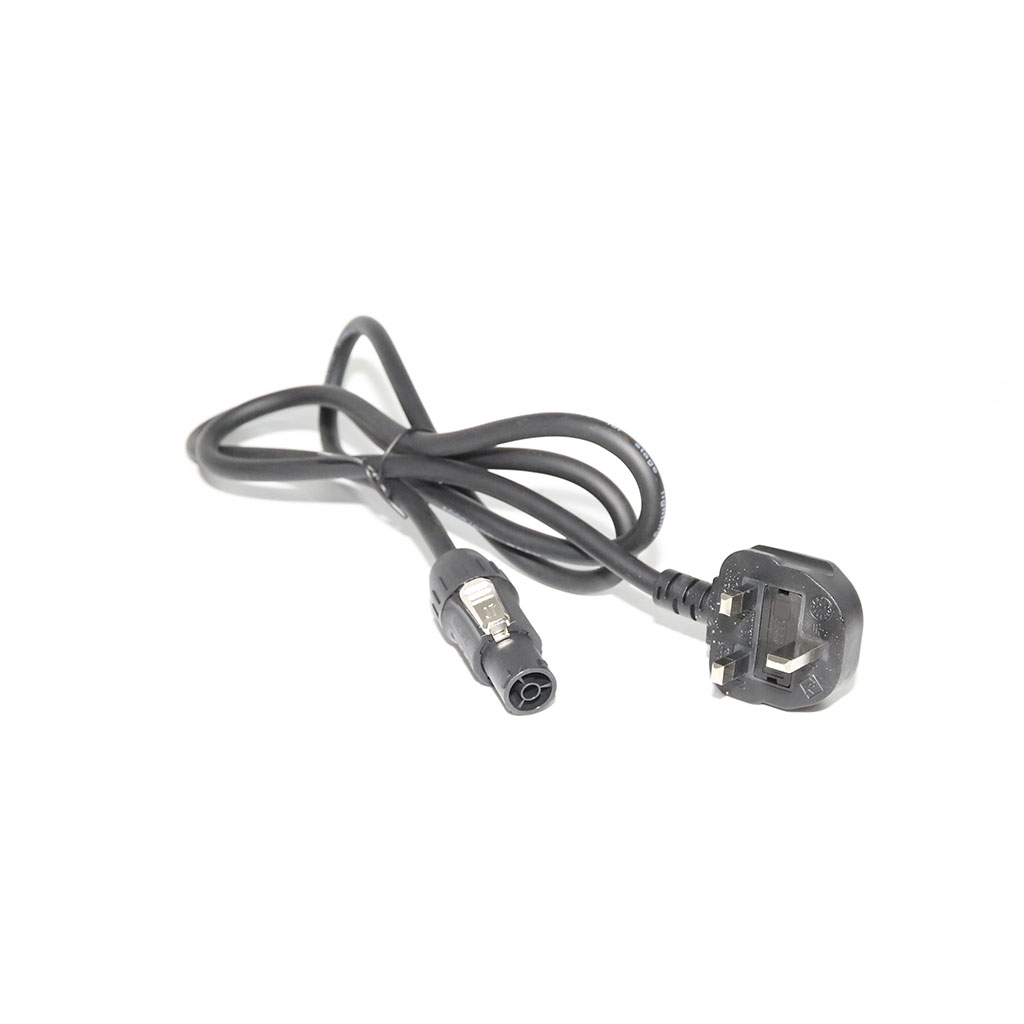

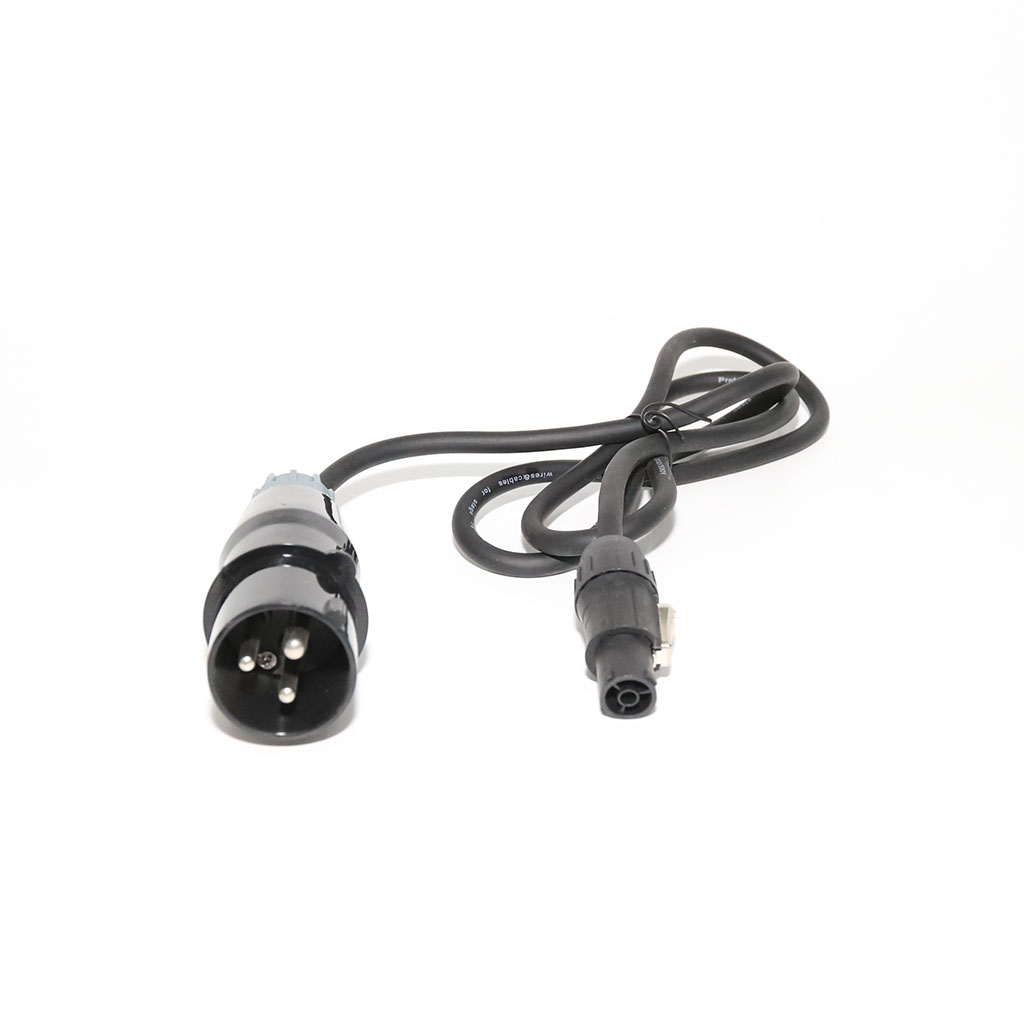

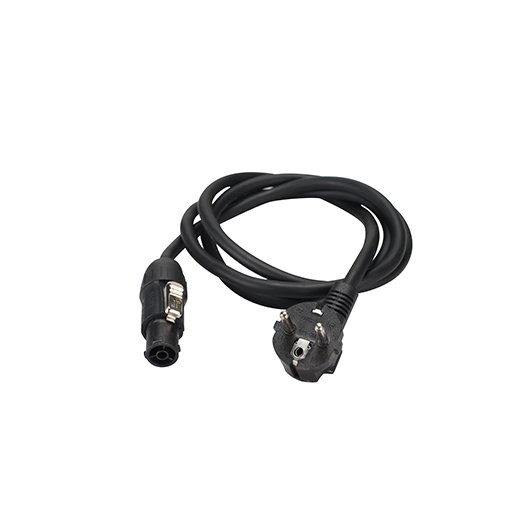

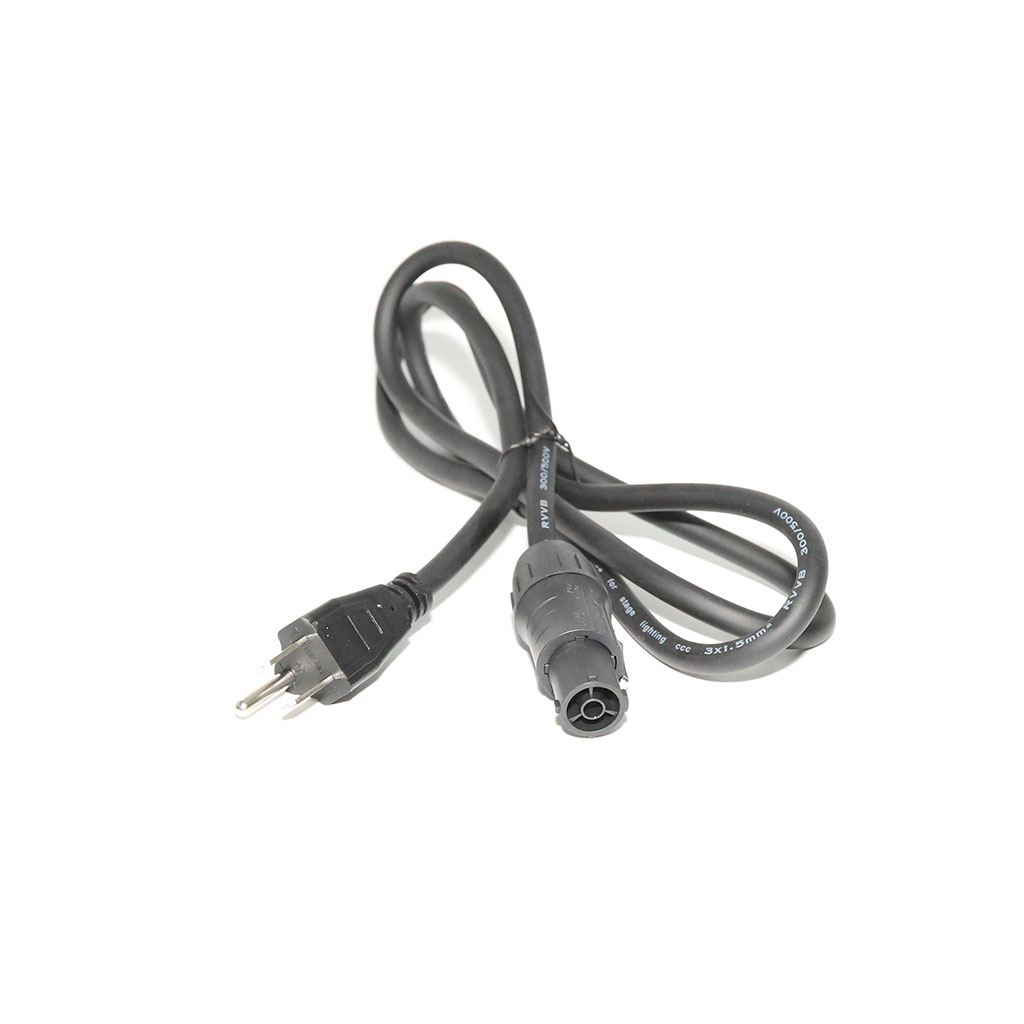

Power Connections: Seetronic Powercon IP65 In/Out
Electrical & Physical
Power Supplier: 24V+12V at 10000W with FPS
Power Linking: 3 units @ 100V; 5 units @ 120V; 7 units @ 208V; 9 units @ 230V; 10 units @ 240V
Housing Material: Magnesium-aluminum die-casting + aluminum profile (Black exterior)

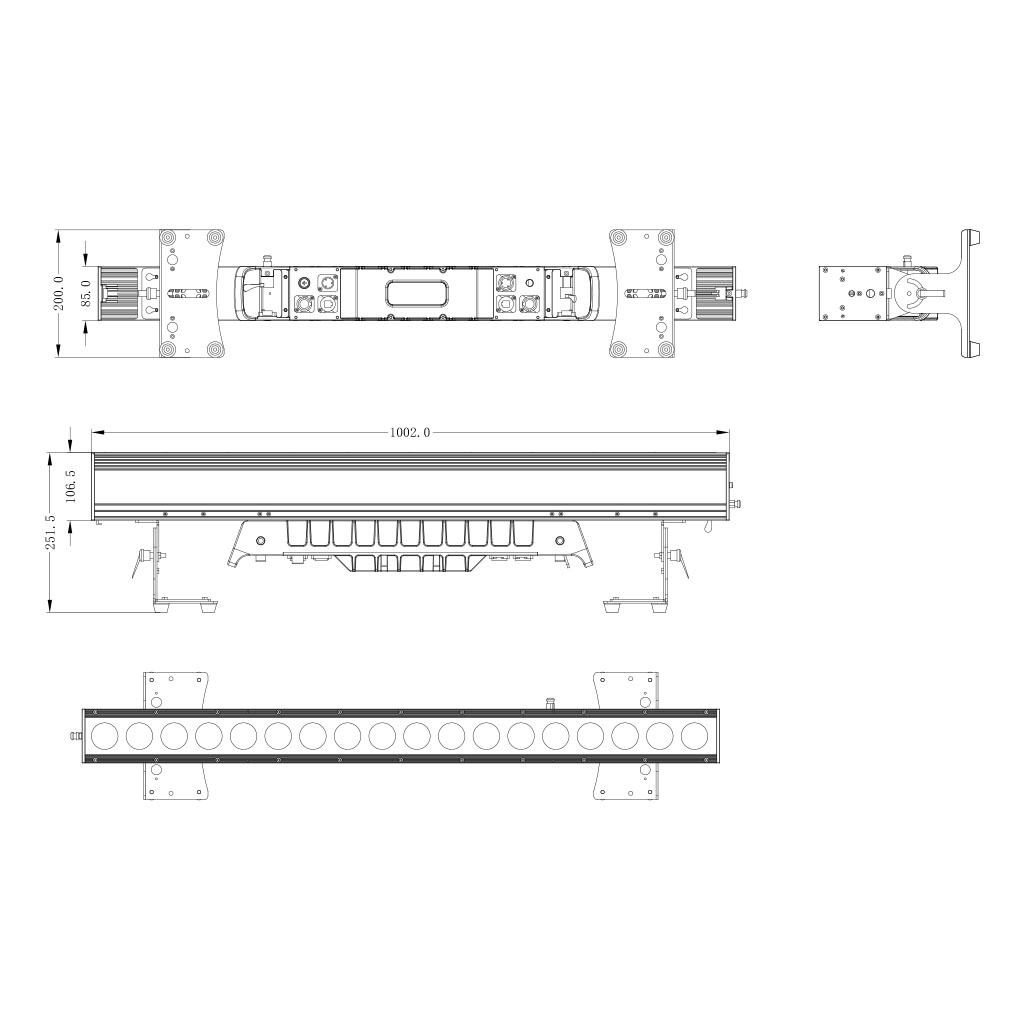

Dimensions: 1000 x 85 x 210 MM
Weight: 10.5 KG
ADVANCED PRODUCT FEATURES
IP65 WATERPROOF
Engineered to operate in the most demanding global environments, the AL-1825IP features an elite, ultra-sealed IP65 structural framework. This premium architectural chassis provides heavy-duty weatherproofing that completely blocks pouring rain, blowing dust, and high humidity. It seals and insulates the interior electronic drivers, guaranteeing absolute operational safety during permanent façade lighting installations and high-profile outdoor theatrical productions.

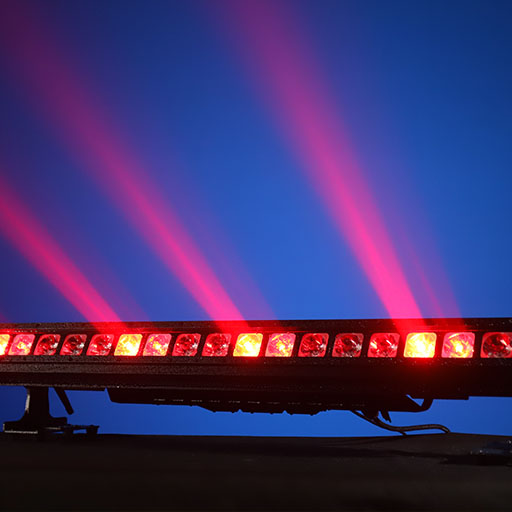

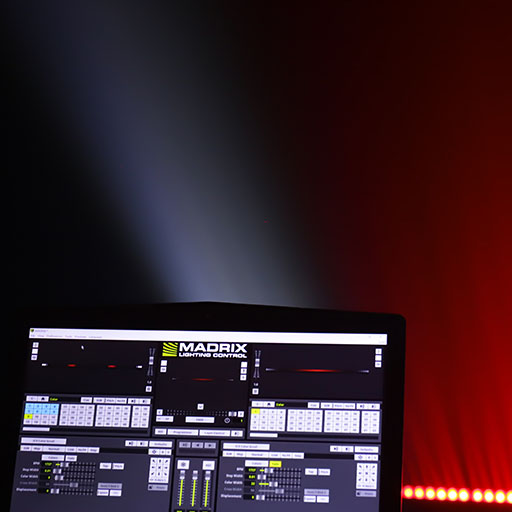

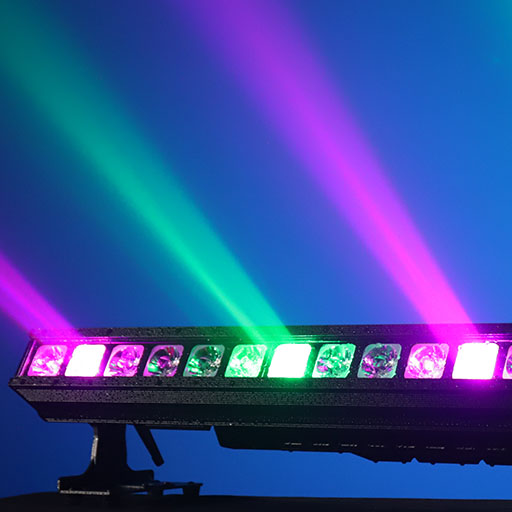

PIXEL MAPPING
Unlocking comprehensive matrix visualization, the luminaire features advanced individual single-pixel mapping capabilities across its high-power array of 18 x 25W RGBL LEDs. Lighting programmers can bypass static color blocks to stream intricate geometric color chases, flowing fluid textures, and volumetric video-mapped effects directly across the fixture bar, delivering unmatched artistic depth for creative entertainment lighting fields.

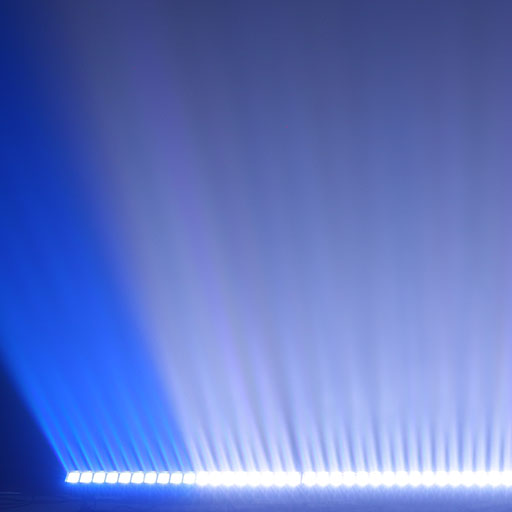

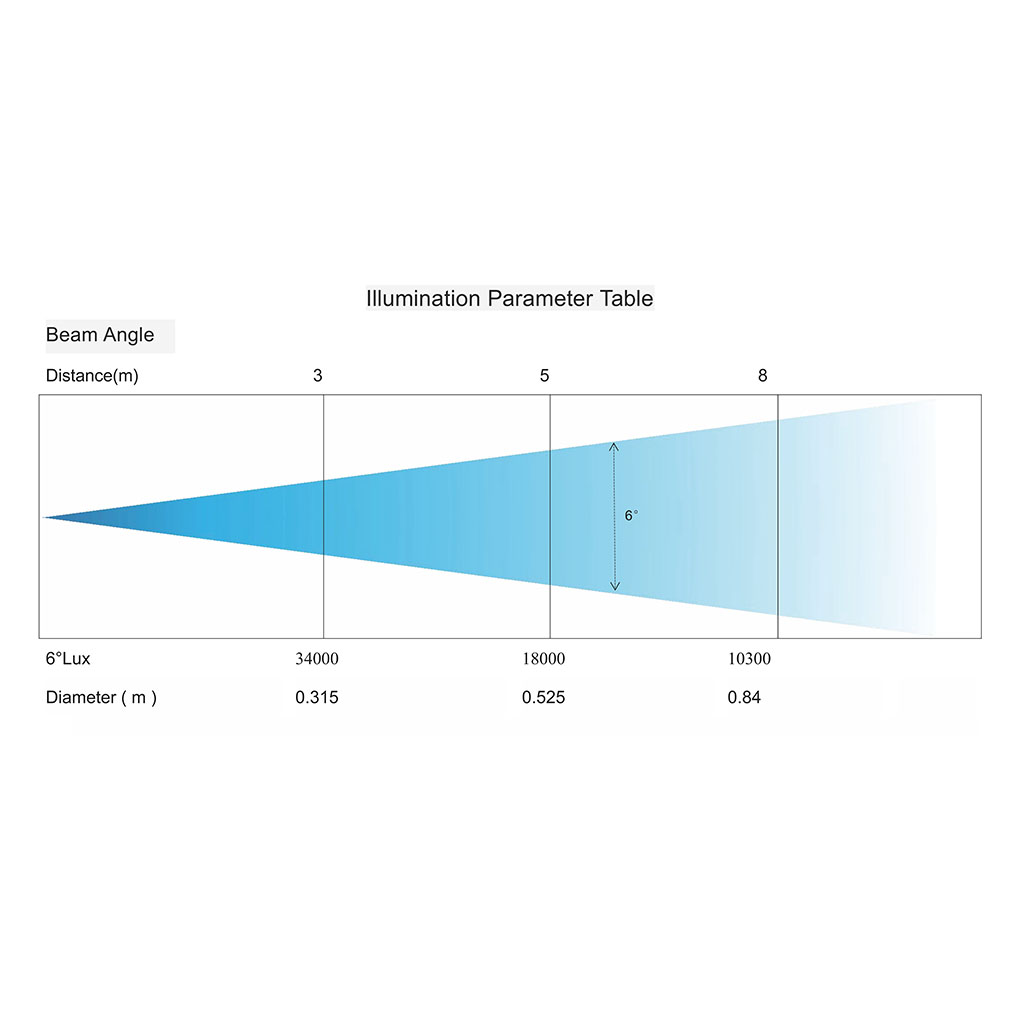

NATIVE BEAM OPTICS
The AL-1825IP system redefines technical multi-versatility by supporting distinct native optical projection options tailored for unique layout demands. Showcasing a stark architectural comparison between a razor-sharp, intensive 6° narrow directional beam throw and a beautifully blended, uniform 45° wide flood wash, this advanced lens integration satisfies both distant grazing and close-range uniform blending with zero color-fringing.

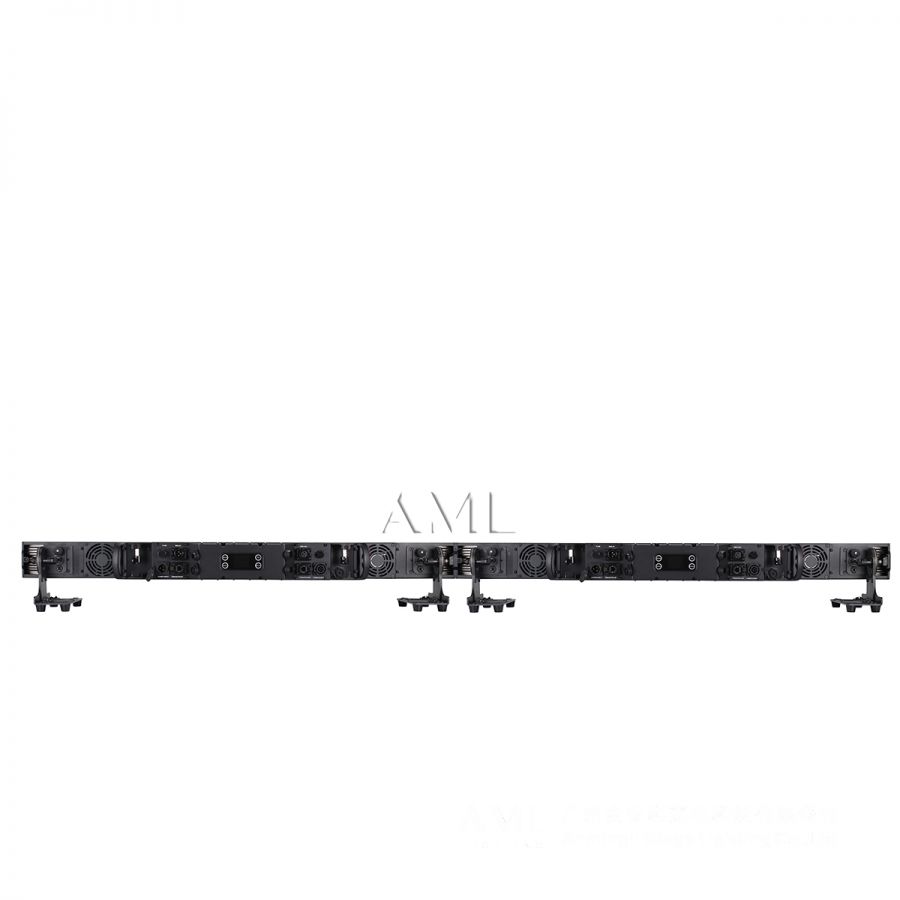

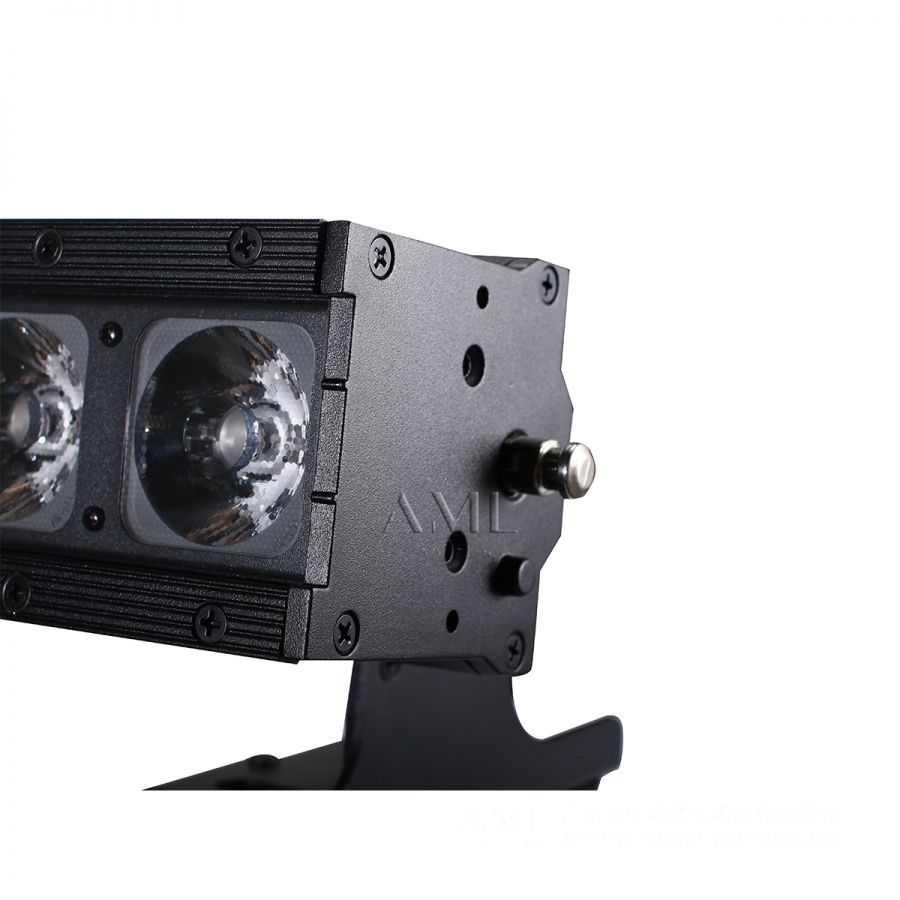

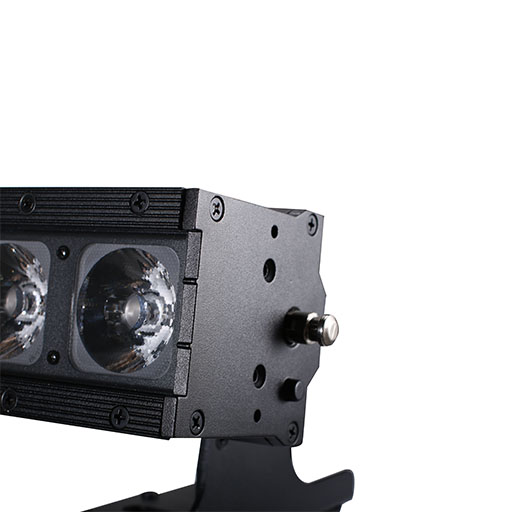

FAST-LOCK SYSTEM
To maximize deployment efficiency on fast-paced touring stages and large-scale architectural sets, the fixture incorporates a premium, toolless fast-lock interlocking mechanism. Technicians can execute quick, flawless mechanical alignments, linking multiple fixtures both horizontally and vertically. This seamless joining architecture allows for infinite linear matrix extensions while maintaining continuous pixel pitch alignment.

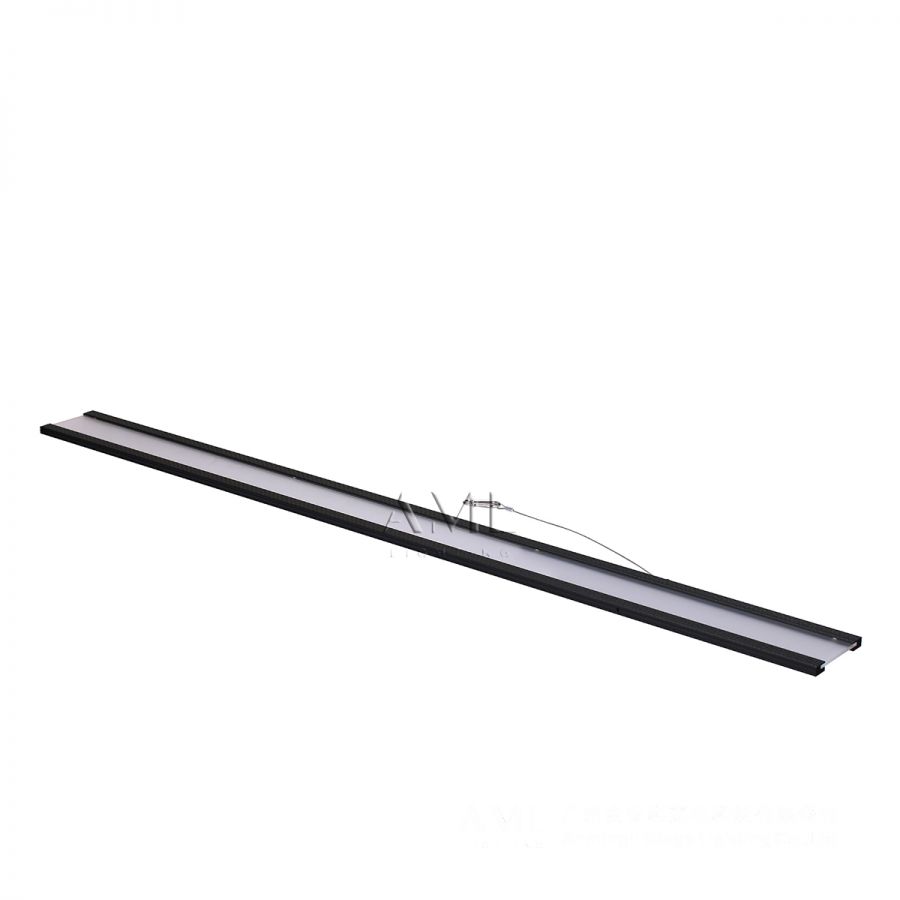

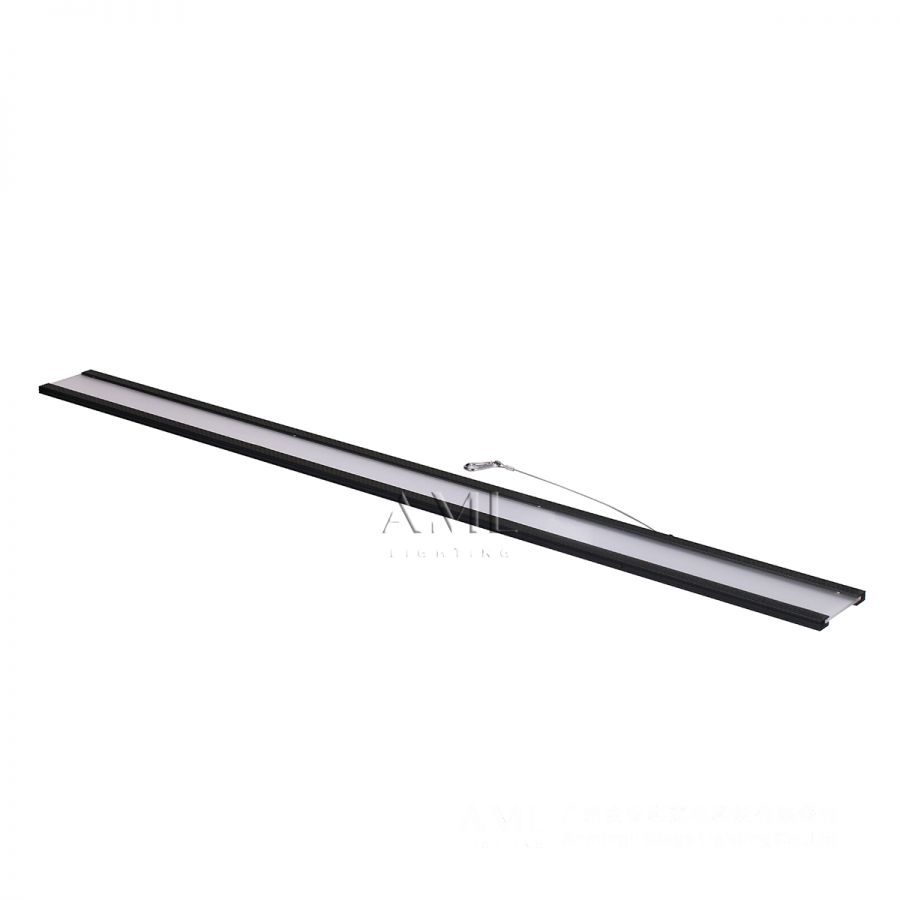

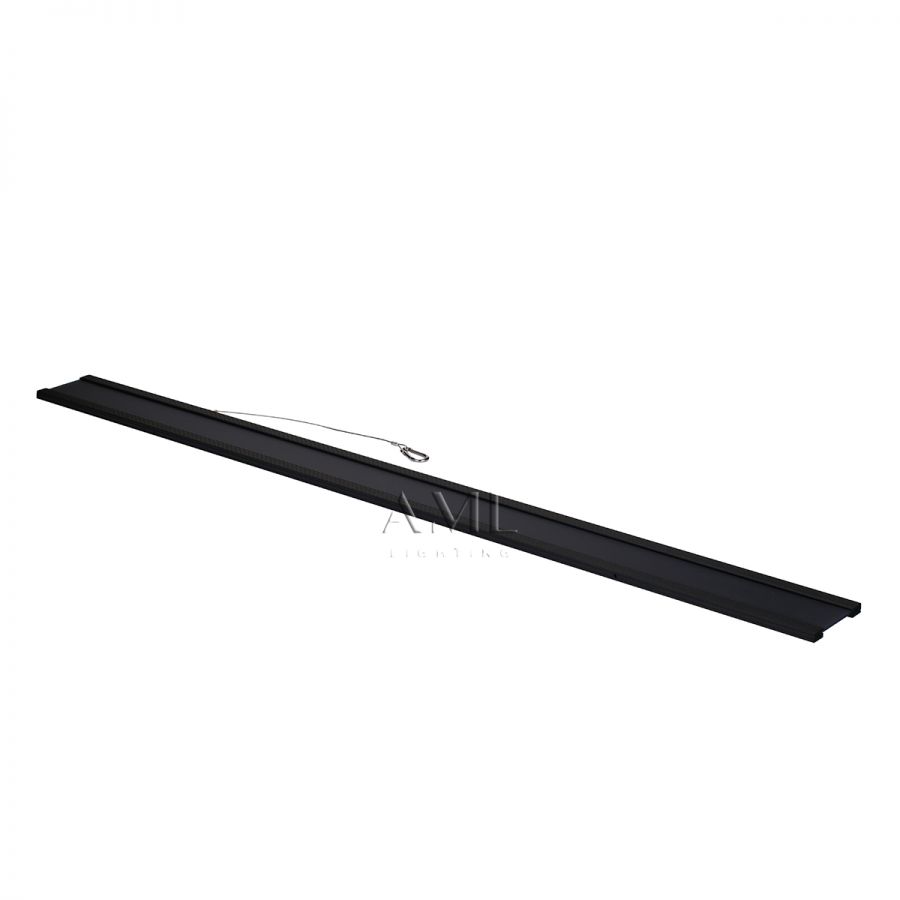

MODULAR DIFFUSERS
By upgrading the core hardware with optional, quick-interchangeable holographic diffusion faceplates, the AL-1825IP offers dynamic bean angle customization for multi-tier applications. These custom structural covers alter the native distribution pattern instantly, smoothing hot-spots and shaping light shapes to adapt perfectly to complex heritage wash projects, architectural facades, or wide theatrical backplates.

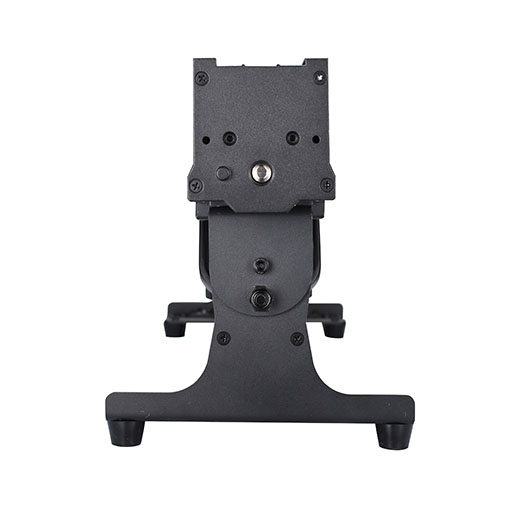

ROTATABLE BASE
Unlocking infinite rigging flexibility, the fixture features an advanced, multi-angle rotatable heavy-duty mounting base assembly. Engineered to adapt smoothly to any complex install orientation, this stable mounting block provides flexible structural pivoting, allowing the pixel wash bar to lock securely onto different truss configurations, vertical floor plates, side walls, or concealed architectural recesses.
