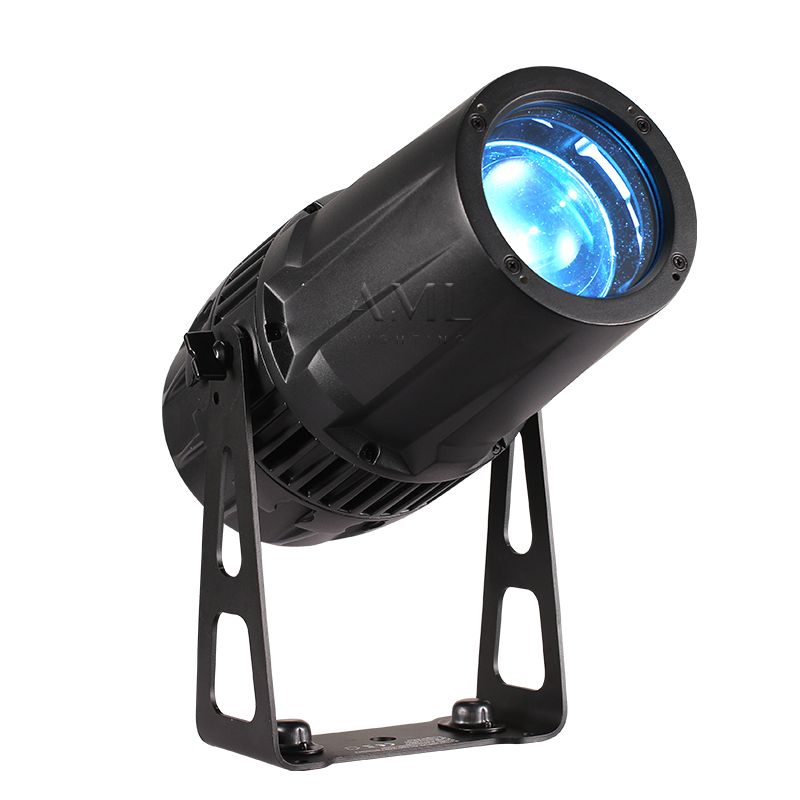

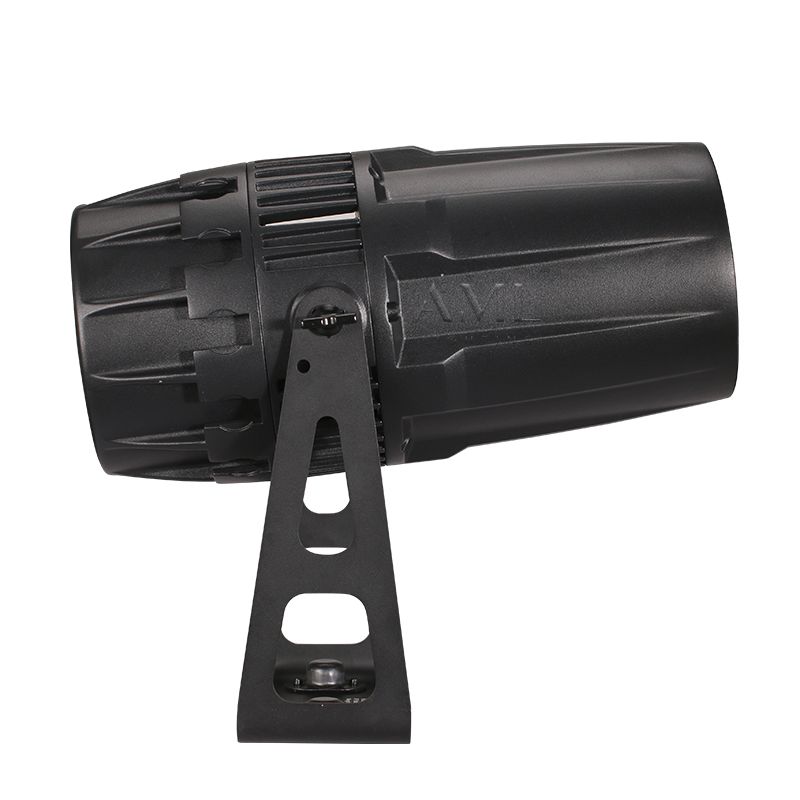

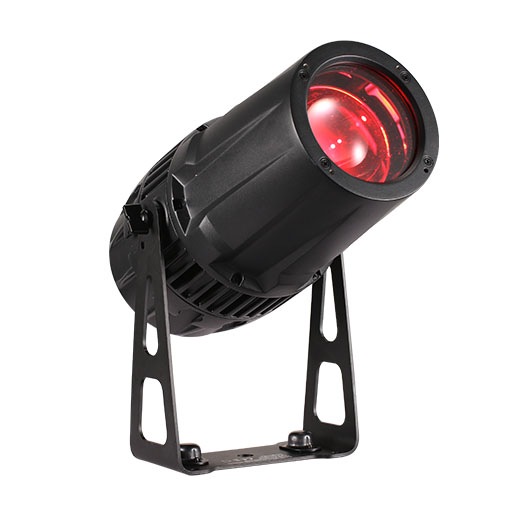

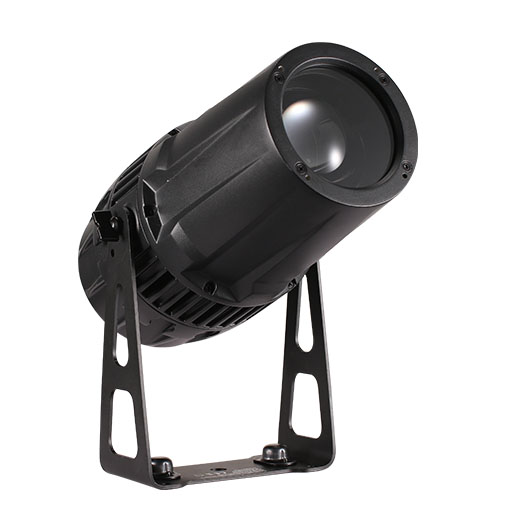

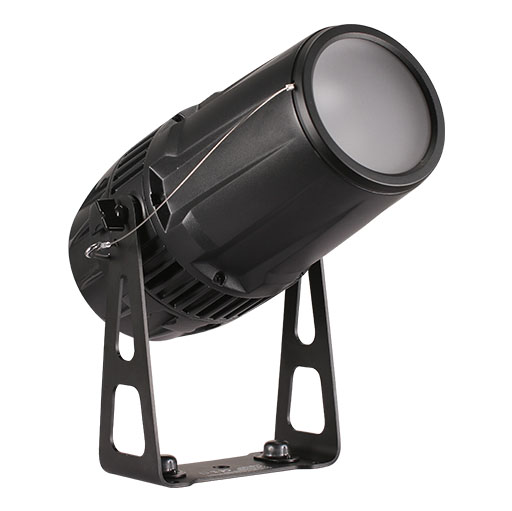

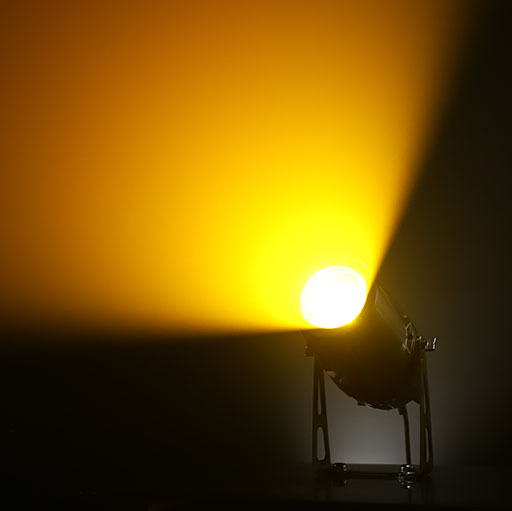

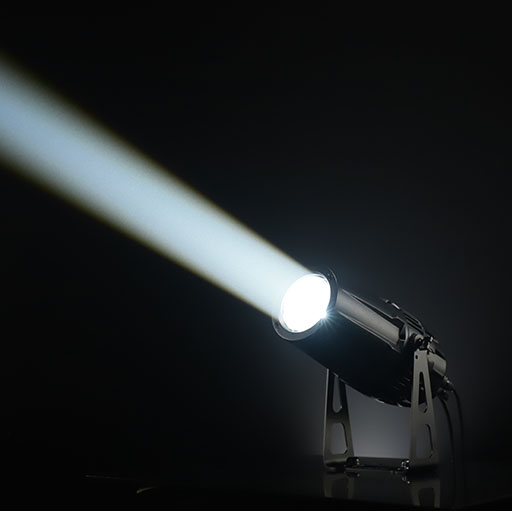

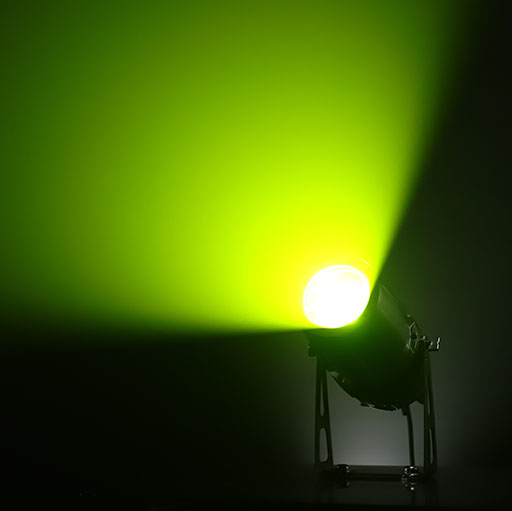

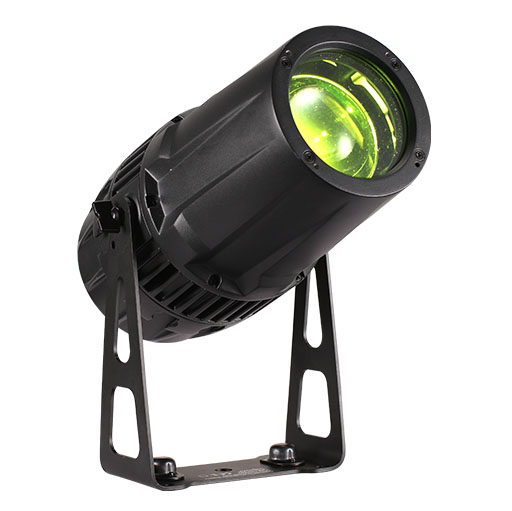

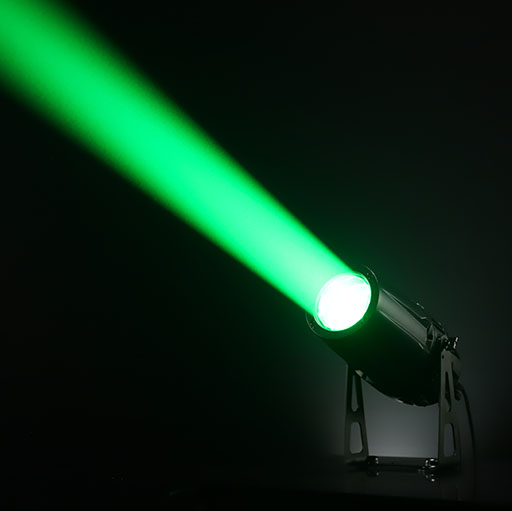

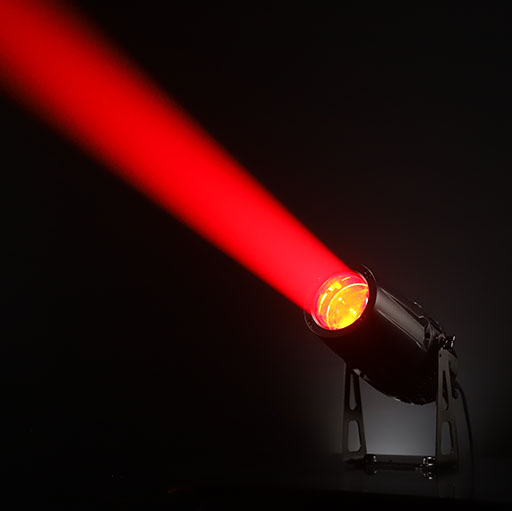

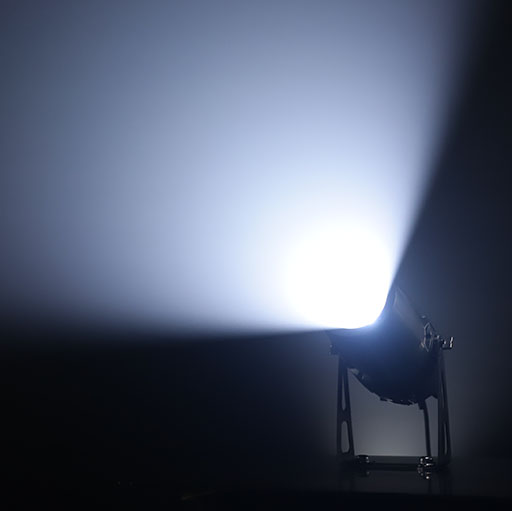

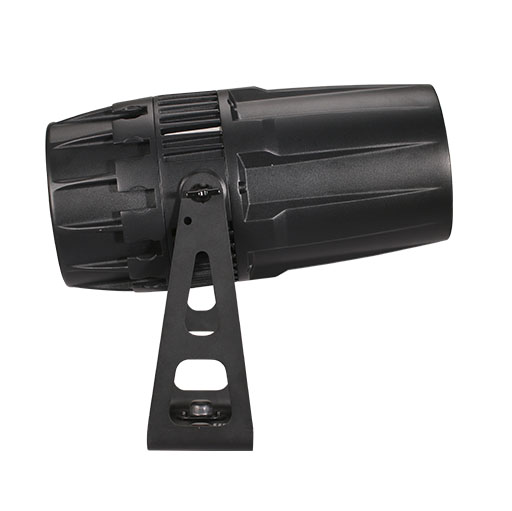

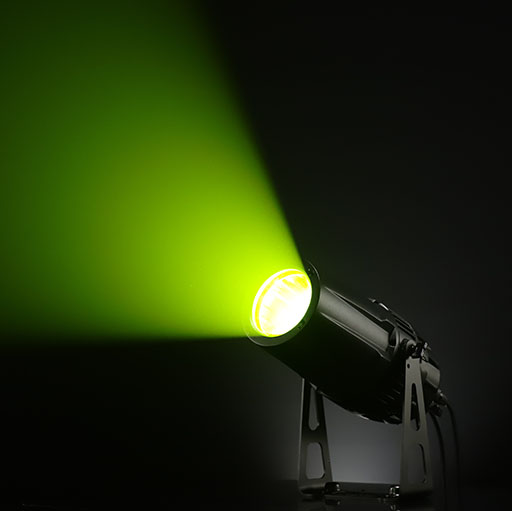

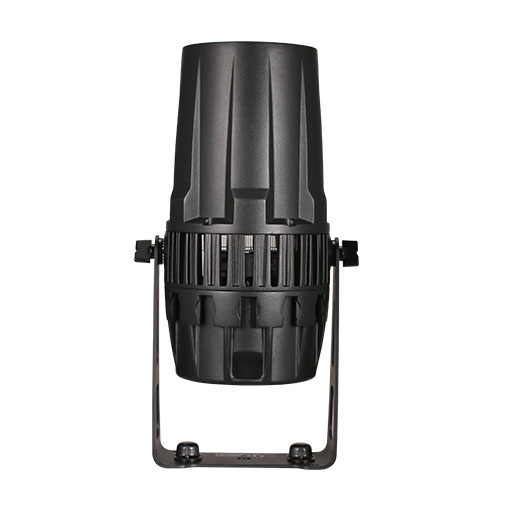

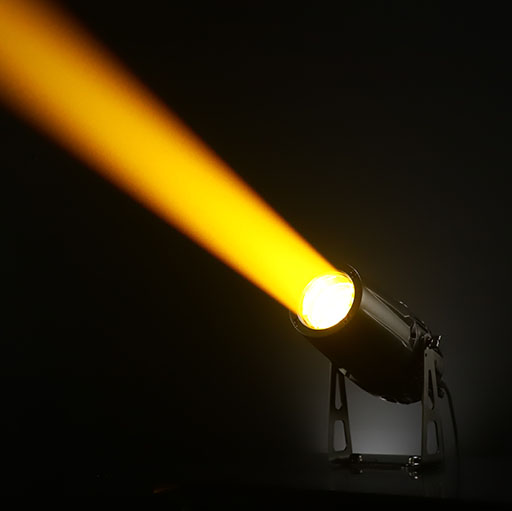

Product Images

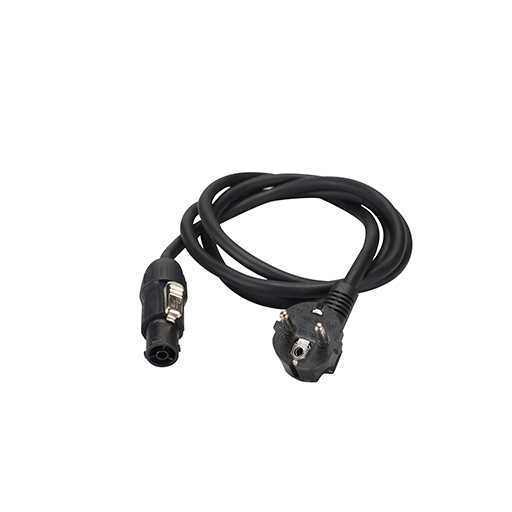

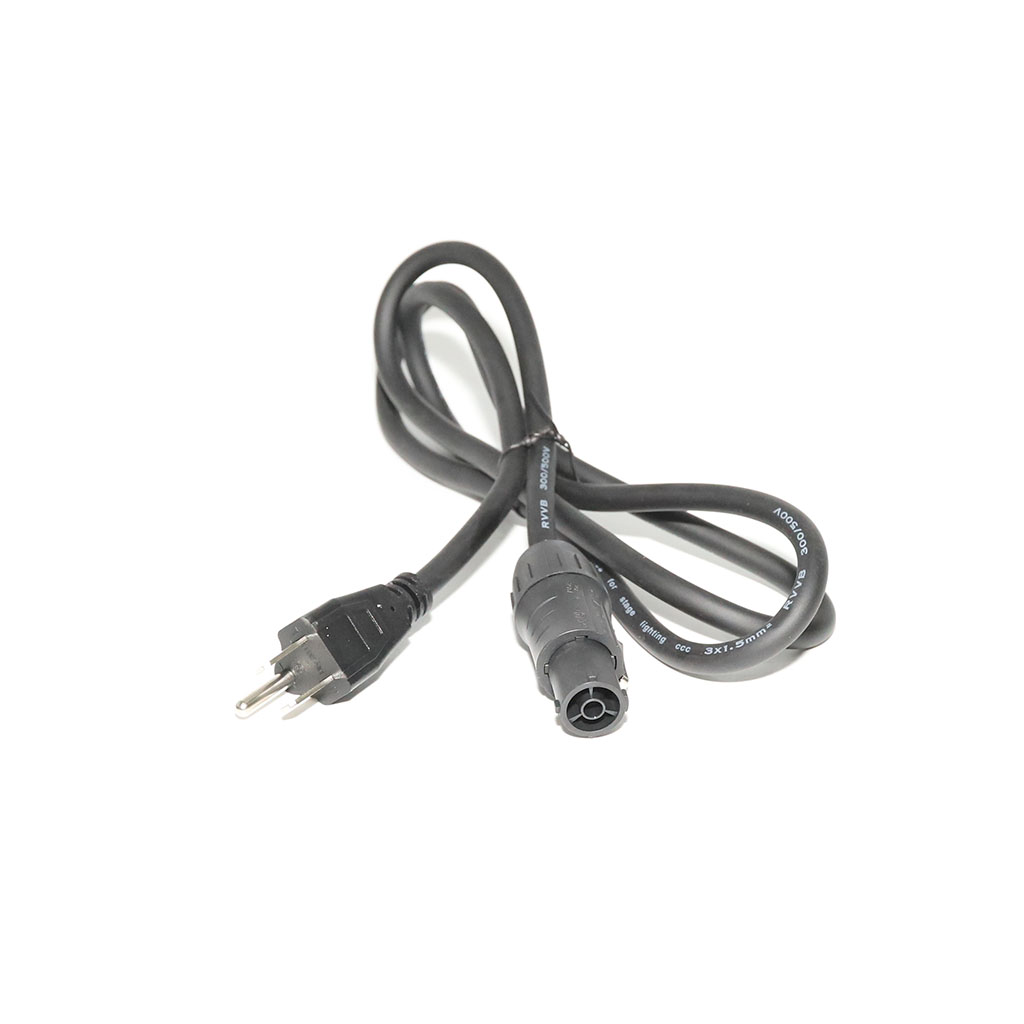

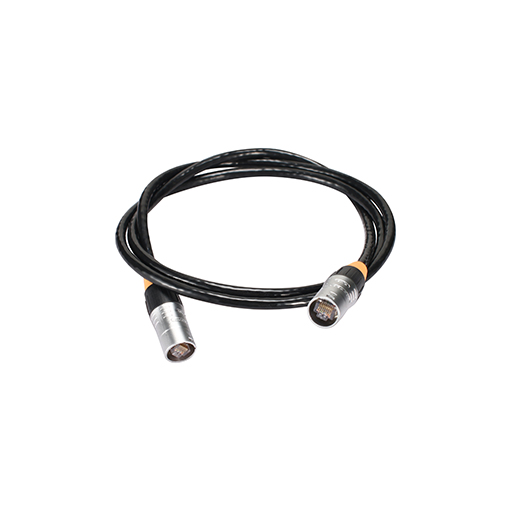

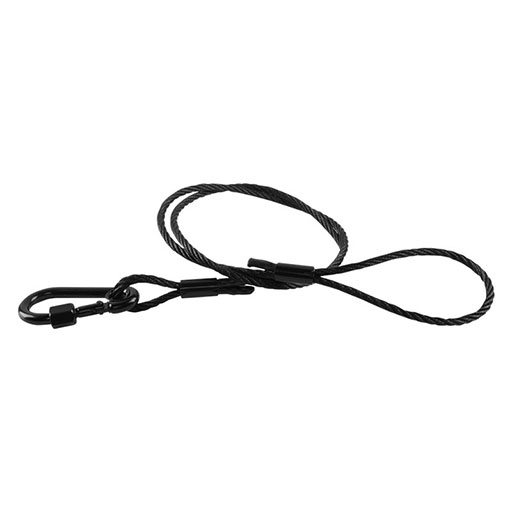

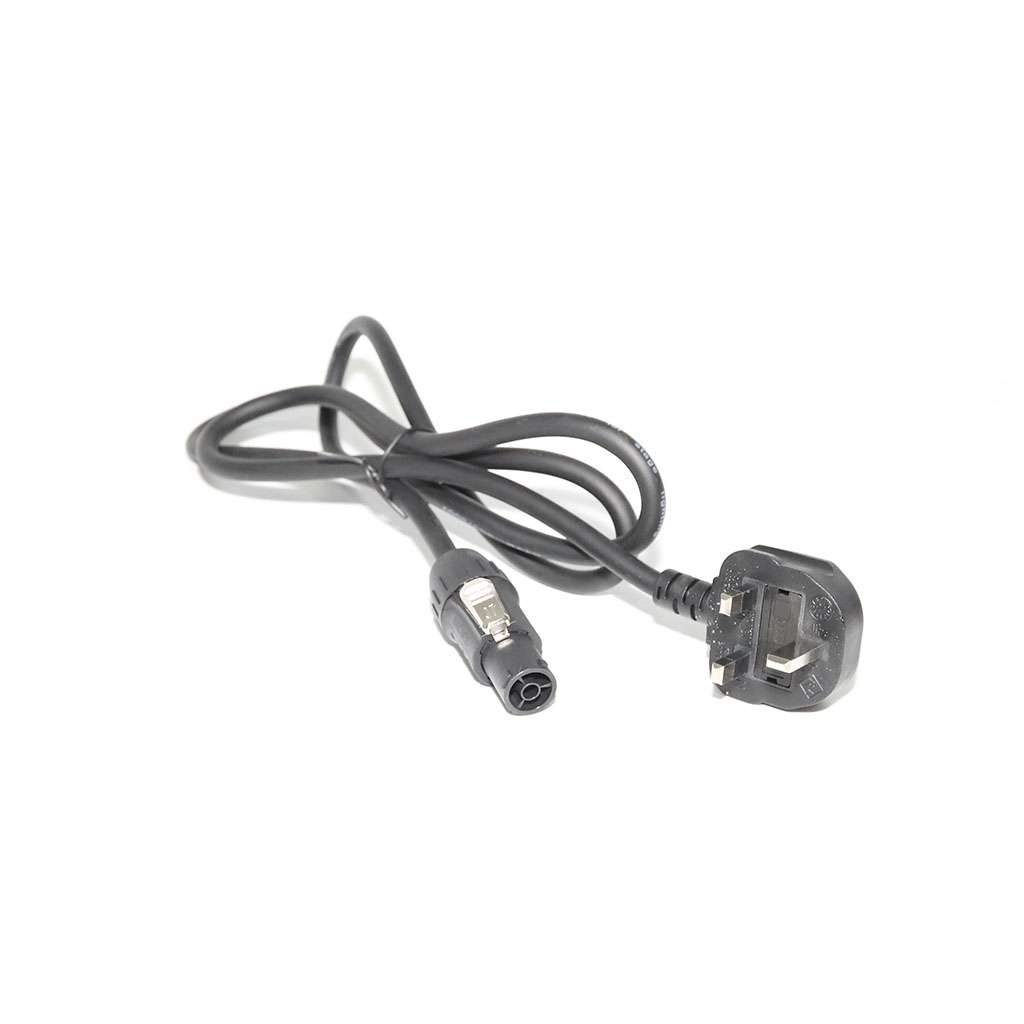

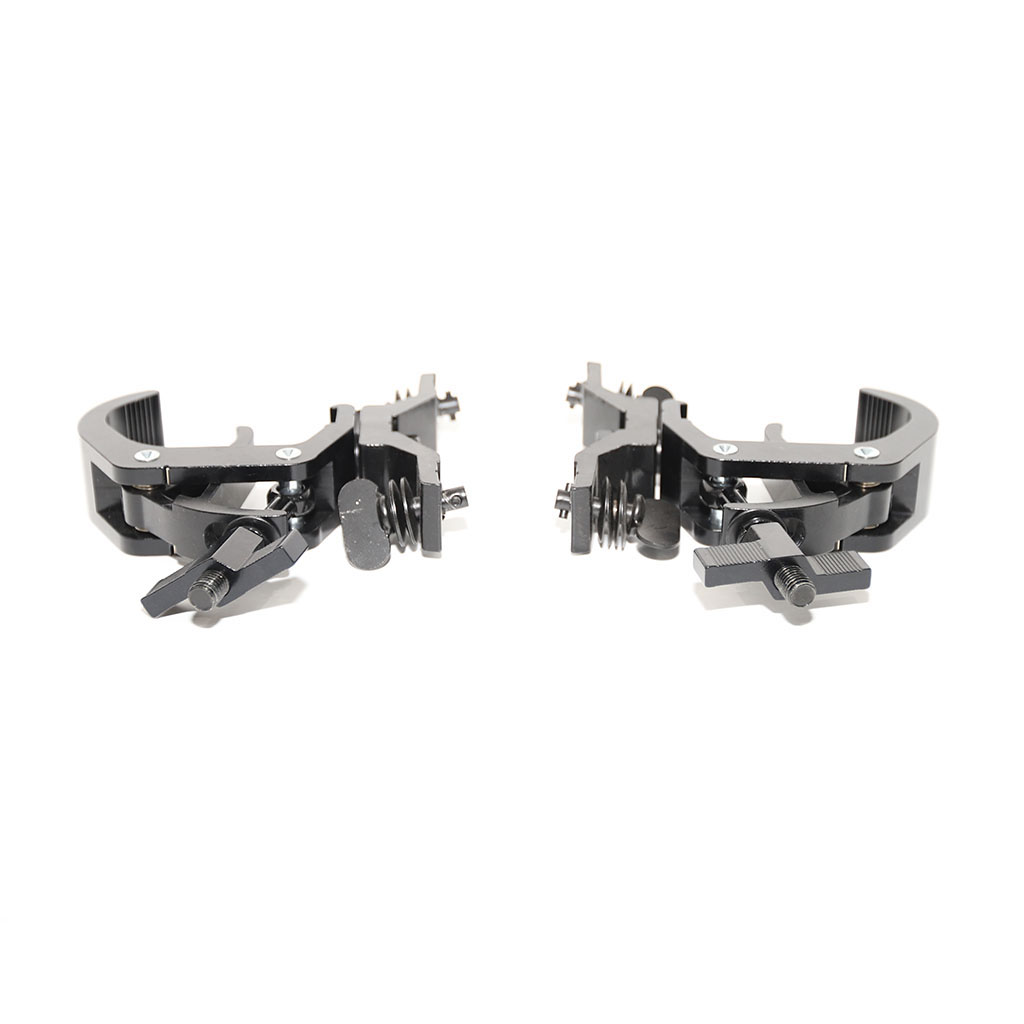

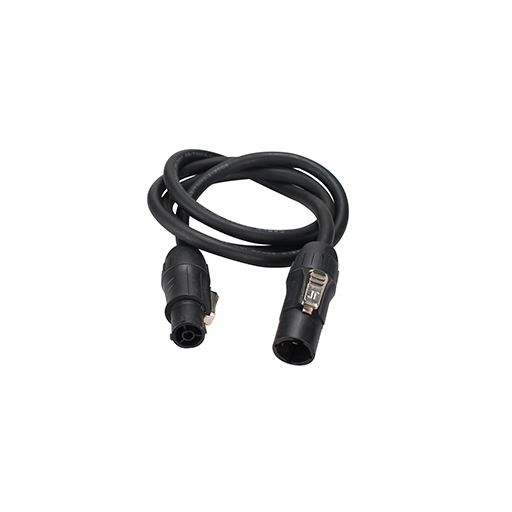

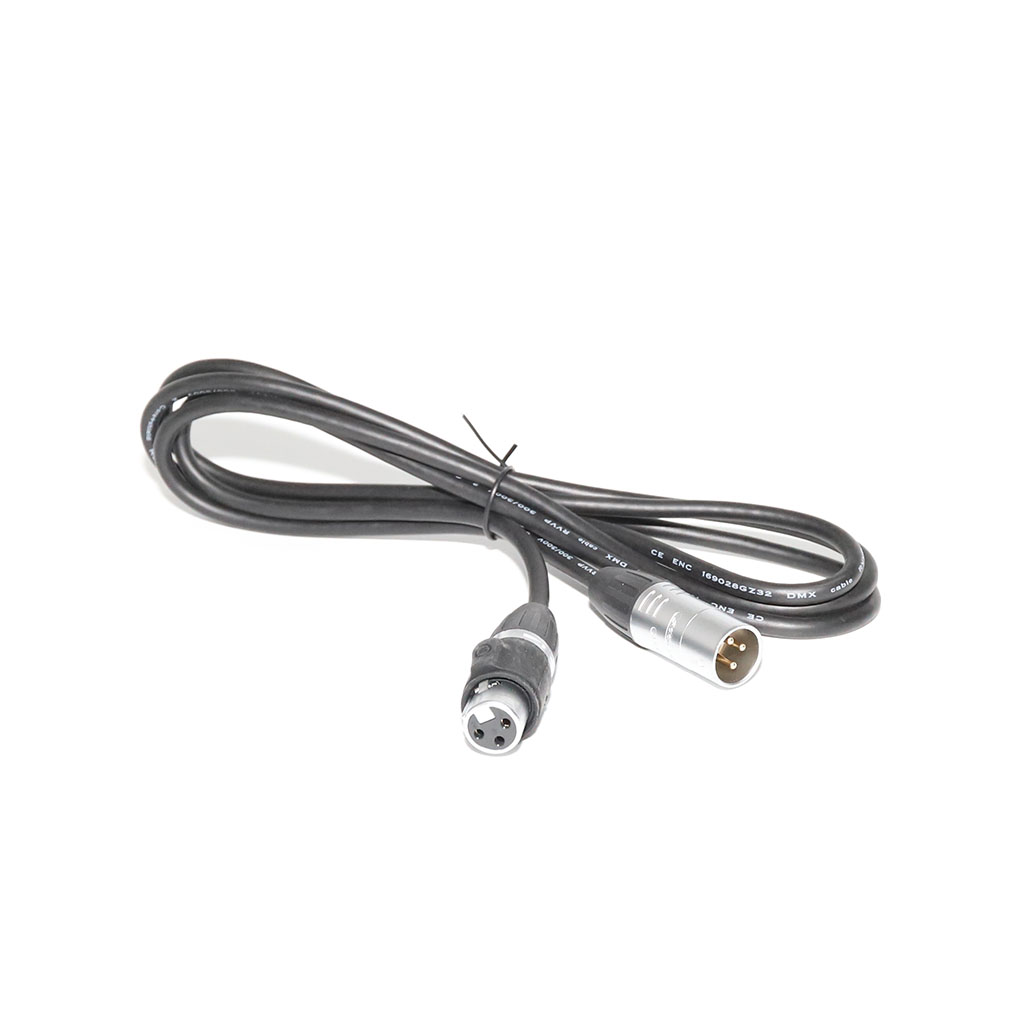

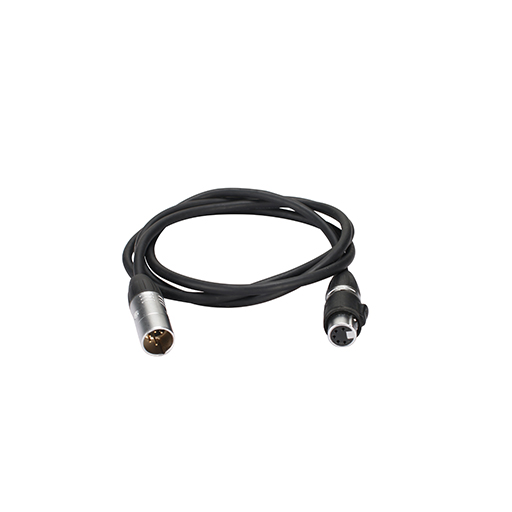

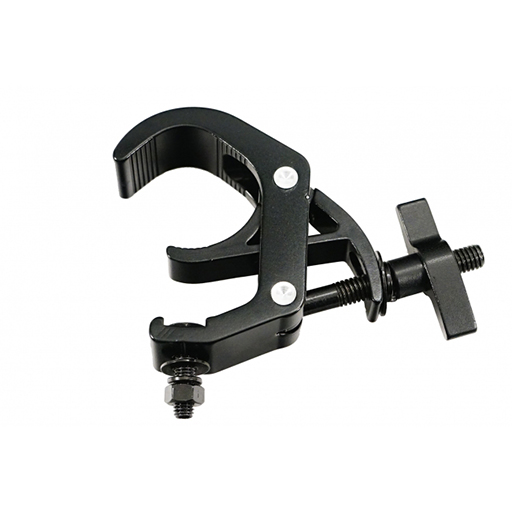

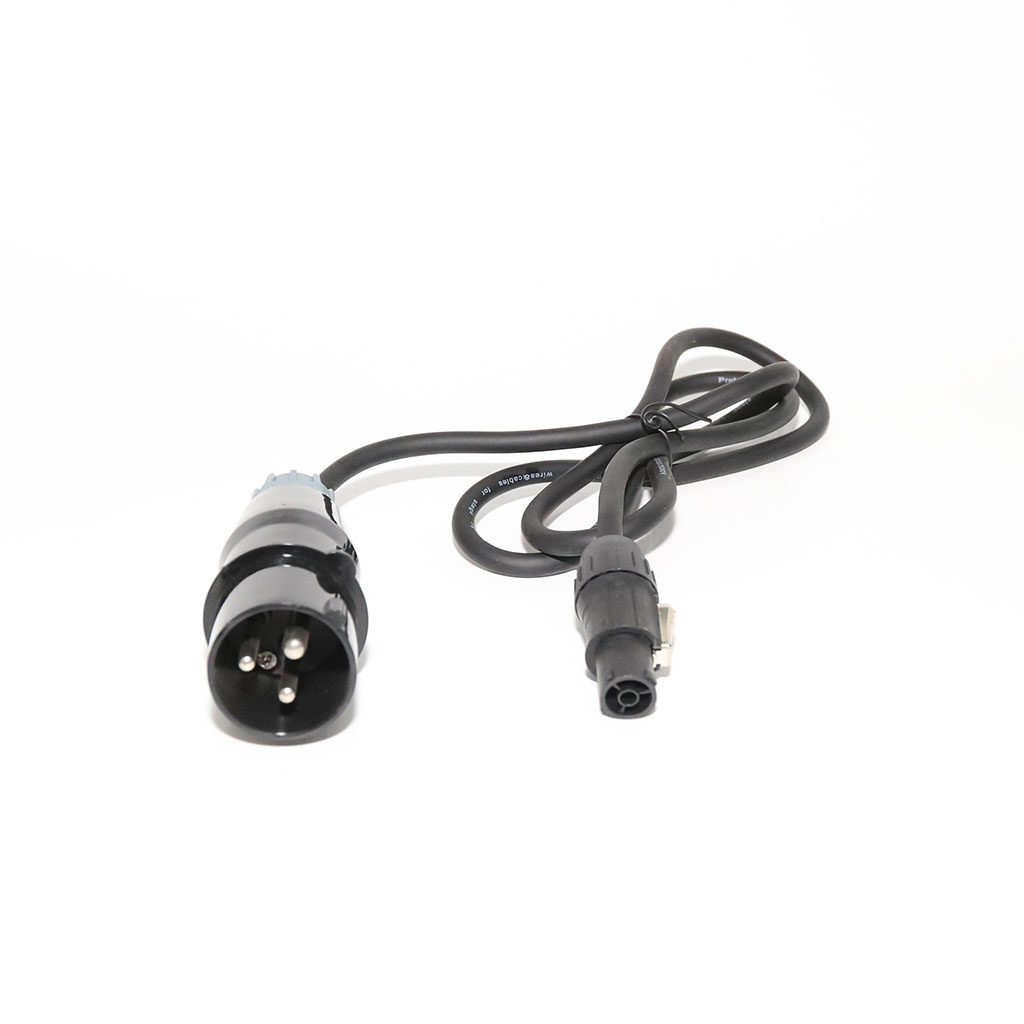

Accessories

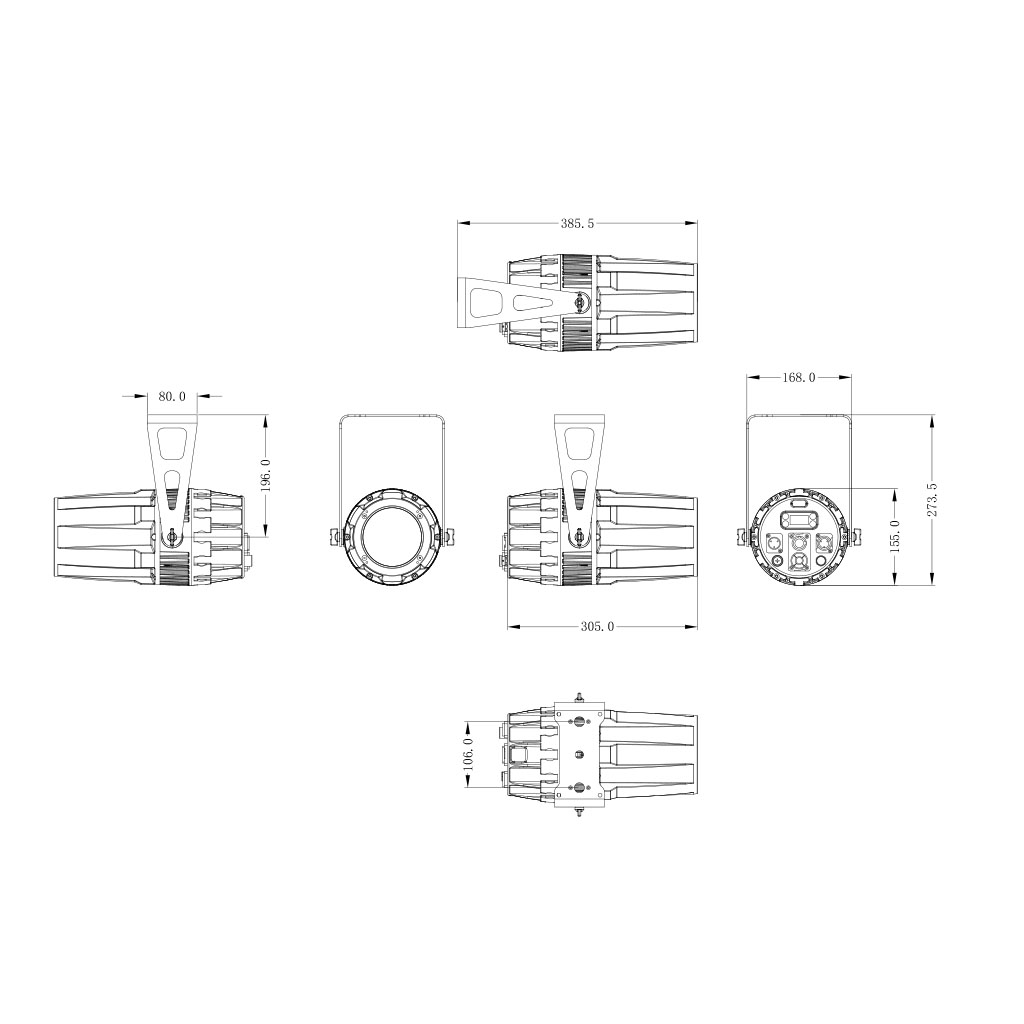

Technical Drawing

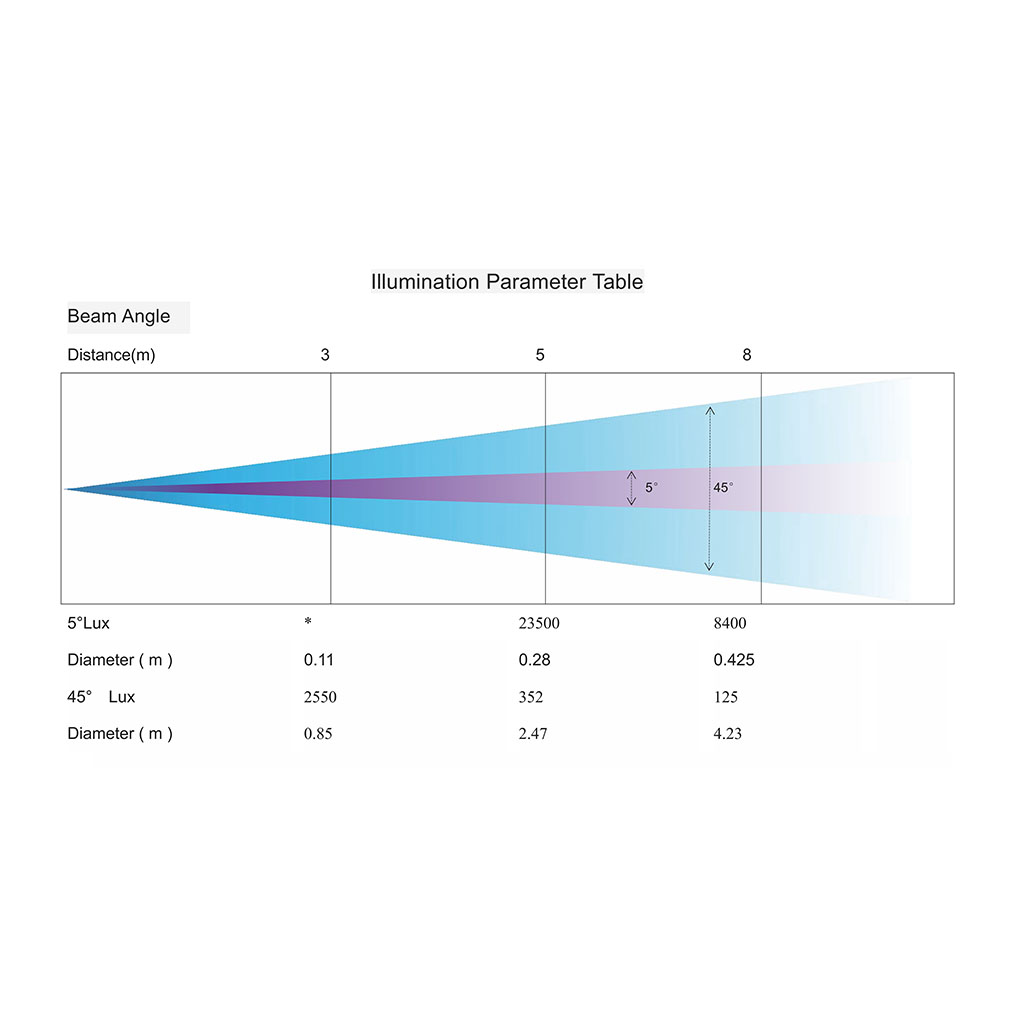

  • Beam angle
    4-50°
  • Color temperature
    1800k-8000k
  • Color range
    RGBL
  • Weight
    4kg
  • IP Rating
    IP65
AML LIGHTING - AL-006E Technical Specifications

Technical Specifications

Light Source & Optics

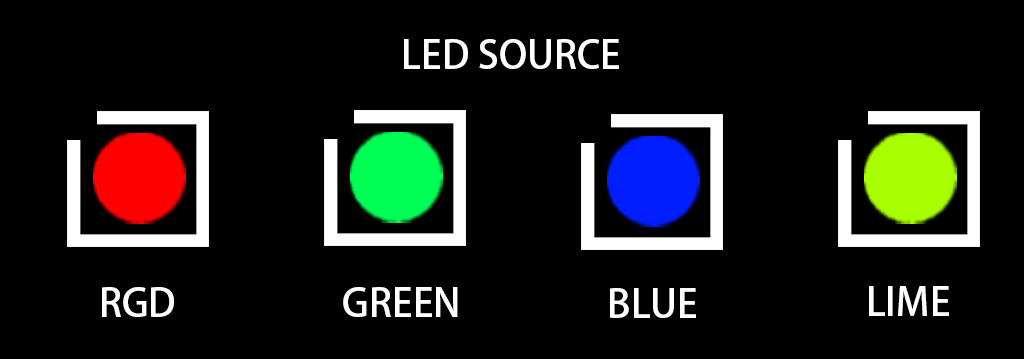

  • Light Source: 1*120W RGBL LED

  • Zoom Angle: 3.8° - 42°

  • LED Lifespan: 30,000 Hour Average LED Life

Dynamic Effects

  • Strobe Rate: Variable Strobe Rate: 1-20Hz

  • Dimming Features: Dim-to-Warm / Red Shift Emulation

  • Dimming Modes: Variable 16-bit Dimming Modes and Curves

  • Output Options: High Output Blinder Mode or Constant Output Mode Options

Control & Connections

  • DMX Channels: 1 DMX Channel Mode (17ch)

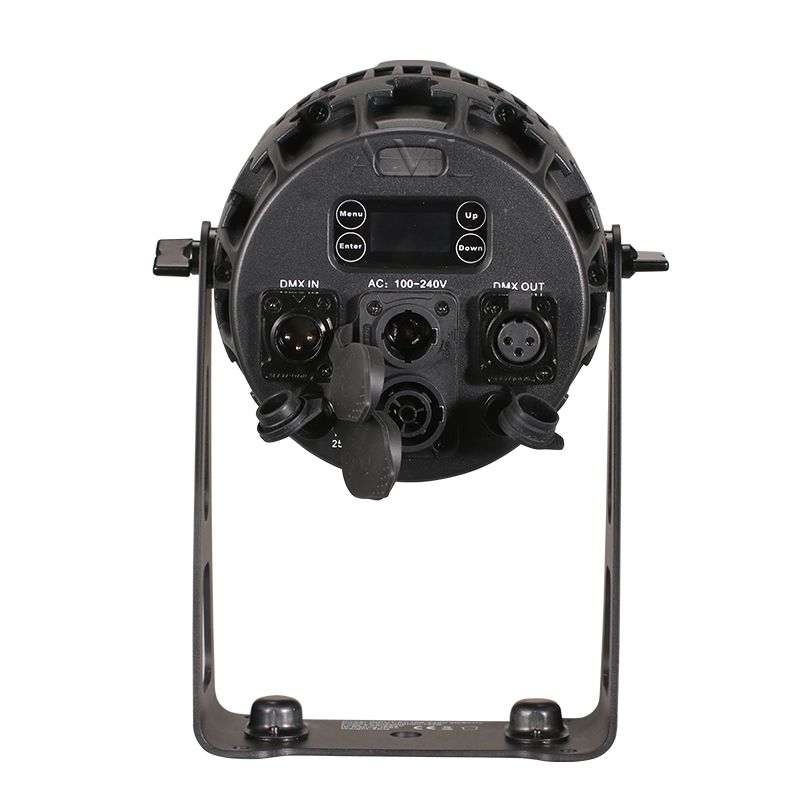

  • Display & Interface: 4 Button Control Panel, LED Display

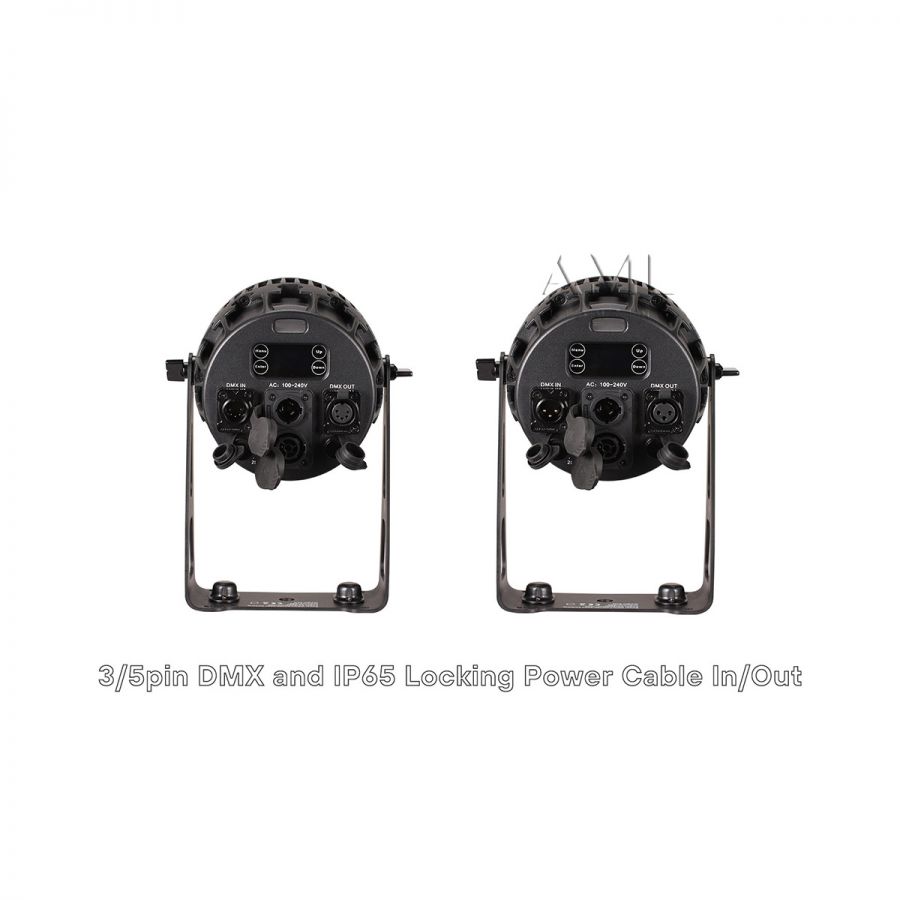

  • Connections: 3/5pin DMX and IP65 Locking Power Cable In/Out

Electrical & Physical

  • Mains: 100-240V AC / 50-60Hz

  • Consumption: 140W

  • Ambient Temp: -30°C ~ 45°C

  • Dimensions: 305 x 155 x 274 MM

  • Weight: 4 kg

  • IP Rating: IP65

#
.
