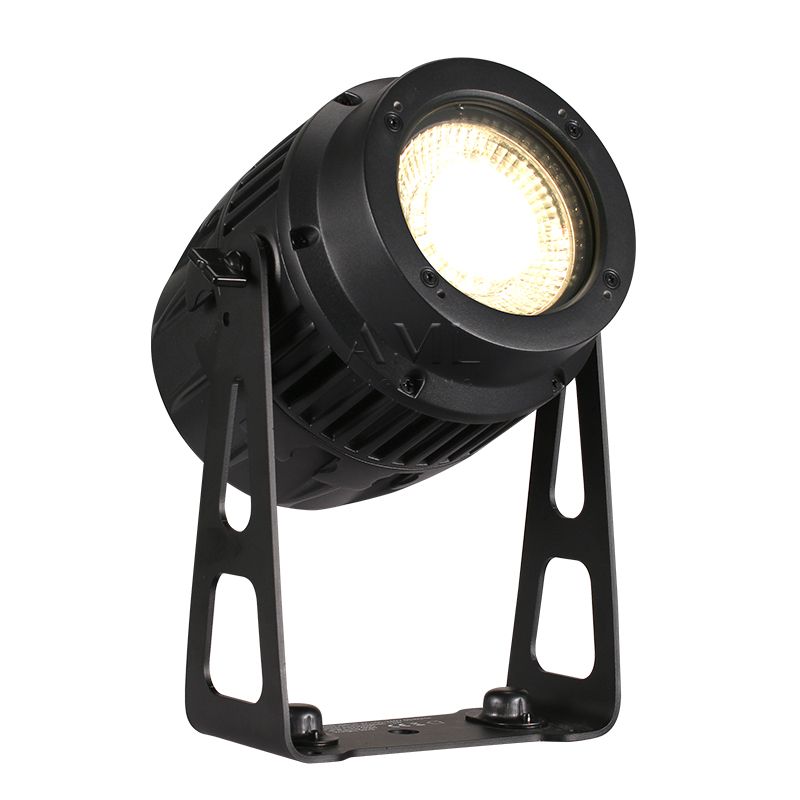

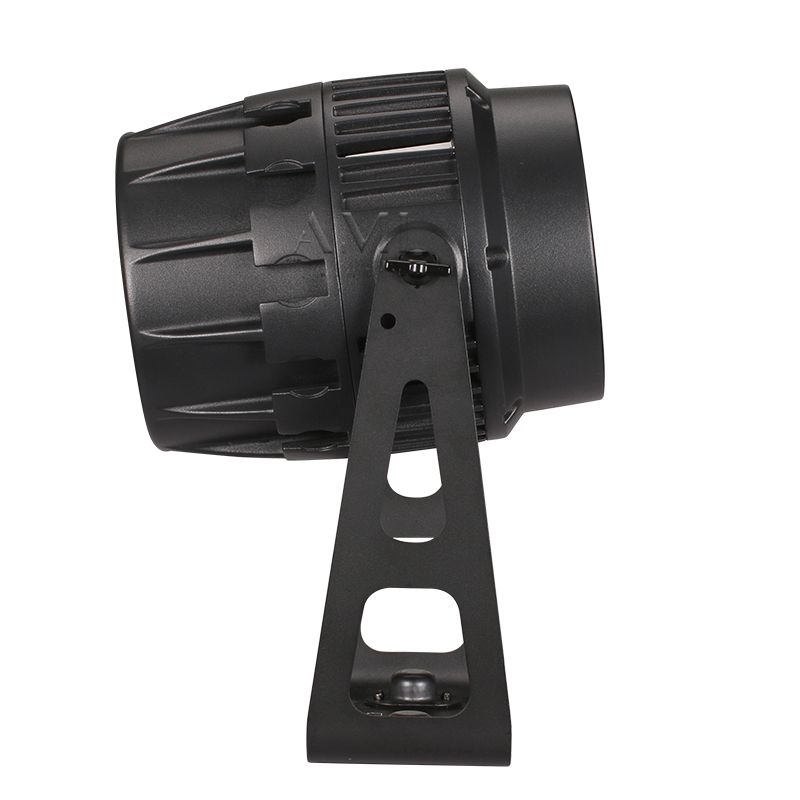

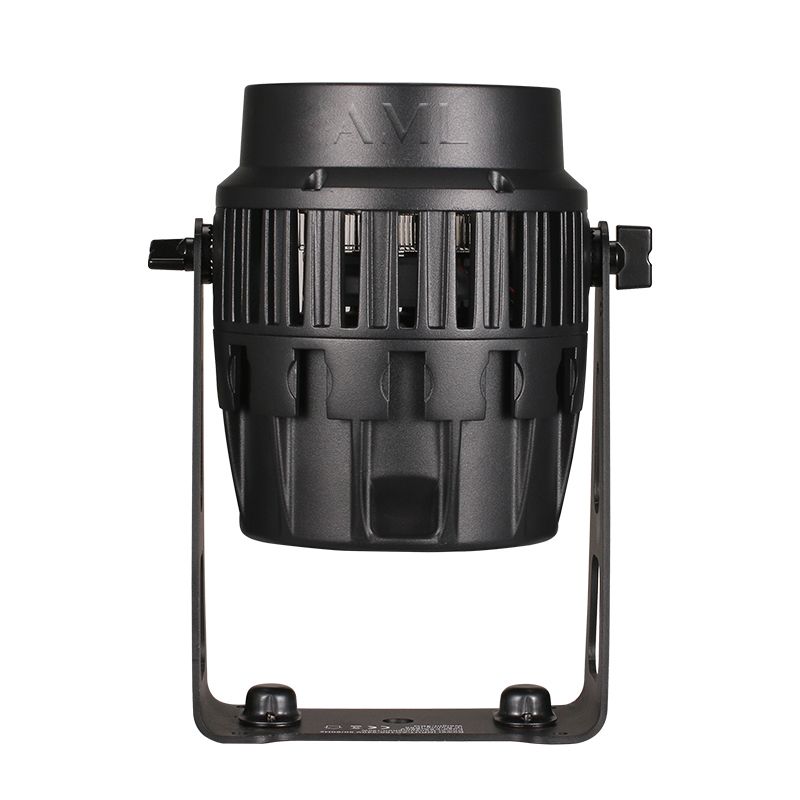

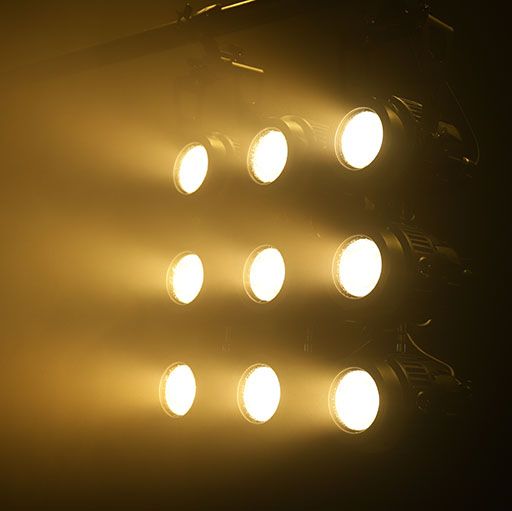

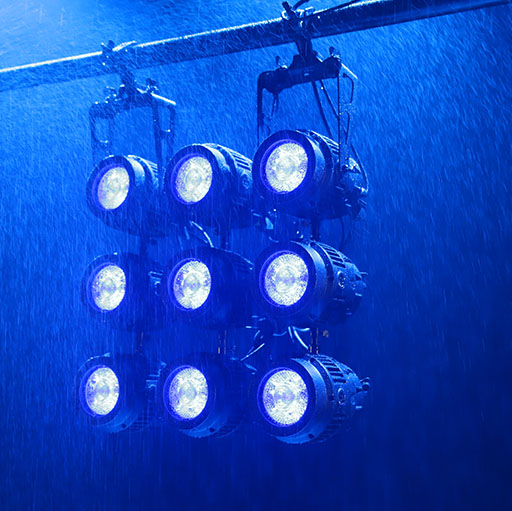

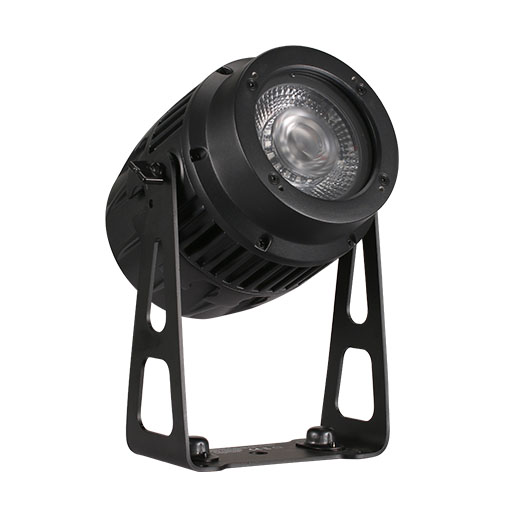

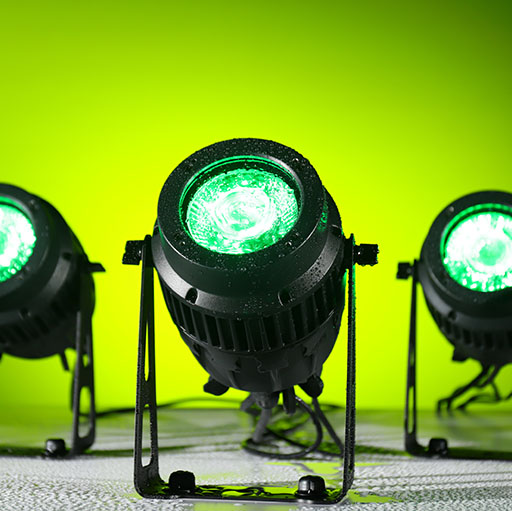

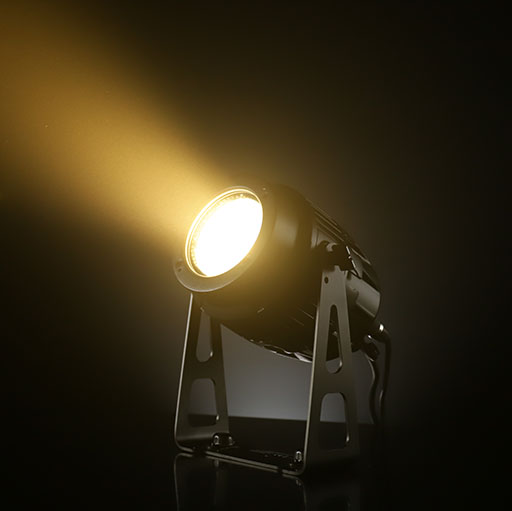

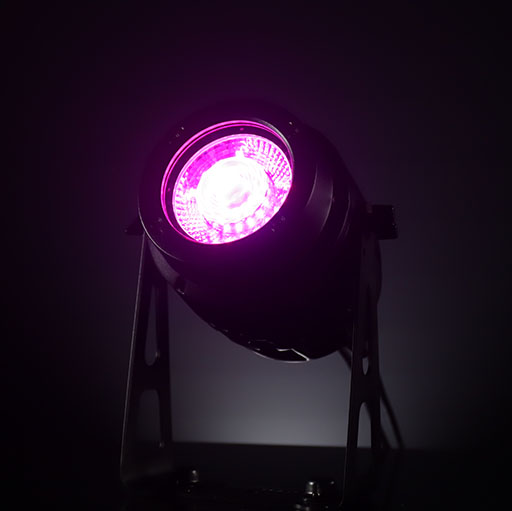

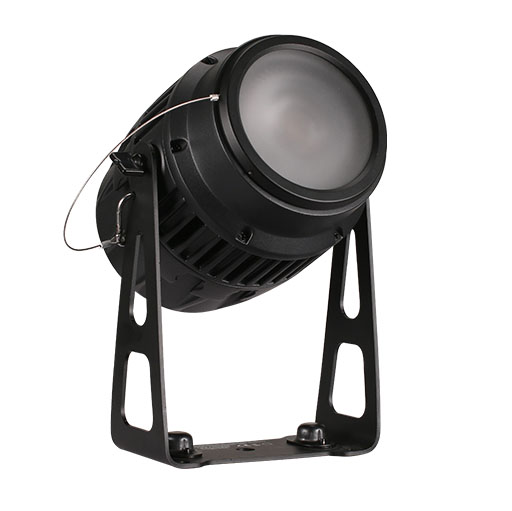

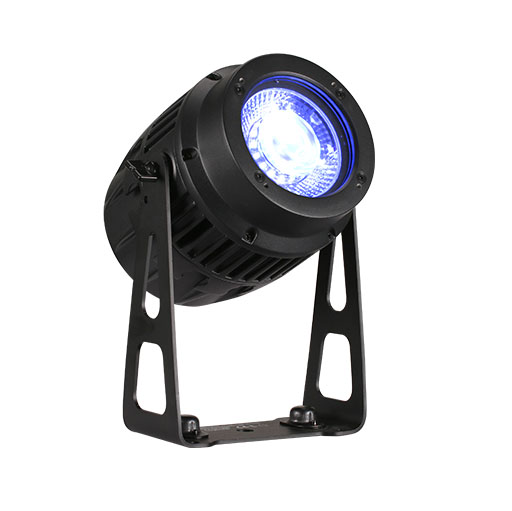

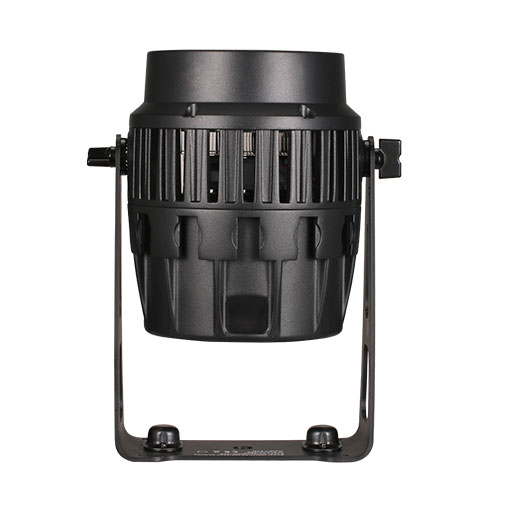

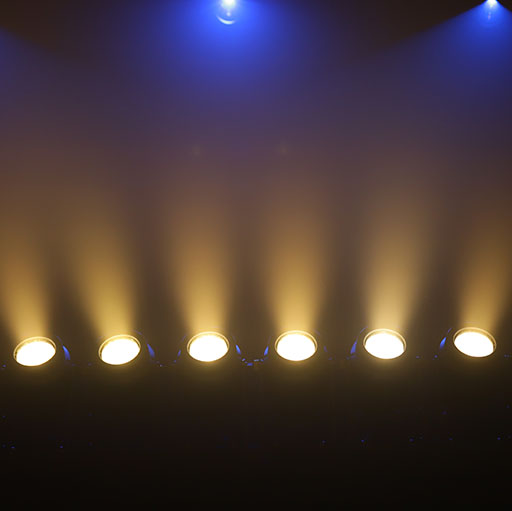

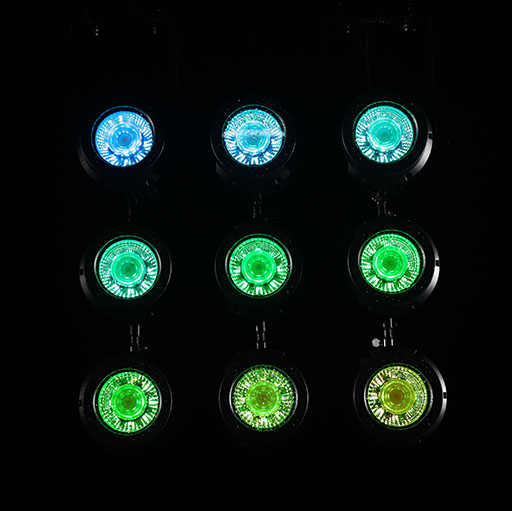

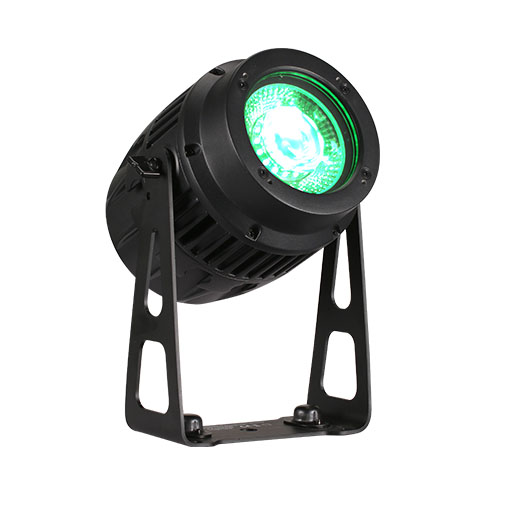

Product Images

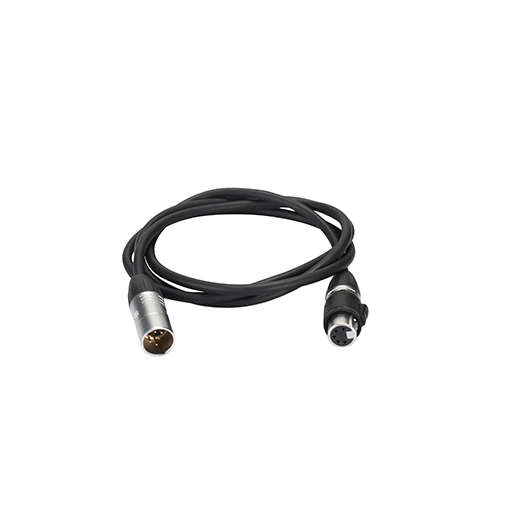

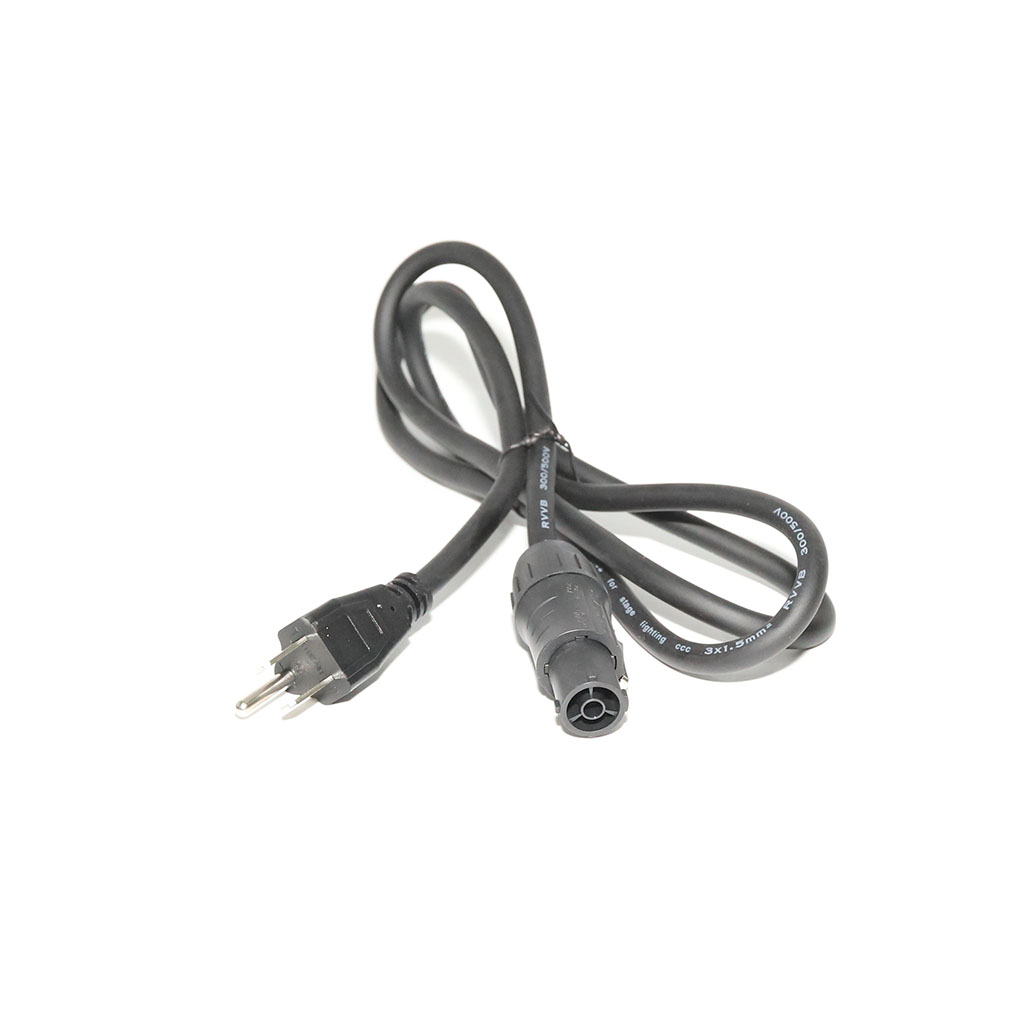

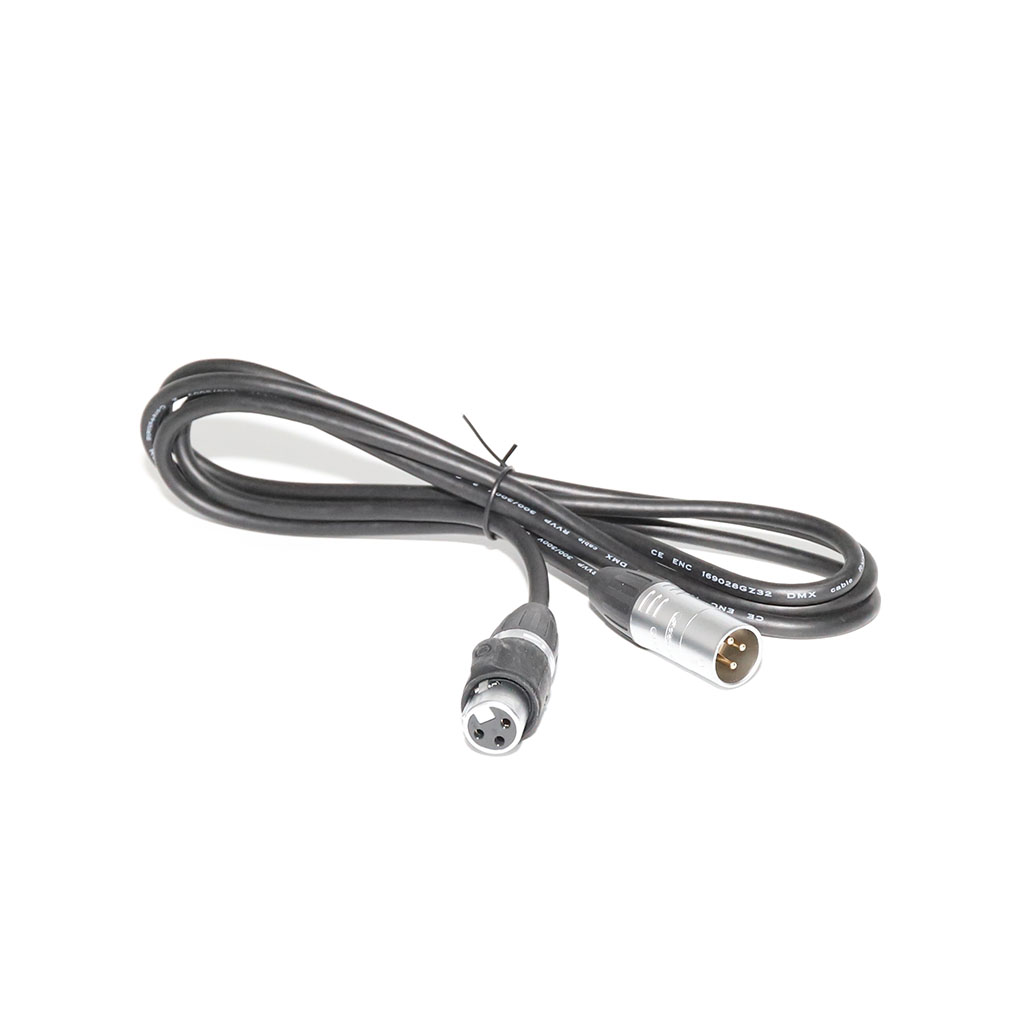

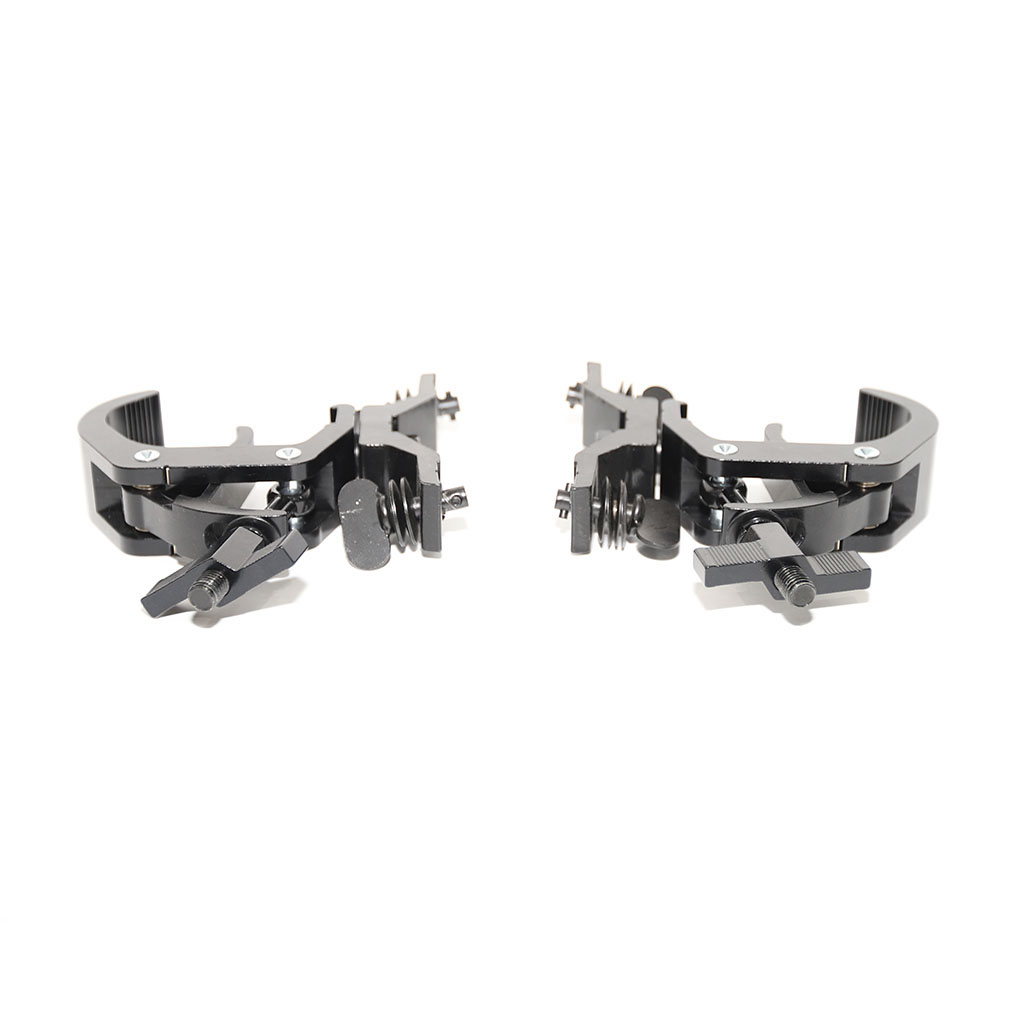

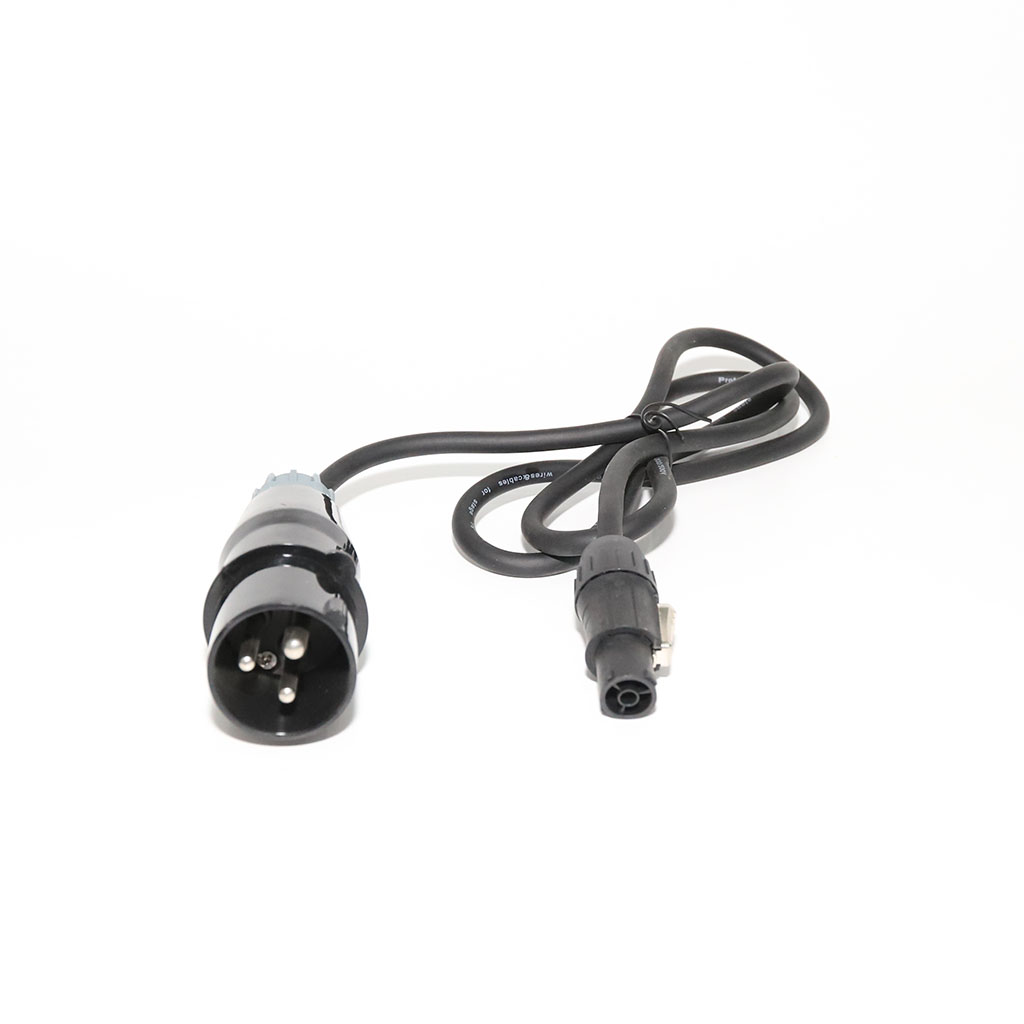

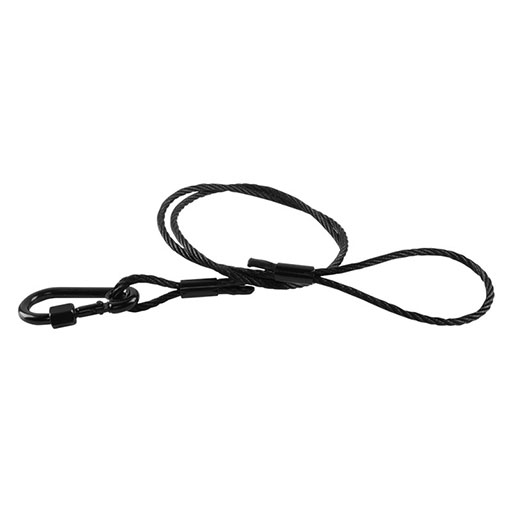

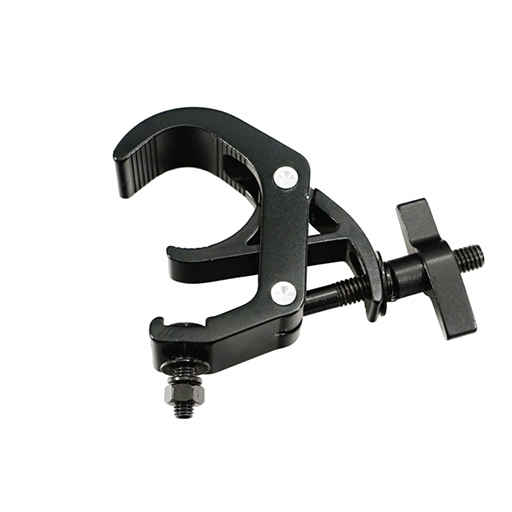

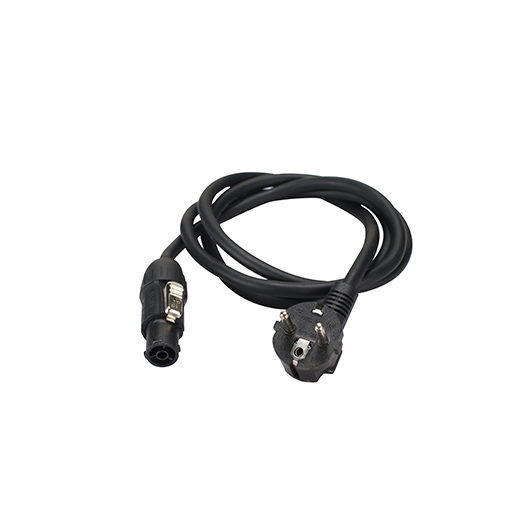

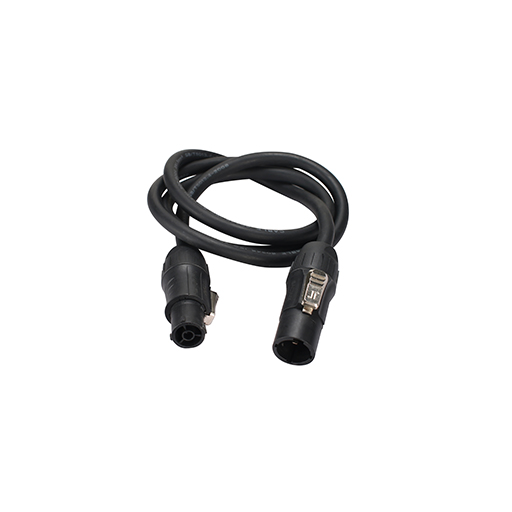

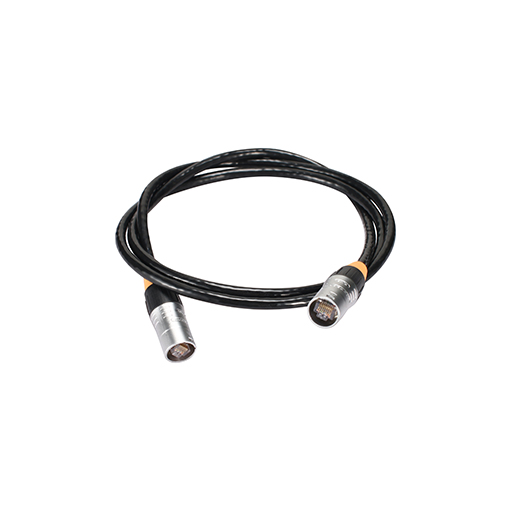

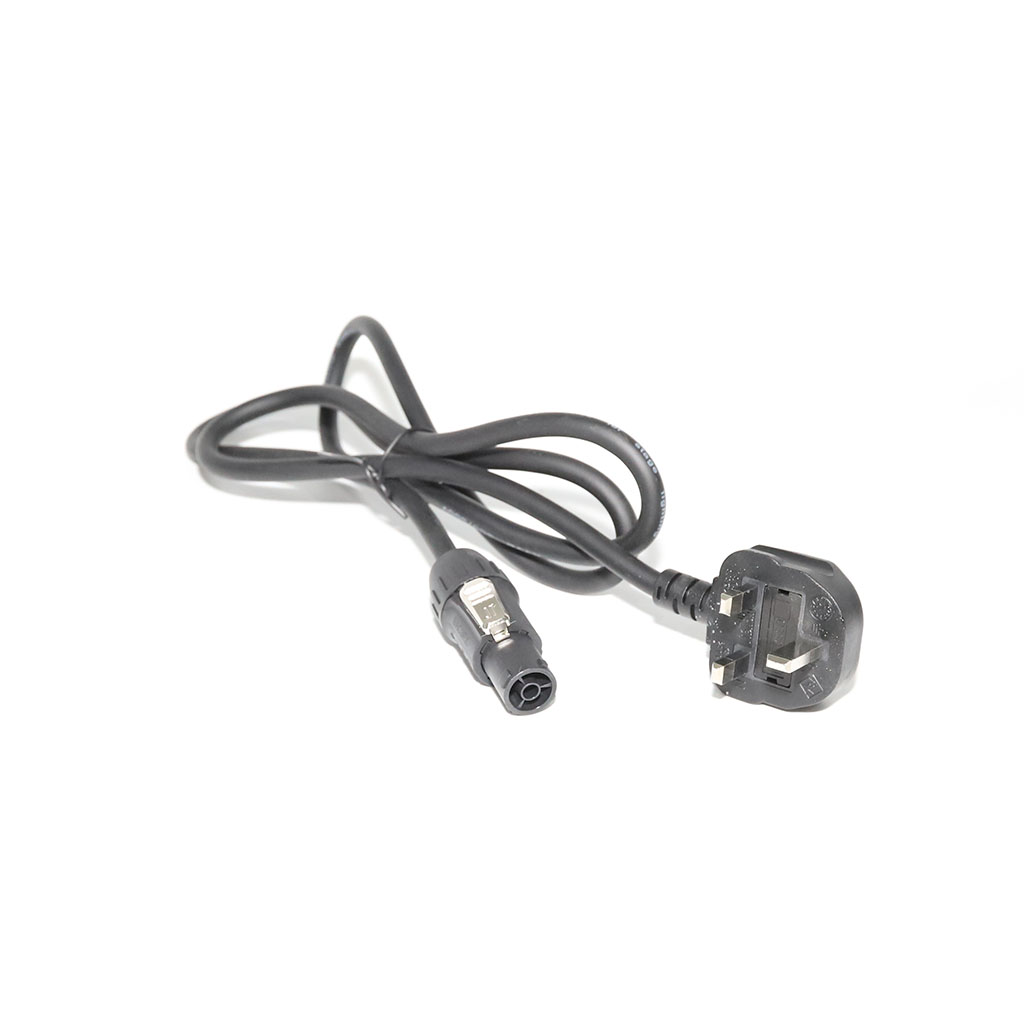

Accessories

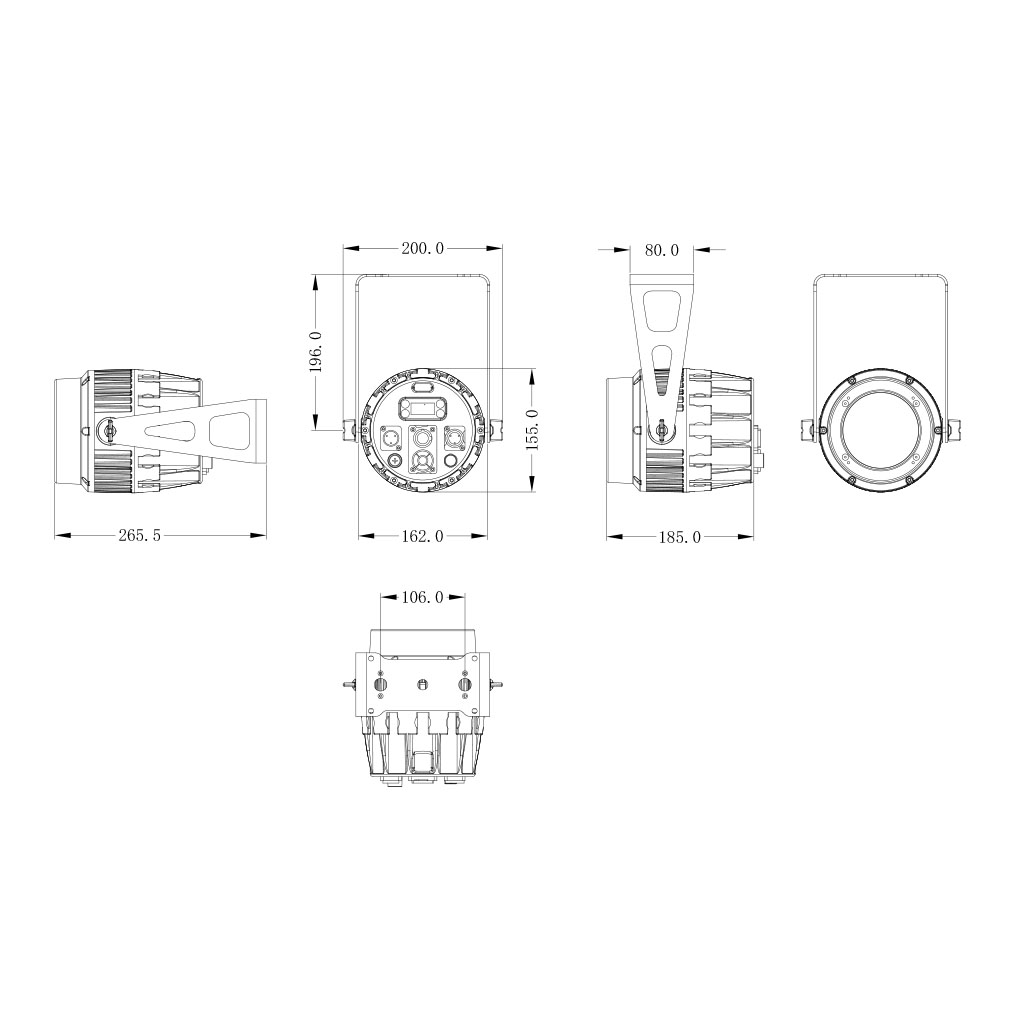

Technical Drawing

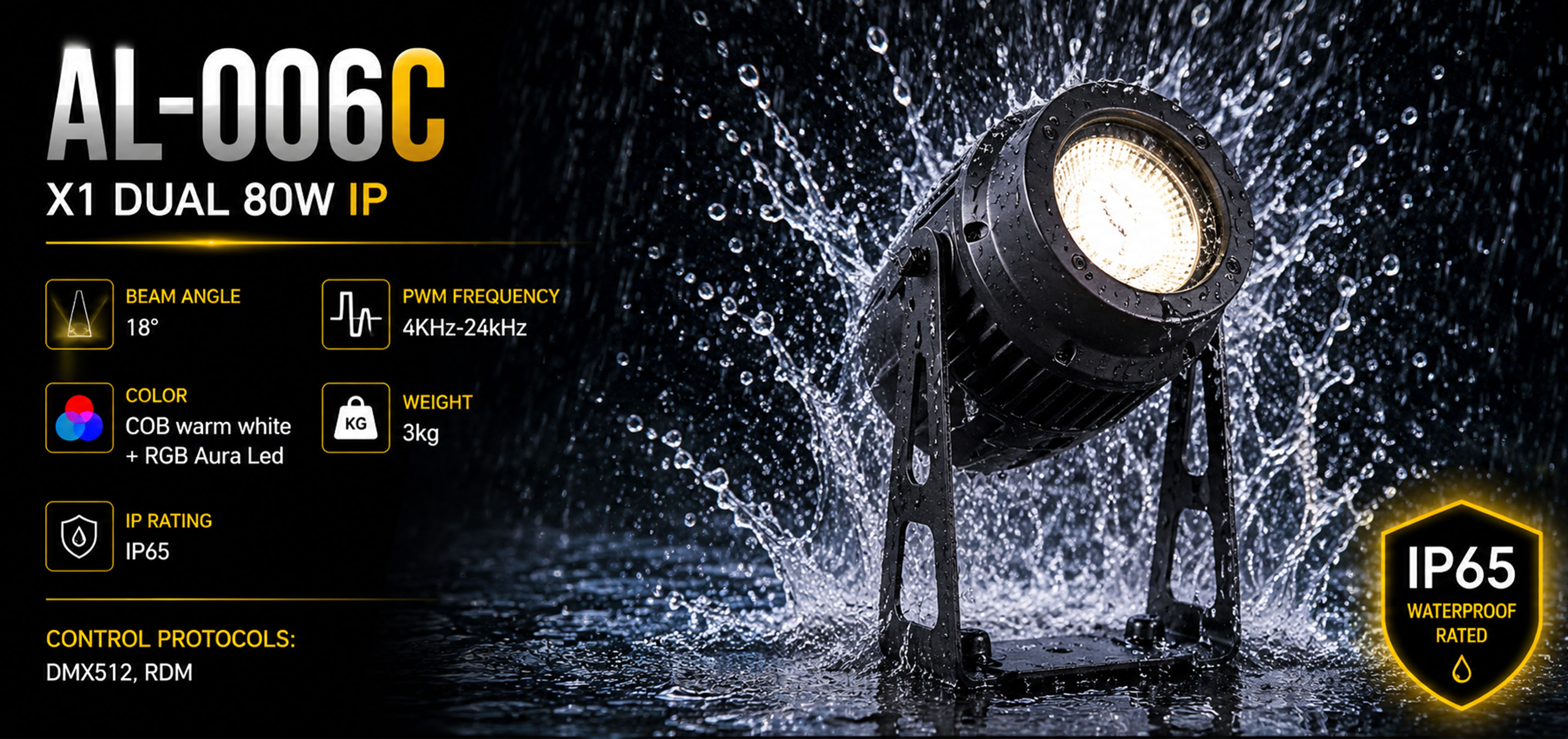

  • Beam angle
    18°
  • PWM frequency
    4kHz-24kHz
  • Color
    COB warm white+RGB Aura Led
  • Weight
    3kg
  • IP Rating
    IP65

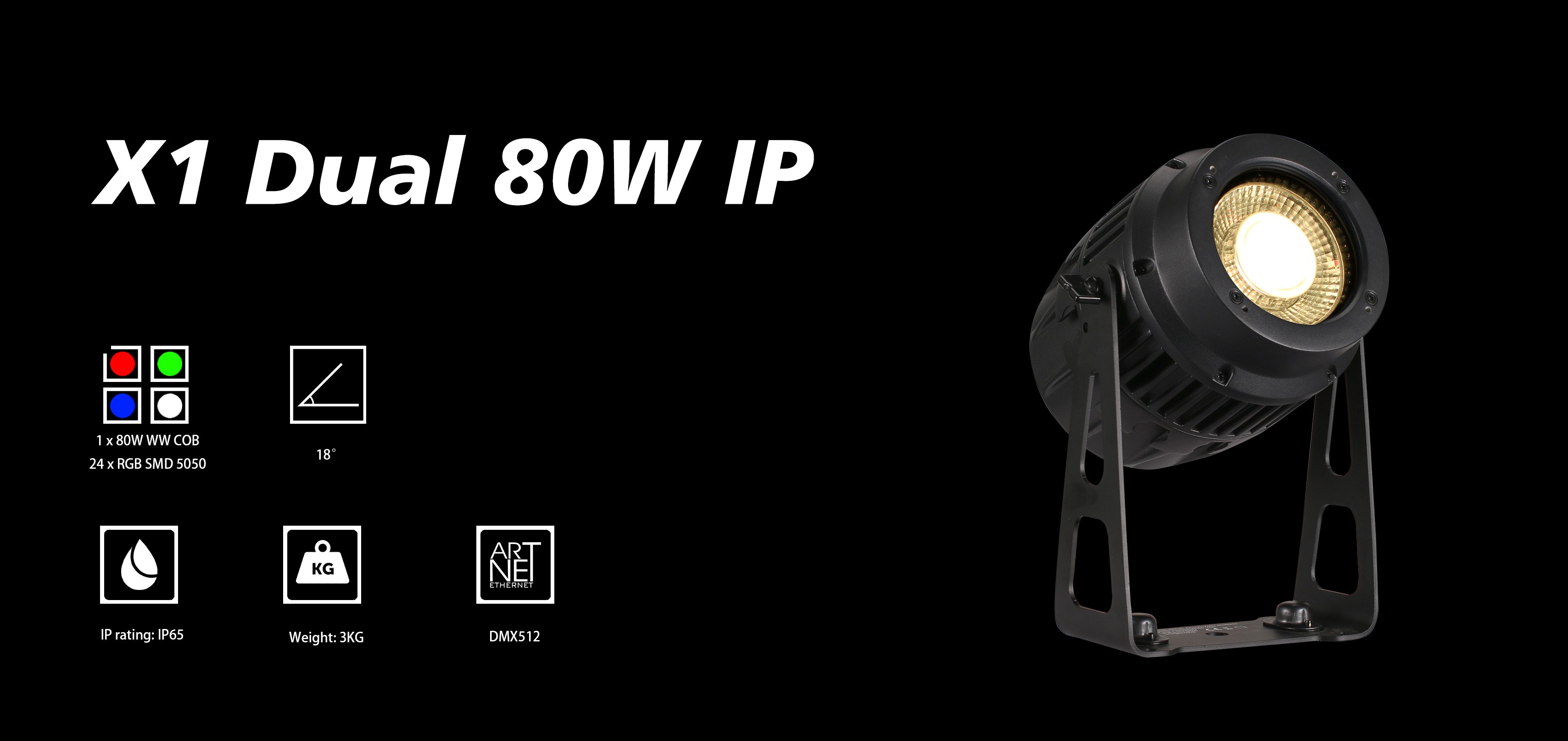

AML LIGHTING - AL-006C Technical Specifications

Technical Specifications

Light Source & Optics

  • Main Light Source: 1*80W COB warm white LED

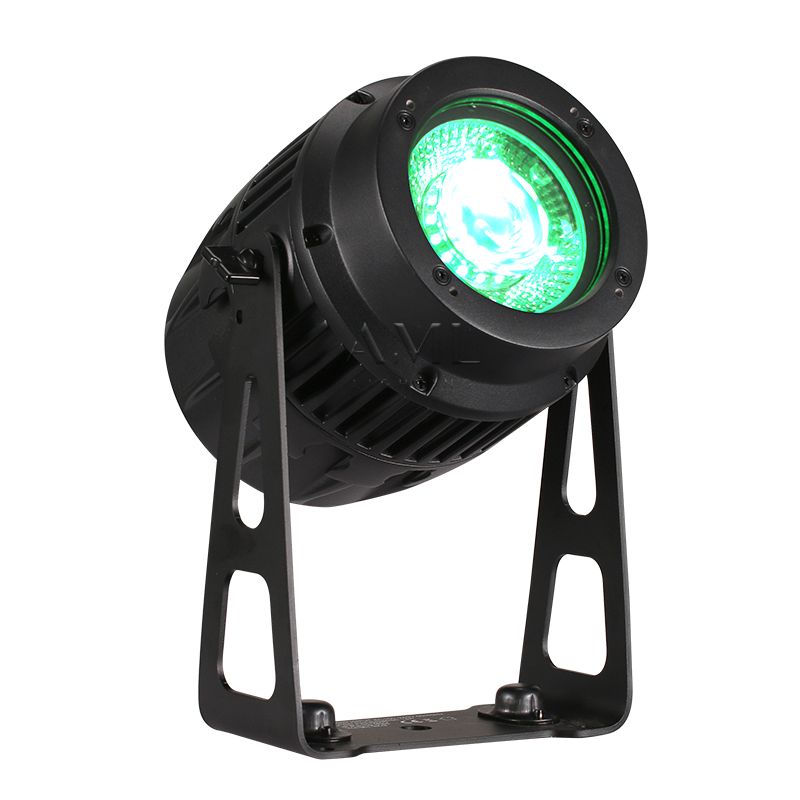

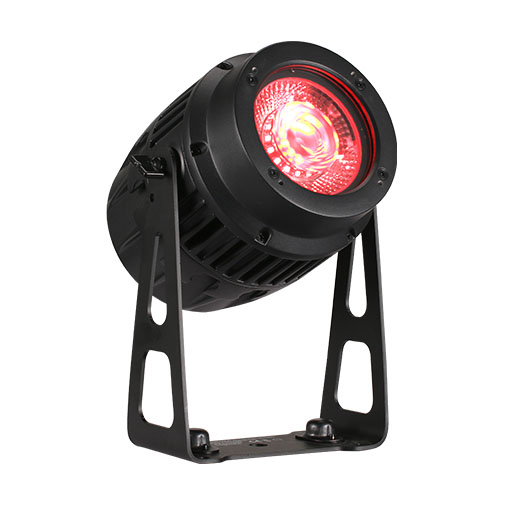

  • Aura Effects: 24*RGB 5050 as Aura effects

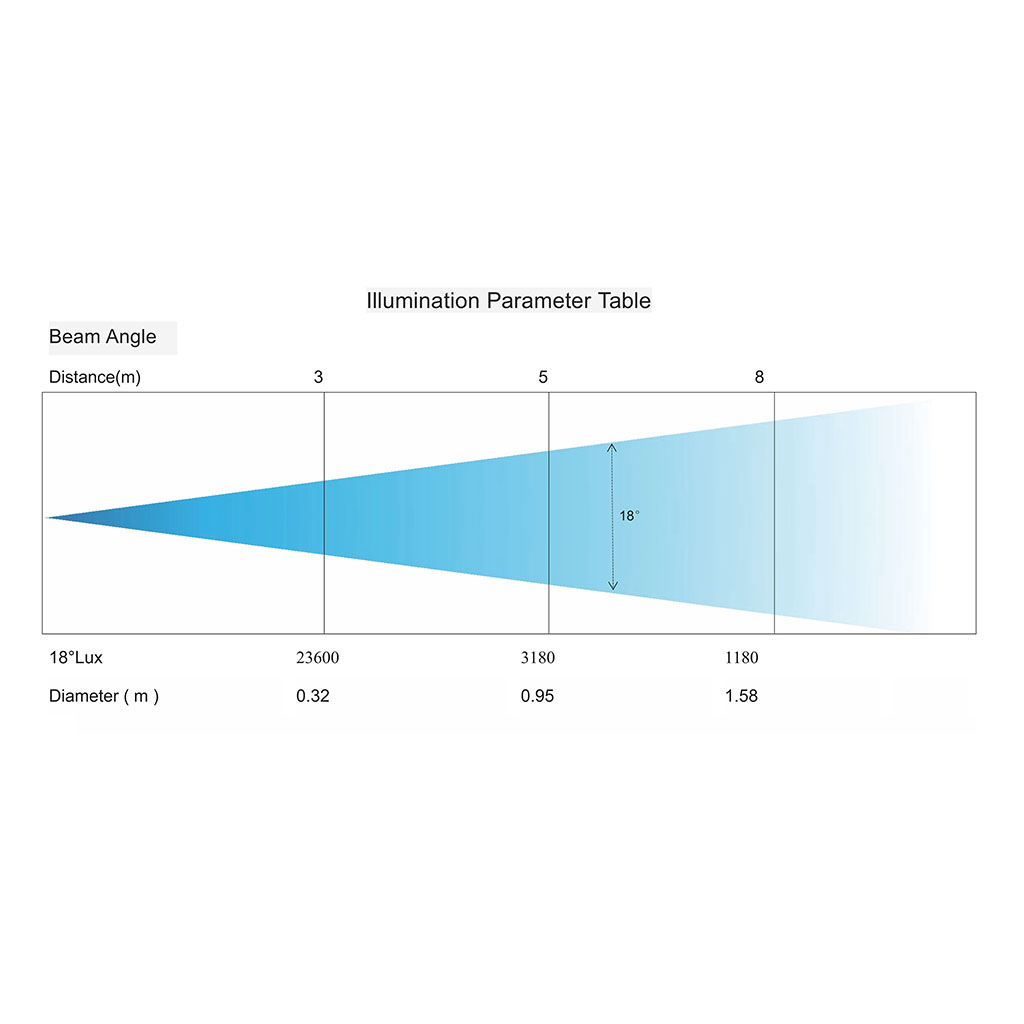

  • Beam Angle: 18°

  • LED Lifespan: 30,000 hours

Dynamic Effects

  • Strobe Rate: Variable Strobe Rate: 1-20Hz

  • Dimming Features: Dim-to-Warm / Red Shift Emulation

  • Dimming Modes: Variable 16-bit Dimming Modes and Curves

  • Output Options: High Output Blinder Mode or Constant Output Mode Options

Control & Connections

  • DMX Channels: 2 DMX Channel Modes (11ch, 73ch)

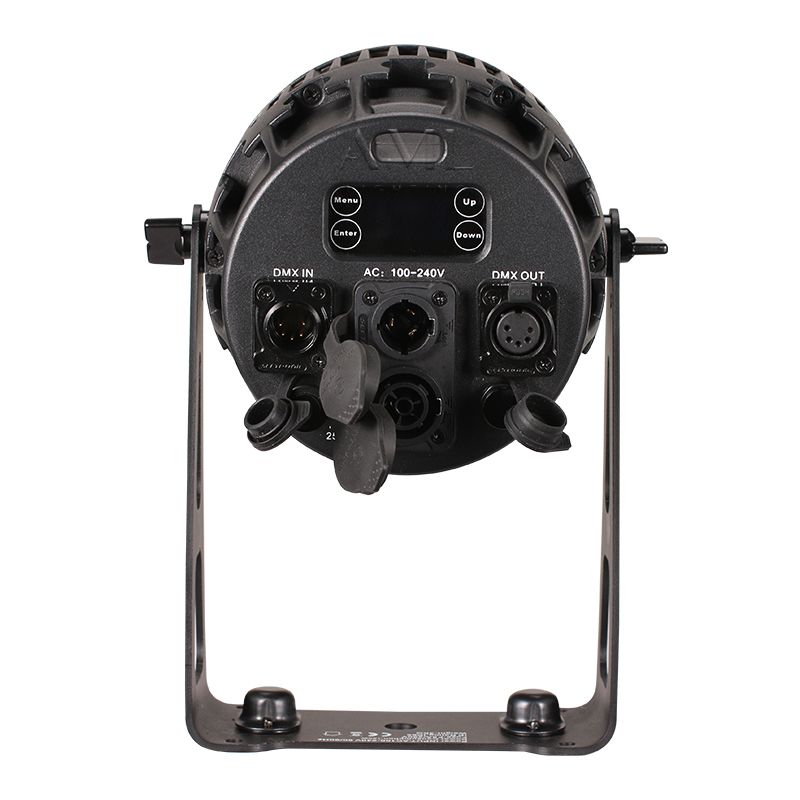

  • Display & Interface: 4 Button Control Panel, LED Display

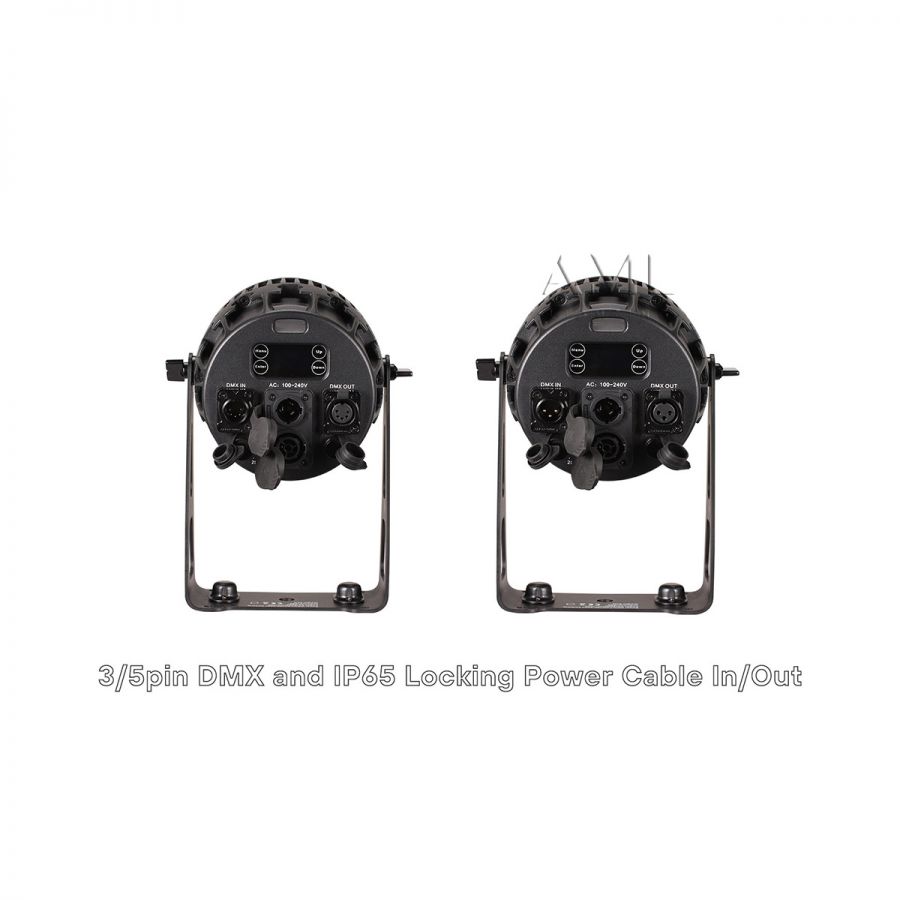

  • Connections: 3/5pin DMX and IP65 Locking Power Cable In/Out

Electrical & Physical

  • Mains: 100-240V AC / 50-60Hz

  • Consumption: 100W (Max 80W)

  • Ambient Temp: -30°C ~ 45°C

  • Dimensions: 185 x 162 x 174 MM

  • Weight: 3 kg

  • IP Rating: IP65

#
.
