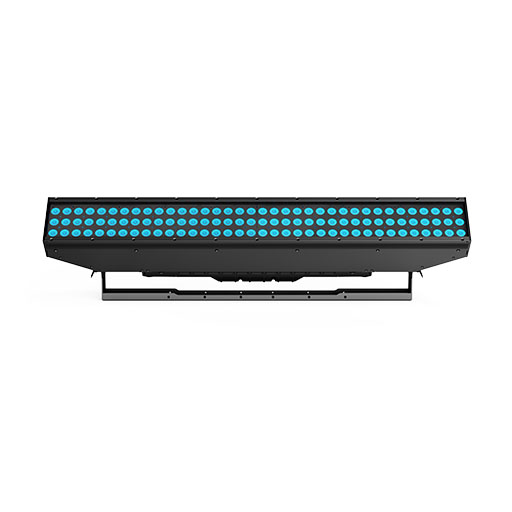

LEDs: 108*10W RGBW LEDs divided into 12 pixels

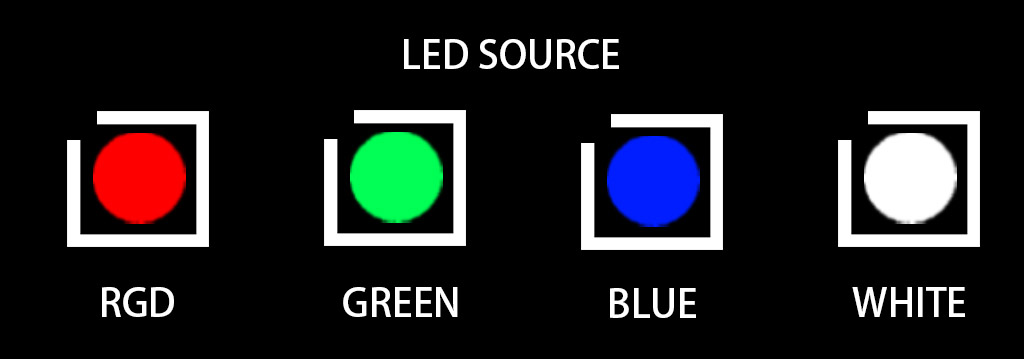

Color: RGBW

Beam Spread: 36°

Average Color Wavelength: Red: 625 nm / Green: 530 nm / Blue: 460 nm / White: >5700K

Intensity Control: 16bit or 8bit

Refresh Rate: From 400 to 24K (Default: 1200Hz)

Control Protocol: RDM, DMX-512, ArtNet, sAcn, Manual Mode

DMX Channels: 9, 19, 53

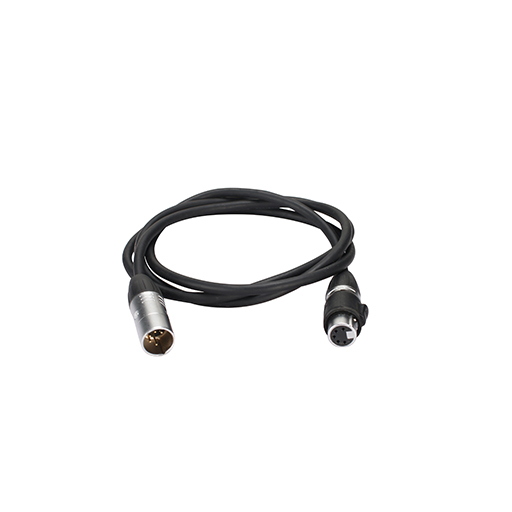

DMX Connections: Locking 5-pin XLR male/female socket

DMX Pin Config: pin 1 shield, pin 2 (-), pin 3 (+), pin 4 n/a, pin 5 n/a

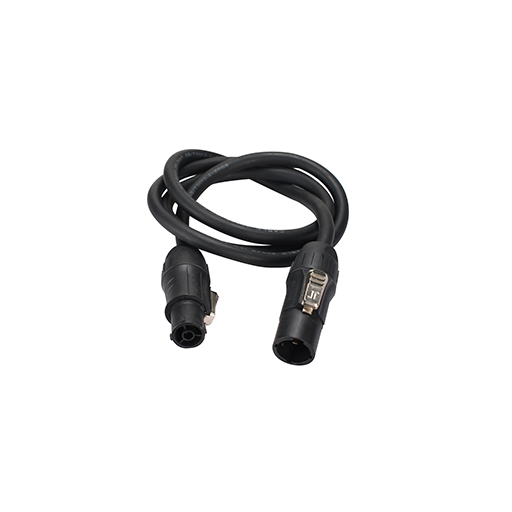

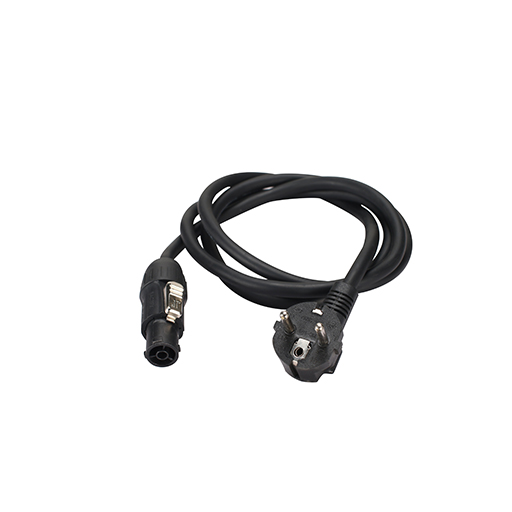

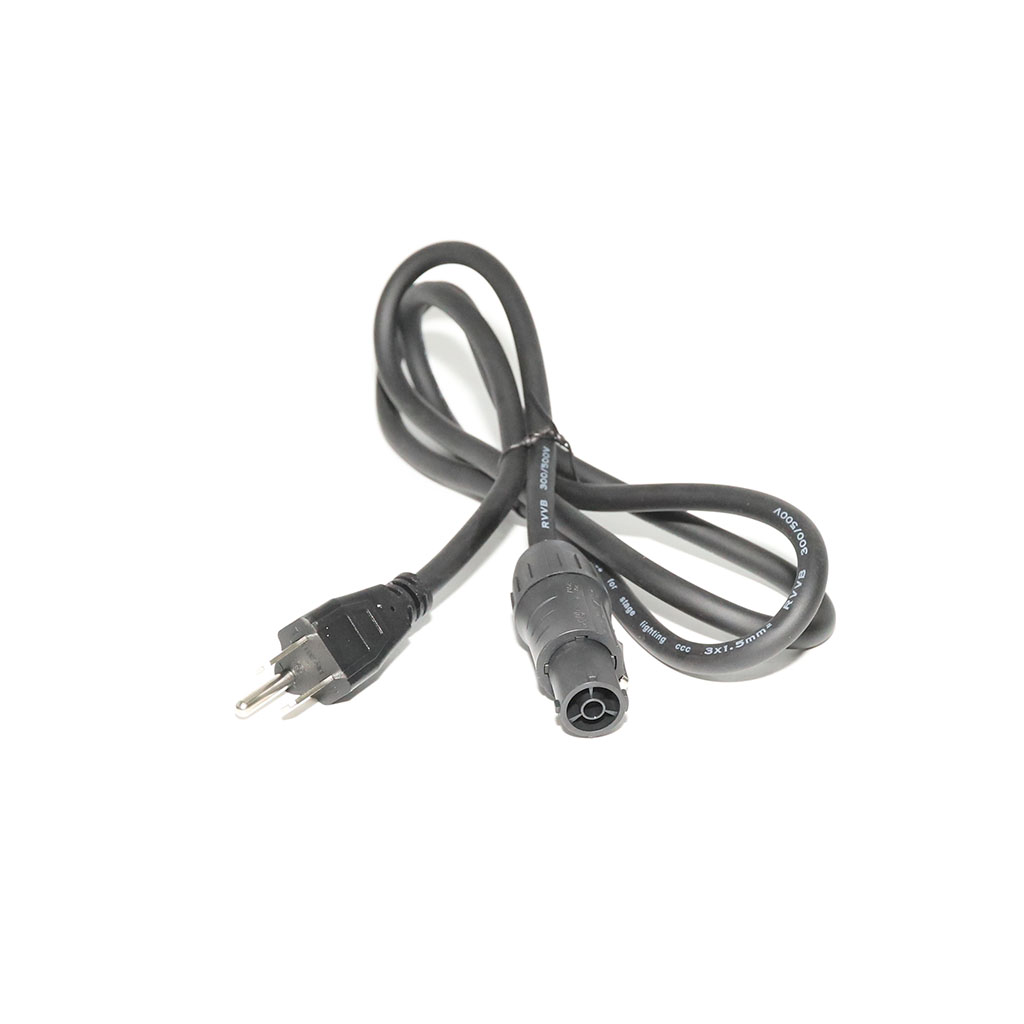

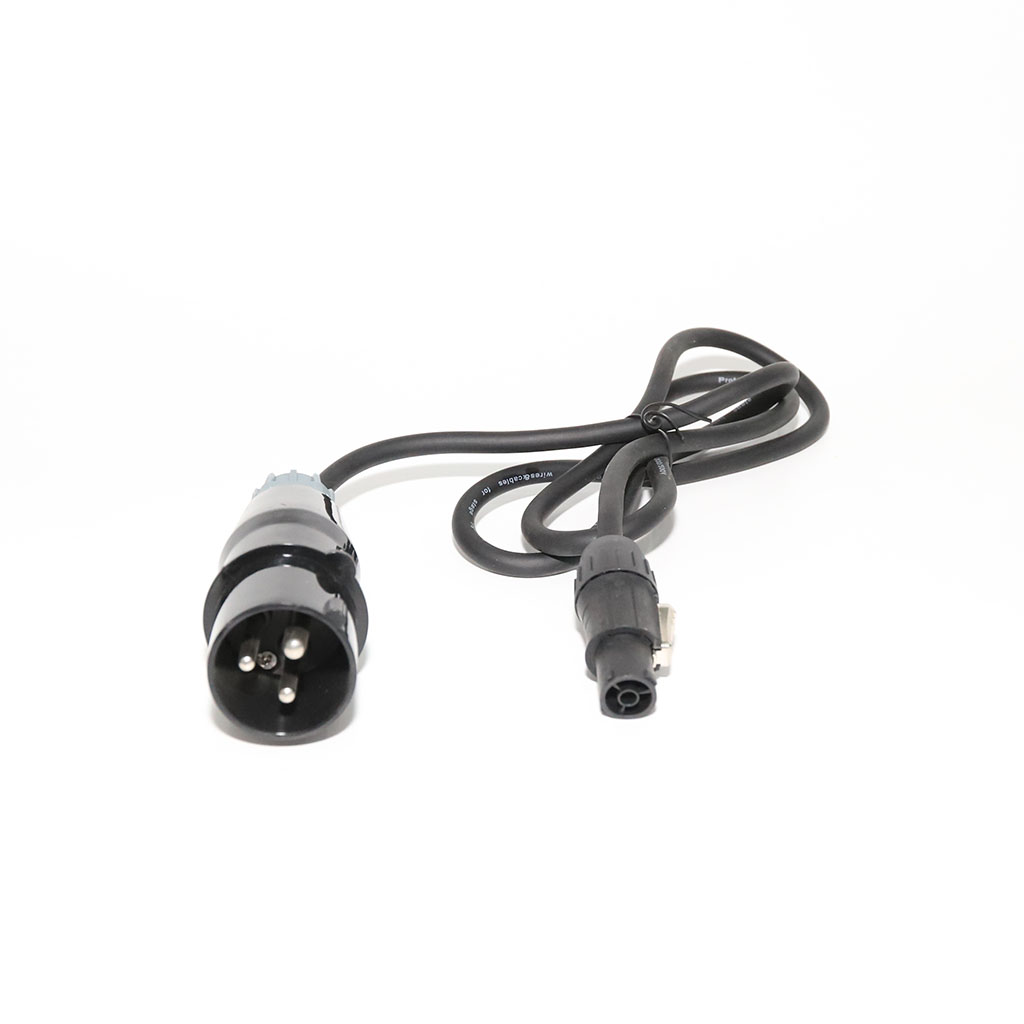

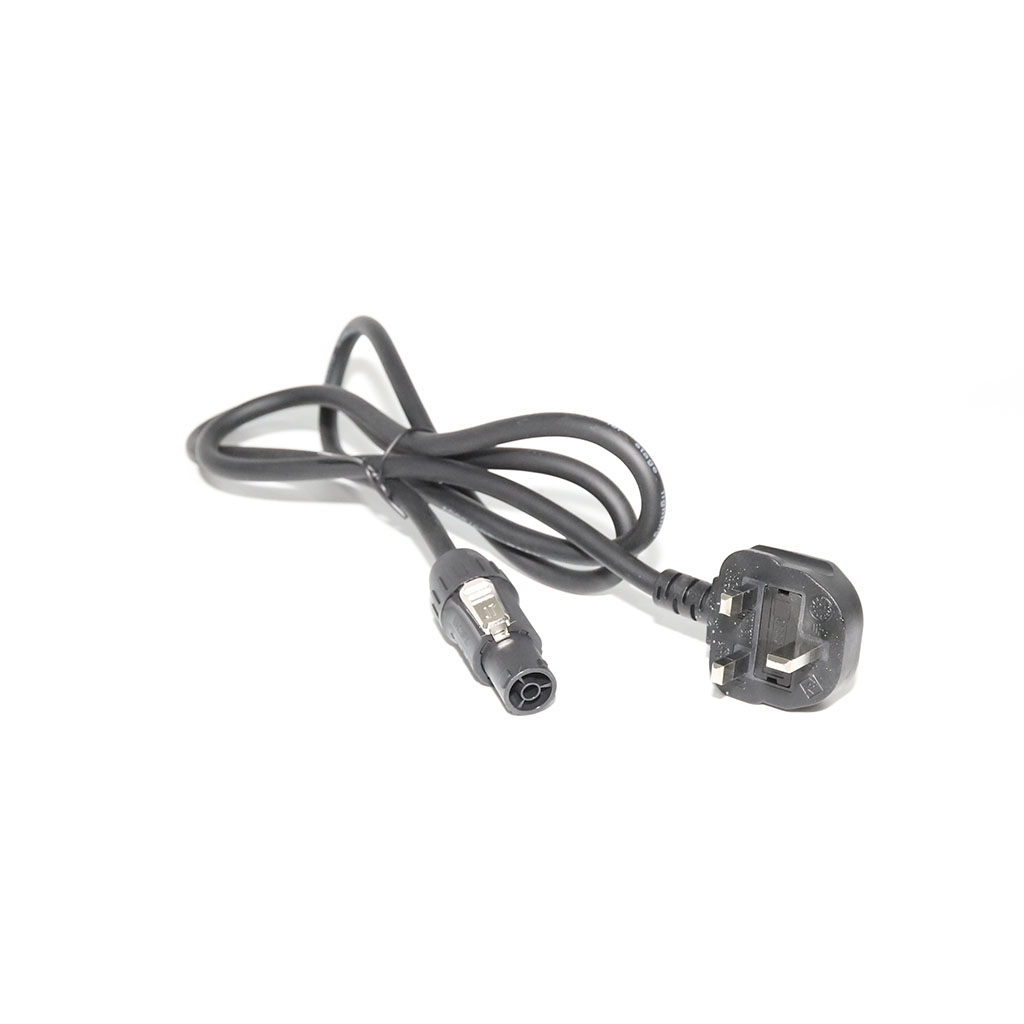

Power Connector: Input: PowerCon 20A

Operating Voltage: 100-277VAC 50/60Hz

Power Consumption: 1400W

Fuse: 12A 250V slow-blow (5x20mm)

Thermal: Max. ambient: +104°F (+40°C) / Min. ambient: -4°F (-20°C)

Cooling: Air cooled – fan

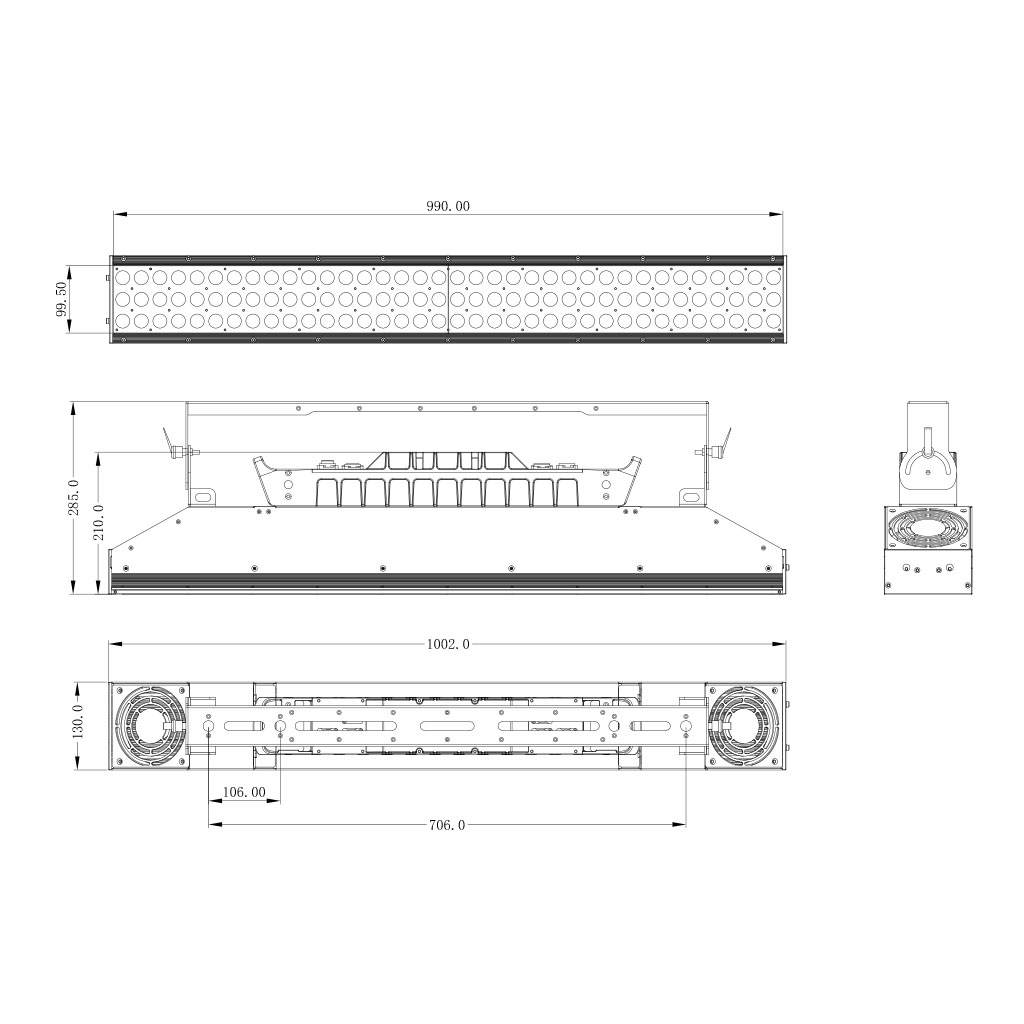

Dimensions: 1002 x 130 x 210 mm (39.4” x 5.12” x 8.27”) without yoke

Weight: 17 kg

IP Rating: IP65
