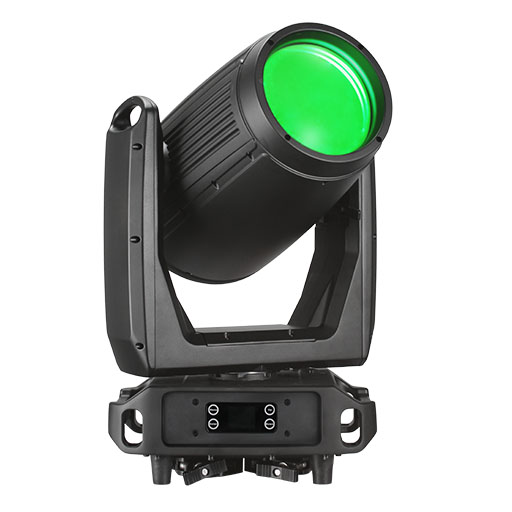

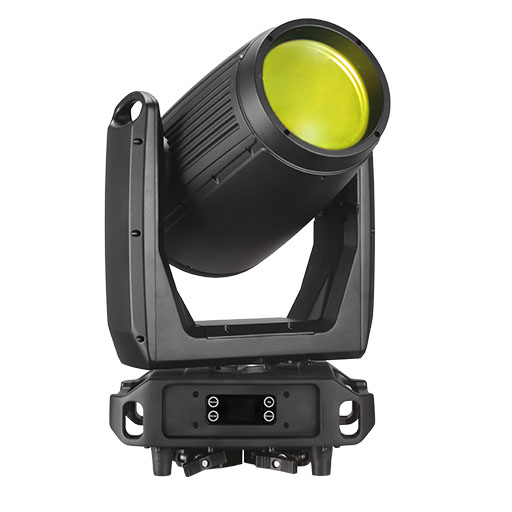

Product Parameters

• Optical & Laser System

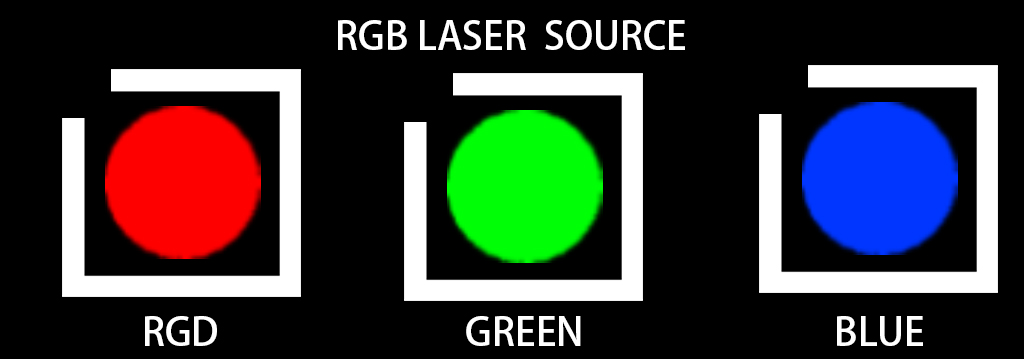

• Light Source: High-Performance RGB Semiconductor Laser Source

• Total Laser Power: 60W (Combined RGB Output)

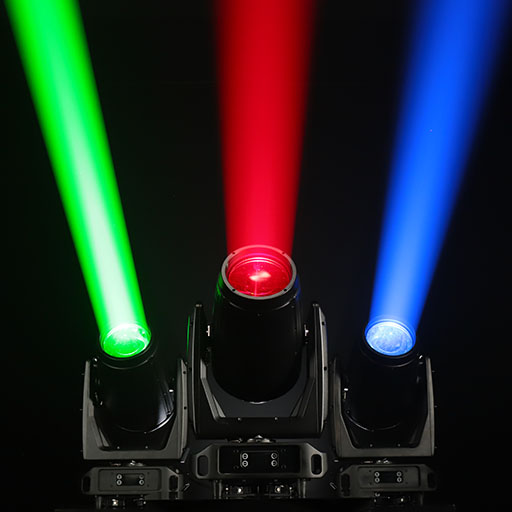

• Red: 638nm | Green: 520nm | Blue: 450nm

• Luminous Flux: ≥ 10,000 lm (Typical Value)

• Beam Characteristics:

• Aperture (Initial Beam Diameter): 80mm – 120mm

• Beam Divergence: < 0.35 mrad (Ultra-tight beam collimation)

• Light Source Lifespan: ≥ 20,000 Hours

1. Movement & Precision

2. Pan/Tilt Movement: 540° Pan / 270° Tilt

3. Control Resolution: 16-bit High-Precision Scanning & Positioning

4. Calibration: Automatic X/Y repositioning and correction

• Control & Protocols

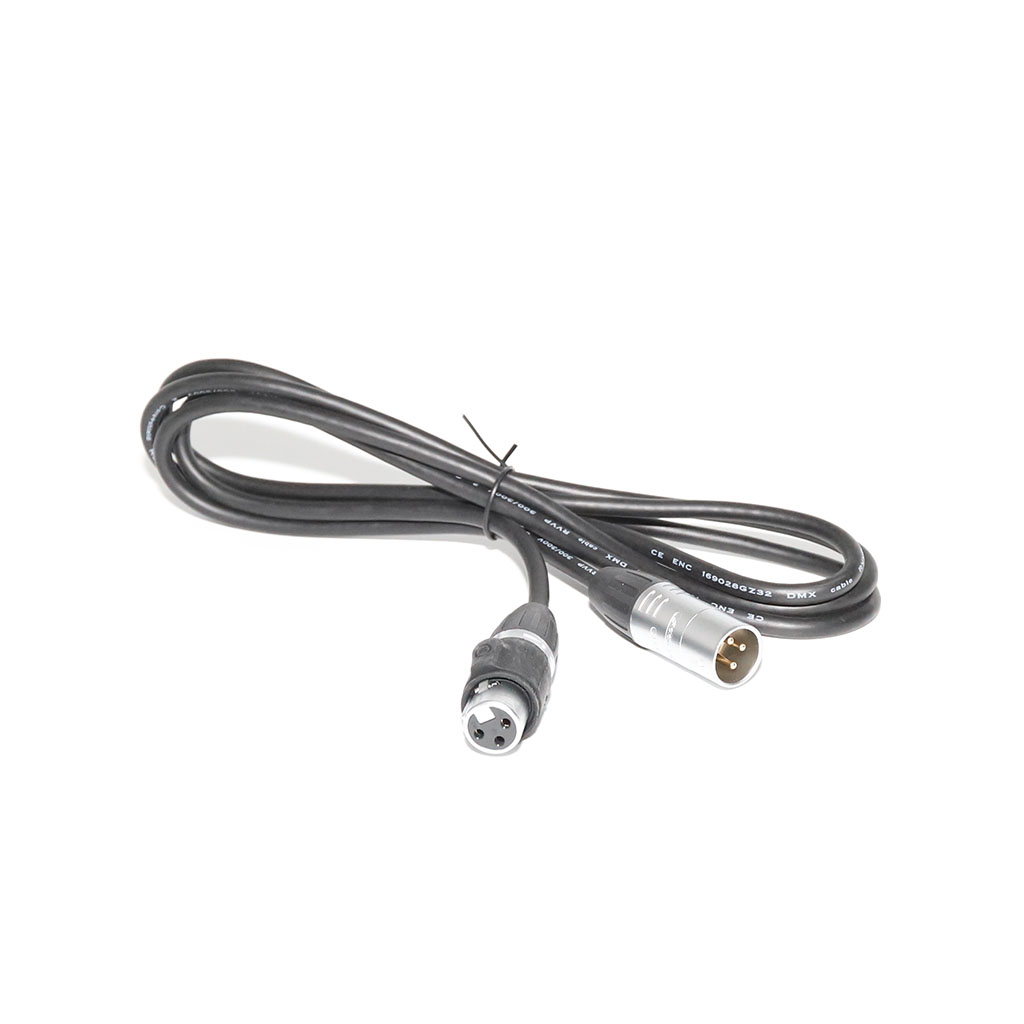

• Advanced Connectivity: Art-Net, sACN, DMX-512, RDM

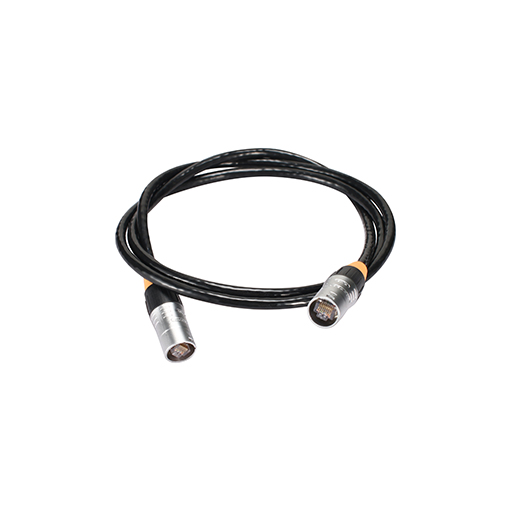

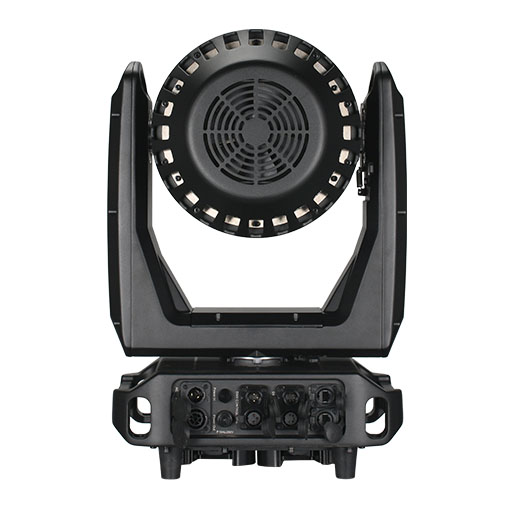

• Ethernet Support: Integrated High-speed Switch (Dual RJ45 EtherCON)

• Control Interface: Professional LCD menu with battery backup (Optional)

1. Electrical & Thermal

2. System Power Consumption: 500W

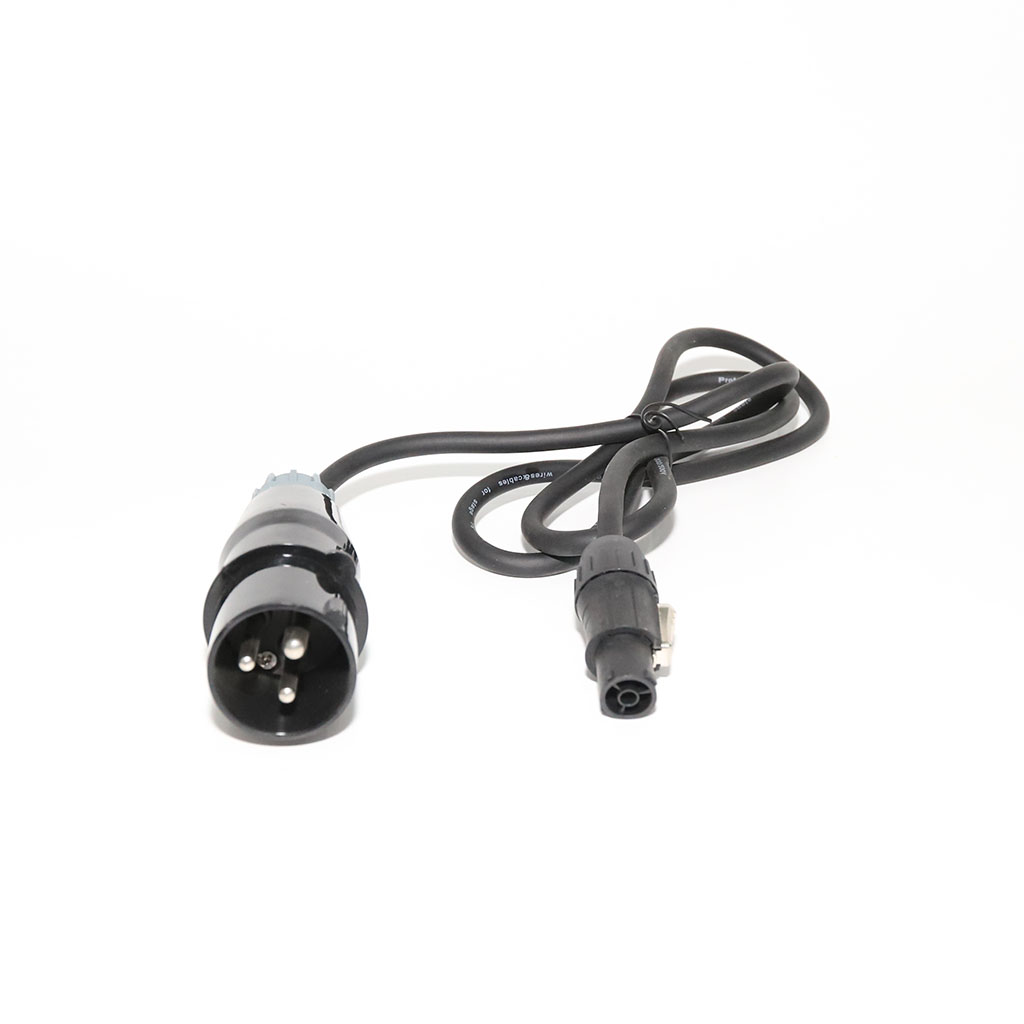

3. Input Voltage: AC 100V–240V, 50/60Hz

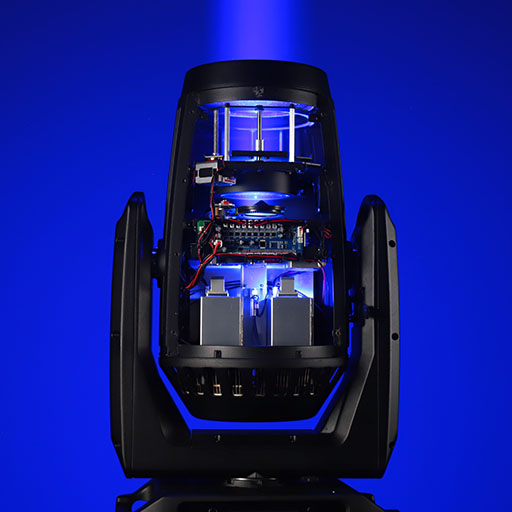

4. Thermal Management: Integrated Active Cooling System with intelligent temperature sensors and laser diode protection

• Physical & Environmental

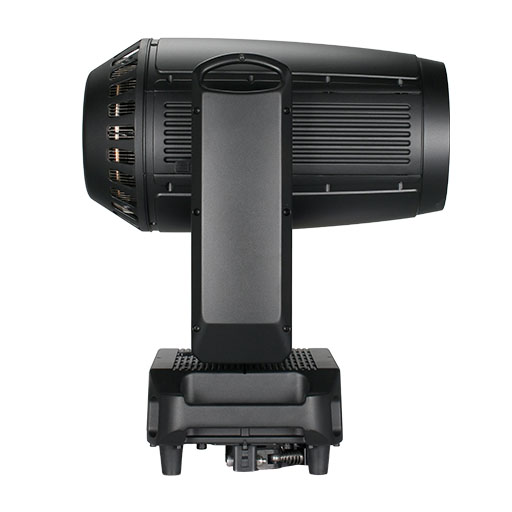

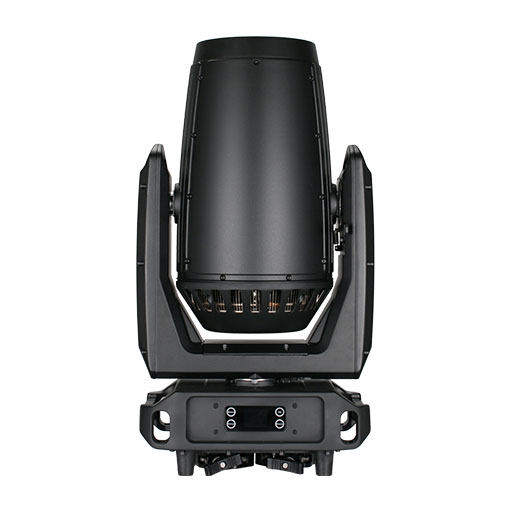

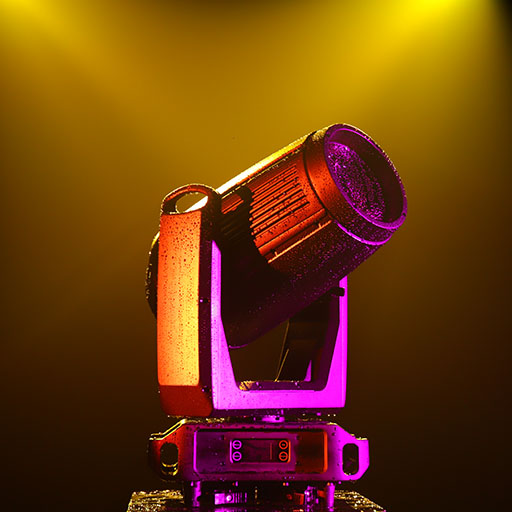

• Construction: Rugged, High-strength housing for professional touring

• Operating Temperature: -20°C to 45°C (-4°F to 113°F)

• Weight: 22.0 kg

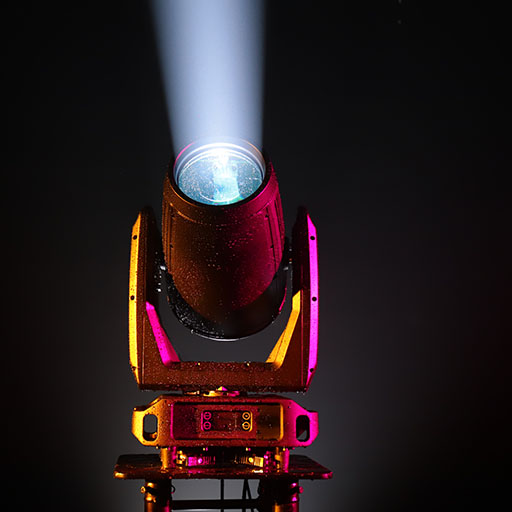

• Protection Rating: IP65
